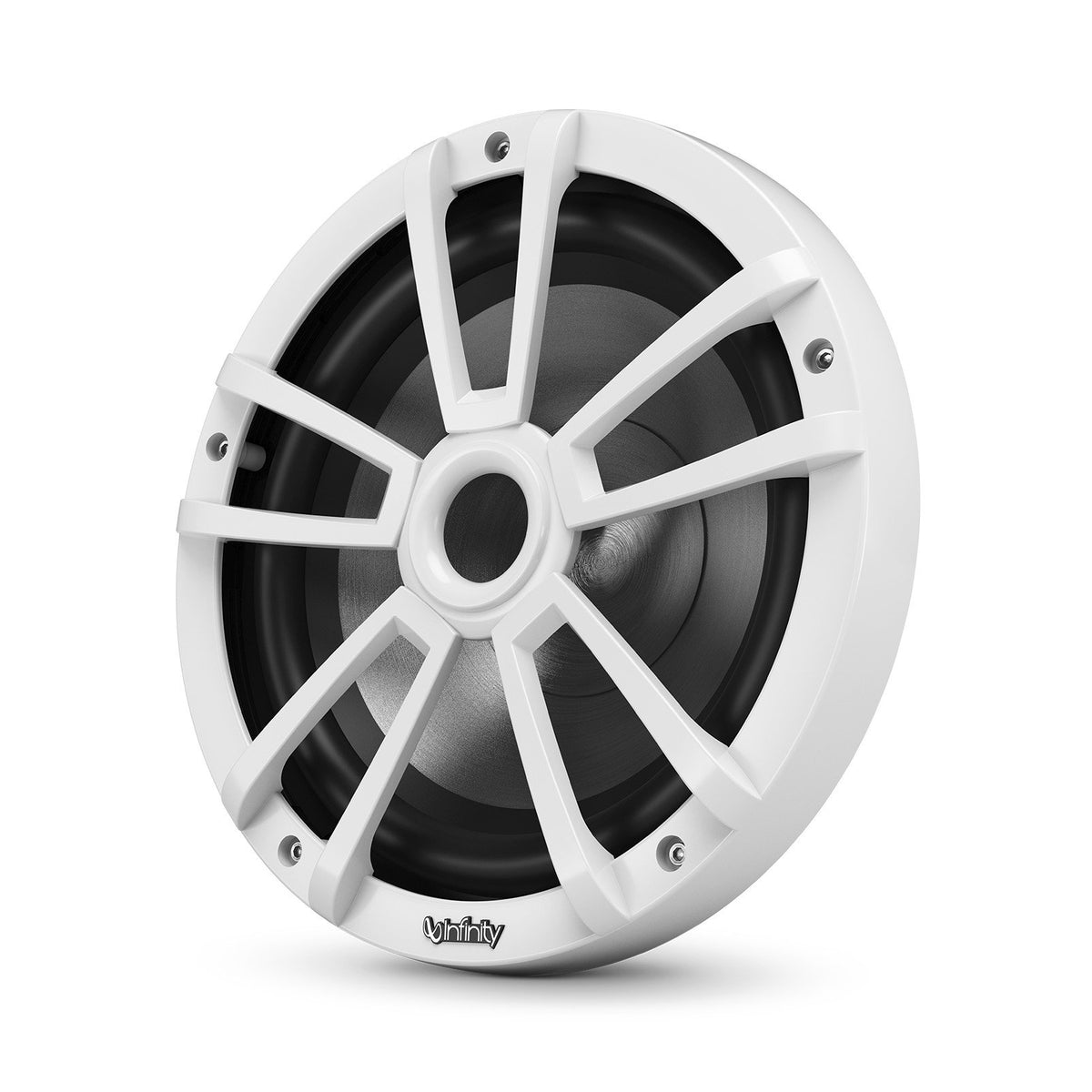

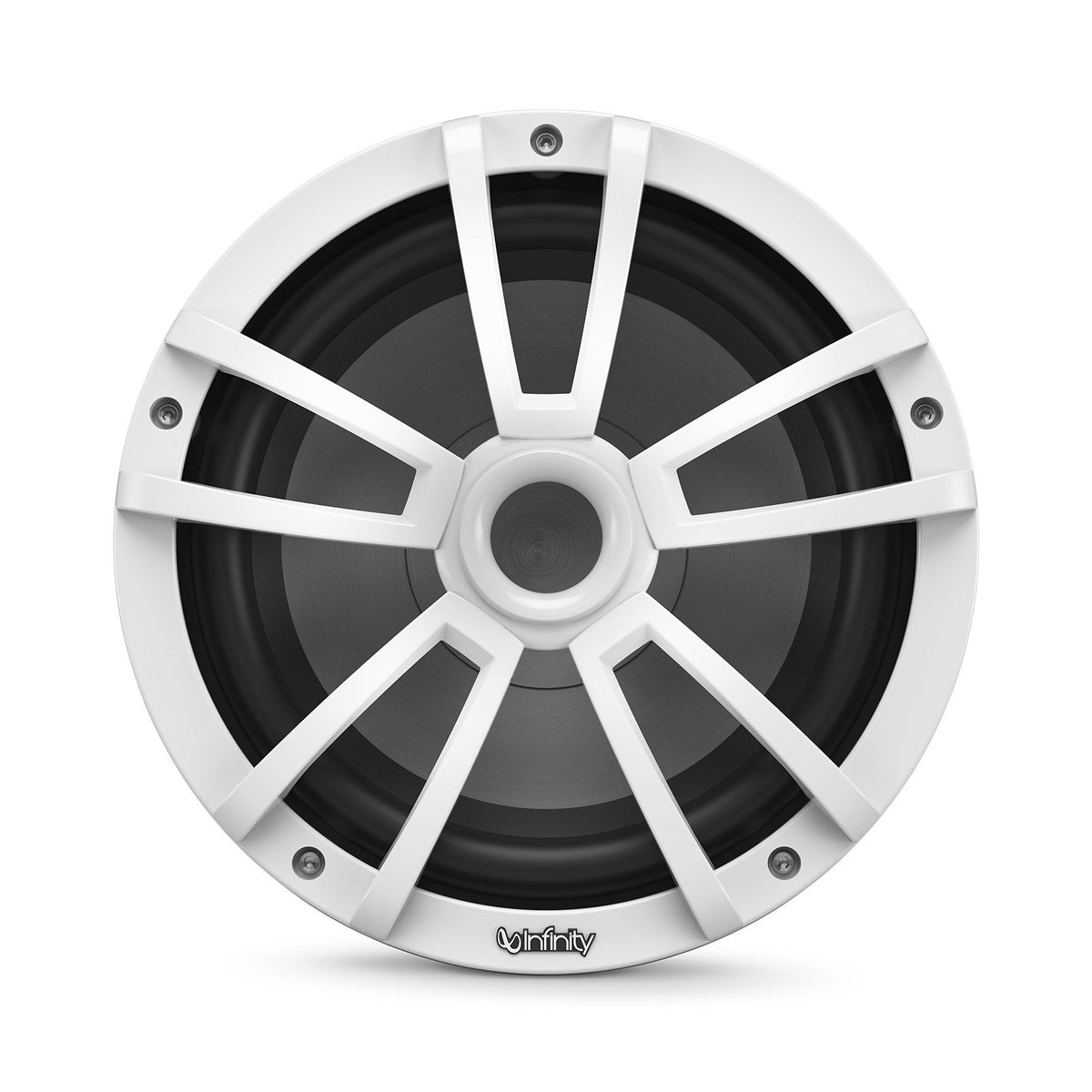

Infinity 1022MLW 10" Marine Subwoofer with RGB Lighting

The Infinity 1022MLW is a 10-inch marine subwoofer designed to add low-frequency output to a boat or other outdoor audio system. Its white finish, included grille, and integrated RGB LED lighting help it coordinate with marine speaker installations. It is built for applications where conventional car-audio subwoofers may not be suited to exposure from sun, salt, sea spray, and washdowns.

This passive 4-ohm subwoofer is intended for listeners who want fuller bass from a marine sound system without changing the visible character of the installation. With 250 watts RMS and 750 watts peak power handling, it is designed to pair with an appropriately matched external amplifier. Its 25Hz to 500Hz frequency response supports bass reproduction while leaving higher frequencies to the system's full-range speakers.

The 1022MLW uses a polypropylene cone and rubber surround to support durable low-frequency operation in marine environments. Its listed sensitivity is 89dB at 2.83V/1m, and its free-air resonance is 35.60Hz. The single 4-ohm voice-coil configuration provides a straightforward load for a compatible marine amplifier.

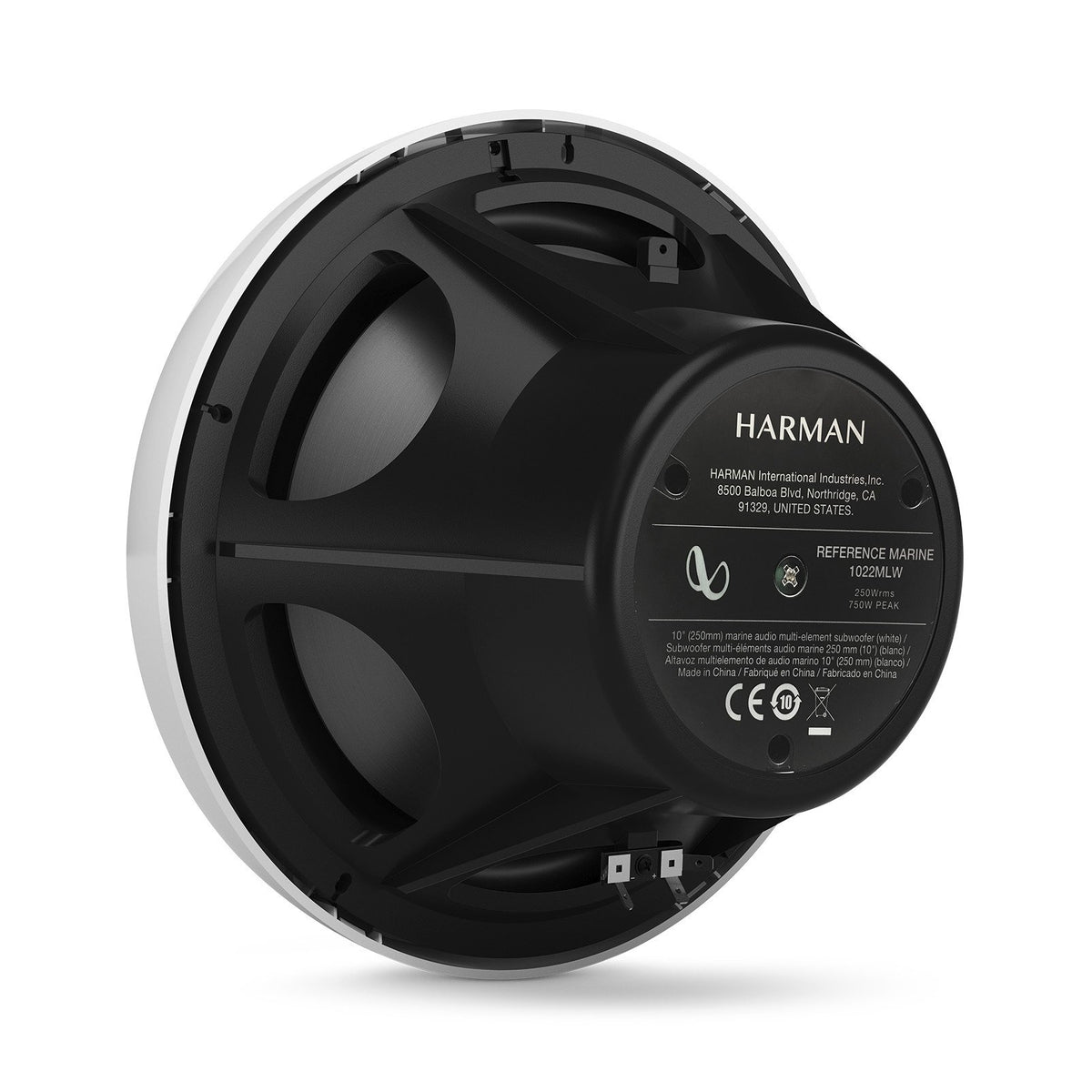

Infinity equips this model with an IPX5 marine rating and a sealed motor structure for outdoor use. The design also includes a sealed magnet and a UV-resistant one-piece cast-polymer basket. These construction details are intended to help the subwoofer withstand demanding marine installation conditions.

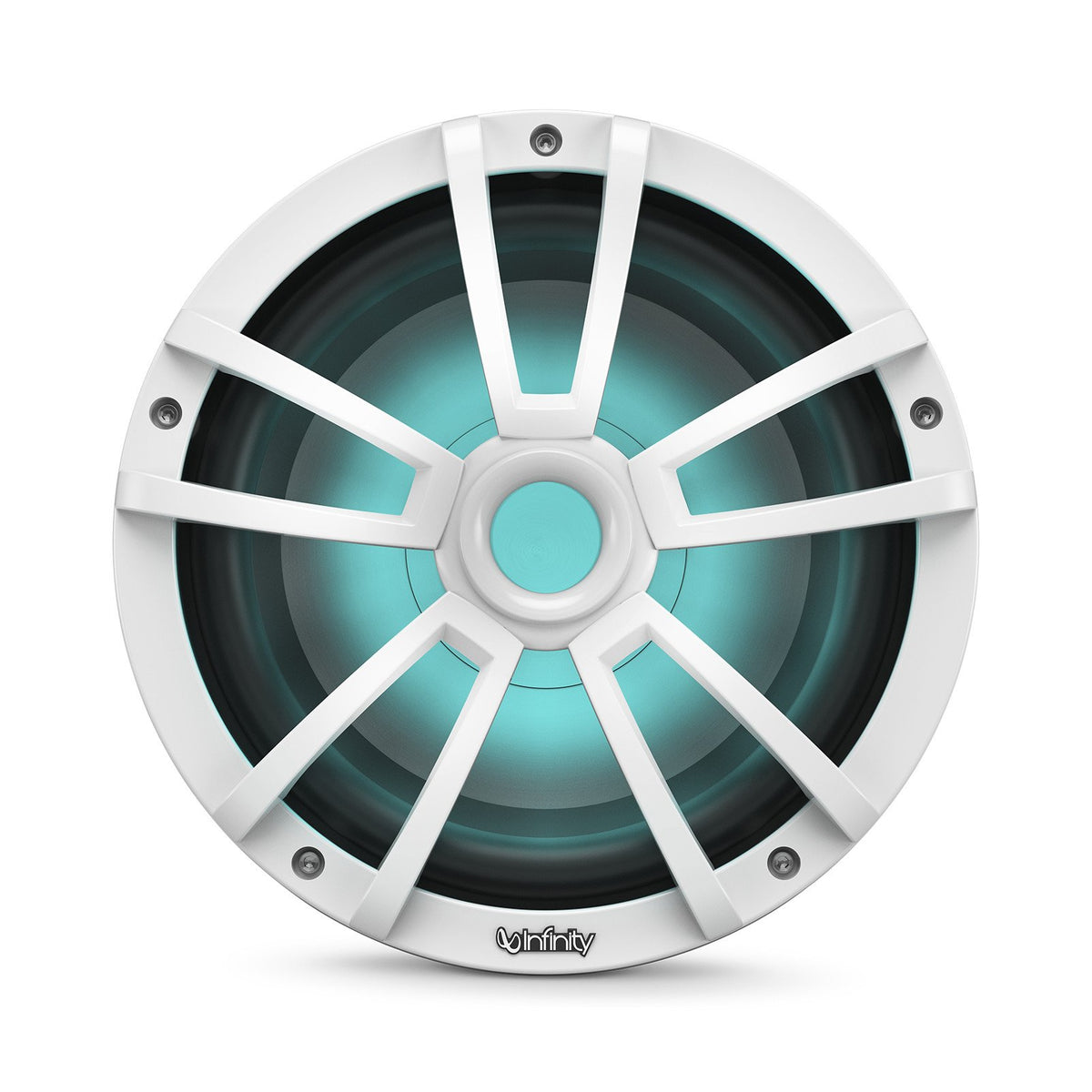

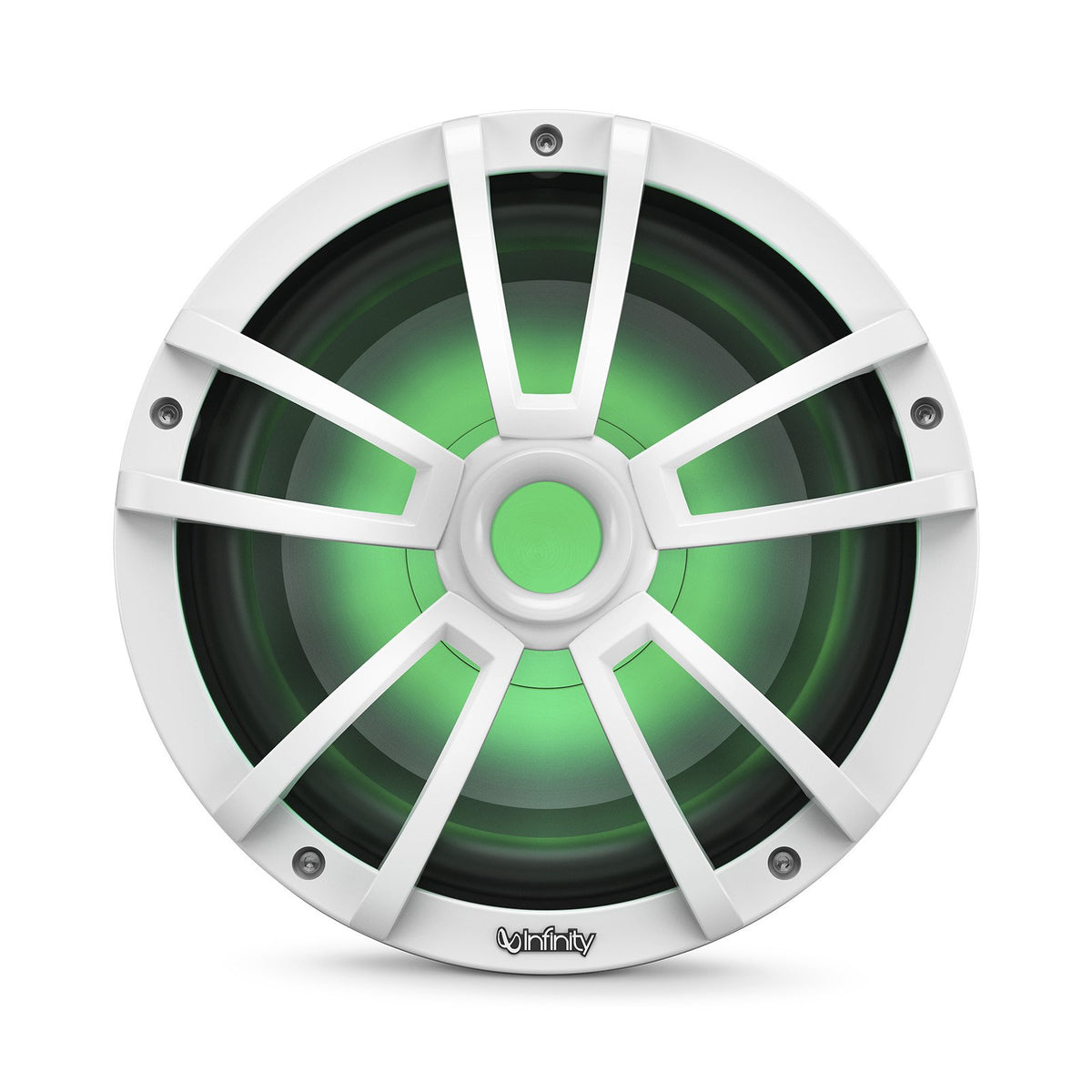

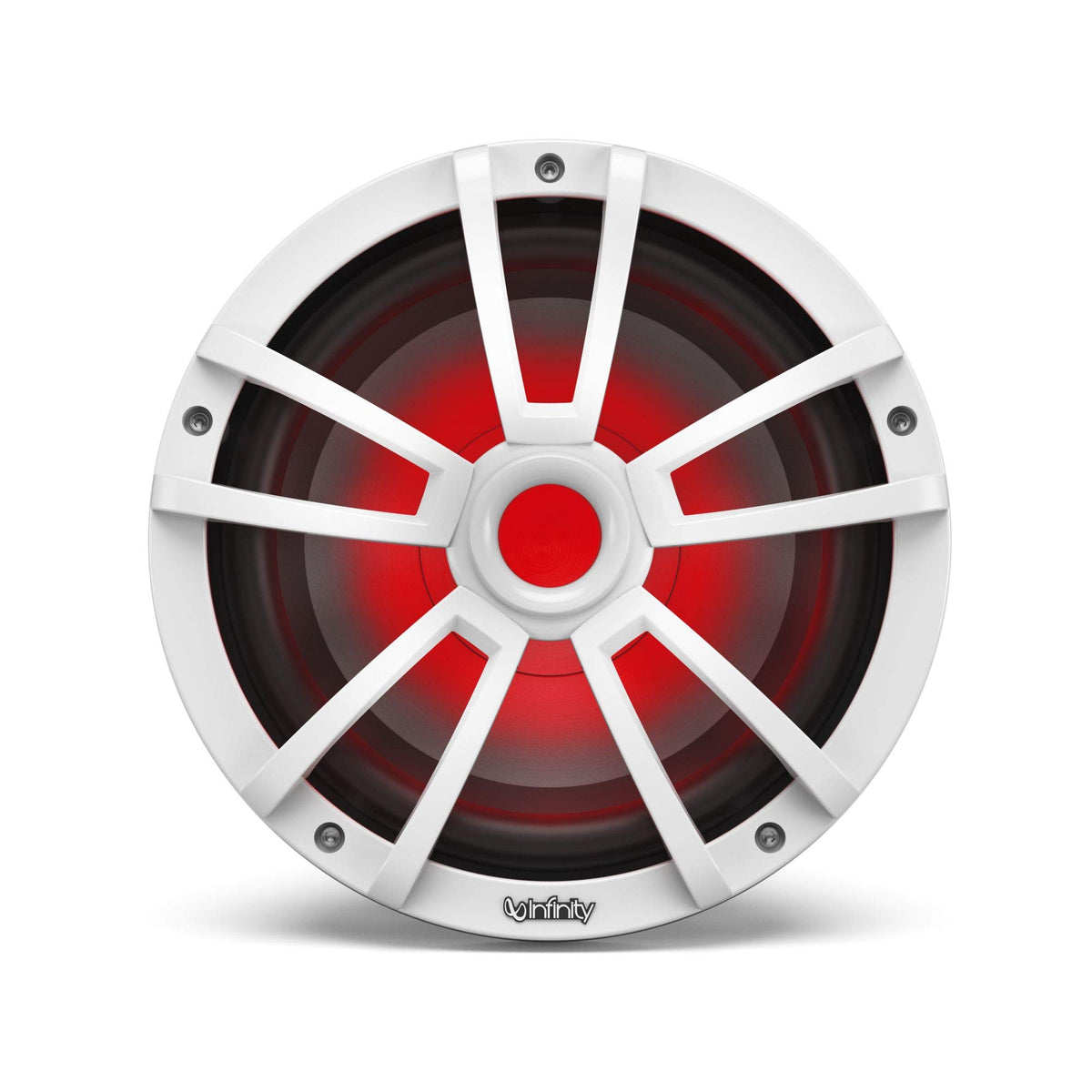

Integrated seven-color RGB LED lighting adds visual accent lighting around the subwoofer, and an RGB lighting pigtail harness is included. The 1022MLW can serve as the bass foundation in an Infinity Reference Marine system or as a subwoofer addition to an existing marine audio setup. Its 9-3/16-inch mounting cutout and 4-7/16-inch mounting depth should be checked against the available mounting surface before installation.

Key Features

• 10-Inch Marine Subwoofer: Adds dedicated bass output to compatible marine audio systems.
• 250W RMS Power Handling: Matches with appropriately rated external amplification.
• Single 4-Ohm Voice Coil: Provides a standard amplifier load configuration.
• IPX5 Marine Rating: Supports use in harsh outdoor marine environments.
• Seven-Color RGB Lighting: Adds selectable multi-color visual accent lighting.
• Polypropylene Cone And Rubber Surround: Uses weather-conscious materials for low-frequency playback.

Design & Installation

The 1022MLW has a white marine-grade presentation with an included grille, polypropylene cone, rubber surround, sealed magnet, and sealed motor structure. Its one-piece cast-polymer basket is UV resistant, while stainless steel mounting hardware is supplied for installation. The 10-9/16-inch external diameter and 1-7/16-inch top height should be considered when planning panel clearance.

Use the supplied foam gasket and stainless steel hardware when mounting the subwoofer in a surface with a 9-3/16-inch cutout and at least 4-7/16 inches of mounting depth. Connect it to an amplifier designed for a 4-ohm subwoofer load and size amplifier output around the subwoofer's 250-watt RMS rating. The included RGB lighting pigtail harness is used to connect the integrated lighting to a compatible lighting setup.
