Hifonics ZS693 6 x 9-Inch 3-Way Coaxial Speakers

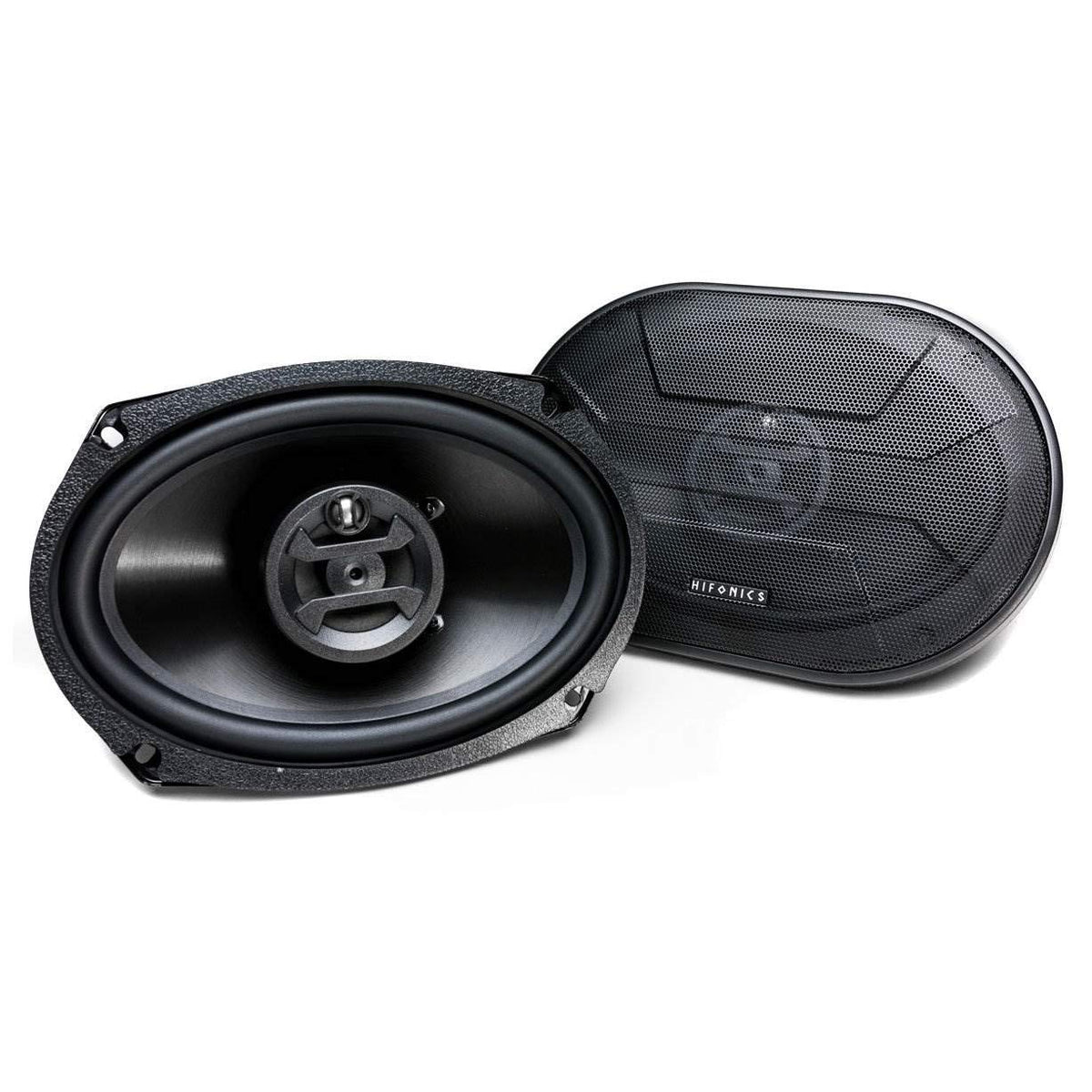

The Hifonics ZS693 is a pair of 6 x 9-inch, 3-way coaxial car speakers designed to replace compatible factory speakers with a full-range upgrade. Each speaker combines a woofer, midrange, and tweeter in one assembly, helping simplify installation where a 6 x 9-inch coaxial speaker fits. They are suited to drivers who want an economical replacement or system refresh without moving to separate component speakers.

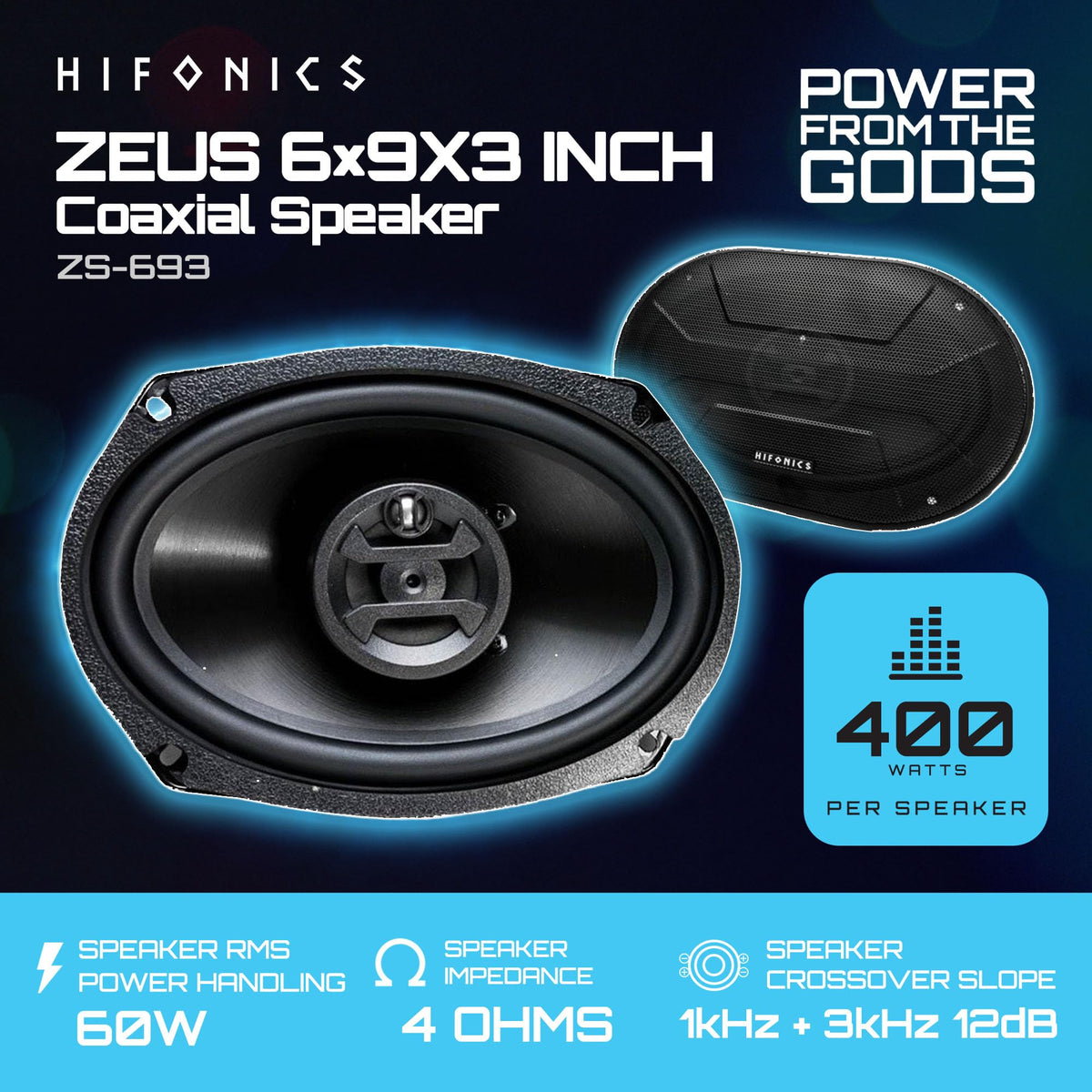

The ZS693 uses a 4-ohm design and is rated for 60 watts RMS per speaker, or 120 watts RMS for the pair. Its 46 Hz to 20 kHz frequency response and 88 dB sensitivity support broad full-range playback from a compatible factory head unit or external amplifier. For amplifier matching, prioritize the continuous RMS rating rather than the higher peak-power figure.

A 1-inch Neo-Mylar soft-dome tweeter handles upper-frequency detail, while the Alpha-Cellulose woofer cone is designed for low weight and rigidity. The 3-way coaxial layout places the high-frequency drivers at the center of the woofer, providing a compact all-in-one speaker arrangement. A passive Butterworth crossover manages the transition between the speaker elements.

Hifonics builds the ZS693 with a pure-copper voice coil on a lightweight Kapton former, an epoxy-infused natural-fiber spider, and an Overcoil cooling system. These parts are intended to support reliable movement and heat management during normal operation. The speaker also uses a ferrite magnet motor and an anti-resonant stamped-steel basket.

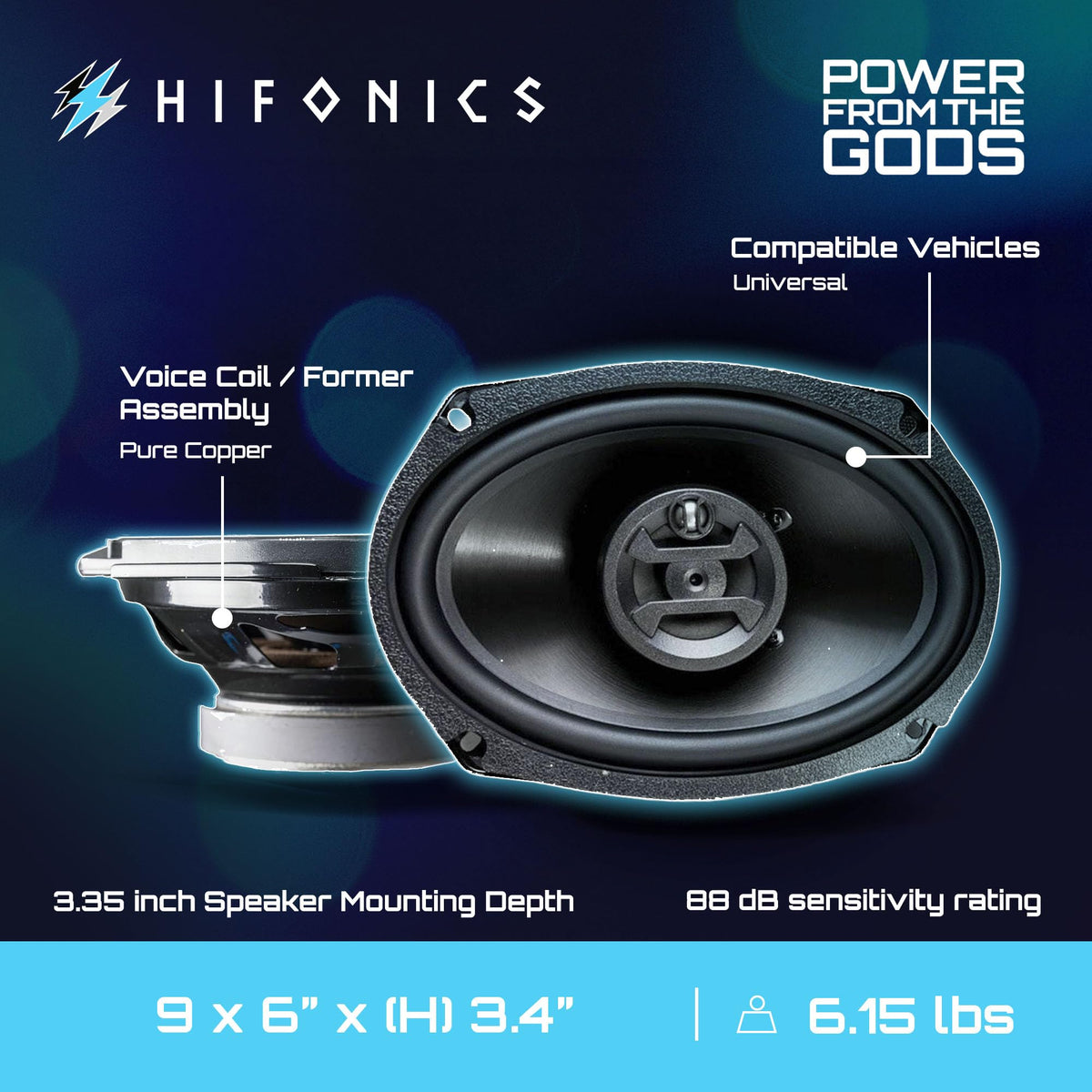

This pair can be used in compatible front-door, rear-deck, or rear-panel locations, depending on the vehicle's factory speaker position and available clearance. Confirm the 8.64 x 5.98-inch cutout requirement and 3.35-inch mounting depth before purchase. It is a practical fit for a factory-speaker replacement project or as part of a modest amplified car-audio upgrade.

Key Features

• 3-Way Coaxial Design: Integrates woofer, midrange, and tweeter elements into each speaker.
• 6 x 9-Inch Size: Fits vehicles designed for compatible oval 6 x 9-inch speakers.
• 60W RMS Per Speaker: Supports sensible matching with compatible head units or amplifiers.
• Neo-Mylar Dome Tweeter: Provides dedicated high-frequency reproduction in a compact layout.
• Alpha-Cellulose Cone: Combines low weight with a rigid woofer-cone structure.
• Overcoil Cooling: Moves air over the voice coil through the spider.

Design & Installation

The ZS693 uses an anti-resonant stamped-steel basket, ferrite magnet, rubber surround, and epoxy-infused natural-fiber spider. Its pure-copper voice coil is fitted to a Kapton former for lightweight heat dissipation. Spade terminals allow connection with compatible spade connectors or direct soldering.

Measure the factory opening, outside clearance, and mounting depth before installation; the listed cutout is 8.64 x 5.98 inches and mounting depth is 3.35 inches. Connect positive and negative speaker leads to the correct terminals, secure the speaker firmly, and keep wiring protected from metal edges and moving window mechanisms. The manufacturer recommends considering professional installation when interior-panel removal or custom mounting is required.
