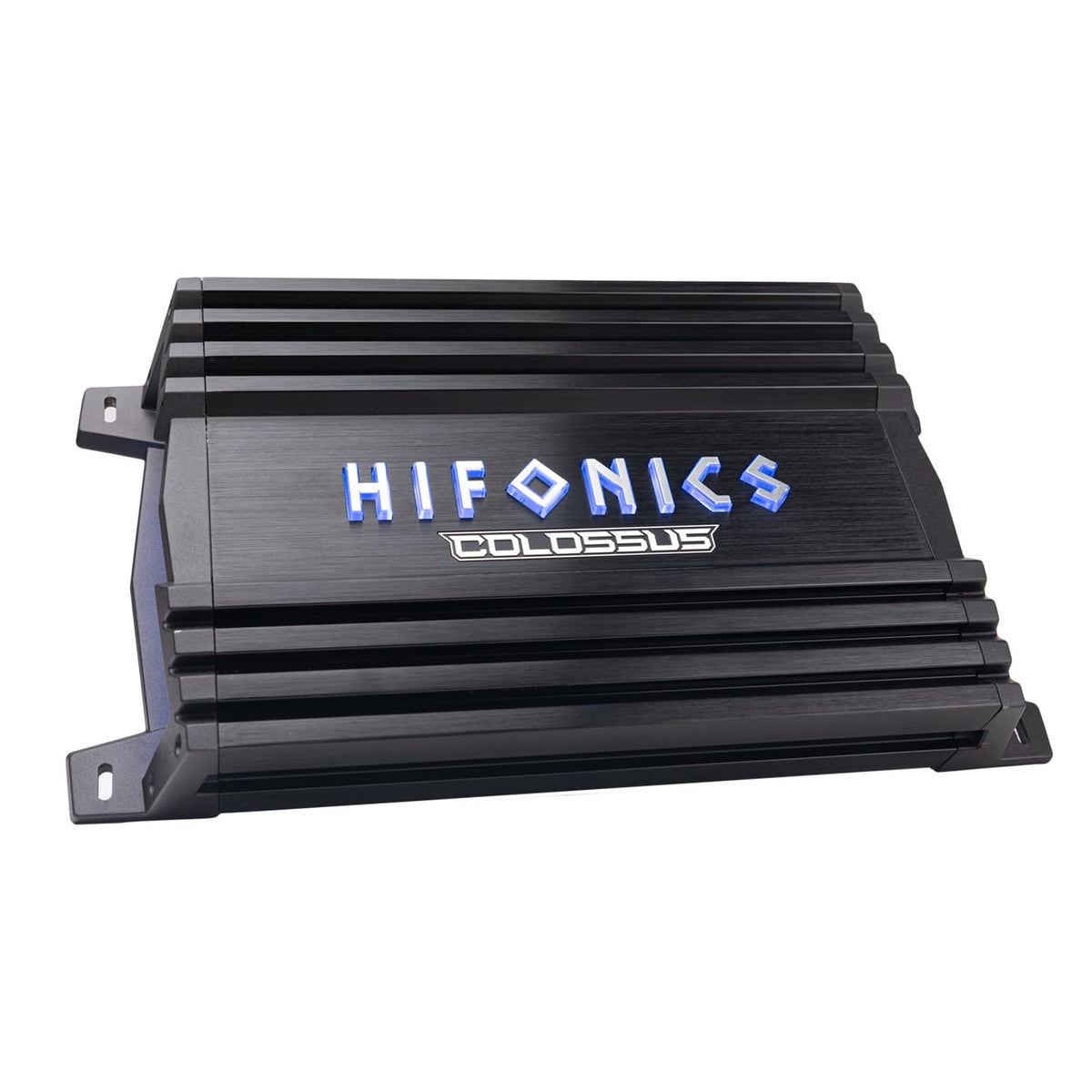

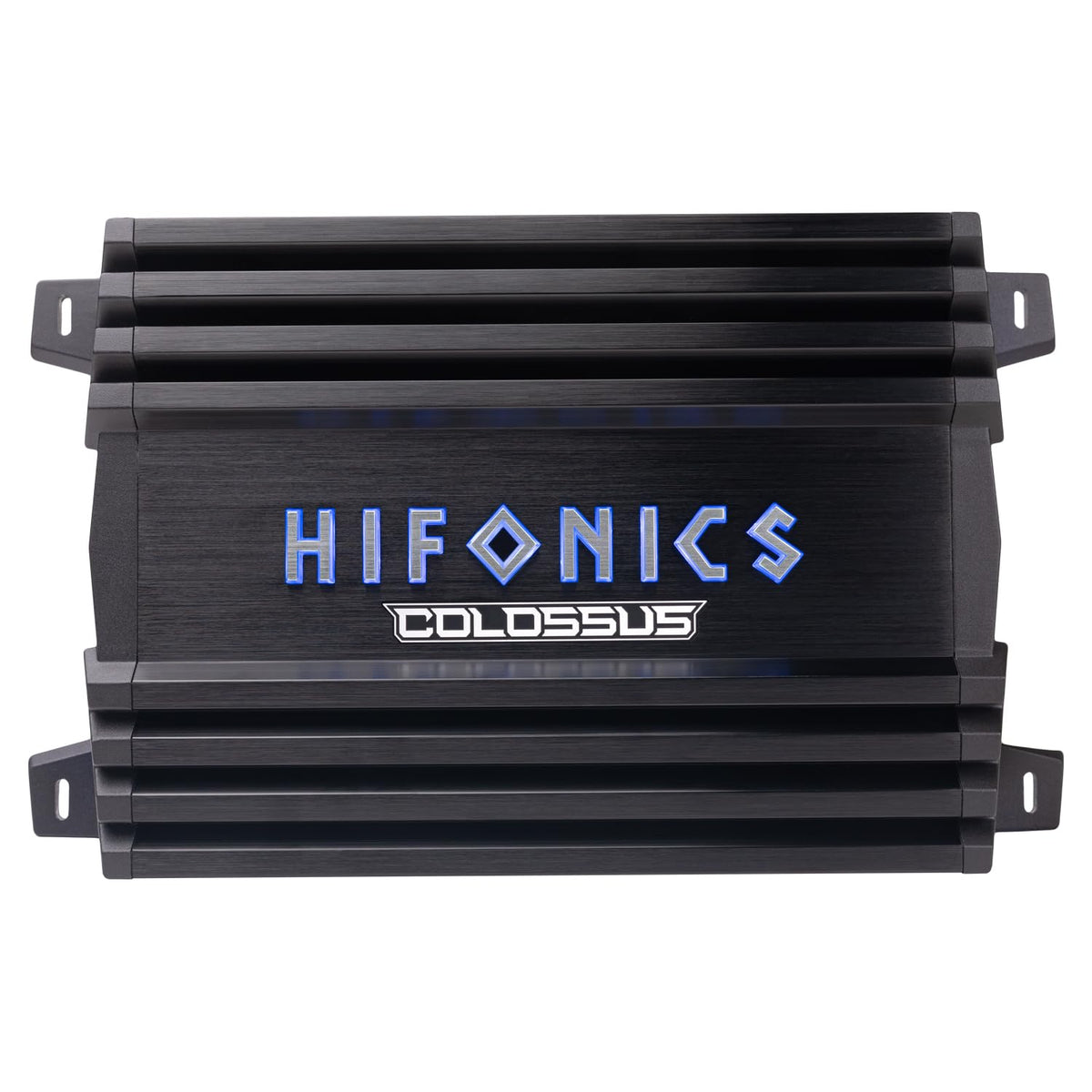

Hifonics HCC-1500-1D Mono Subwoofer Amplifier

The Hifonics Colossus Classic HCC-1500.1D is a mono car audio amplifier designed to power a subwoofer system. It provides a dedicated low-frequency amplifier channel for drivers who want to add bass without using a multi-channel amplifier. Its compact mono format makes it suitable for systems built around one or more properly wired subwoofers.

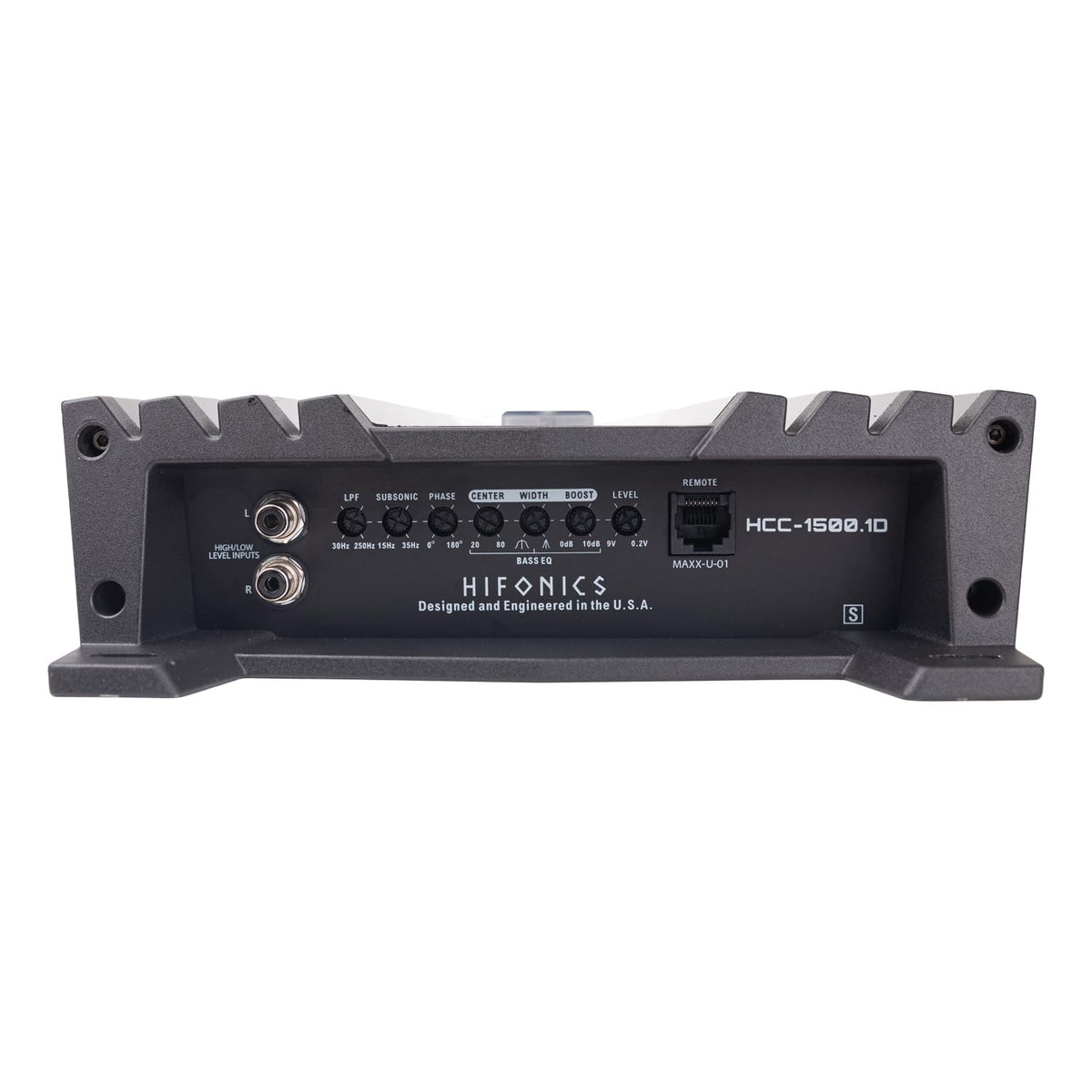

This amplifier is intended for vehicle owners upgrading factory or aftermarket audio systems with a separate bass stage. Its variable low-pass crossover, subsonic filter, bass boost, and phase control provide practical adjustment tools for matching the amplifier to the subwoofer enclosure and front speakers. A wired bass remote is included for convenient level adjustment from the driver's seat.

The HCC-1500.1D is rated for 1 x 1500 watts at 1 ohm, 1 x 750 watts at 2 ohms, and 1 x 375 watts at 4 ohms. Its 10 Hz to 500 Hz frequency response and mono-only configuration are tailored to subwoofer duty rather than full-range speaker amplification. Match the final speaker load carefully to the amplifier's supported impedance ratings before installation.

Hifonics uses its Super D-Class design, Ultra-Fi MOSFET output devices, and a dual-coil pulse-width-modulated power supply in this model. The amplifier also includes a low-noise preamplifier circuit, variable electronic crossover controls, and an onboard bass-control section. These features give an installer the adjustment range needed to integrate a bass amplifier into many aftermarket systems.

The Colossus Classic platform is built with an aluminum-alloy heat sink, nickel-plated connection hardware, and angled molded terminals for organized wiring access. LED protection diagnostics monitor overload and speaker-short conditions. It is a practical choice for a dedicated subwoofer upgrade when paired with appropriate power wiring, fusing, signal connections, and subwoofers.

Key Features

• Mono Subwoofer Channel: Dedicated single-channel design for powering a subwoofer system.
• 1-Ohm Power Rating: Rated at 1 x 1500 watts into 1 ohm.
• Variable Low-Pass Filter: Adjusts the subwoofer frequency range from 30 Hz to 250 Hz.
• Subsonic Filter: Adjustable 15 Hz to 35 Hz filtering helps tailor low-frequency operation.

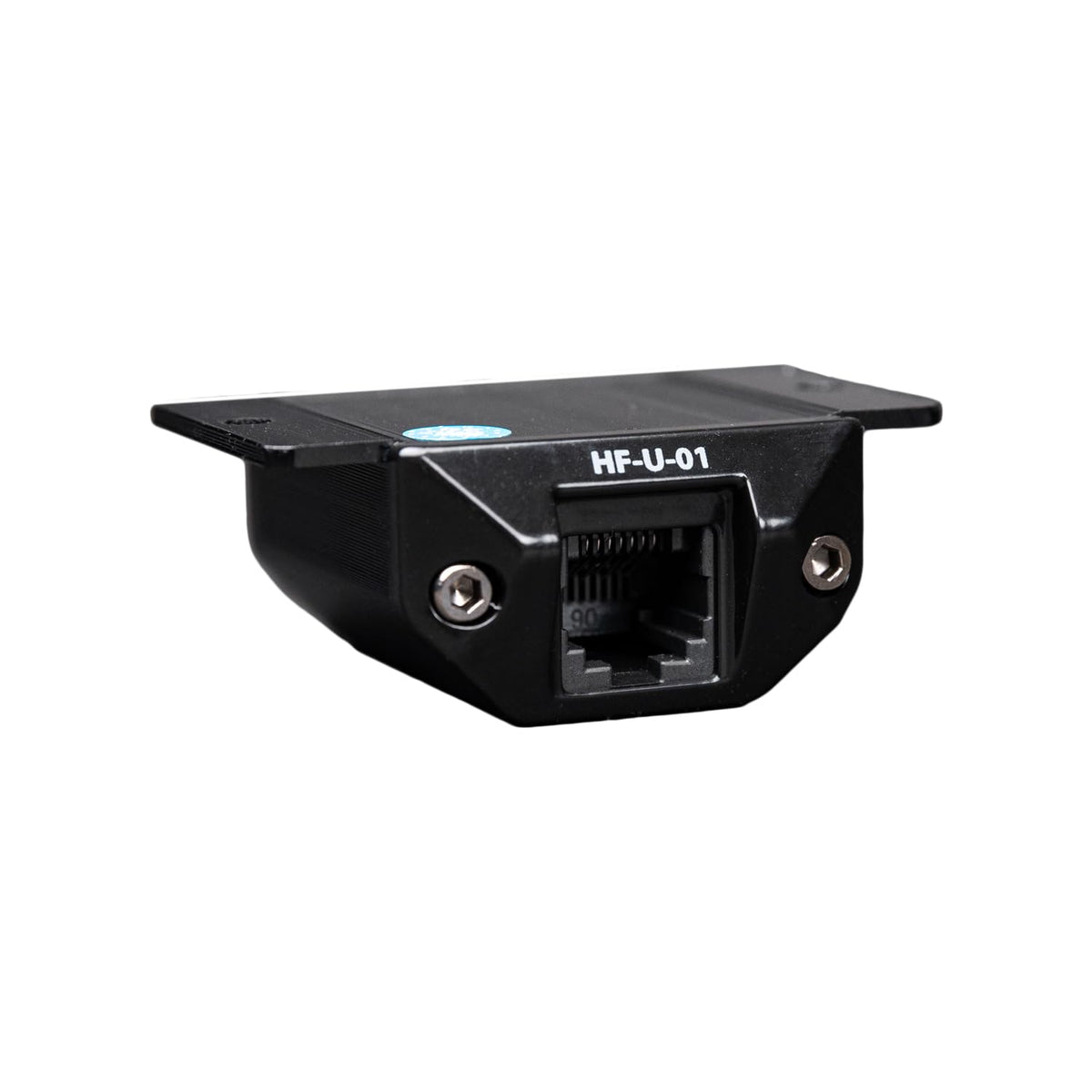

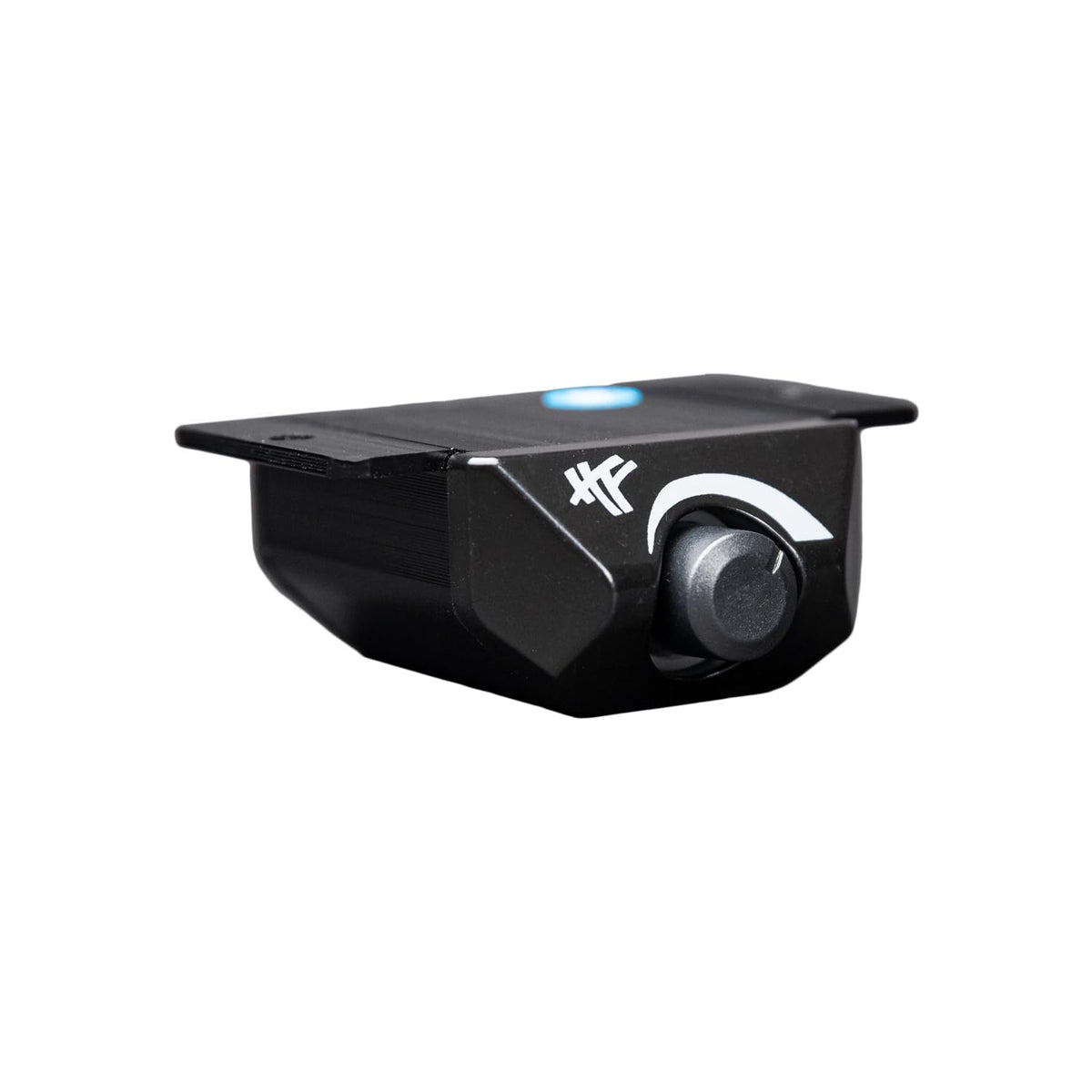

• Wired Bass Remote: Allows convenient bass-level adjustment from the front of the vehicle.
• Protection Diagnostics: LED indicators monitor overload and speaker-short protection status.

Design & Installation

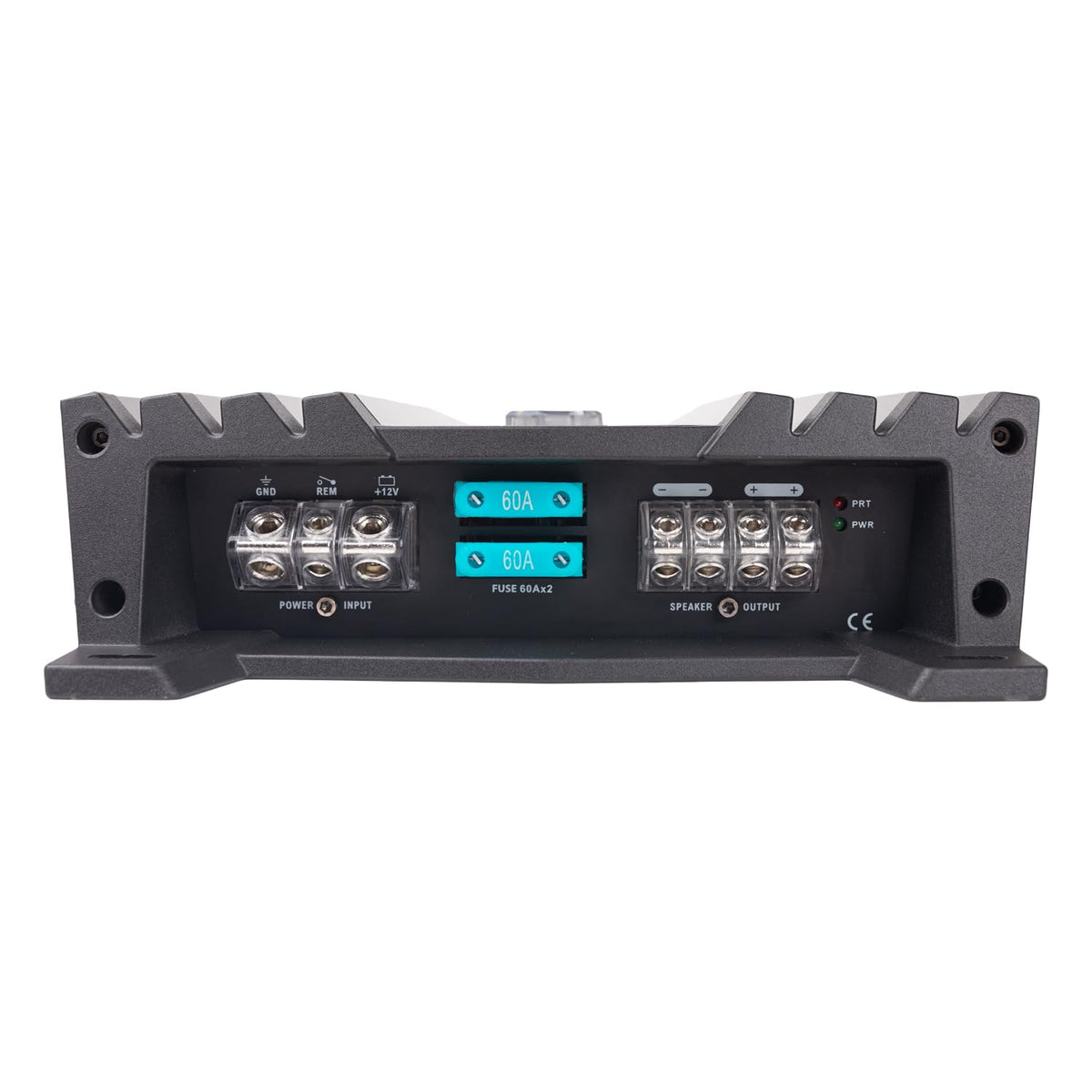

The HCC-1500.1D uses a heavy-duty aluminum-alloy heat sink to help dissipate heat, along with high-temperature, impact-resistant nickel-plated connectors. Its RCA jacks are nickel plated, and the power, ground, and speaker terminals are molded and angled for easier access. The chassis is finished in black and measures 17.5 x 10.75 x 4.5 inches.

Install the amplifier on a secure surface with adequate ventilation and do not mount it upside down. Use 4 AWG power and ground wiring, a properly placed fuse near the battery, and speaker wiring compatible with the 12 AWG speaker terminals. Set gain, crossover, subsonic filter, bass boost, and phase after connecting a correctly wired 1-, 2-, or 4-ohm subwoofer load.
