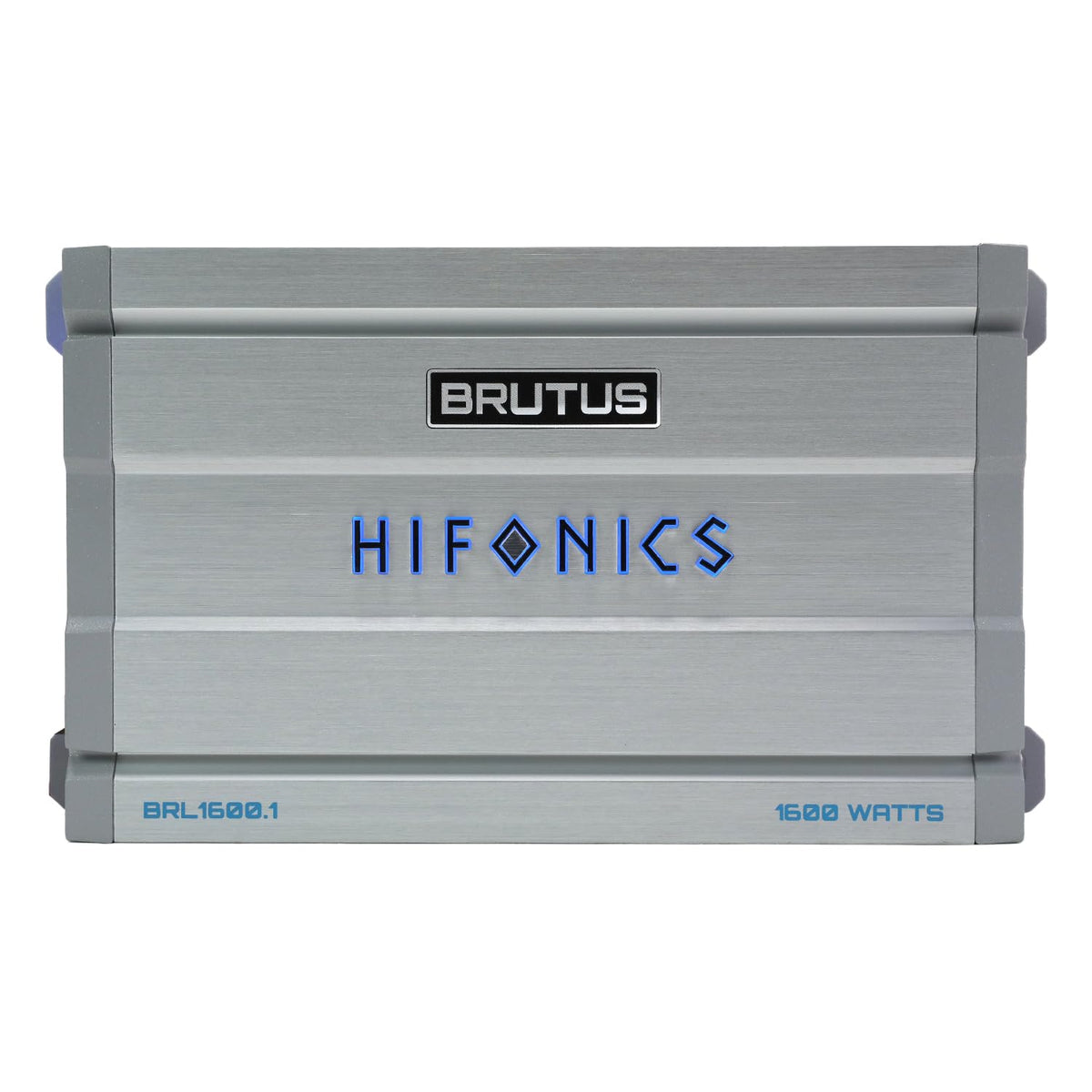

Hifonics BRL1600.1 1600W Mono Car Amplifier

The Hifonics BRUTUS BRL1600.1 is a mono car audio amplifier designed to power a dedicated subwoofer channel. It is suited to systems that need substantial low-frequency output without adding a multi-channel amplifier where one is not needed. Its mono-only layout keeps the focus on bass amplification and subwoofer system integration.

Hifonics describes the BRL1600.1 as a 1600-watt RMS BRUTUS BRL amplifier and lists power capability at 4-, 2-, and 1-ohm loads. A variable electronic crossover, bass boost, and included bass remote give the installer practical tools for tailoring the subwoofer output. The remote lets the listener adjust bass level relative to the amplifier's end-panel setting.

The amplifier uses Hifonics' Super D Class design with a half-bridge topology and an iron-core transformer power supply. This design approach is intended to support efficient power delivery while helping minimize electromagnetic interference with vehicle electronics. Ultra-Fi MOSFET output devices and a mass-loaded extruded aluminum heat sink support output and thermal management.

For signal control, the BRL1600.1 provides RCA inputs, a variable input sensitivity range, and both high-pass and low-pass crossover adjustment. Its crossover controls allow the amplifier to be configured for a range of subwoofer and system tuning approaches. A built-in bass control provides additional low-frequency adjustment.

The amplifier is designed for universal mobile-audio installation and uses secure molded, angled terminals for power, ground, and speaker wiring. Built-in protection circuits address over/under-voltage, short-circuit, overcurrent, and thermal conditions. Its illuminated logo can be set to constant blue, VU meter operation, or off for a cleaner appearance.

Key Features

• Mono Subwoofer Amplification: Dedicated single-channel design for powering a subwoofer system.
• Super D Class Design: Efficient amplifier topology supports high-output bass applications.
• Variable Electronic Crossover: Adjustable high-pass and low-pass filters help integrate a subwoofer.

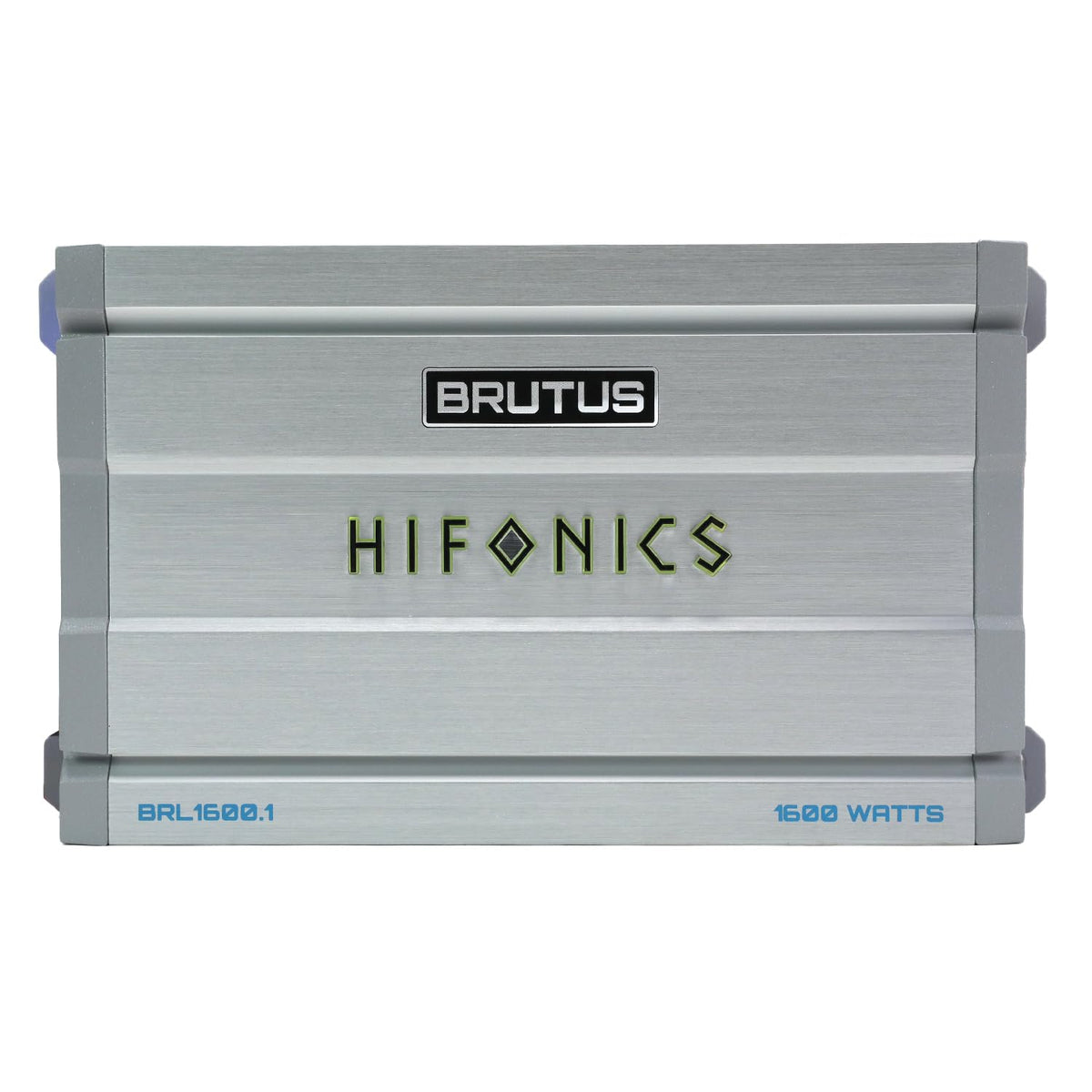

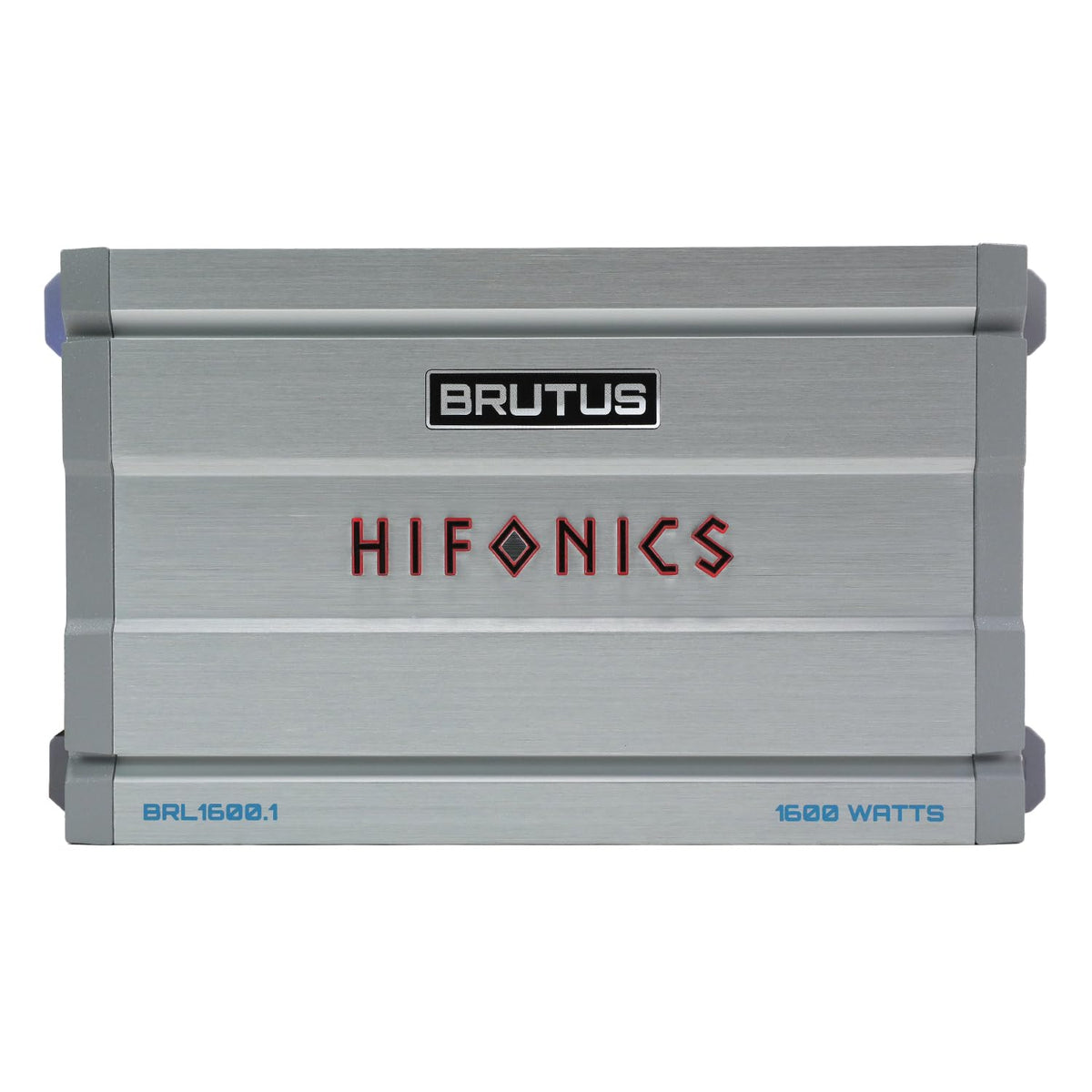

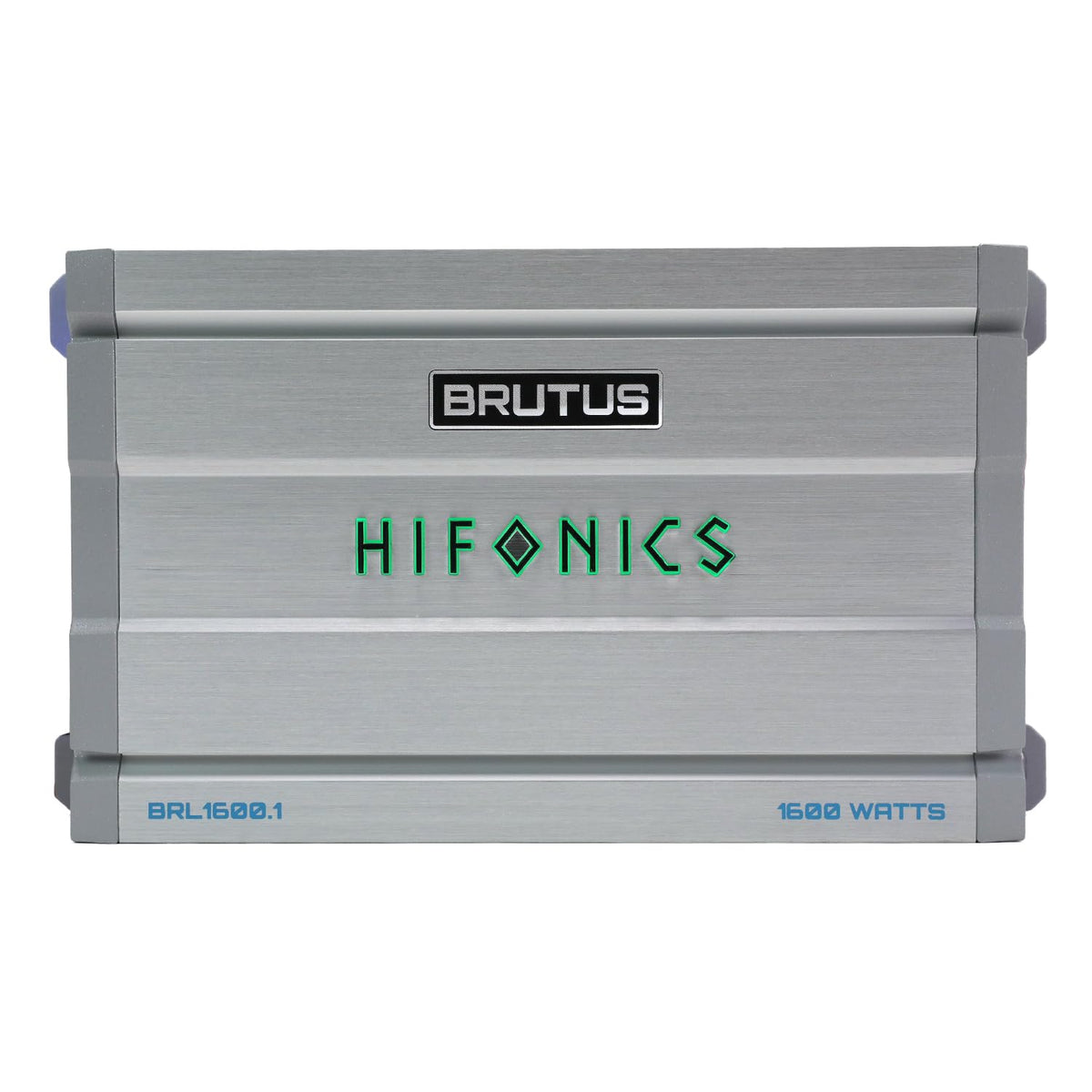

• VU Meter Logo: Illuminated logo can display audio level or remain blue.
• Included Bass Remote: Allows convenient adjustment of bass level from the front seat.
• Triple Protection Circuits: Helps protect the amplifier and vehicle audio system.

Design & Installation

The BRL1600.1 has a black BRUTUS BRL chassis with a mass-loaded extruded aluminum heat sink, multi-layer PCB construction, and nickel-plated RCA jacks. Angled molded terminals are designed to provide easier connection access and cleaner wire routing. The amplifier also includes selectable logo illumination with blue, VU meter, and off settings.

Install the amplifier on a secure surface with adequate ventilation and do not mount it upside down. Use appropriately sized power, ground, and speaker wiring, including the specified external fuse protection, and connect it to a subwoofer load no lower than 1 ohm. Set gain, crossover points, bass boost, and the bass remote level carefully to suit the source unit and subwoofer system.
