Hifonics A1500.1D 1500W Monoblock Car Amplifier

The Hifonics A1500.1D ALPHA is a compact monoblock car audio amplifier designed to power a subwoofer system. Its single-channel configuration focuses its output on low-frequency reproduction rather than full-range speakers. It is suited to vehicle owners building or upgrading a dedicated bass section in a car audio system.

This amplifier is rated by the manufacturer for 1 x 400 watts at 4 ohms, 1 x 750 watts at 2 ohms, and 1 x 1500 watts at 1 ohm. The 1-ohm-stable design provides a wiring option for compatible subwoofer systems that need higher output. Matching the final speaker impedance to the amplifier's supported load ratings is important during system planning.

The A1500.1D uses Hifonics Super D-Class circuitry and Ultra-Fi MOSFET output devices. This design is intended to provide efficient power delivery while managing heat in a compact amplifier format. A heavy-duty aluminum-alloy heat sink helps transfer heat away from the amplifier's internal components.

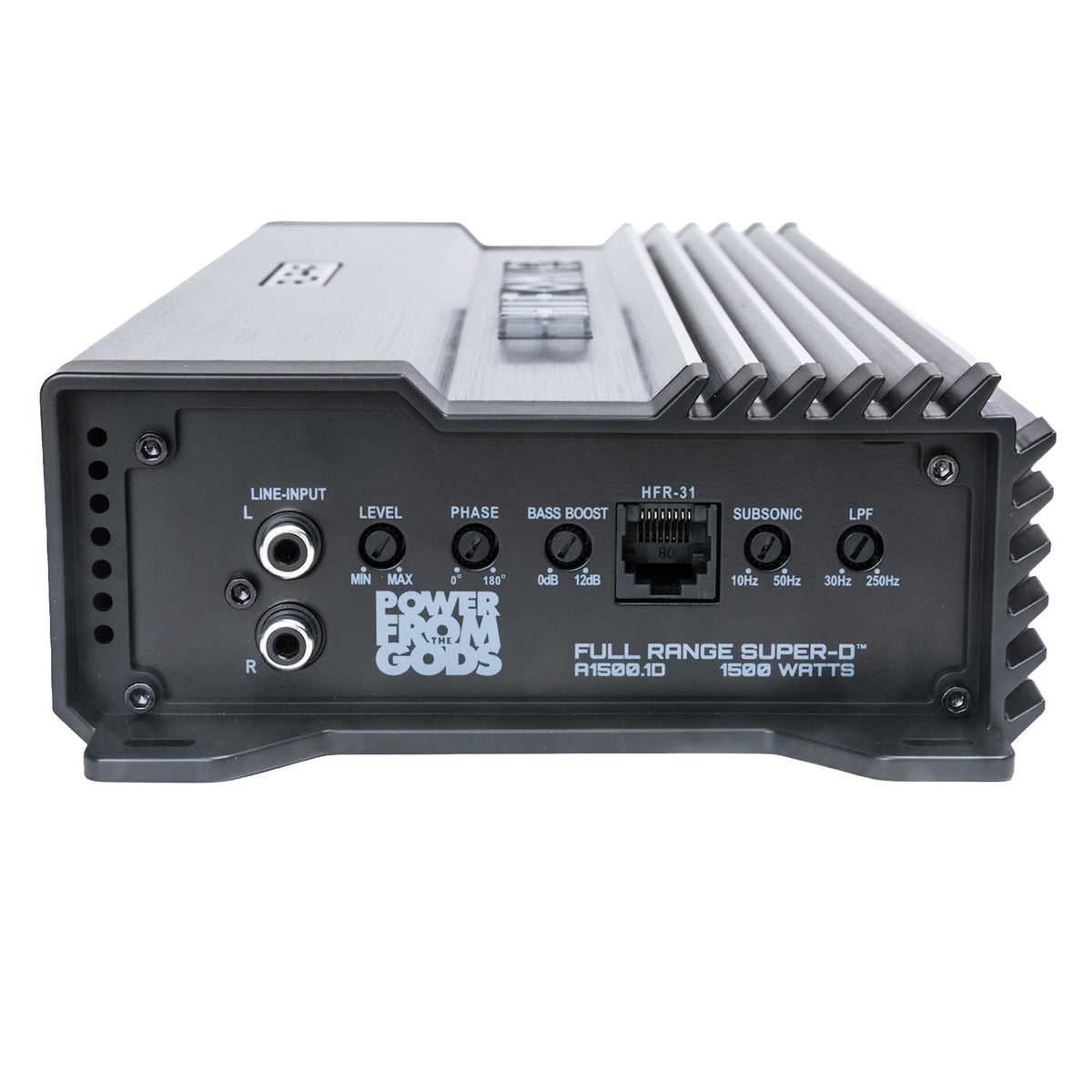

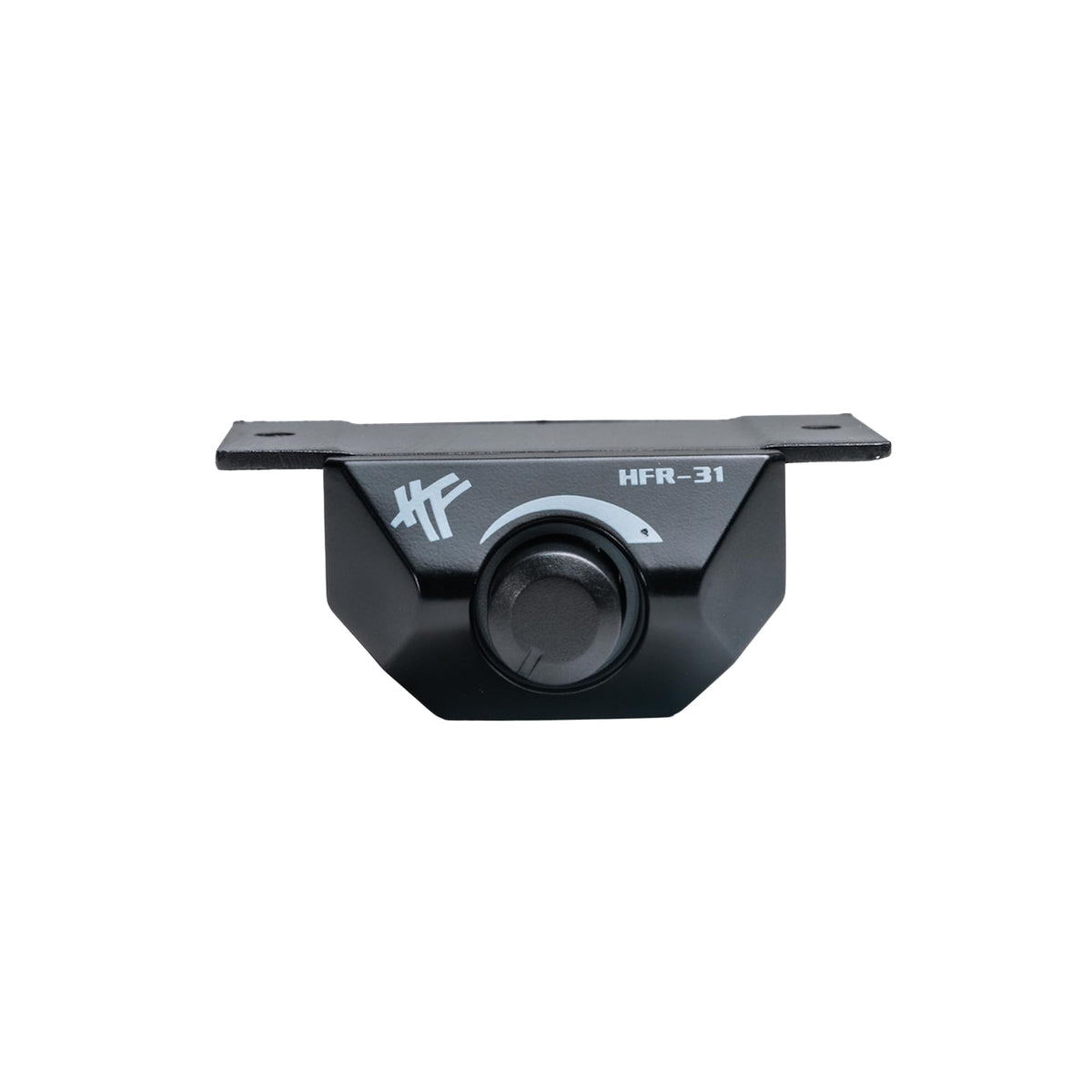

Onboard tuning controls help tailor the amplifier to a subwoofer installation. The electronic low-pass crossover, subsonic filter, bass EQ, bass boost, and variable phase adjustment allow installers to set the bass range and integrate it with the rest of the vehicle's speakers. A wired HFR-31 bass remote is included for convenient level adjustment from the cabin.

The amplifier can accept speaker-level audio input, making it useful with many factory or aftermarket source units. It also includes RCA inputs for low-level signal connections. With its mono-only operation, the A1500.1D is intended as a dedicated subwoofer amplifier alongside a separate full-range amplifier or powered factory speaker system.

Key Features

• Monoblock Configuration: Dedicated single-channel design for powering a subwoofer system.
• 1-Ohm Stability: Supports compatible subwoofer loads down to 1 ohm.
• Super D-Class Circuitry: Provides efficient amplification in a compact chassis.
• Adjustable Low-Pass Filter: Helps limit output to subwoofer-friendly frequencies.
• Wired Bass Remote: Lets you adjust bass level from the vehicle cabin.
• Speaker-Level Inputs: Allows connection to compatible factory-style speaker outputs.

Design & Installation

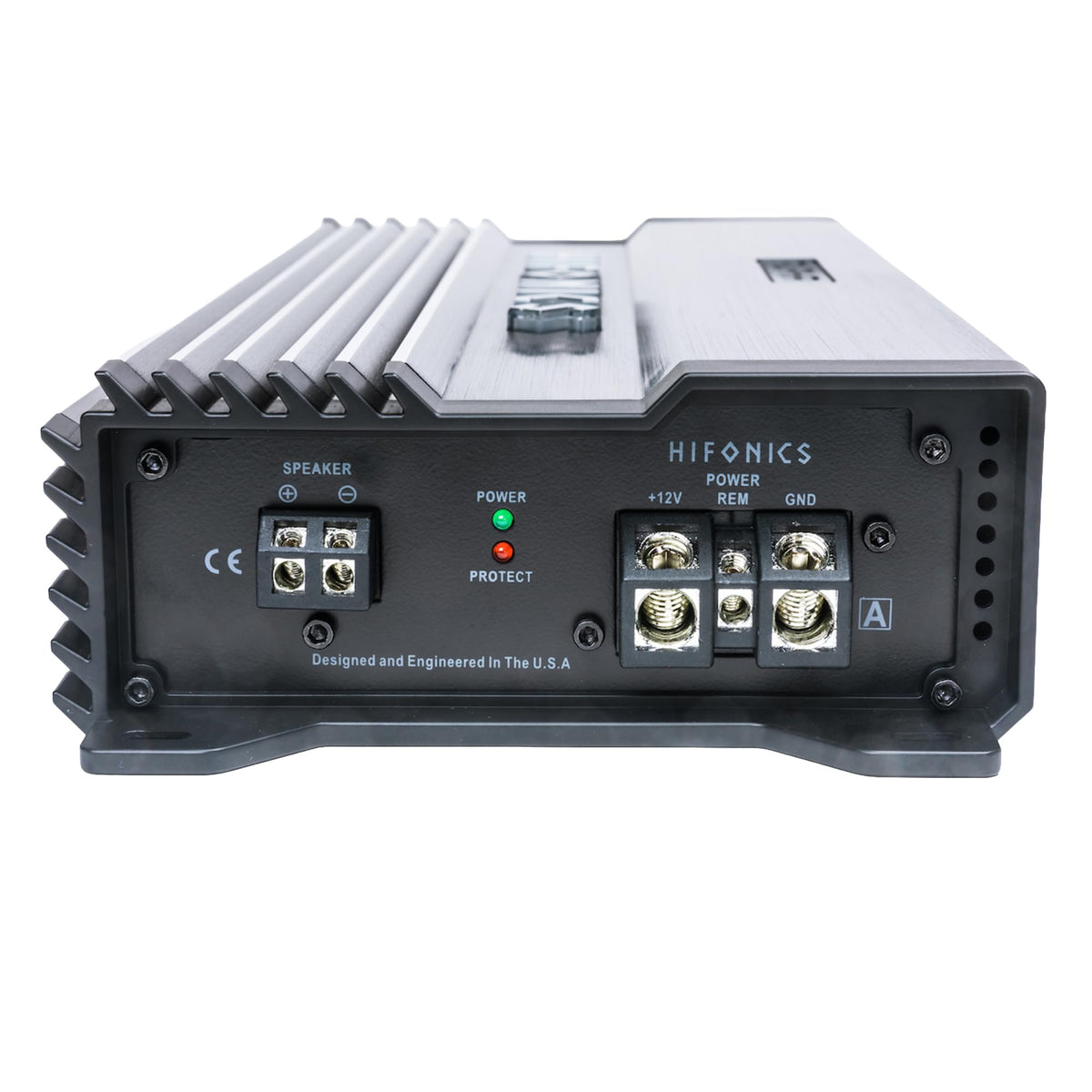

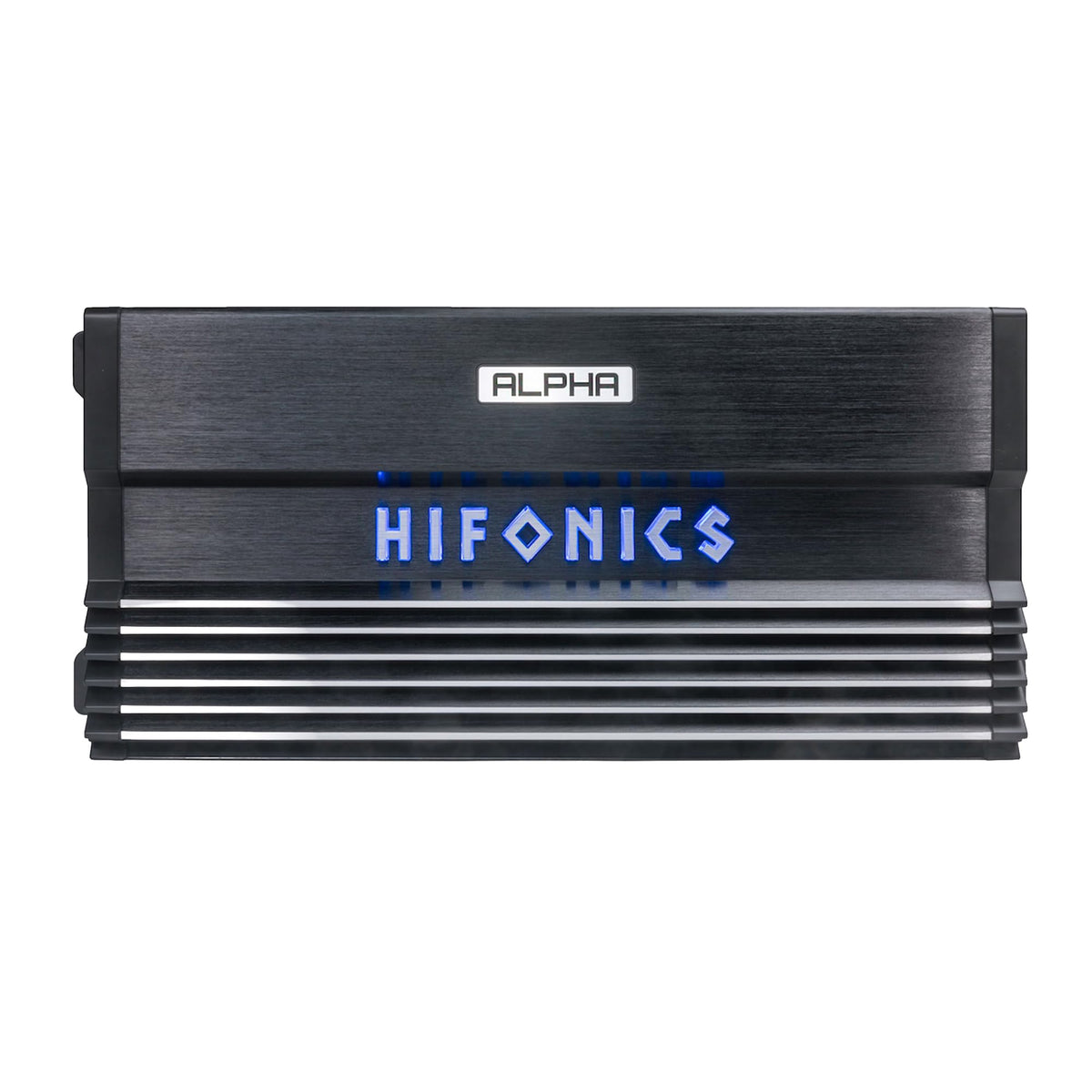

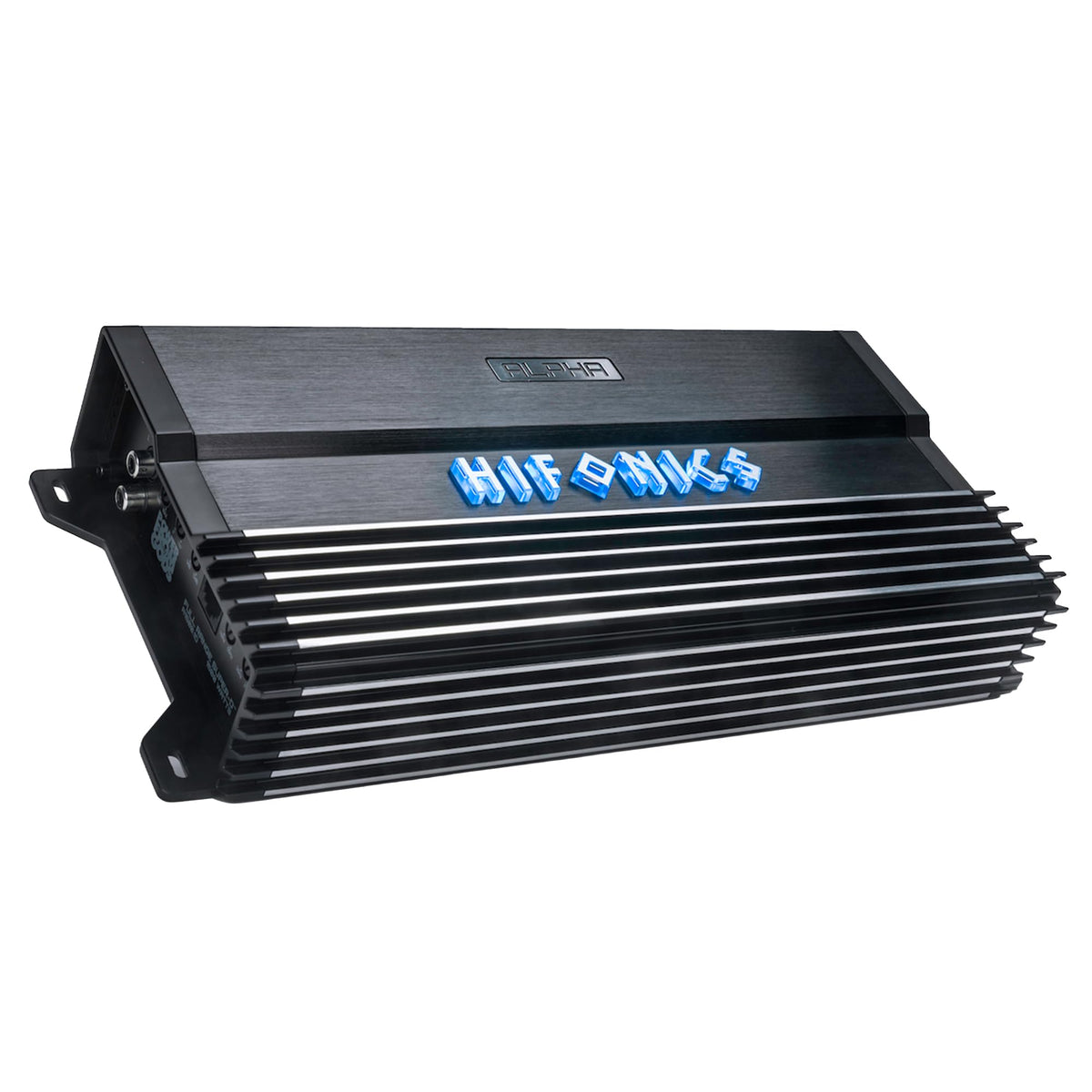

The A1500.1D has a black ALPHA-series chassis with a heavy-duty aluminum-alloy heat sink. Its power, ground, and speaker connections use nickel-plated, high-temperature impact-resistant hex-screw terminals. Angled terminal placement is designed to make connections more accessible during installation.

Mount the amplifier securely in a dry, ventilated area with room for heat dissipation and cable routing. Use the specified 4 AWG power and ground connections, install the required external fuse, and verify the final subwoofer impedance before powering the system. Set gain, crossover, subsonic, bass EQ, and phase controls carefully to suit the connected subwoofer and source unit.
