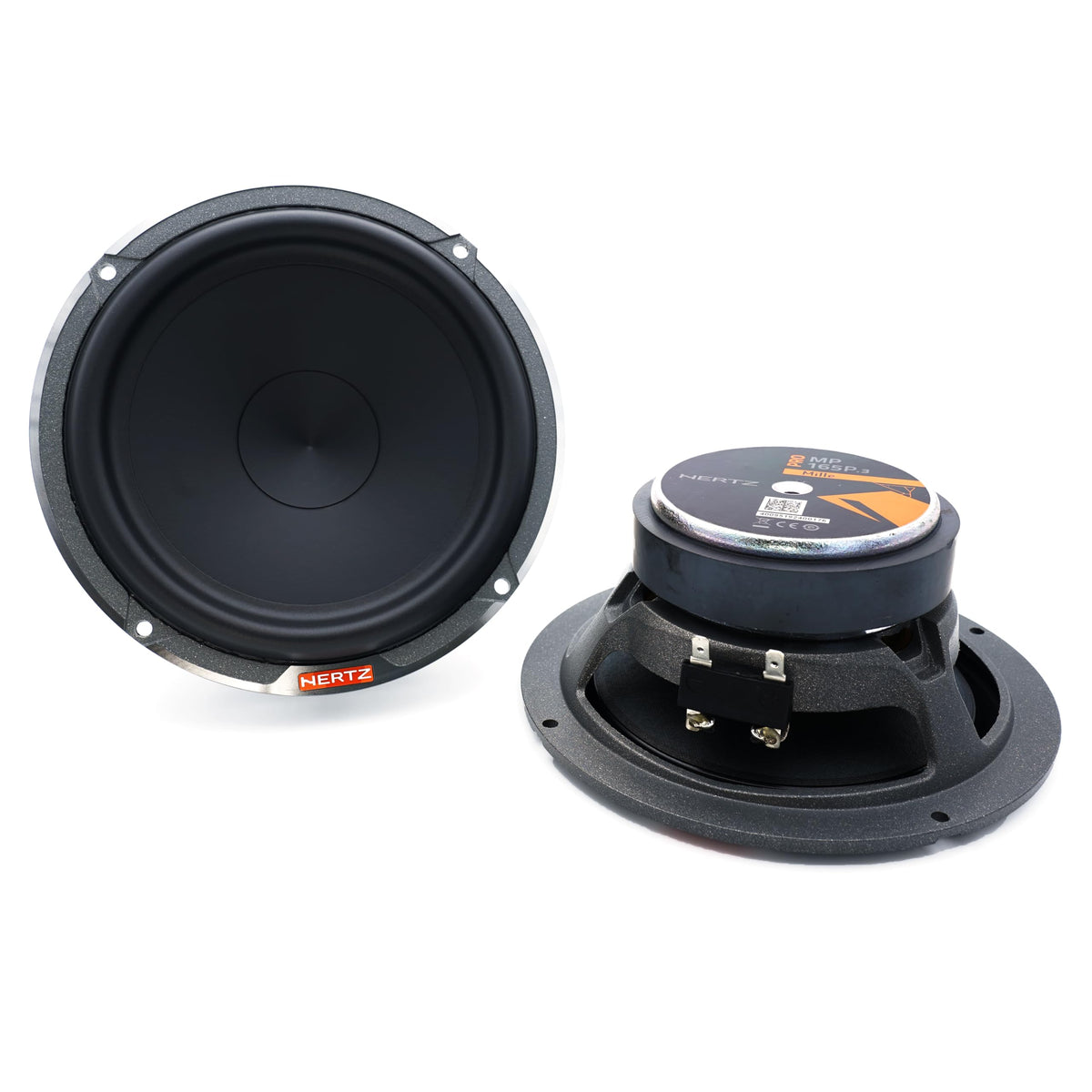

Hertz MP165P-3 6.5" 3-Ohm Component Woofer

The Hertz MP165P-3 is a 6.5-inch component woofer designed to bring focused mid-bass performance to a custom car audio system. It is intended for installations where a separate woofer, tweeter, and crossover—or an active DSP-based setup—are used instead of a coaxial speaker. Its 3-ohm nominal impedance helps compatible amplifiers deliver more output than a comparable 4-ohm driver.

This woofer is suited to listeners building a front-stage system with strong kick-drum impact, bass guitar definition, and clear lower-midrange presence. Its rated 45 Hz to 4.5 kHz operating range makes it appropriate for use with a properly selected tweeter or midrange. A subwoofer can be added below it for deeper bass extension and higher overall system output.

The MP165P-3 uses a 25 mm pure-copper voice coil wound on a polyamide former. The voice coil has a 14 mm winding height and is paired with a 95 mm high-density-flux ferrite magnet. This motor design supports 100 W continuous power handling and controlled cone movement.

A pressed-pulp cone reinforced with cotton fibers is formed in Hertz's exponential V-cone profile. The profile is designed to support linear midrange behavior and broader off-axis dispersion, which is useful in door-mounted automotive installations. Its Boundary Free rubber surround is engineered to support efficient mid-bass output and extended cone travel.

The woofer is built on a low-depth aluminum-alloy basket that is designed to remain acoustically open behind the cone. With a 141 mm cutout requirement and 64 mm mounting depth, fitment should be checked against the vehicle door or speaker enclosure before purchase. It can be used as part of a Hertz Mille Pro component system or in a carefully tuned active system with compatible amplification and crossover settings.

Key Features

• 3-Ohm Nominal Impedance: Helps compatible amplifiers produce strong output from each channel.
• 100 W Continuous Handling: Supports amplified front-stage and component-system applications.
• Pure Copper Voice Coil: Uses a polyamide former for dependable high-power operation.
• Exponential V-Cone: Supports linear midrange response and off-axis dispersion.
• Boundary Free Rubber Surround: Allows efficient movement for fuller mid-bass reproduction.
• Ferrite Motor Assembly: Uses a 95 mm high-density-flux ferrite magnet.

Design & Installation

The MP165P-3 combines a pressed-pulp-and-cotton-fiber cone with a rubber surround, pure-copper voice coil, ferrite magnet, and aluminum-alloy basket. Its basket uses an acoustically transparent structure and a low-depth design intended to reduce installation constraints. The speaker weighs 1.2 kg and has a 165 mm nominal frame diameter.

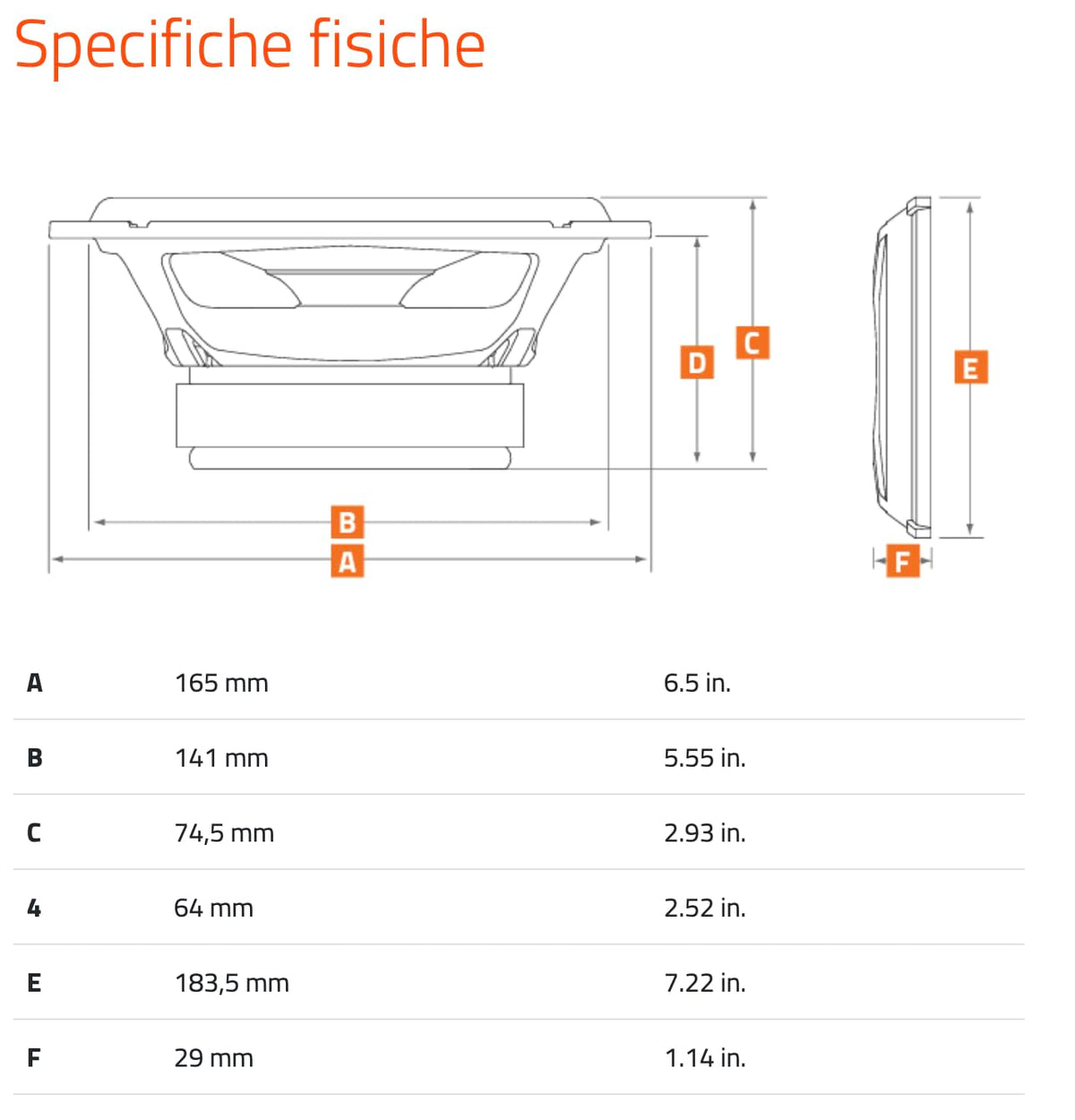

Confirm that the vehicle or enclosure provides a 141 mm mounting cutout and at least 64 mm of mounting depth, while also allowing clearance for the 74.5 mm overall depth dimension. Use a compatible amplifier and crossover or DSP to limit low-frequency excursion and set an appropriate upper crossover point for the companion tweeter or midrange. Optional grilles are listed by Hertz for installations where the cone needs added protection.
