Gravity SGR694 6x9" 4-Way Full-Range Car Speakers

The Gravity SGR694 is a pair of 6x9-inch, 4-way full-range car audio speakers designed as an upgrade for vehicles with compatible 6x9 speaker locations. They provide a replacement path for worn or limited factory speakers while retaining a conventional 4-ohm load. Their coaxial format combines multiple drivers into each speaker assembly.

With a stated frequency response of 110 Hz to 20 kHz and 94 dB sensitivity, the SGR694 is intended to reproduce a broad portion of the audible range with efficient output. The four-way arrangement is designed to distribute sound reproduction across its integrated driver elements. These speakers are suited to listeners seeking a straightforward full-range speaker upgrade.

The SGR694 is rated for up to 600 watts maximum power handling and uses a 4-ohm impedance. Match the speakers with an audio source or amplifier that is stable at 4 ohms, and set gain conservatively to avoid audible distortion. Actual output and bass performance will depend on the vehicle, speaker location, source unit, and installation quality.

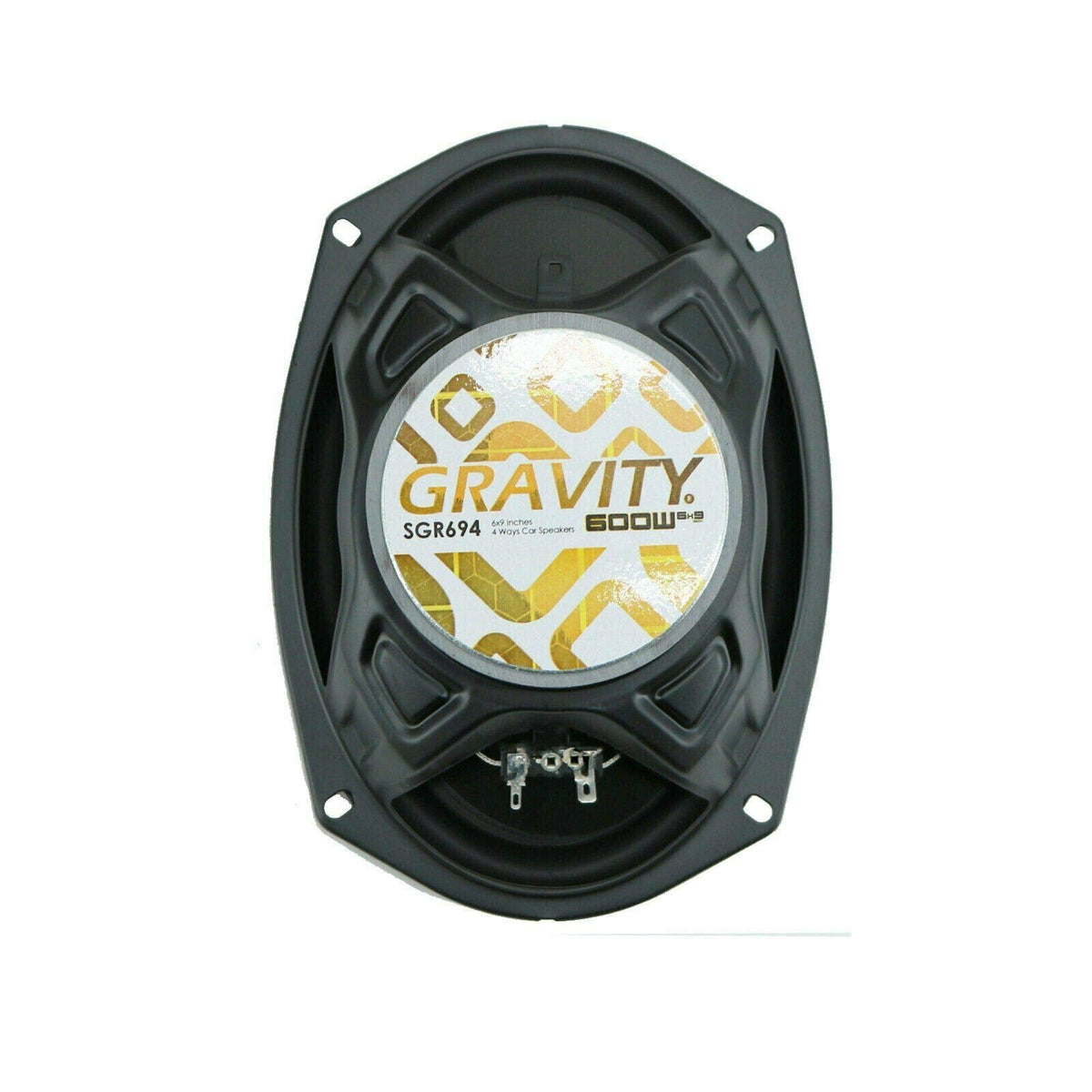

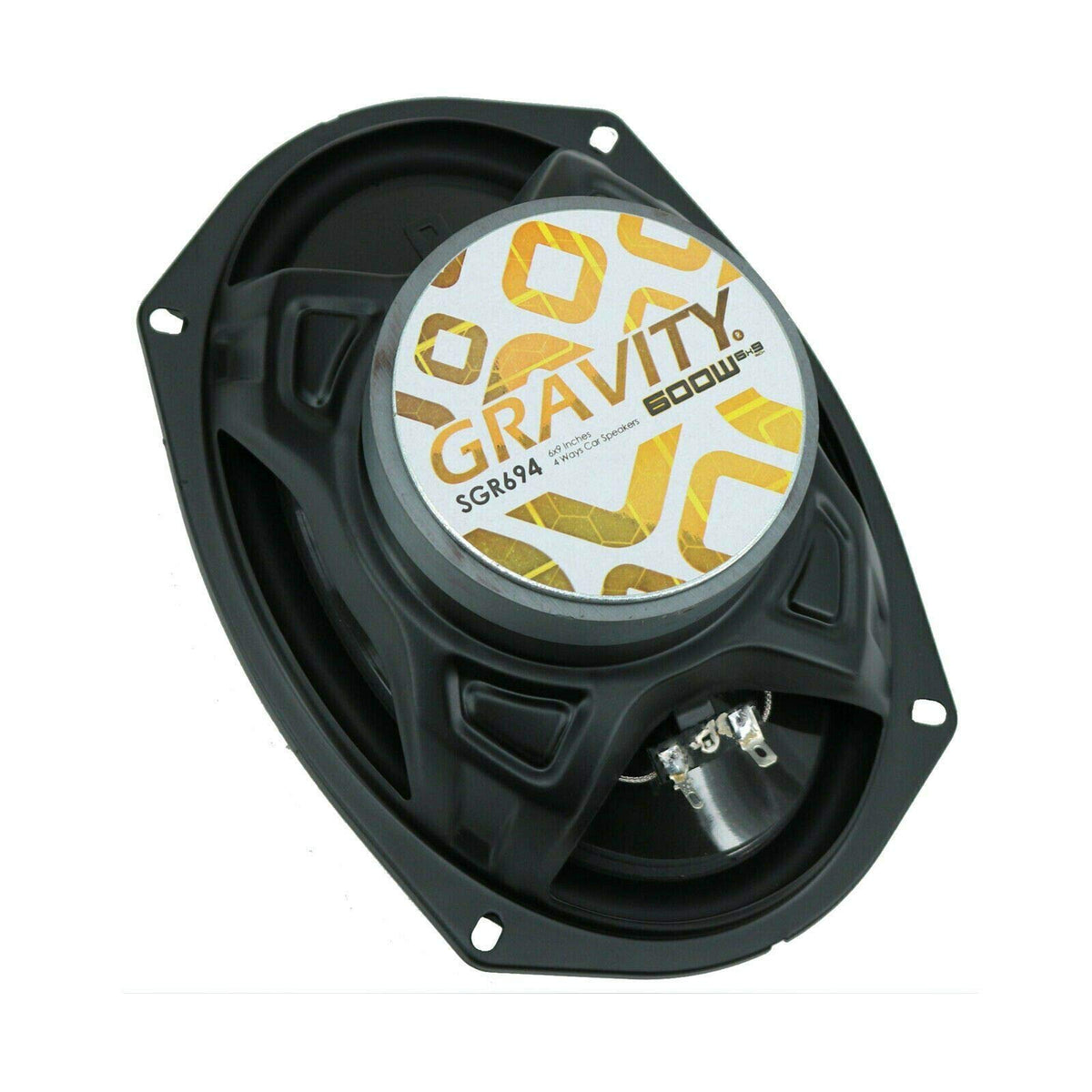

Gravity specifies alpha solid rubber cone construction and moisture-resistant rubber surrounds for the speaker assemblies. An anti-resonant stamped steel basket supports the driver structure and is intended to help control unwanted vibration. Spade terminals provide a familiar connection method for car-audio wiring.

Each package includes two SGR694 speakers, two wire harnesses, eight mounting screws, eight speed clips, and a warranty card. The included hardware can simplify a basic installation, but vehicle-specific adapters, mounting brackets, or wiring adapters may still be needed. Confirm mounting depth, opening dimensions, and connector fit before purchase.

Key Features

• 6x9-Inch Speaker Size: Fits vehicles with compatible 6x9-inch speaker locations.
• 4-Way Full-Range Design: Integrates multiple driver elements in each speaker.
• 4-Ohm Impedance: Works with car audio equipment designed for 4-ohm speakers.
• 94 dB Sensitivity: Indicates efficient sound output from available amplifier power.
• Rubber Cone and Surround: Uses alpha solid rubber cones and moisture-resistant surrounds.
• Stamped Steel Basket: Provides a rigid mounting structure for the speaker assembly.

Design & Installation

The SGR694 uses alpha solid rubber cones, moisture-resistant rubber surrounds, and anti-resonant stamped steel baskets. This construction combines a resilient cone and surround material with a steel frame that supports the speaker assembly. The speakers use spade terminals for their electrical connections.

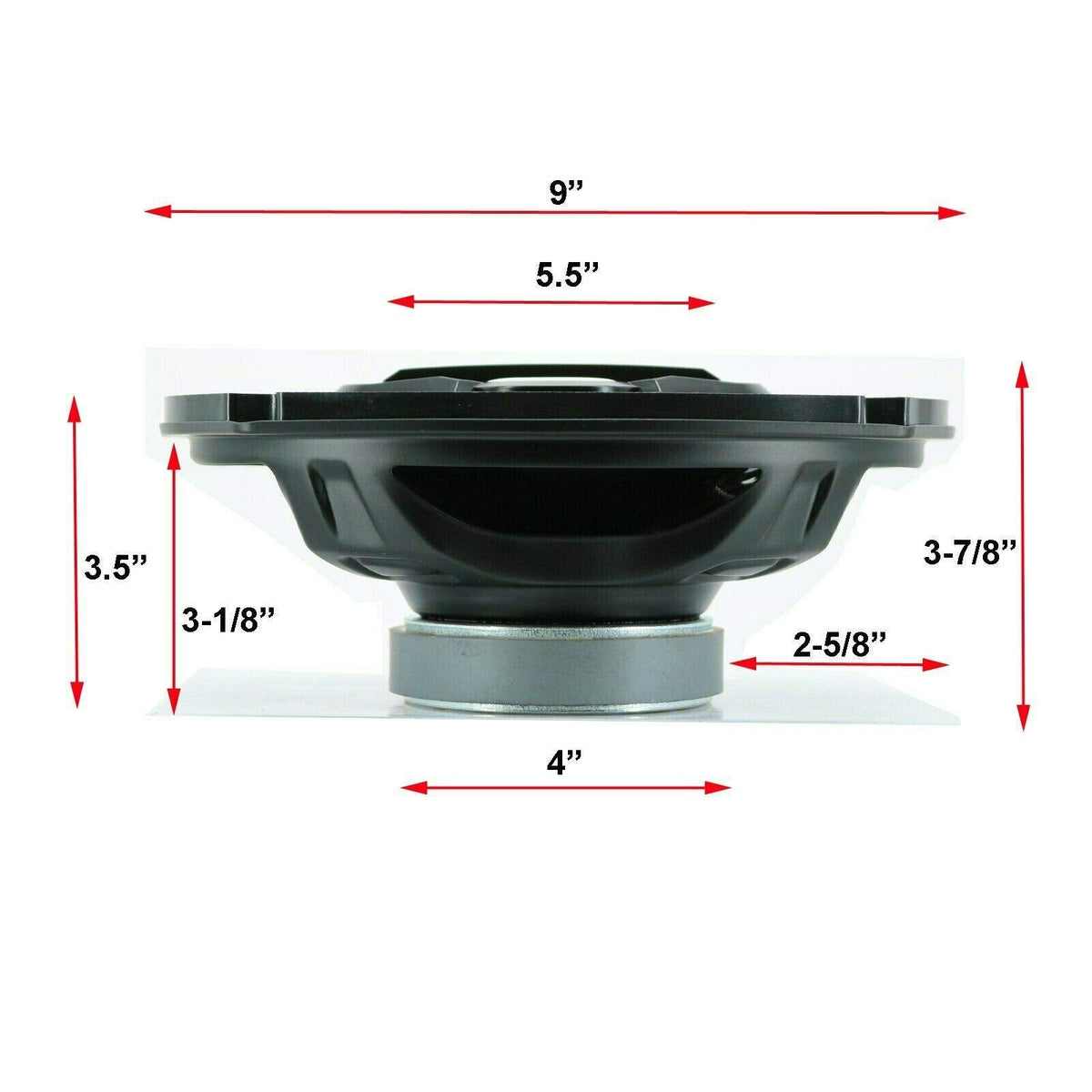

Verify that the vehicle has a compatible 6x9-inch mounting location and at least 3-7/8 inches of mounting depth before installation. Connect wiring with correct polarity, secure each speaker with the included screws and speed clips where appropriate, and test operation before reinstalling interior panels. The included wire harnesses may assist installation, though vehicle-specific fitment parts are not confirmed.
