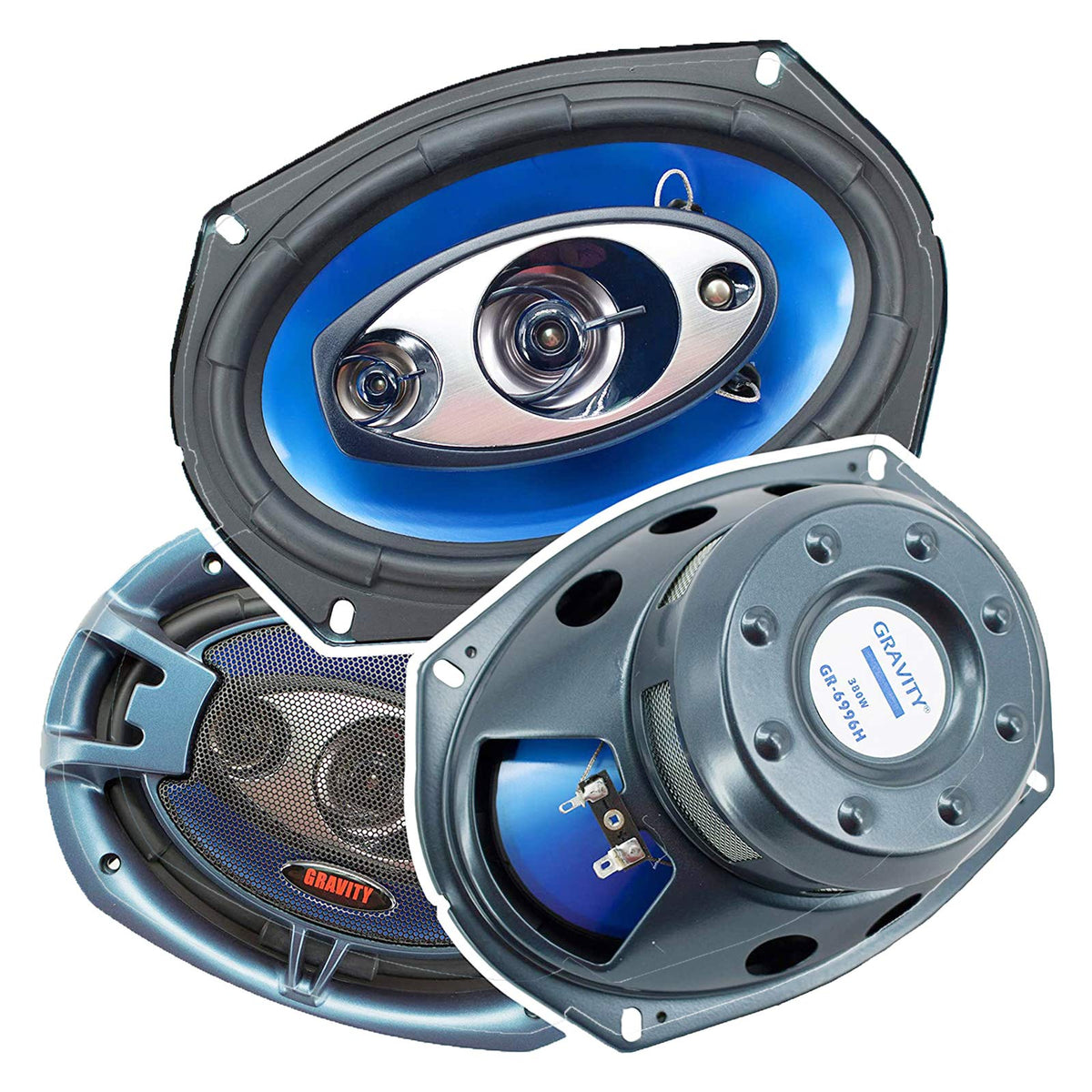

Gravity GR-6996H 6x9" 4-Way Coaxial Car Speakers

The Gravity GR-6996H is a pair of 6x9-inch, 4-way coaxial car speakers intended to replace compatible factory door or rear-deck speakers. It provides a practical option for drivers whose original speakers have become worn, quiet, or distorted. The 4-ohm design is suited to typical automotive speaker circuits.

These speakers use a 4-way coaxial layout to combine multiple driver elements within each 6x9-inch assembly. Their published 30 Hz to 22 kHz frequency response is designed to cover bass, midrange, and high-frequency content from a single speaker location. A 92 dB sensitivity rating supports efficient output with compatible factory radios or aftermarket amplification.

Gravity lists peak power handling of 380 watts total for the pair, with 175 watts peak per speaker. Peak ratings describe short-duration handling rather than continuous power, so amplifier selection should be based on the amplifier's actual output and clean setup. RMS power handling is not published for this model.

The GR-6996H uses silver alpha cellulose cones with moisture-resistant rubber surrounds. A Neo Mylar soft-dome tweeter is integrated into the coaxial design for high-frequency reproduction. The speaker assembly also includes a 20-ounce magnet and 25 mm voice coil.

For an upgrade path, the GR-6996H can be used with a compatible 4-ohm factory head unit or aftermarket amplifier. Its spade terminals simplify speaker-wire connection, while the stamped-steel basket supports the driver structure. Confirm vehicle-specific 6x9-inch fitment, mounting depth, mounting-hole pattern, and clearance before installation.

Key Features

• 6x9-Inch Coaxial Format: Fits applications designed for compatible 6x9-inch car speakers.
• 4-Way Speaker Design: Combines multiple driver elements in each speaker assembly.
• 4-Ohm Impedance: Matches the common nominal impedance used in car audio systems.
• 92 dB Sensitivity: Supports efficient output from compatible source units or amplifiers.
• Silver Alpha Cellulose Cone: Provides the primary cone material for the woofer section.
• 30 Hz–22 kHz Response: Published range covers low, midrange, and high frequencies.

Design & Installation

The GR-6996H combines silver alpha cellulose cones, moisture-resistant rubber surrounds, a Neo Mylar soft-dome tweeter, and an anti-resonant stamped-steel basket. Each speaker uses a 25 mm voice coil and 20-ounce magnet structure. These construction details are intended for automotive use where vibration and changing cabin conditions are common.

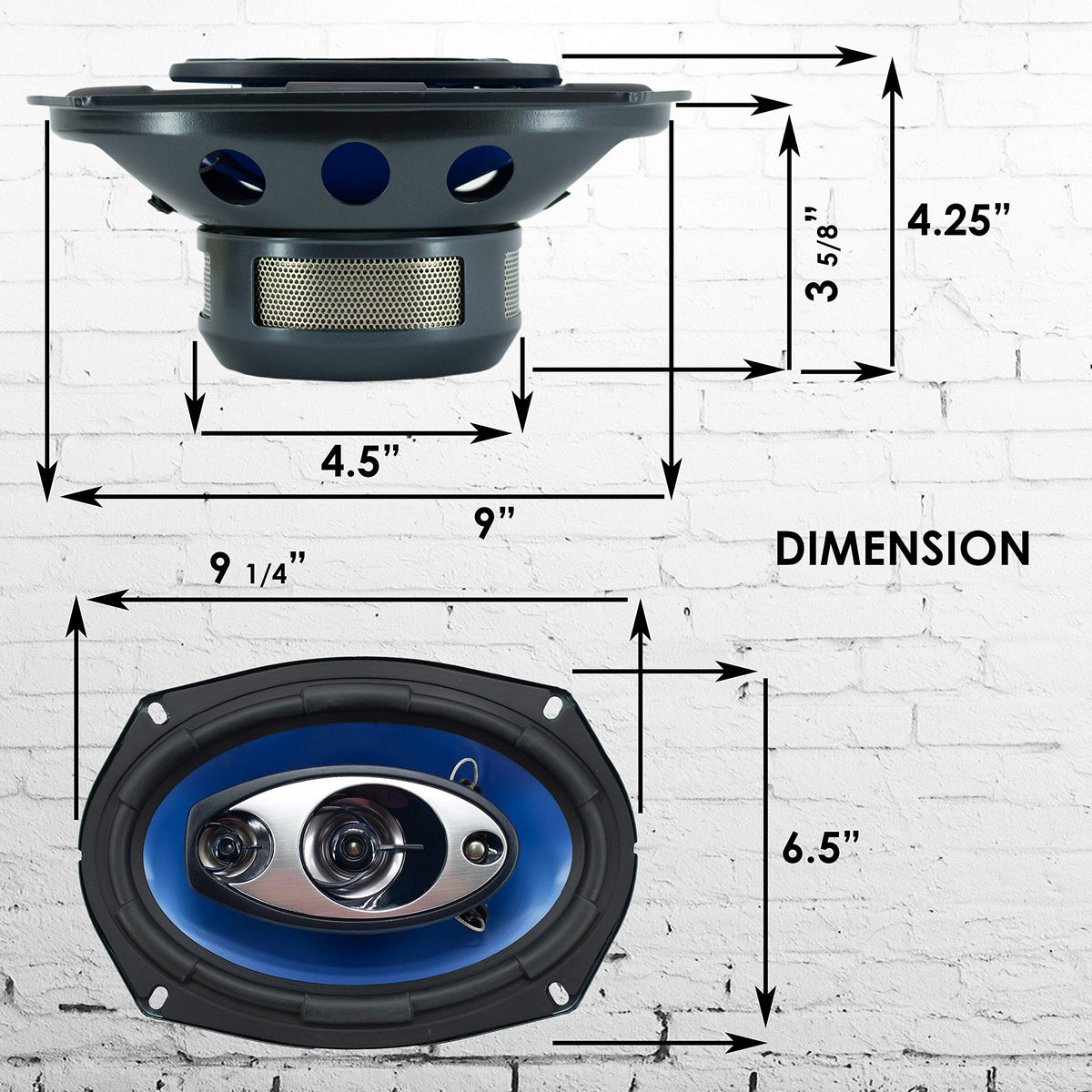

Use the supplied speaker wire, screws, and spade-terminal connections as appropriate for the vehicle and installation. Verify that the vehicle accepts 6x9-inch speakers and check mounting depth, grille clearance, terminal clearance, and mounting-hole alignment before ordering or cutting. Match polarity at both speakers and avoid exceeding the speakers' published peak-power claims with a distorted or improperly adjusted signal.
