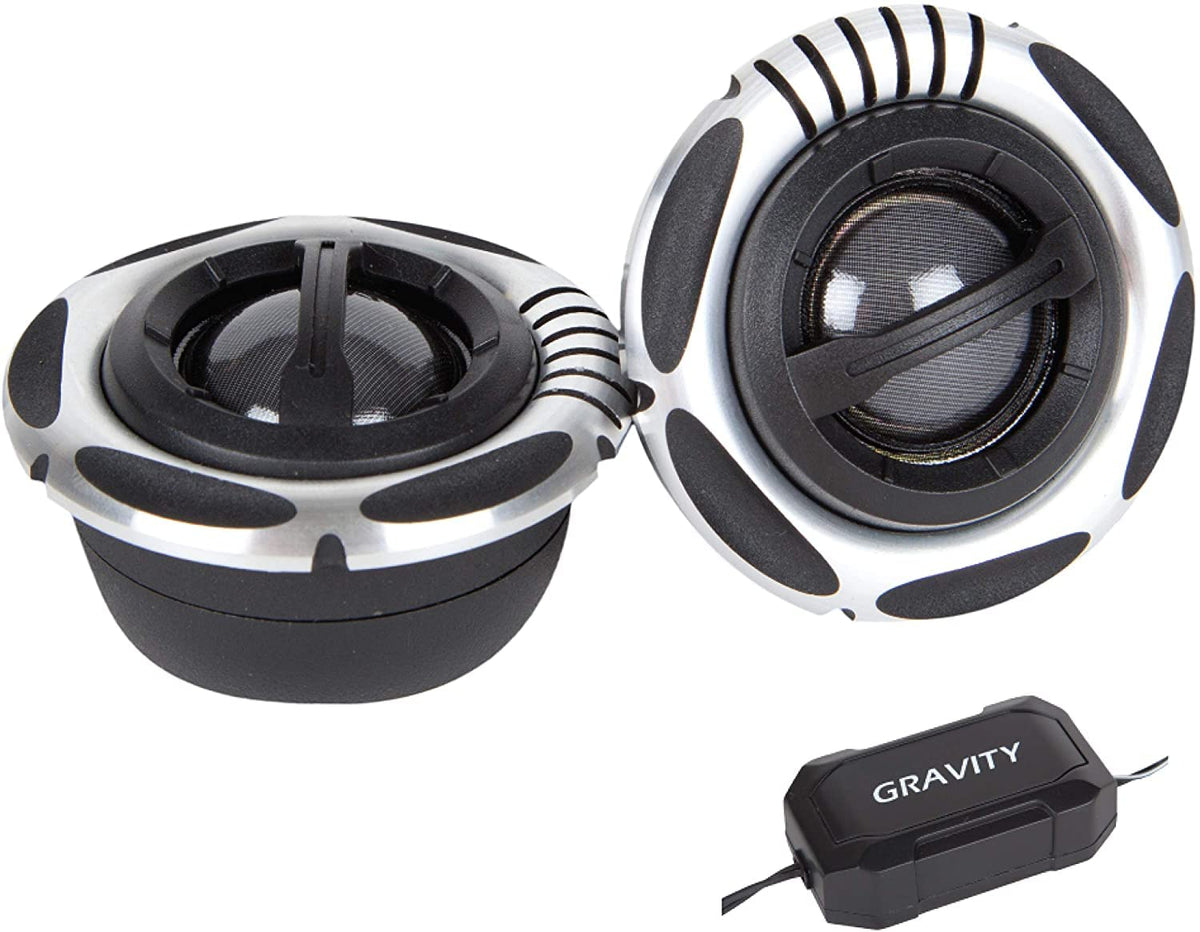

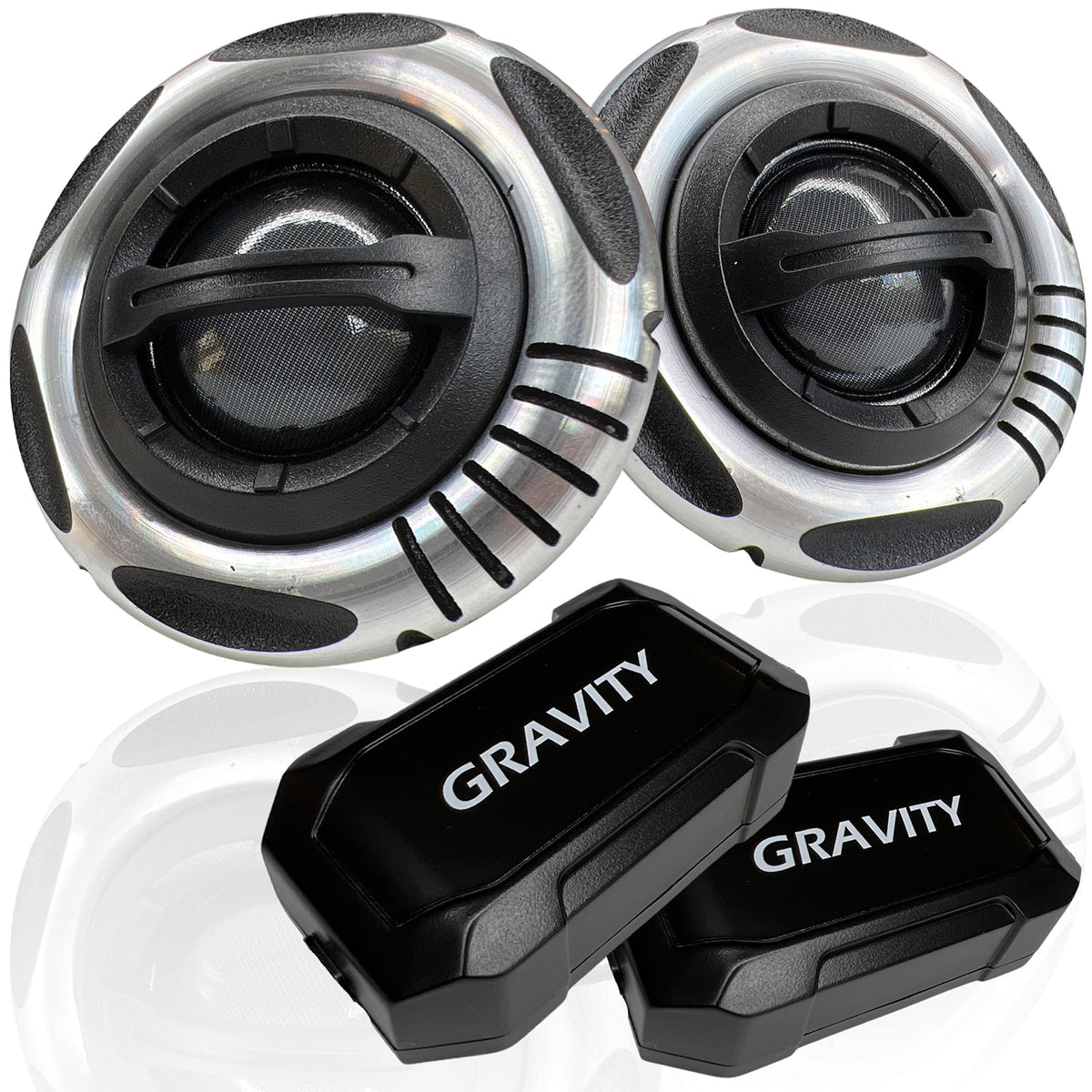

Gravity G-230TW 1-Inch Silk Dome Tweeters

The Gravity G-230TW is a 1-inch dome tweeter set designed to add dedicated high-frequency reproduction to a vehicle audio system. It is intended for systems where factory speakers or larger aftermarket drivers need more definition in the upper-frequency range. Adding separate tweeters can help bring vocals, percussion, and fine musical details forward in the listening experience.

This model is suited to car-audio upgrades using compatible 4-ohm speaker outputs and a properly configured high-frequency crossover. Its listed 350-watt maximum power handling gives installers a reference point when selecting and setting up an amplifier. An RMS power rating is not confirmed, so amplifier matching should not be based on the maximum-power figure alone.

The G-230TW uses a 1-inch silk dome design with a neodymium magnet, according to available product listings. A silk dome is intended for smooth high-frequency playback, while the compact neodymium motor structure helps keep the tweeter installation footprint small. The result is a dedicated treble driver for complementing midrange speakers and subwoofers.

These tweeters are listed as a pair, making them appropriate for left- and right-channel front-stage installations. They can be used in common tweeter locations such as door sail panels, dashboards, A-pillars, or custom pods when space and vehicle safety systems allow. Proper placement and aiming can affect stereo imaging and perceived treble level.

For a complete upgrade, install the G-230TW set with the appropriate passive crossover or active high-pass filtering. This protects the tweeters from low-frequency content that they are not designed to reproduce. Careful gain setting, correct polarity, and conservative equalization are important for clean integration with the rest of the system.

Key Features

• 1-Inch Silk Dome: Provides dedicated high-frequency reproduction in a compact format.
• 350W Maximum Power: Listed maximum-power capability for system planning.
• 4-Ohm Impedance: Suits compatible car-audio speaker outputs and crossover networks.
• Neodymium Magnet: Supports a compact tweeter motor assembly.
• Pair Configuration: Supports left- and right-channel stereo installation.
• Vehicle Audio Design: Intended for aftermarket automotive sound-system upgrades.

Design & Installation

The G-230TW combines a silk dome diaphragm with a neodymium magnet structure and a black metallic appearance. Its compact 1-inch format is designed for use where a dedicated tweeter can be mounted without the space requirements of a larger speaker. Available listings identify it as a wired automotive tweeter set.

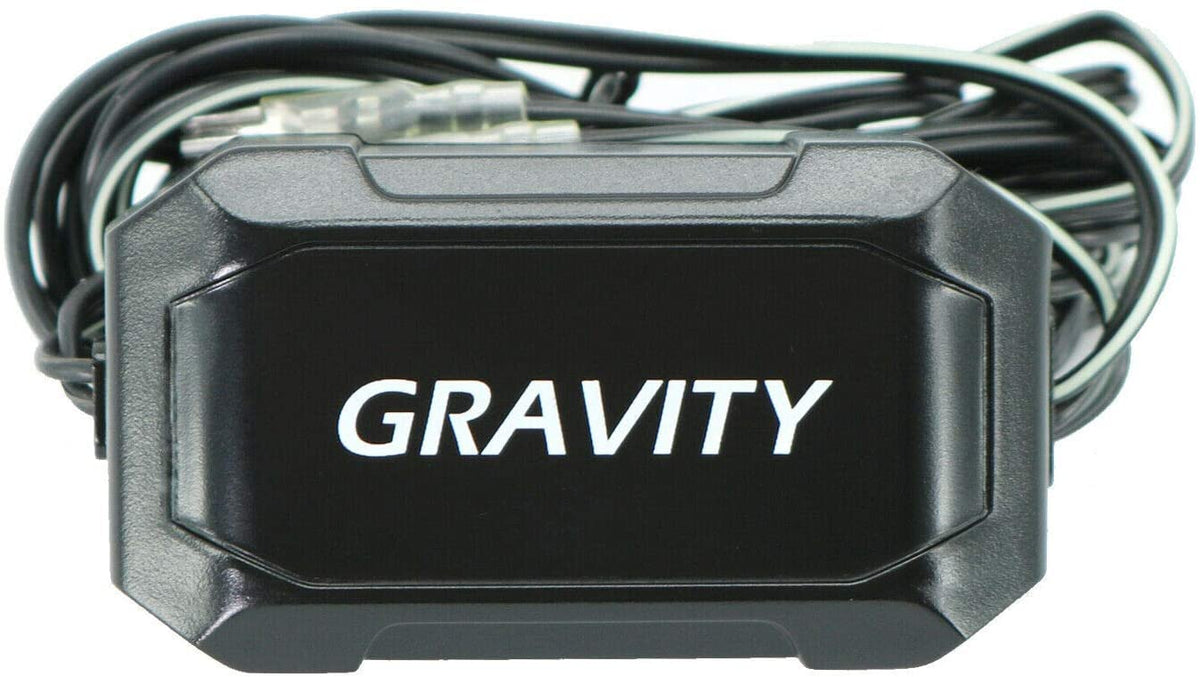

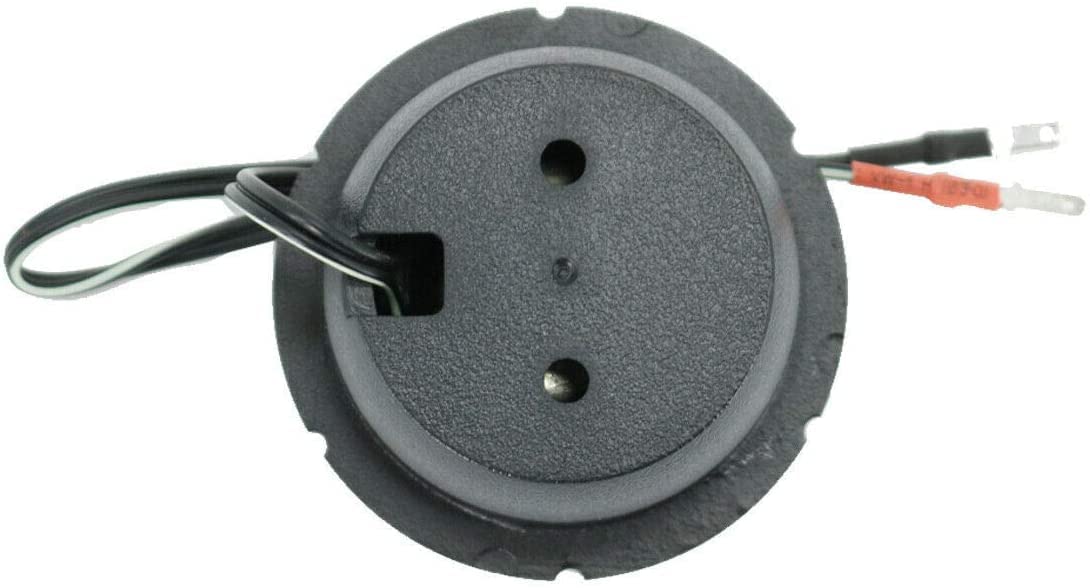

Use a suitable crossover or high-pass filter between the amplifier or head-unit speaker output and each tweeter. Confirm mounting depth, cutout requirements, and clearance behind the selected location before modifying a door panel, dash, or trim piece. Maintain polarity from source to crossover to tweeter, secure all wiring, and avoid excessive treble boost or amplifier gain.
