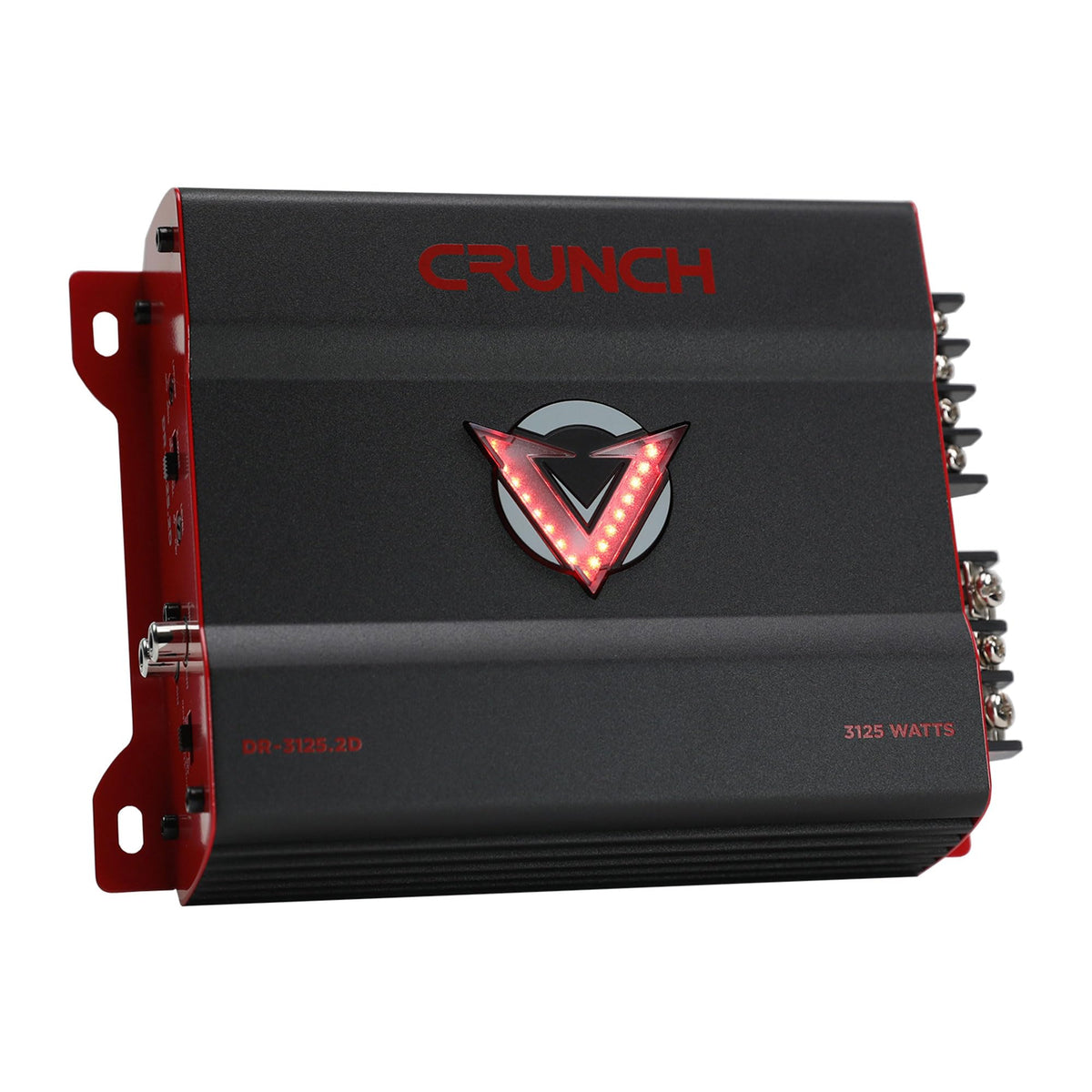

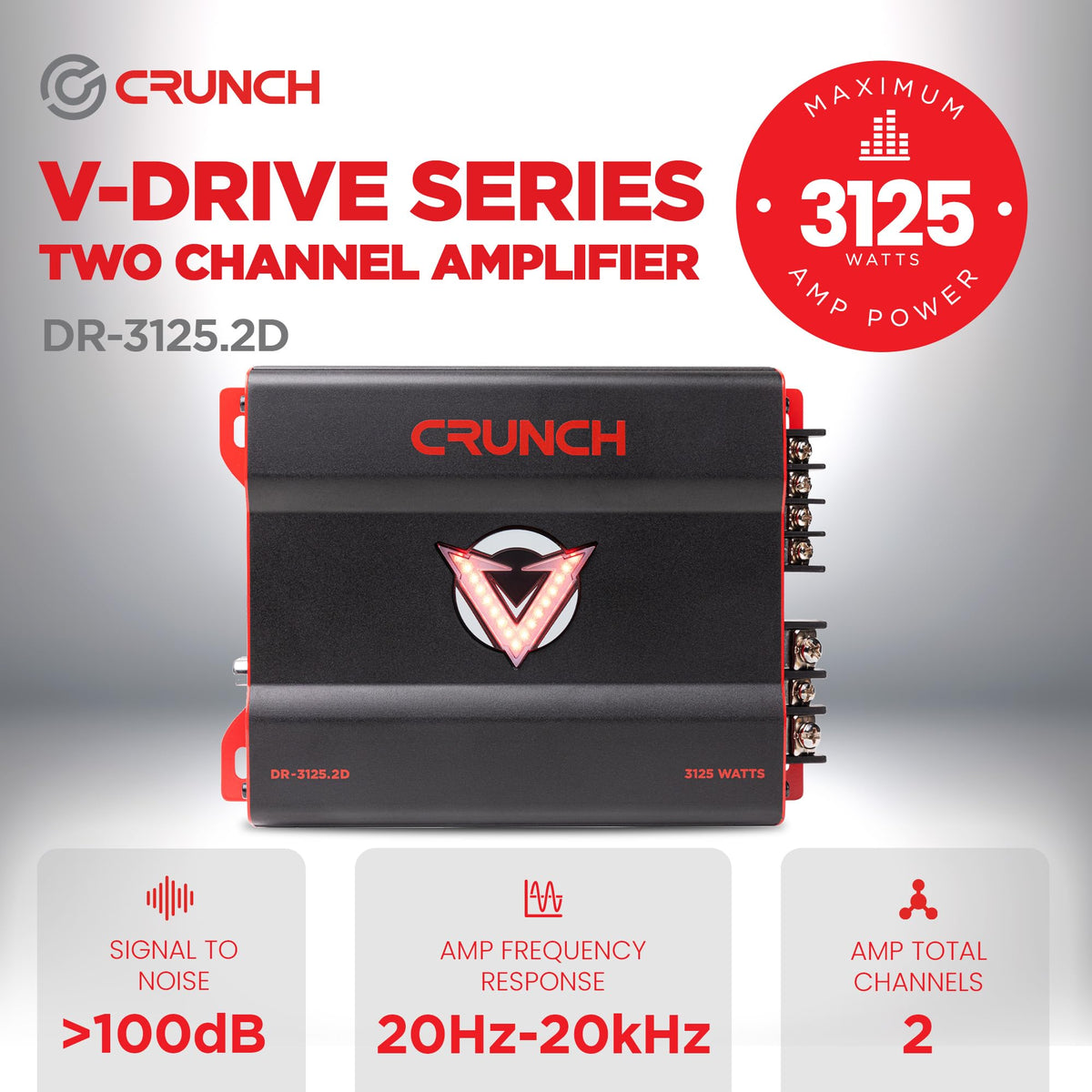

Crunch DR-3125-2D 2-Channel Class D Car Amplifier

The Crunch DR-3125.2D is a compact two-channel Class D car audio amplifier designed to add external amplification to a compatible vehicle sound system. It supports stereo operation or bridged mono operation, allowing it to be used with a pair of speakers or a compatible subwoofer setup. Its universal-fit format makes it suitable for custom car-audio installations rather than a direct replacement for a factory radio.

Crunch rates this V-DRIVE amplifier at up to 2 x 1,560 watts at 2 ohms, 2 x 780 watts at 4 ohms, or 3,125 watts bridged at 4 ohms. These are manufacturer maximum-power ratings, so system matching should account for the impedance and power-handling limits of the connected speakers. The amplifier is stable to 2 ohms per channel in stereo and requires a 4-ohm load when bridged.

For system tuning, the DR-3125.2D includes variable electronic high-pass and low-pass crossovers. Both crossover controls adjust from 40 Hz to 400 Hz with a 12 dB-per-octave slope, giving installers flexibility when building full-range, component-speaker, or subwoofer-oriented systems. An onboard electronic equalizer function further supports frequency tailoring at the amplifier.

The amplifier uses proprietary Crunch SPEED-FET MOSFET output devices and a pulse-width-modulated power supply. Its Quick Thermal Dispersion aluminum heat sink is designed to manage operating heat in a compact chassis. A low-noise preamplifier circuit, RCA inputs, and specified signal performance figures support connection to a compatible aftermarket source unit.

An integrated LED VU meter provides a visual reference during gain adjustment, while selectable logo illumination can be set to constant red, VU-meter response, or off. Protection-status lighting is provided for overload and speaker-short monitoring. This amplifier is a practical choice for an installer building a wired, RCA-based upgrade system with appropriately matched speakers, subwoofers, wiring, and external fuse protection.

Key Features

• Two-Channel Class D Design: Provides stereo amplification or bridged mono capability in a compact format.
• 3125-Watt Maximum Output: Supports up to 2 x 1,560 watts at 2 ohms or 3,125 watts bridged at 4 ohms.
• Variable 12 dB Crossovers: High-pass and low-pass filters adjust from 40 Hz to 400 Hz.
• LED VU Meter: Gives a visual reference when setting amplifier gain.
• QTD Aluminum Heat Sink: Helps disperse heat during normal operation.
• Selectable Logo Lighting: Choose constant red, VU response, or no logo illumination.

Design & Installation

The DR-3125.2D has a black V-DRIVE chassis with an aluminum QTD heat sink, nickel-plated brass terminals, and screw-down connectors. Its compact amplifier dimensions are 7.64 inches long, 5.83 inches wide, and 2.2 inches high. The end panel includes LED diagnostics for overload and speaker-short protection, plus illumination and VU-meter functionality.

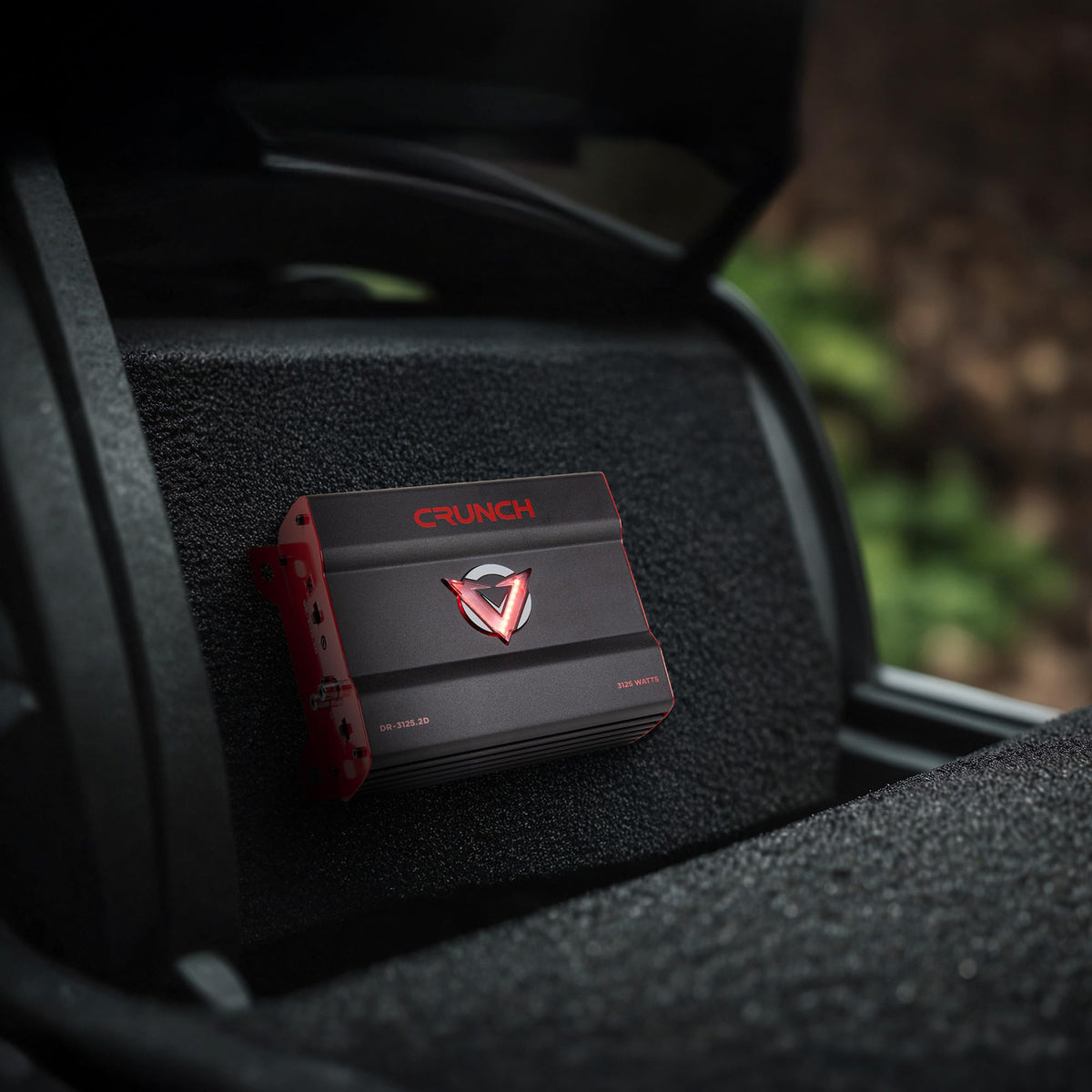

Install the amplifier on a secure surface with adequate ventilation and do not mount it upside down. It uses RCA signal inputs, 4 AWG power and ground terminals, 8 AWG speaker terminals, and an external 125A fuse requirement. Use a compatible 2-ohm-or-higher stereo load or a 4-ohm bridged load, and set gain and crossover controls after the source unit and speakers are connected.
