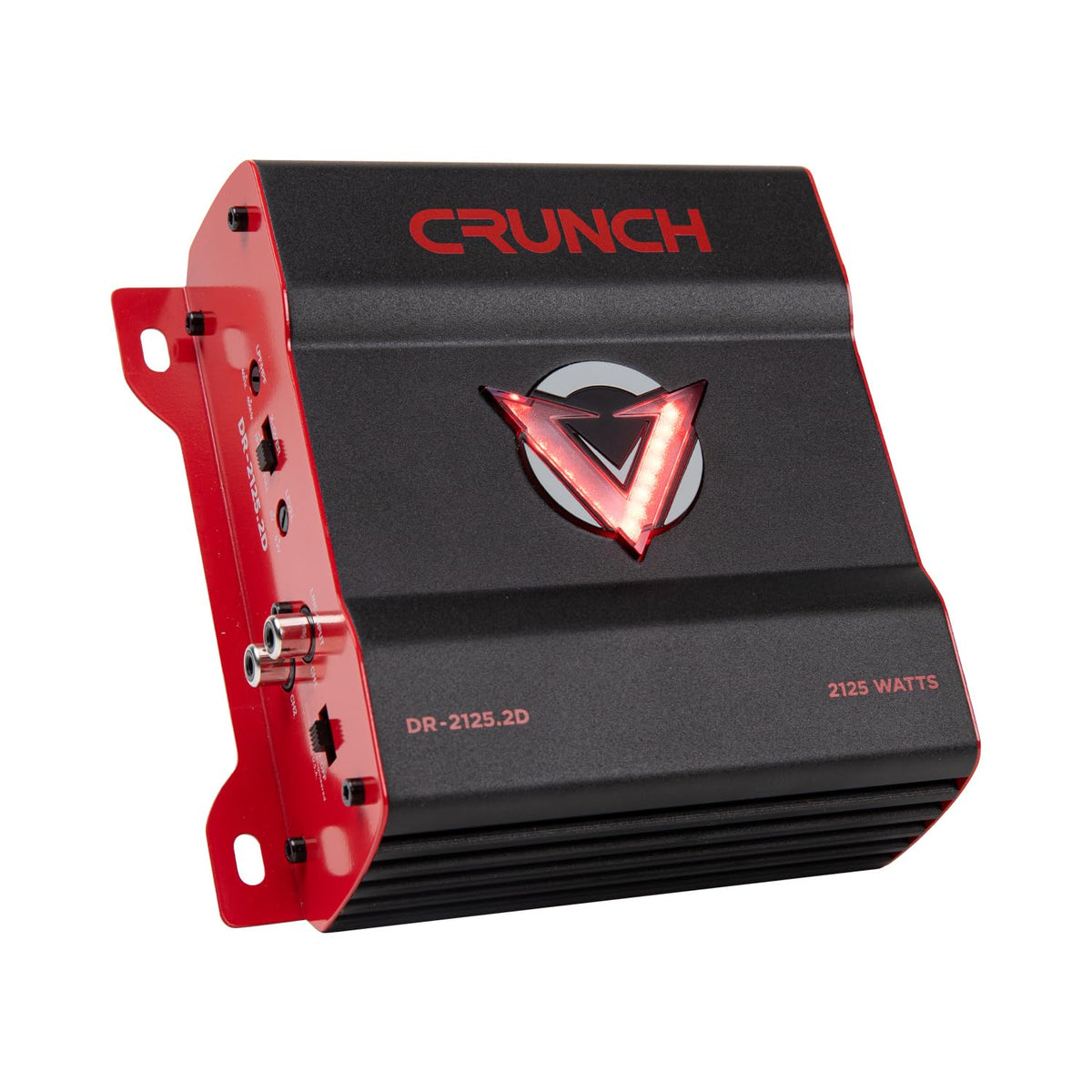

Crunch DR-2125-2D 2-Channel Class D Car Amplifier

The Crunch DR-2125-2D is a compact two-channel car audio amplifier designed to add external amplification to a vehicle sound system. It can power a pair of speakers in stereo or a compatible subwoofer through its bridged-mono configuration. Its Class D design is suited to installations where output capability and a small mounting footprint both matter.

This amplifier is a practical option for listeners building a subwoofer-focused system or upgrading beyond head-unit power. The manufacturer lists output ratings of 2 x 530 watts at 4 ohms, 2 x 1060 watts at 2 ohms, or 1 x 2125 watts bridged at 4 ohms. Matching the amplifier to compatible speaker impedance and power handling is essential for a reliable installation.

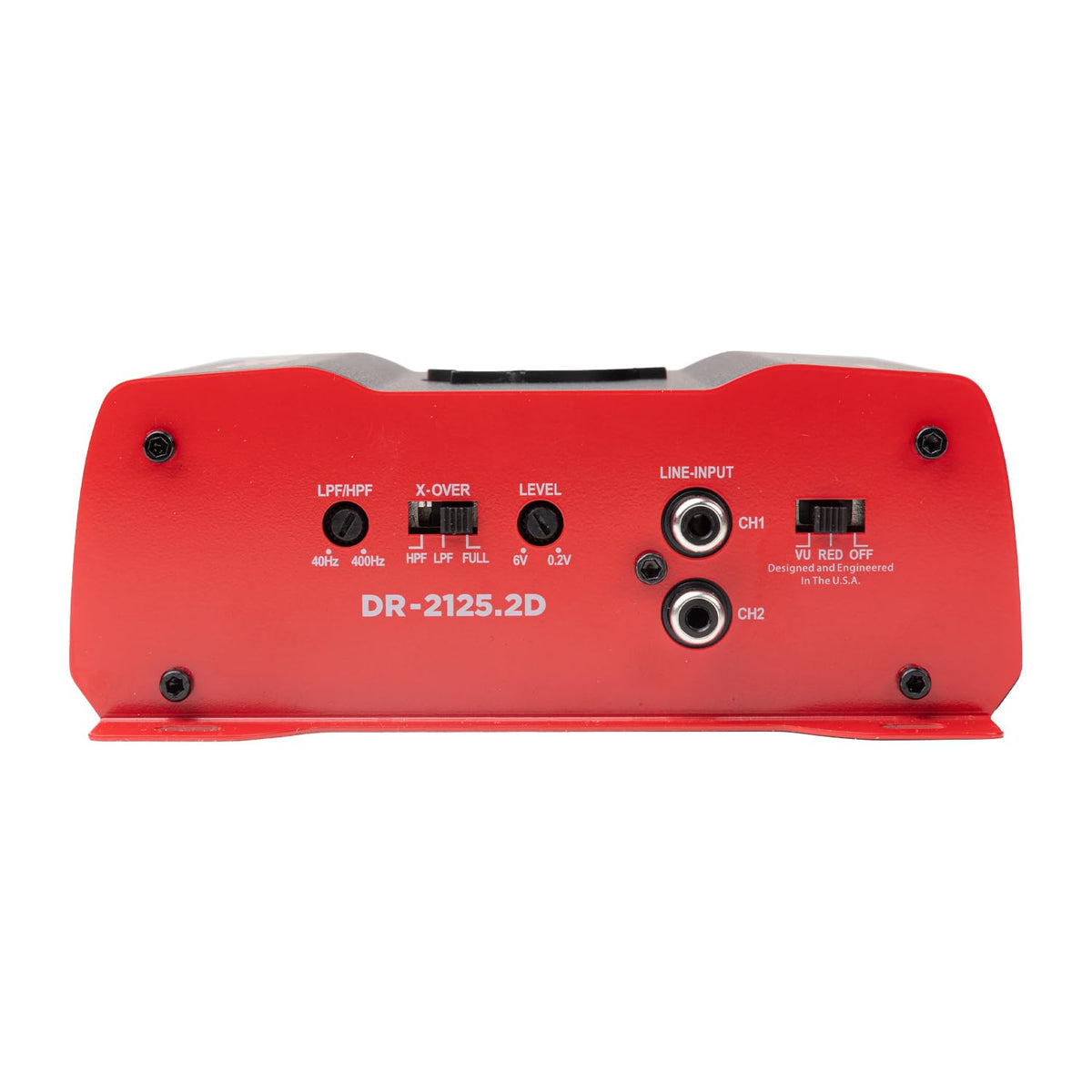

Variable high-pass and low-pass filters allow the DR-2125-2D to be configured for full-range speakers or bass duty. Both crossover sections adjust from 40Hz to 400Hz with a 12dB-per-octave slope. An onboard electronic equalizer and adjustable input sensitivity provide additional control when integrating with a source unit.

Crunch uses proprietary SPEED-FET MOSFET output components and a pulse-width-modulated power supply in this V-DRIVE series model. Quick Thermal Dispersion technology adds an aluminum heat sink to help manage operating heat. The specified frequency response is 20Hz to 20kHz, with total harmonic distortion rated below 0.5%.

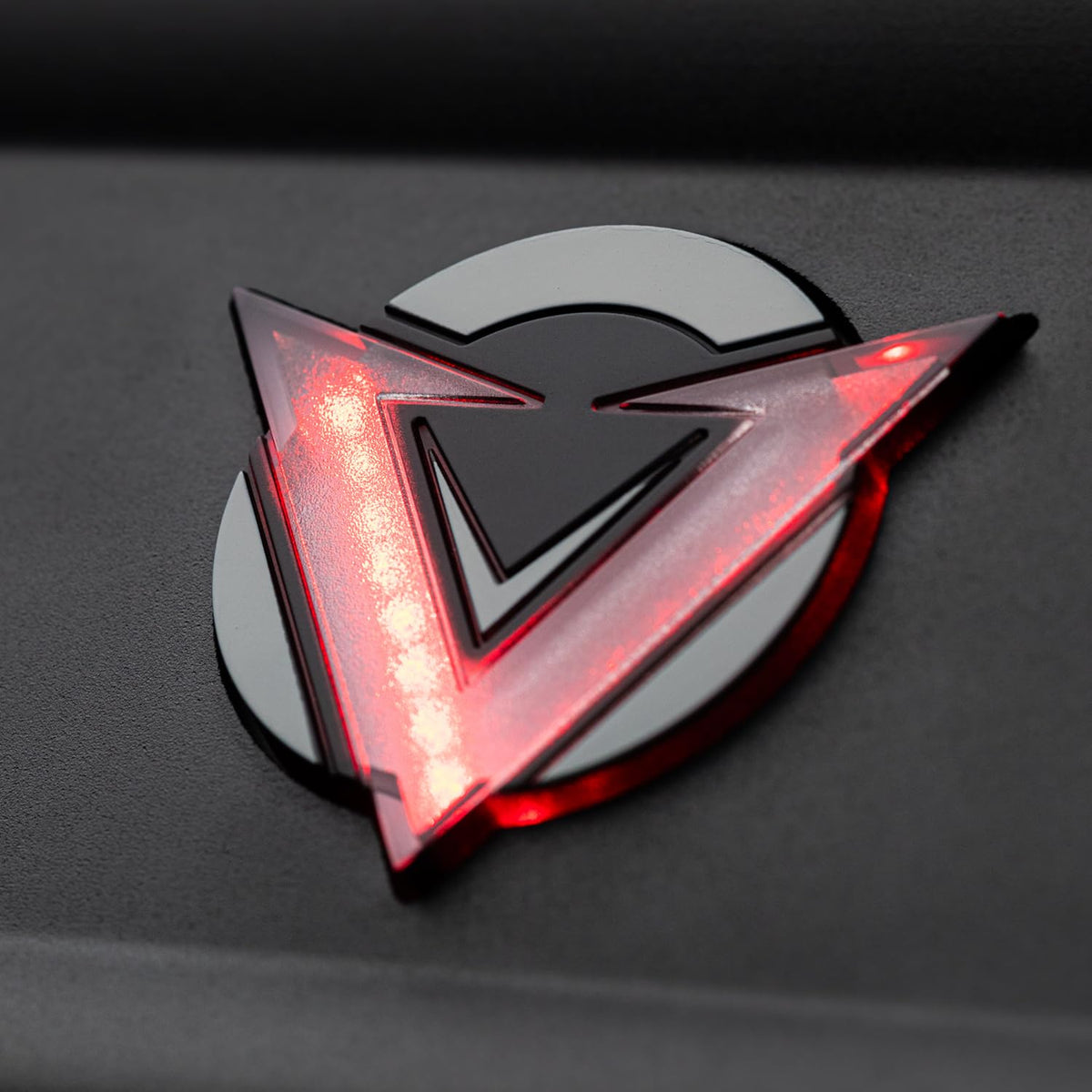

The built-in LED VU meter provides visual level feedback during setup, while selectable logo lighting supports VU-meter, constant-red, or off modes. RCA inputs, screw-down terminals, and LED protection diagnostics support a straightforward installation. It can be used in stereo, bridged mono, or stereo/bridged-mono system configurations.

Key Features

• Class D Topology: Efficient amplification in a compact chassis for vehicle audio upgrades.
• Flexible Power Modes: Runs stereo channels or a 4-ohm bridged mono load.
• Adjustable Crossovers: HPF and LPF controls tailor output from 40Hz to 400Hz.
• LED VU Meter: Provides visual feedback to assist with level adjustment.
• QTD Aluminum Heat Sink: Helps manage heat during normal music playback.
• Protection Diagnostics: Lighted indicators monitor overload and speaker-short protection.

Design & Installation

The DR-2125-2D has a black V-DRIVE chassis with an aluminum QTD heat sink, nickel-plated brass connection terminals, and screw-down connectors. Its compact listed chassis dimensions are 6.06 inches long, 5.83 inches wide, and 2.2 inches high. Selectable logo illumination can be set to constant red, VU-meter response, or off.

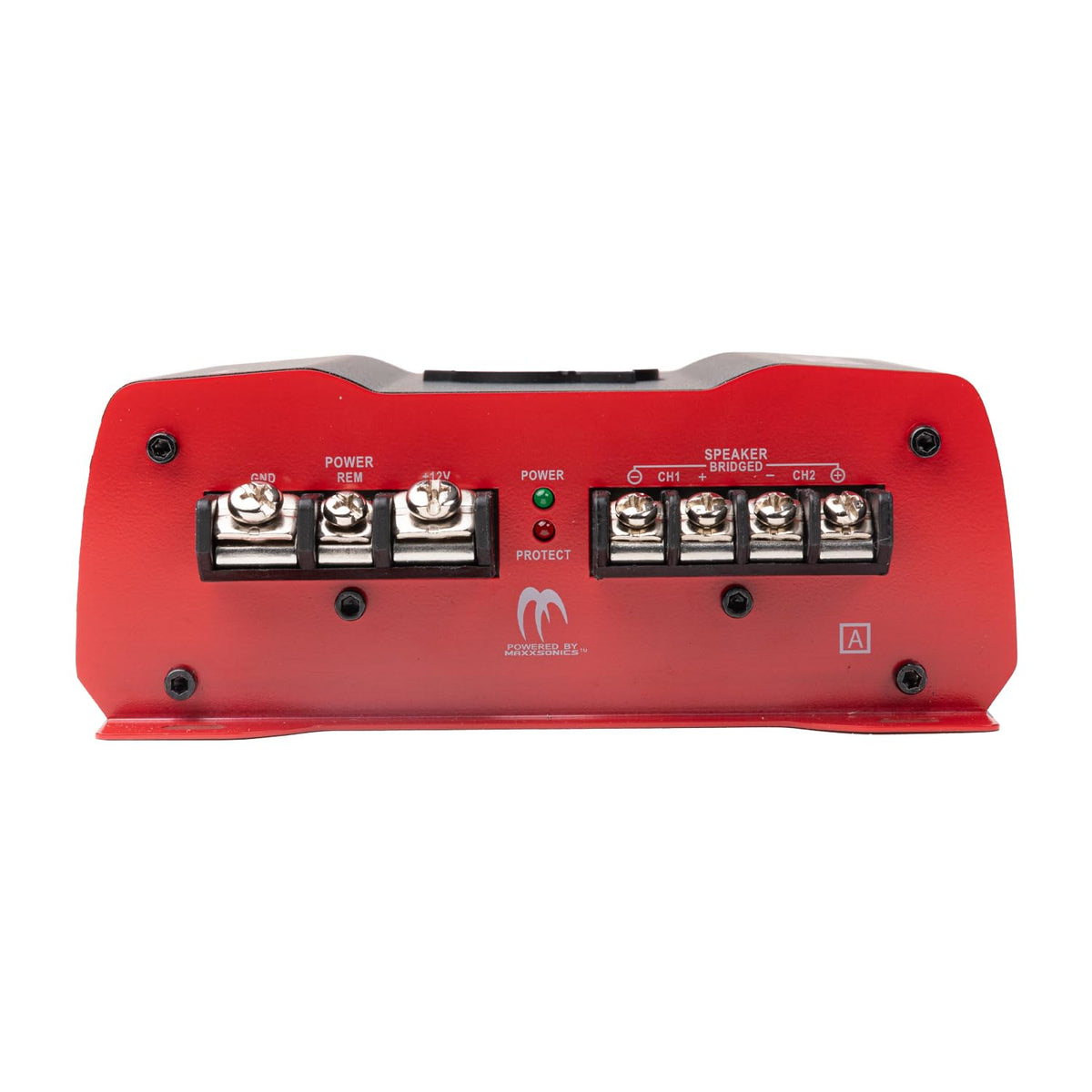

Use 4 AWG cable for the 12V and ground terminals and 8 GA speaker wire at the amplifier terminals. The manufacturer specifies an external 100A fuse, with the power cable fused within 18 inches of the battery terminal. Mount the amplifier securely in a ventilated location, keep it right-side up, use a clean bare-metal chassis ground close to the amplifier, and set gain carefully after completing the wiring.
