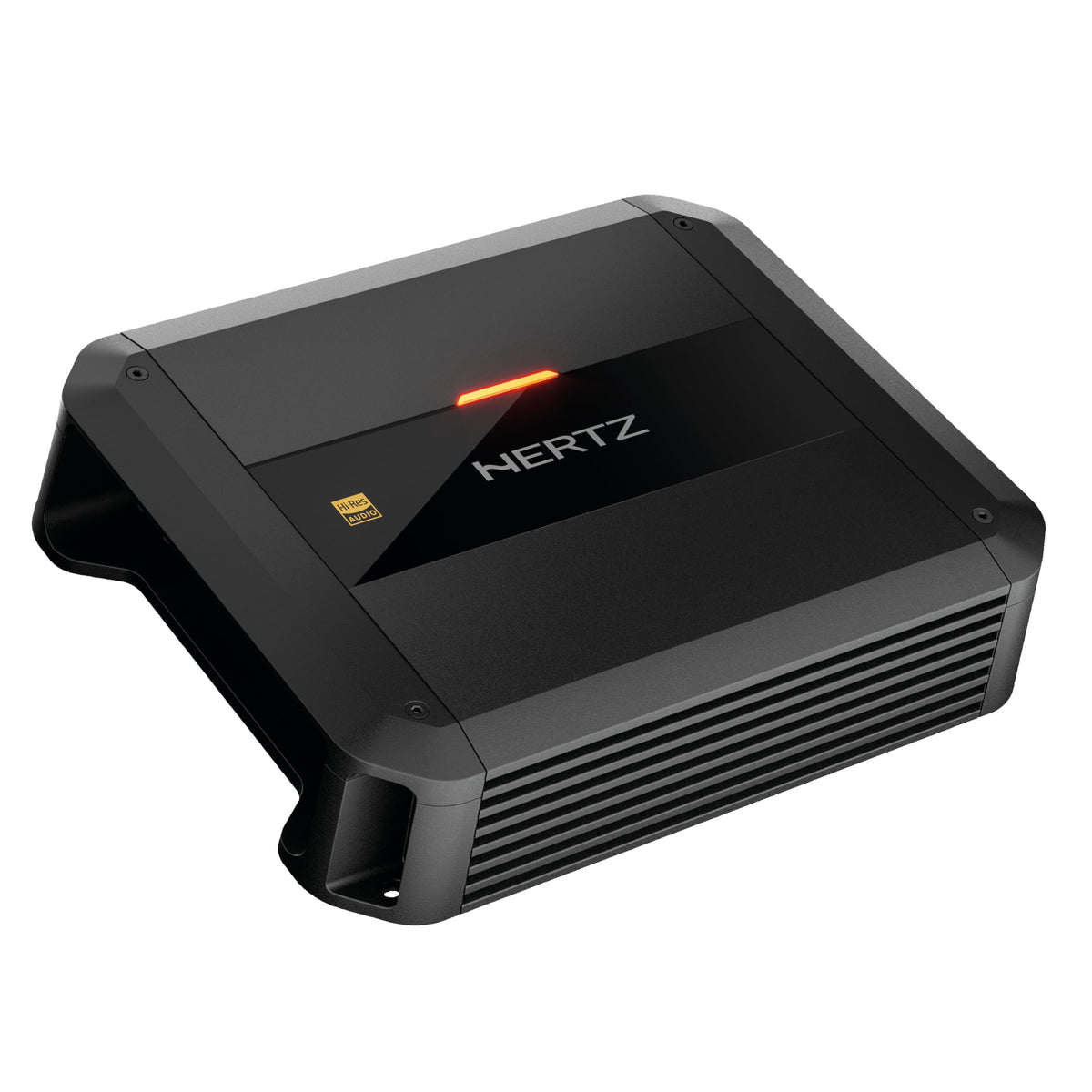

Hertz DP2-200 2-Channel Class AB Car Amplifier

The Hertz DP2-200 is a compact two-channel Class AB car amplifier designed to add dedicated power to front speakers, rear speakers, or a single bridged subwoofer channel. It is intended for vehicle audio upgrades where a factory or aftermarket radio needs more output than its built-in amplifier can provide. Its two-channel layout supports stereo operation or bridged mono operation with compatible speaker loads.

Rated at 80 watts RMS per channel at 4 ohms and 110 watts RMS per channel at 2 ohms, the DP2-200 is suited to many component and coaxial speaker systems. It can also be bridged to deliver 220 watts RMS to one 4-ohm load. Variable high-pass and low-pass filters allow the amplifier to be configured for full-range speakers or a subwoofer application.

The amplifier uses Class AB circuitry and balanced preamp and speaker-level input stages for high noise rejection. Its -3 dB bandwidth is rated from 10 Hz to 45 kHz, while the amplifier also carries Hi-Res Audio certification with a stated 10 Hz to 50 kHz response capability. A 100 dBA A-weighted signal-to-noise ratio and 0.01% THD specification at 100 Hz and 70% rated power support clean signal reproduction.

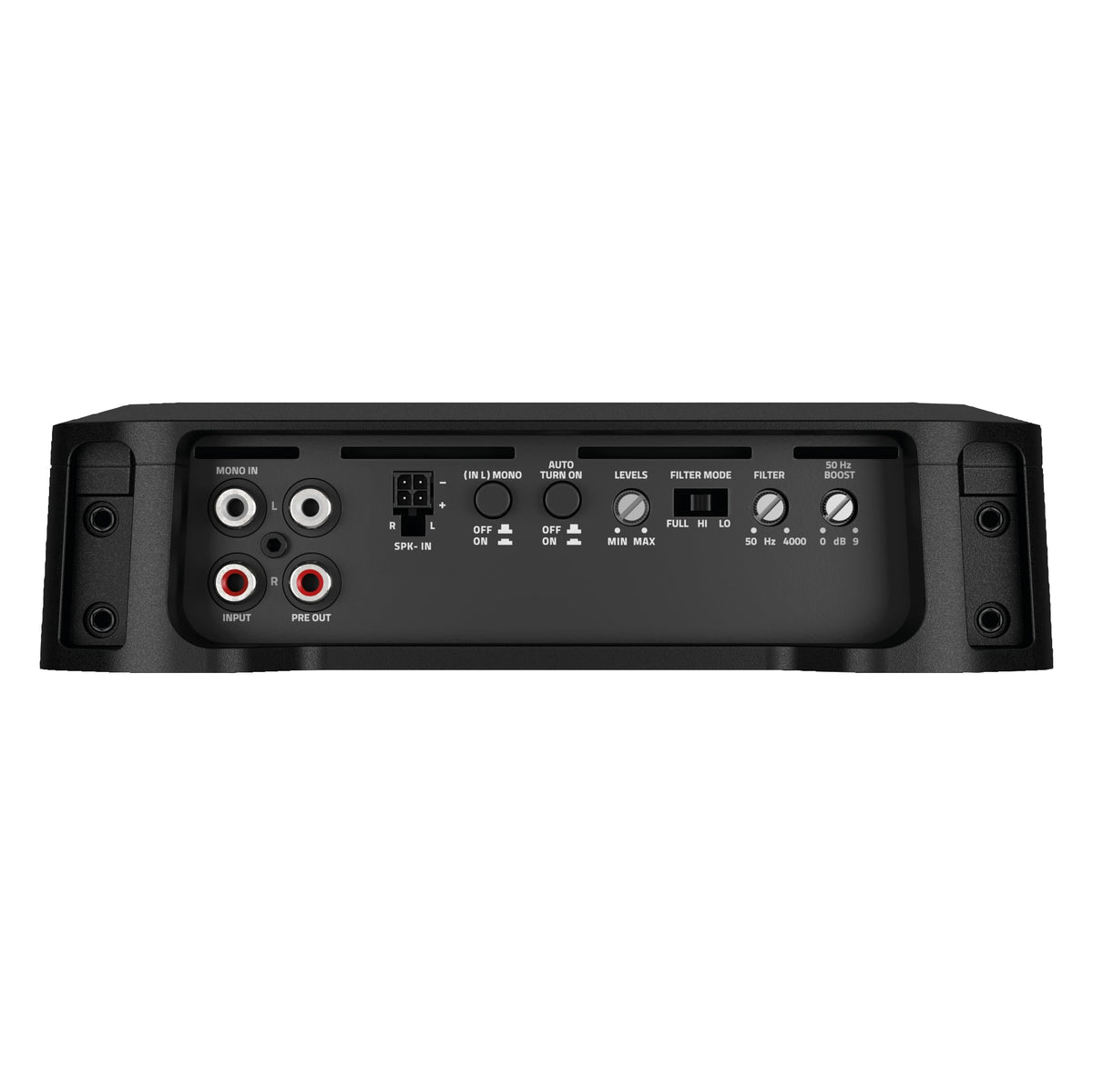

For integration with modern factory systems, the DP2-200 accepts both RCA preamp input and speaker-level input signals. The speaker-level input sensitivity range extends from 1.6 to 40 Vrms, and built-in USS technology is designed to work with source units that monitor speaker-load presence. Automatic remote turn-on/off is available from compatible BTL speaker-level outputs.

The DP2-200 fits neatly into a focused two-channel upgrade or can serve as a compact mono amplifier for a 4-ohm subwoofer. A full-range preamp output can pass signal to an additional amplifier as a system grows. Its compact chassis is intended for installations with limited available mounting space, including factory amplifier locations.

Key Features

• Two-Channel Class AB Design: Powers a stereo speaker pair or one bridged 4-ohm load.
• 80W x 2 RMS at 4 Ohms: Adds dedicated power for compatible aftermarket speakers.
• Bridgeable Mono Output: Delivers 220W RMS into one 4-ohm load.
• Hi-Res Audio Certification: Supports extended high-frequency playback capability.
• Pre-In and Speaker-In Inputs: Works with aftermarket and many factory audio systems.
• USS Integration Technology: Helps accommodate radios with speaker-load detection.

Design & Installation

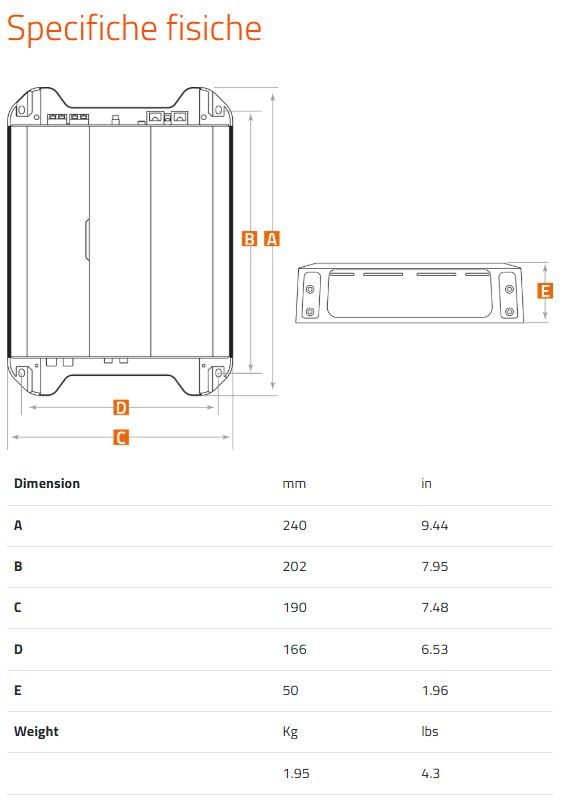

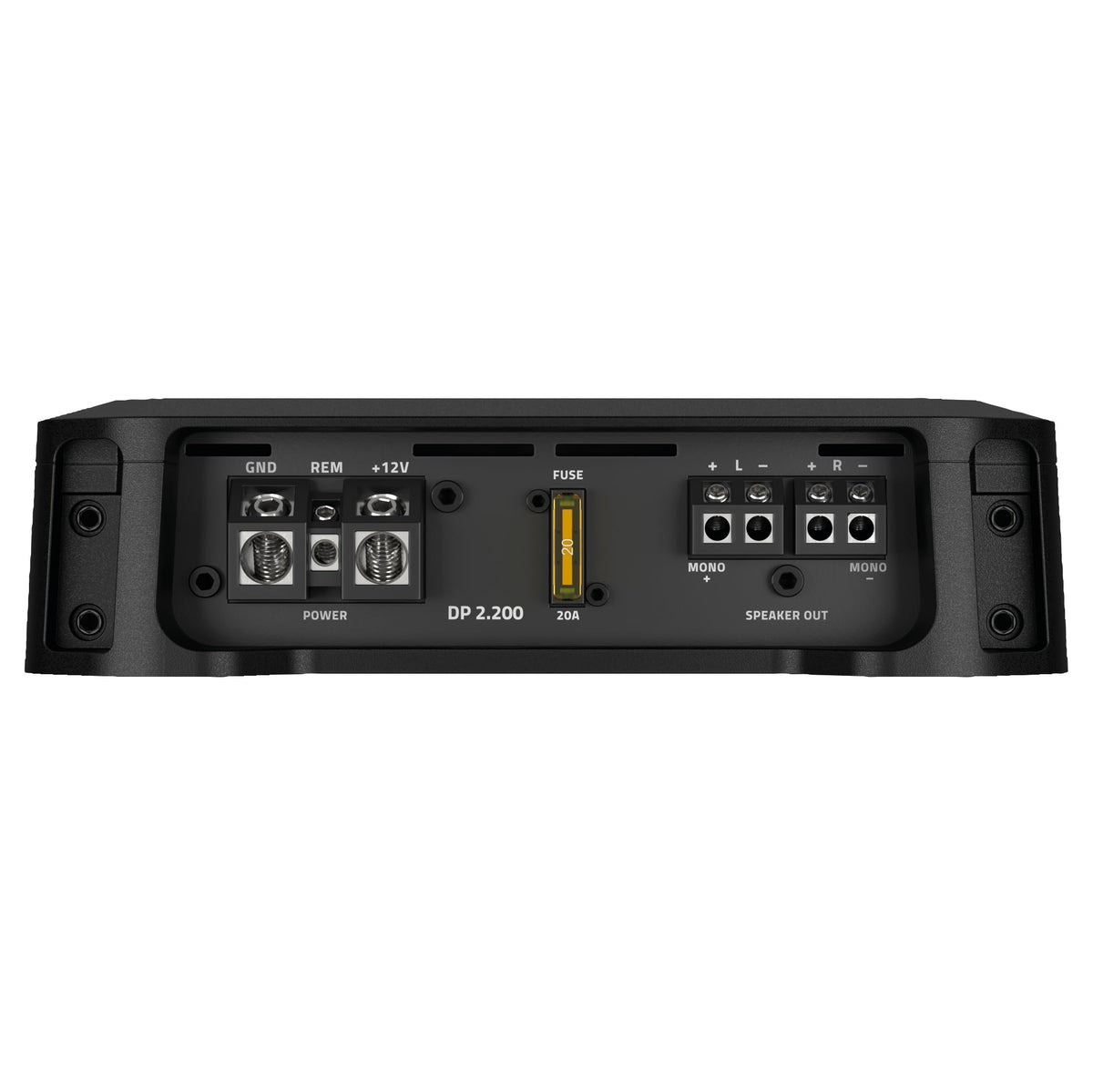

The DP2-200 uses a compact chassis with a removable top panel that protects its controls and connections. It includes a status LED and solid machined terminal block construction. The amplifier measures 240 mm by 190 mm by 50 mm at its main overall dimensions and weighs 1.95 kg.

Install the amplifier in a dry, ventilated vehicle location and maintain clearance around the chassis for airflow. Use it in stereo with 2-ohm or higher speakers per channel, or bridge it only to a 4-ohm load. RCA preamp inputs suit aftermarket receivers, while the supplied speaker-level harness supports integration with compatible factory-radio outputs.
