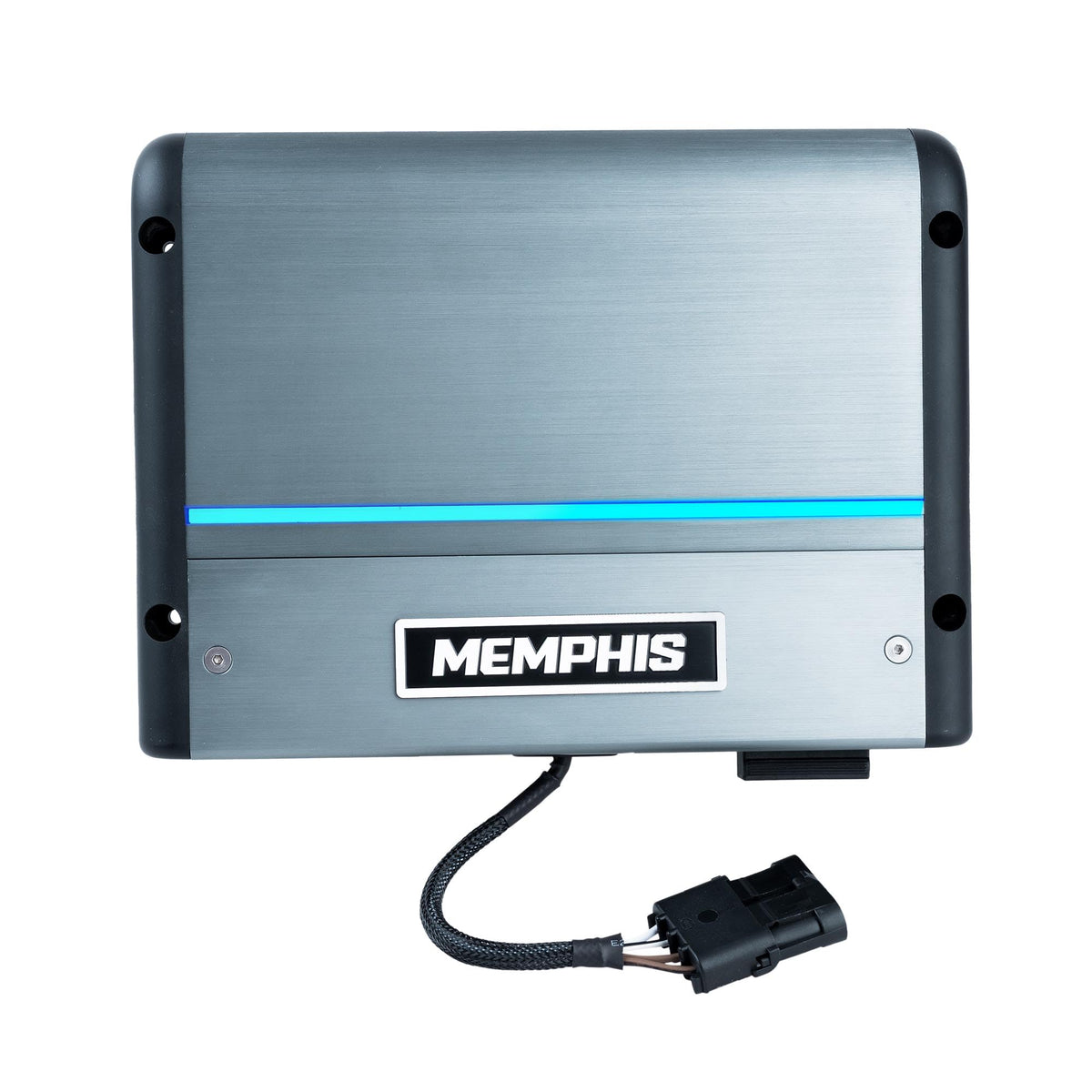

MEMPHIS MM600-V2 2-Channel Marine Amplifier

The MEMPHIS MM600-V2 is a two-channel marine-grade amplifier designed to add clean, high-output power in boats and other exposed mobile-audio installations. It is suited to powering a pair of marine speakers or a single bridged subwoofer channel. Its water-resistant construction helps address the moisture and environmental exposure common in marine applications.

At 4 ohms, the amplifier delivers 200 watts RMS per channel, increasing to 300 watts RMS per channel at 2 ohms. It can also be bridged to provide 600 watts RMS into a 4-ohm mono load. This flexibility supports either a stereo speaker upgrade or a dedicated subwoofer application.

The MM600-V2 uses adjustable high-pass and low-pass crossover controls to help match amplifier output to the speakers or subwoofer being used. A selectable 12 dB-per-octave Butterworth crossover network provides practical frequency management. Variable bass boost and an infrasonic filter add further low-frequency setup control.

Marine-focused details include an IPX5 rating, sealed top-mounted controls, removable sealed signal connectors, and a removable power terminal. The extruded aluminum heat sink, sealed chassis construction, and conformal-coated circuit boards are intended to support operation in demanding environments. Protection circuitry monitors overload, short-circuit, thermal, and reverse-polarity conditions.

This amplifier accepts both low-level and high-level input signals, allowing integration with many marine source units and audio systems. Signal-sensing auto turn-on can simplify installation where a conventional remote-turn-on lead is not available. A Memphis RG6 remote bass control is included for accessible level adjustment.

Key Features

• Two-Channel Output: Provides 200 watts RMS per channel at 4 ohms.
• Bridged Capability: Delivers 600 watts RMS into a 4-ohm mono load.
• IPX5 Rating: Supports use in water-exposed marine audio installations.
• Sealed Connections: Removable power and signal connectors help protect connections.
• Variable Crossovers: High-pass and low-pass filters help match connected speakers.
• Remote Bass Control: Includes an RG6 remote for convenient level adjustment.

Design & Installation

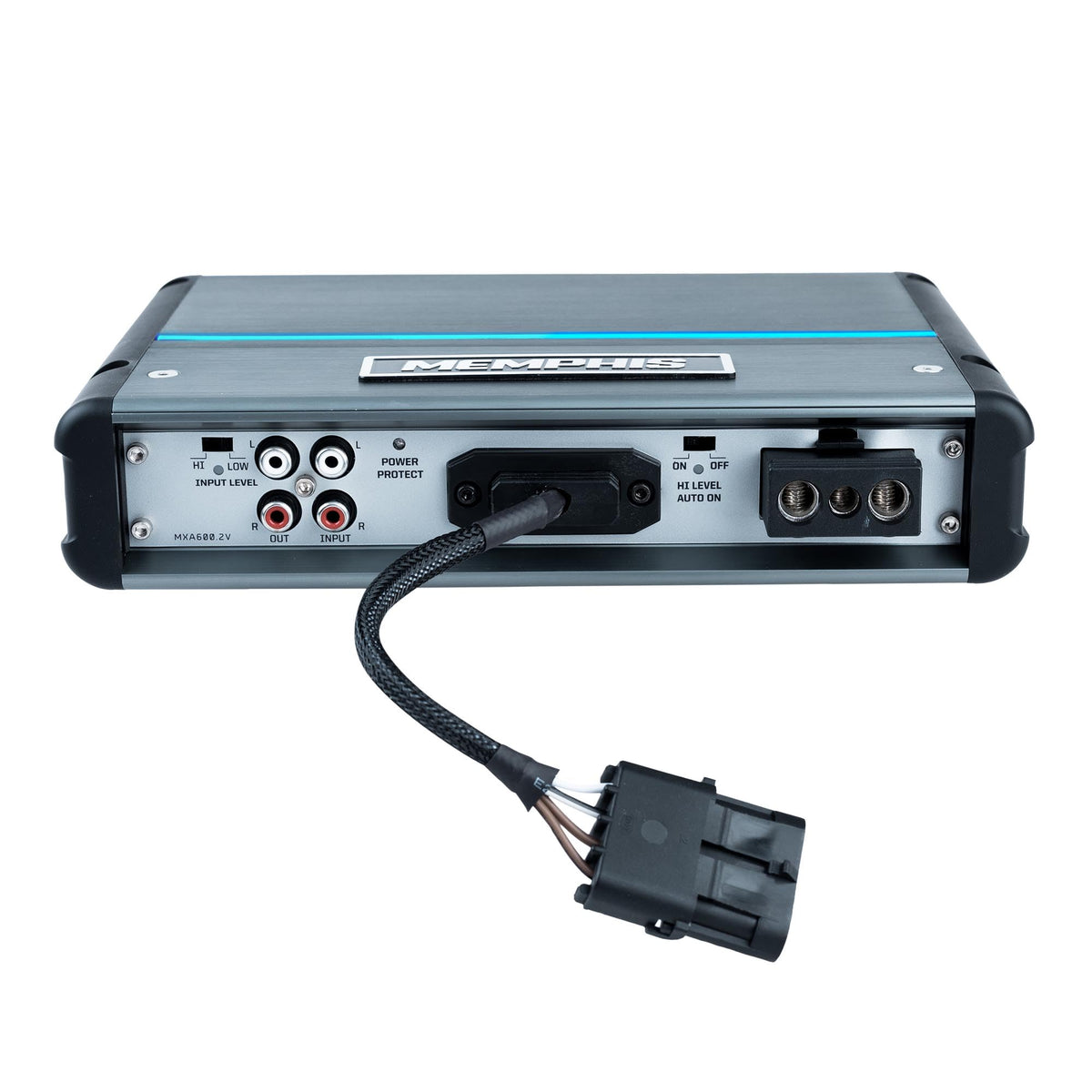

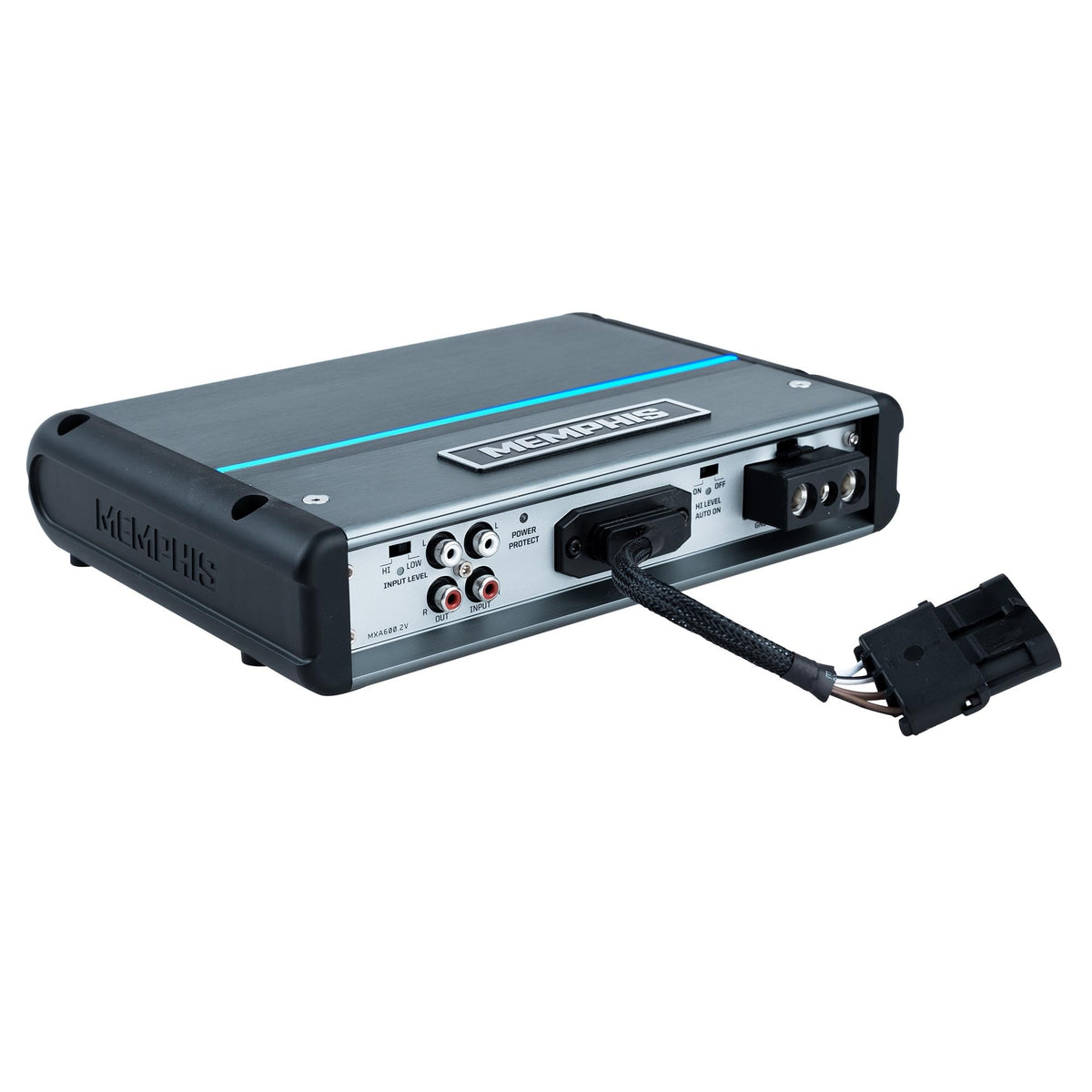

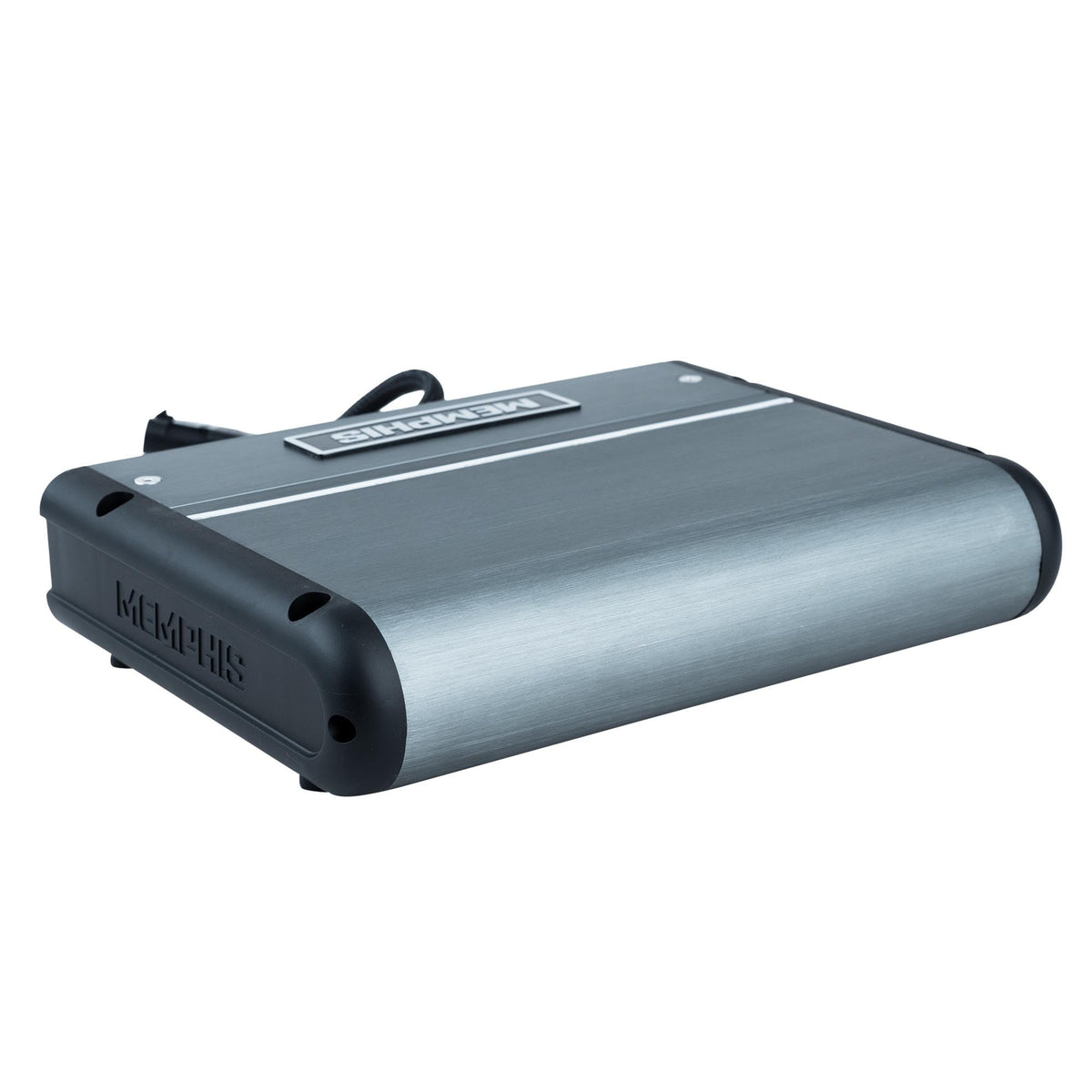

The MM600-V2 combines an extruded aluminum heat sink with marine-oriented sealing features, including a sealed top control panel and removable sealed signal connectors. Its chassis and coated circuit-board design are intended to improve resistance to environmental exposure. An LED light strip provides a visual accent while retaining the amplifier's compact, low-profile format.

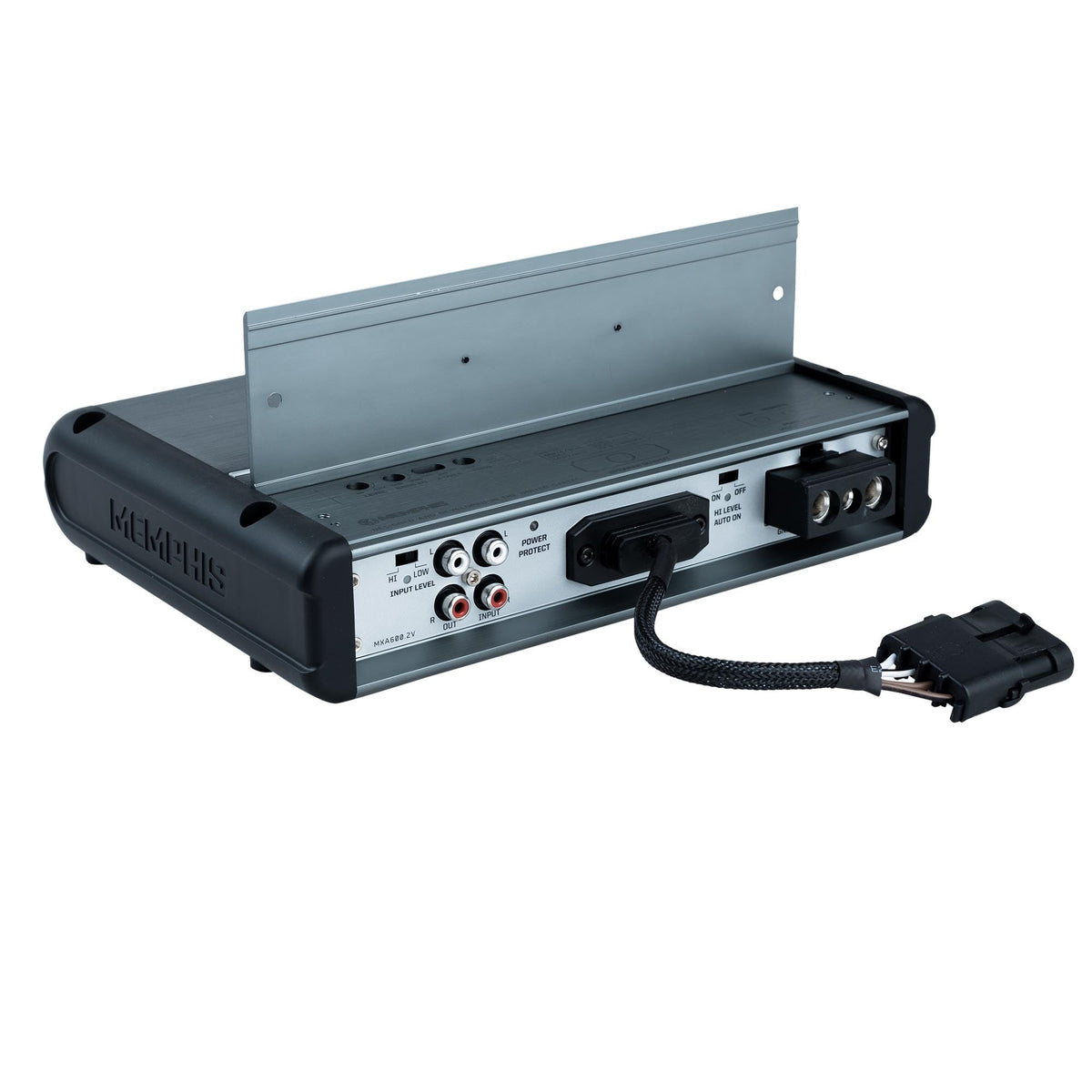

Use the amplifier with a minimum 2-ohm stereo load or a minimum 4-ohm bridged load. Memphis specifies a 4GKIT amplifier wiring kit recommendation, and the unit accepts low-level or high-level signal input. Mount it securely in a location with appropriate ventilation, keep the top control panel properly sealed in moisture-prone areas, and set crossover and gain controls to suit the connected speakers or subwoofer.
