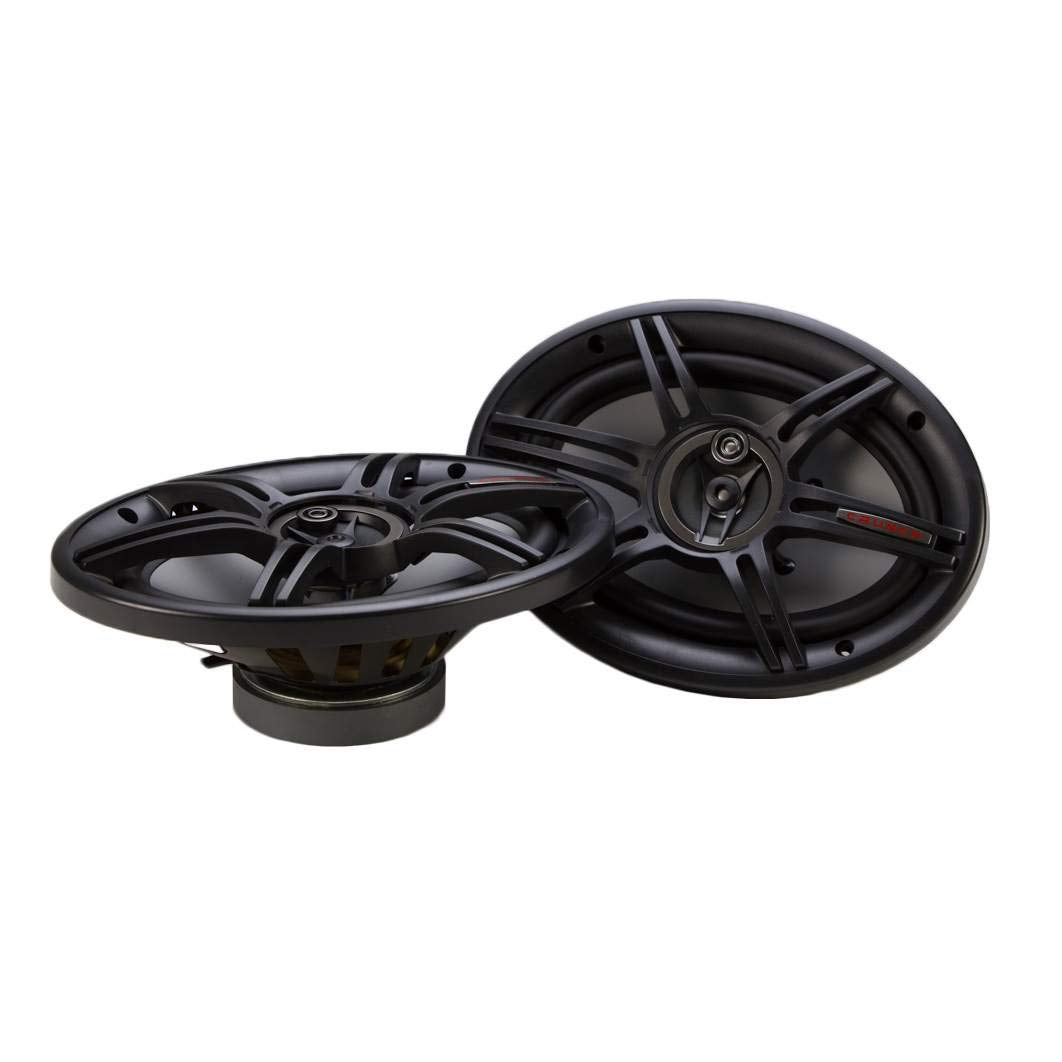

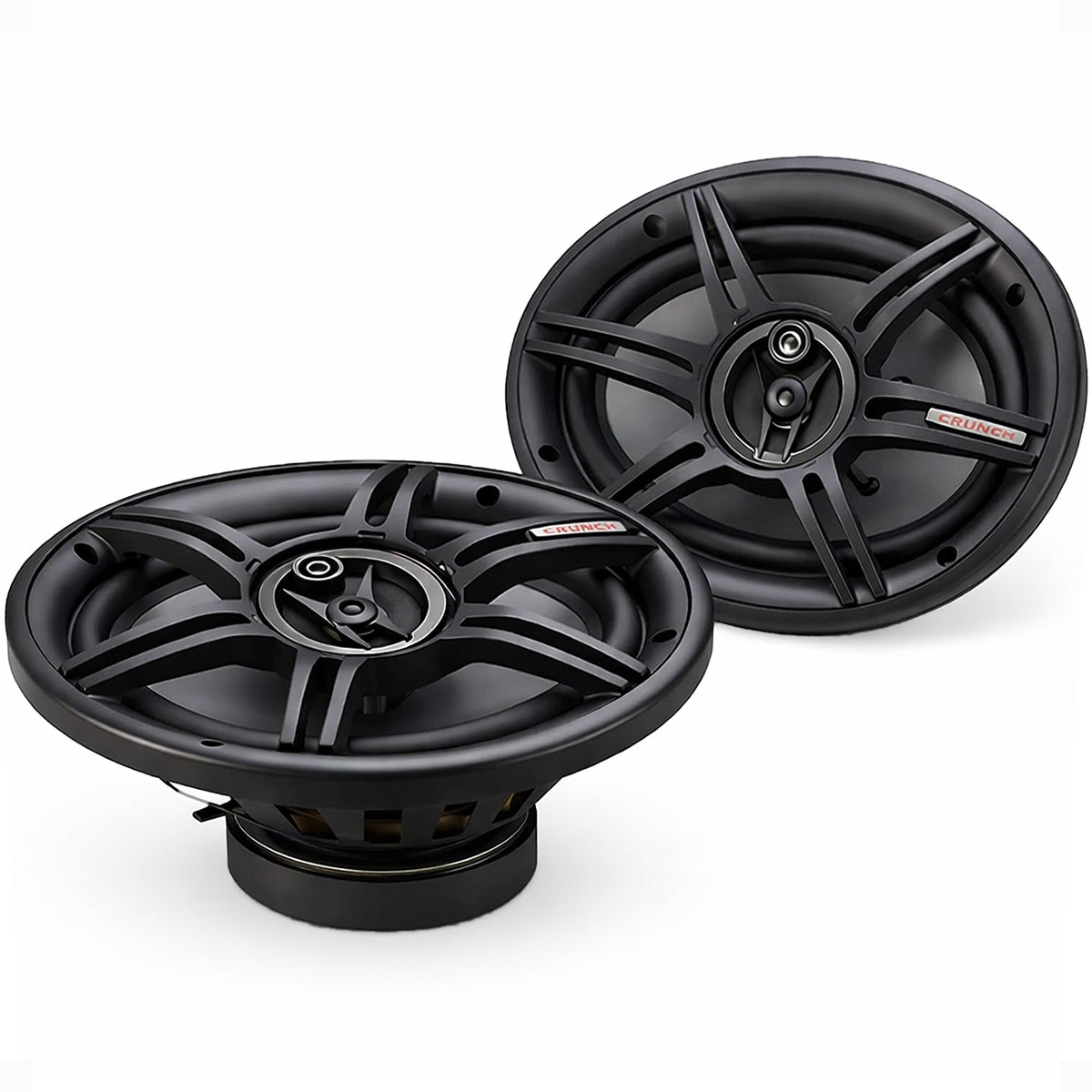

Crunch CS693 6 x 9" 3-Way Coaxial Car Speakers

The Crunch CS693 is a pair of 6 x 9-inch, 3-way coaxial car speakers designed for replacing worn factory speakers or building a straightforward vehicle-audio upgrade. Their 4-ohm design suits many conventional car-audio speaker circuits, while the 6 x 9-inch format fits applications that use this common oval speaker size. Before purchasing, confirm the vehicle’s available cutout and mounting depth.

With 75 watts RMS and 400 watts peak power handling per speaker, the CS693 is intended for systems using a compatible factory radio or aftermarket amplification. The 3-way coaxial layout combines bass, midrange, and high-frequency elements in each speaker location. This makes it practical for listeners seeking fuller sound without adding separate tweeters and external crossover hardware.

Silver alpha-cellulose poly cones provide the moving surface for midrange and bass reproduction, while UV-resistant rubber surrounds help support repeated cone movement and exposure to automotive conditions. A 1-inch Neo-Mylar soft-dome tweeter handles upper-frequency detail. The result is a speaker design focused on broad full-range playback from a compact, vehicle-ready package.

Crunch uses a pure copper voice coil on a Kapton former, along with an over-coil cooling arrangement that exchanges air through the spider area. The speaker also uses an epoxy-infused natural-fiber spider to support cone travel. These construction details are intended to help the driver remain stable during regular music playback.

An anti-resonant stamped-steel basket provides the speaker’s mounting structure, and a textured ABS gasket helps create a consistent seal against the mounting surface. The integrated passive Butterworth crossover directs frequencies among the 3-way driver elements. CS693 speakers can be used as a direct-size replacement where mounting measurements and wiring connections are compatible.

Key Features

• 3-Way Coaxial Design: Combines multiple driver elements in each 6 x 9-inch speaker.
• 75W RMS Handling: Supports appropriately matched factory or aftermarket power.
• Neo-Mylar Tweeter: A 1-inch soft-dome tweeter handles high-frequency playback.
• Alpha-Cellulose Cone: Lightweight cone material supports midrange and bass reproduction.
• Rubber Surround: UV- and moisture-resistant surround supports durable cone movement.
• Stamped-Steel Basket: Rigid frame helps provide a stable mounting platform.

Design & Installation

The CS693 uses silver alpha-cellulose poly cones, UV-resistant rubber surrounds, pure copper voice coils, Kapton voice-coil formers, and epoxy-infused natural-fiber spiders. Its ferrite magnet motor, anti-resonant stamped-steel basket, textured ABS gasket, and integrated passive crossover form the core of the speaker assembly. Protective grilles are included for installations where the speaker is exposed rather than mounted behind a vehicle panel.

Check the vehicle’s speaker opening, available depth, factory mounting pattern, and panel clearance before installation. The listed cutout is 8.64 x 5.98 inches, while chassis mounting depth is 3.35 inches; adapters or vehicle-specific harnesses may be needed depending on the application. Connect using suitable spade connectors or soldered connections, observe polarity, and use power appropriate for the 4-ohm, 75-watt RMS speaker rating.
