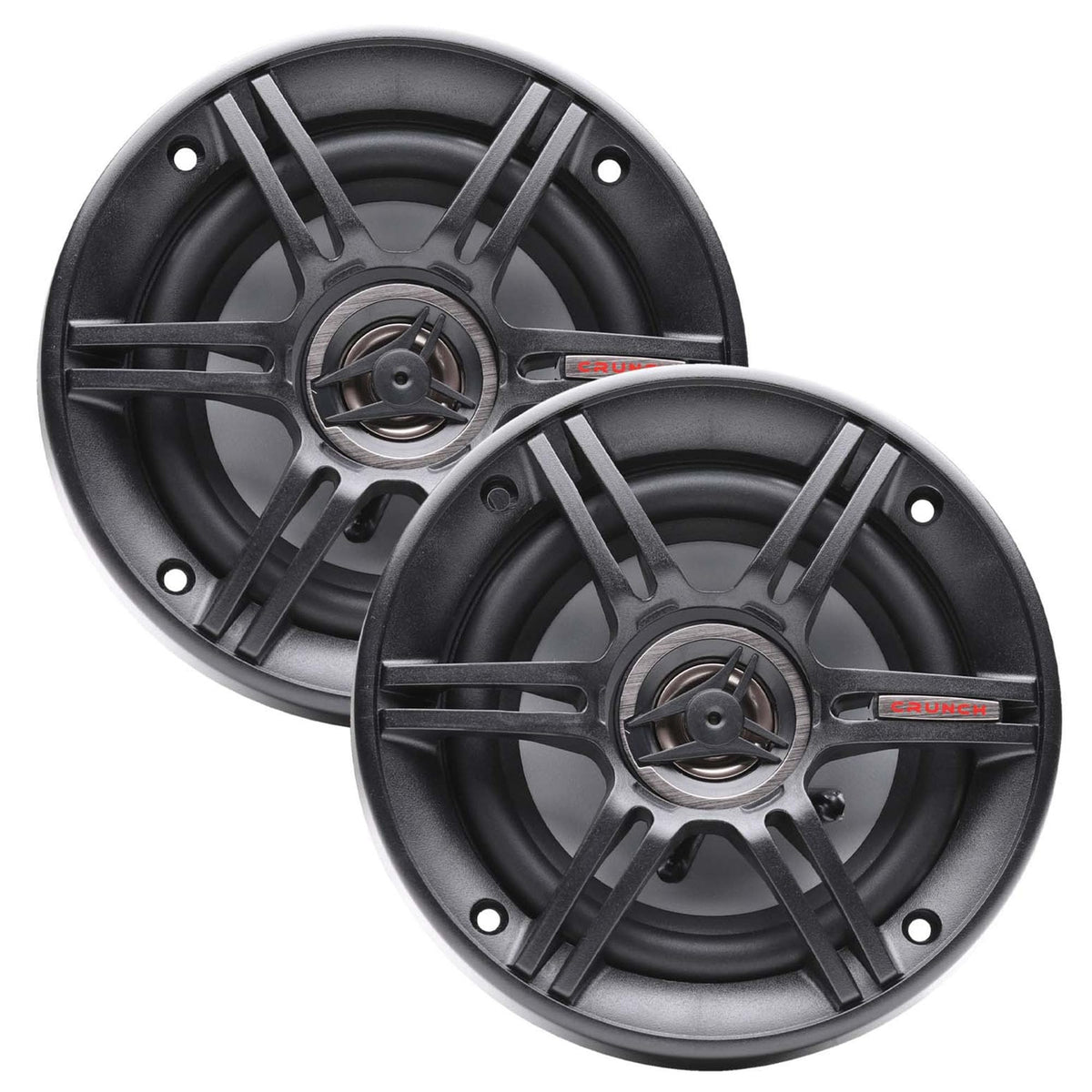

Crunch CS653 6.5" 3-Way Coaxial Car Speakers

The Crunch CS653 is a pair of 6.5-inch, 3-way coaxial car speakers designed to replace worn or limited factory speakers. Their all-in-one coaxial layout places the high-frequency element within the speaker assembly, helping simplify an everyday door or rear-deck audio upgrade. They are intended for universal vehicle applications, subject to confirming physical fitment in the vehicle.

With a published 4-ohm impedance, the CS653 is suited to common automotive speaker circuits. Crunch lists 150 watts RMS and 300 watts peak power handling for this model. The speaker uses a 1-inch Neo-Mylar soft-dome tweeter to reproduce upper-frequency detail alongside its 6.5-inch main driver.

The Silver Alpha-Cellulose Poly cone is designed to provide the midrange and mid-bass foundation of the speaker. A UV-resistant rubber surround supports cone movement and is paired with high-temperature adhesive at the cone-surround connection. This combination is intended for the temperature changes and vibration common in vehicle interiors.

Crunch equips the CS653 with a pure-copper voice coil on a Kapton former, plus an over-coil ventilation arrangement through the spider. The design also uses an epoxy-infused natural-fiber spider for suspension support. A passive internal crossover directs frequencies between the main driver and tweeter elements.

These speakers can serve as a practical front- or rear-location upgrade in a factory-replacement system, or as part of a larger system with an appropriate amplifier. Check the vehicle's mounting opening, available depth, and panel clearance before installation. Grilles are included for installations where the speakers are not protected by an existing vehicle panel.

Key Features

• 3-Way Coaxial Design: Combines multiple driver elements in each speaker assembly.
• 6.5-Inch Size: Fits many common door and rear-deck locations.
• Neo-Mylar Tweeter: Uses a 1-inch soft-dome high-frequency driver.
• Alpha-Cellulose Poly Cone: Supports midrange and mid-bass reproduction.
• UV-Resistant Rubber Surround: Helps support long-term cone movement.
• Passive Internal Crossover: Separates frequencies within the coaxial speaker assembly.

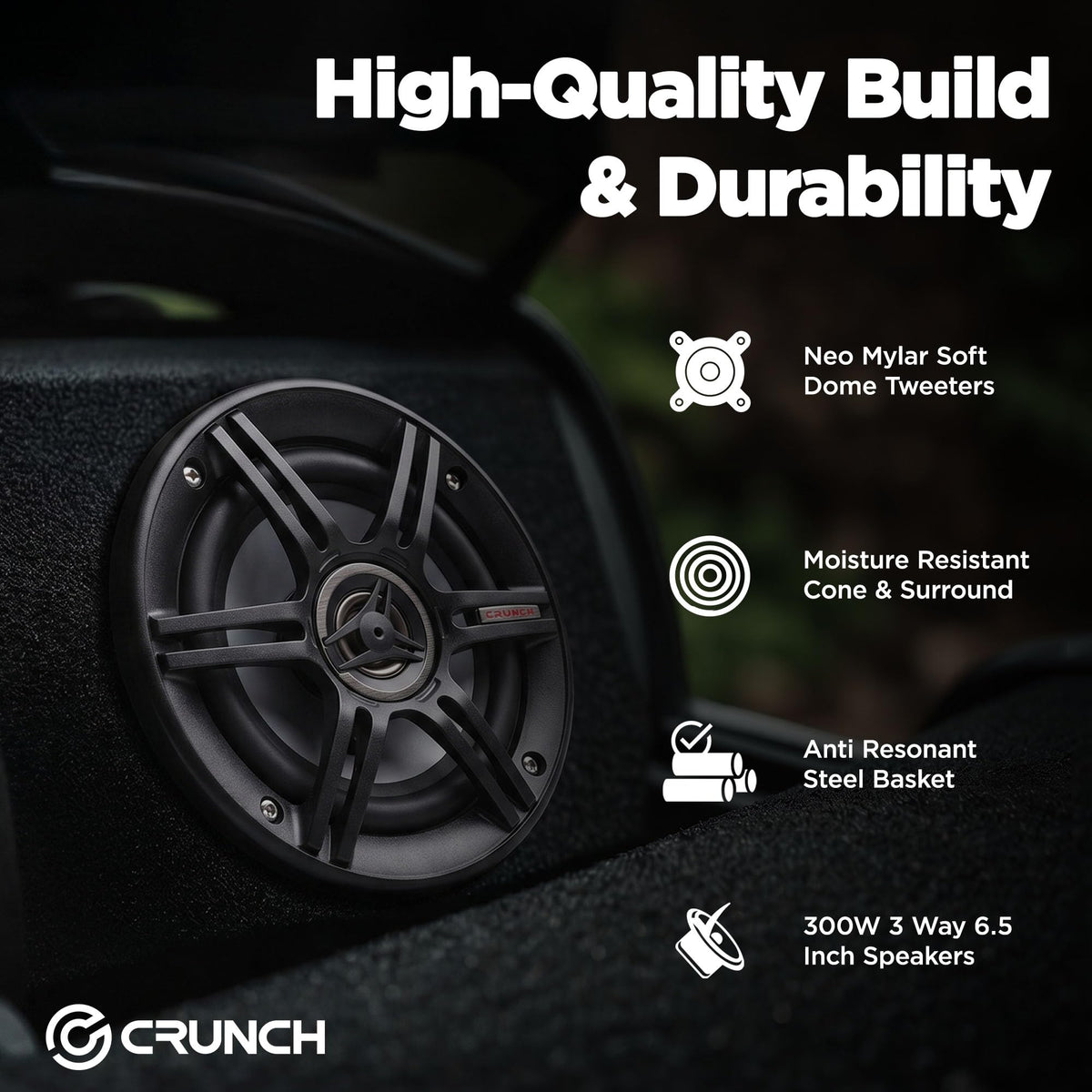

Design & Installation

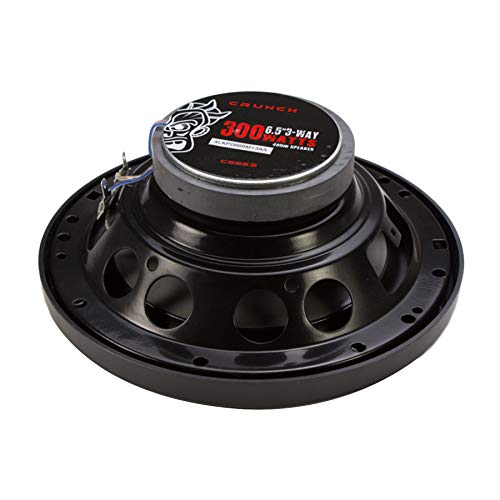

The CS653 uses an anti-resonant stamped-steel basket, ferrite magnet motor, textured ABS gasket, and a black finish. Its pure-copper voice coil uses a Kapton former, while the tweeter also uses a Kapton-based construction. The included grilles can help protect exposed speakers from accidental contact.

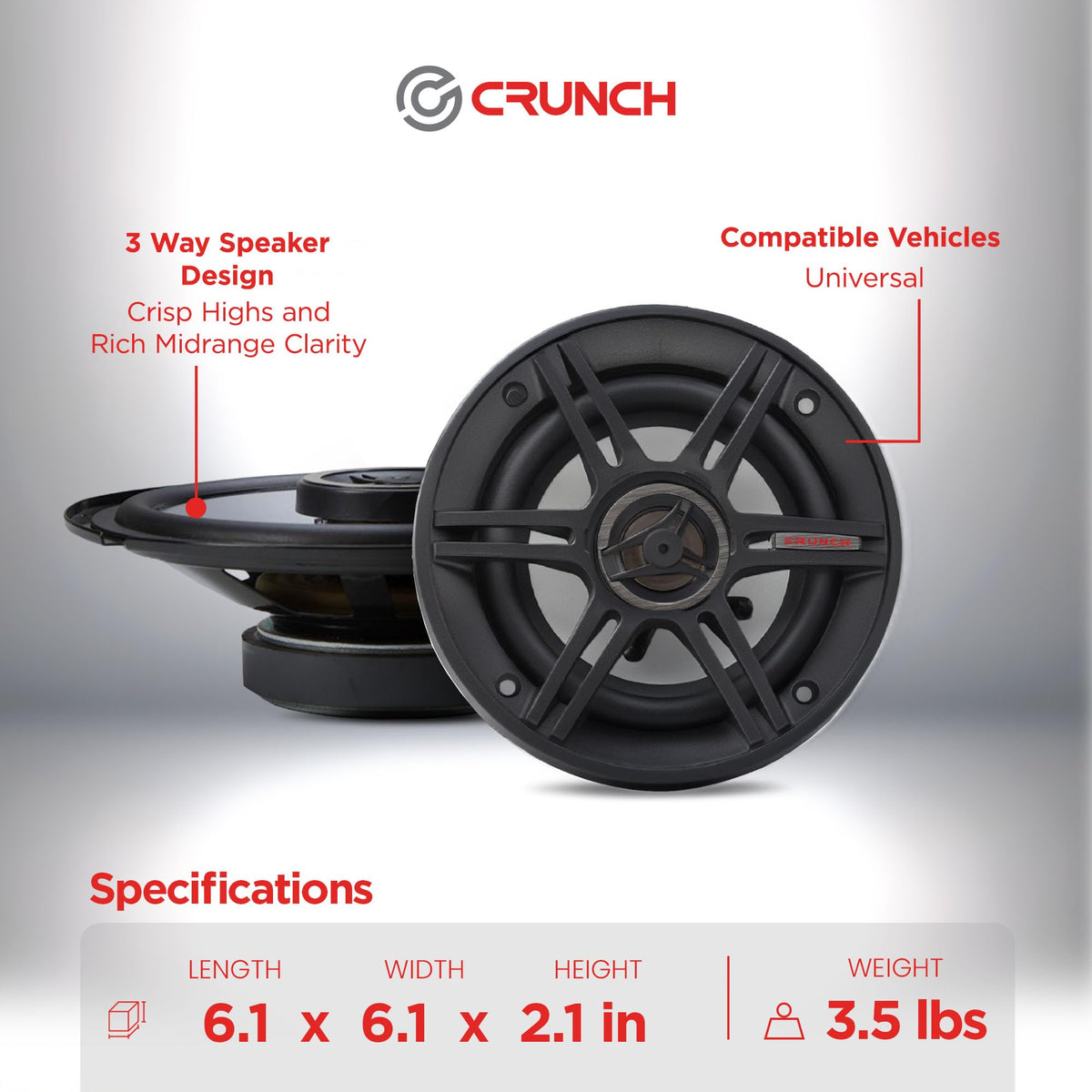

Confirm a 5.59-inch cutout, 7.01-inch outside diameter, and 2.13-inch mounting-depth clearance before ordering. Use the supplied speaker connection cables or connect with suitable spade terminals or direct soldering, observing vehicle polarity. Mounting hardware, grilles, and connection cables are included; vehicle-specific adapters or wiring harnesses may be needed depending on the installation location.
