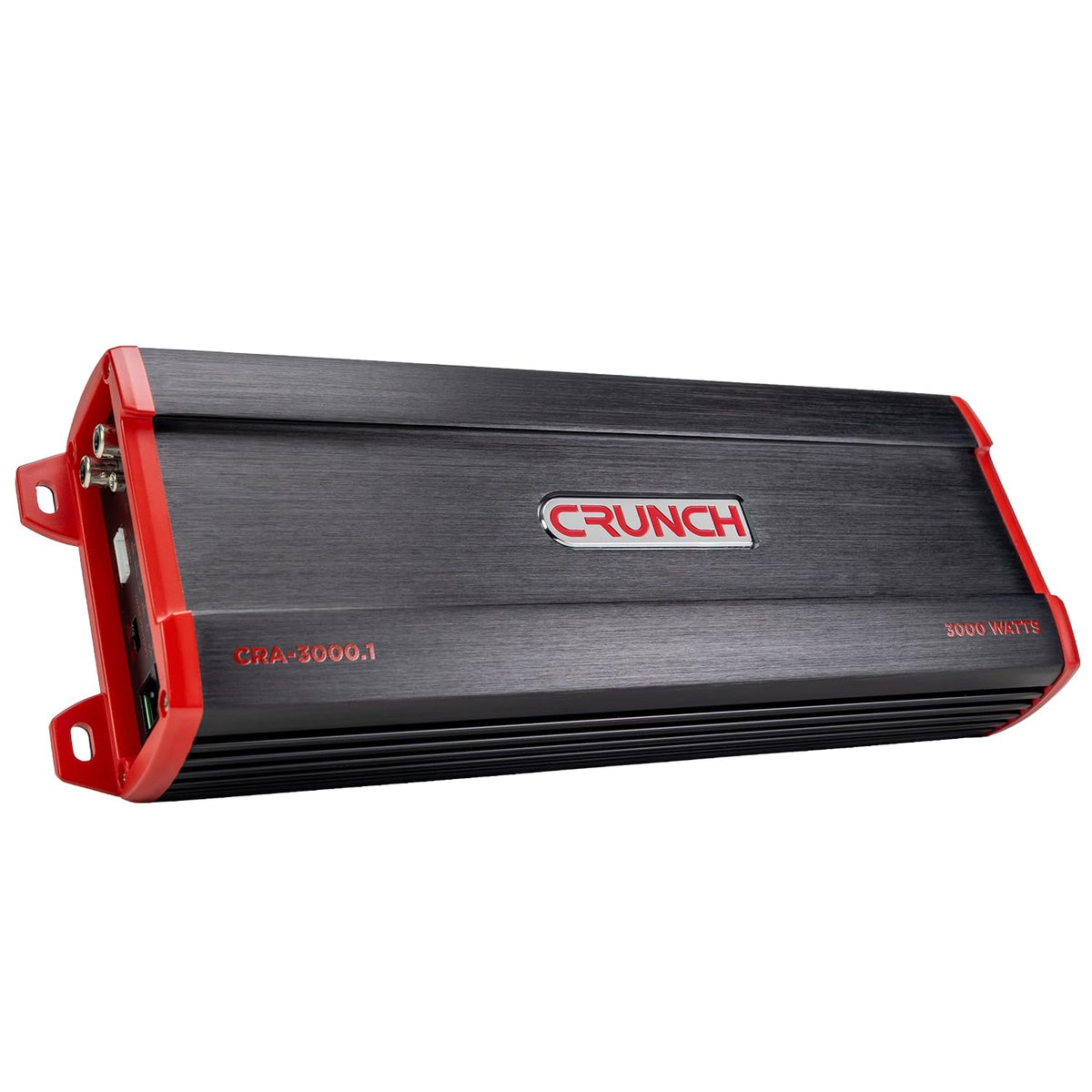

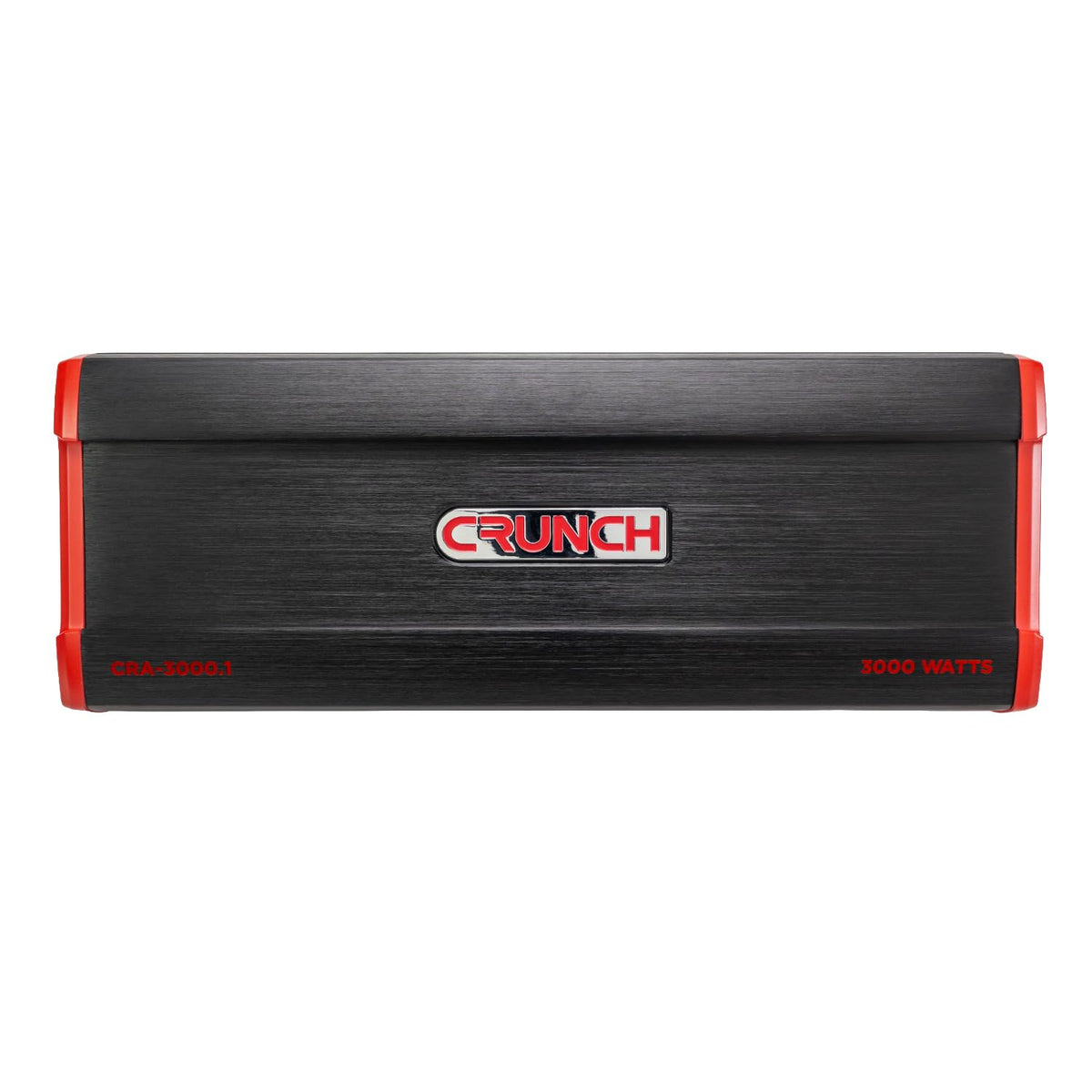

Crunch CRA-3000.1 3000W Class D Mono Car Amplifier

The Crunch CRA-3000.1 is a mono Class D car amplifier designed for subwoofer-focused audio systems. It provides a single amplified channel and is intended for installers building a dedicated low-frequency section in a vehicle. With published output figures at 1, 2, and 4 ohms, it offers flexibility when matching a compatible subwoofer load.

This amplifier is suited to drivers who want to add a separate bass amplifier while retaining space-conscious installation options. Its Class D topology is designed for efficient operation in a compact amplifier chassis. The CRA-3000.1 uses a switch-mode power supply to support stable power delivery as vehicle voltage changes.

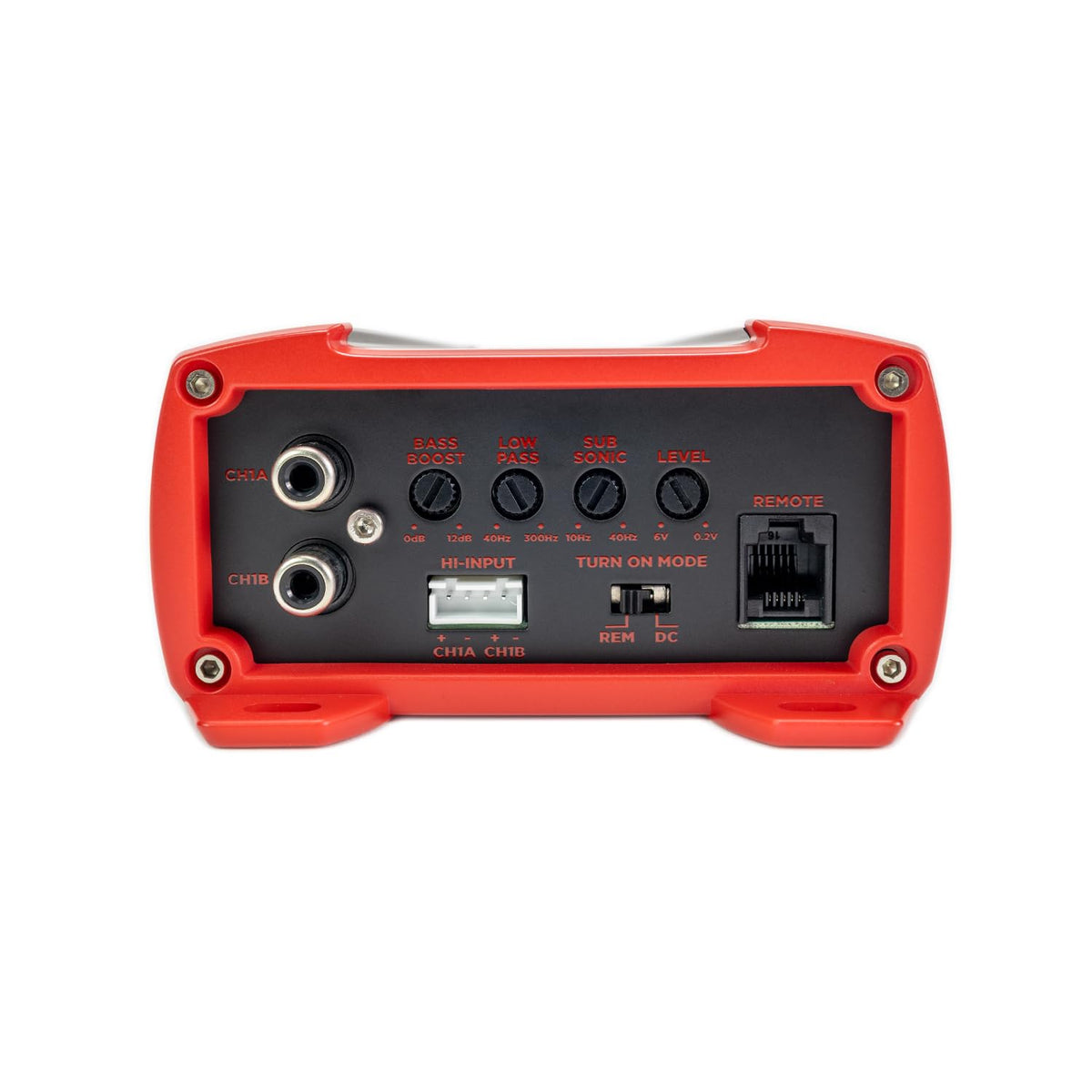

The amplifier includes adjustable low-pass and subsonic filtering to help tailor the bass signal sent to a subwoofer. A variable bass boost control provides additional low-frequency adjustment when used carefully during system tuning. The included wired bass remote allows output adjustment from a convenient location in the vehicle.

For source-unit compatibility, the CRA-3000.1 accepts both RCA and high-level input signals. This gives it options for connection to many aftermarket radios as well as factory audio systems without RCA outputs. DC signal sensing can automatically turn the amplifier on from an RCA input signal when enabled.

Crunch equips the CRA-3000.1 with SPEED-FET MOSFET output devices, a low-noise preamplifier circuit, and an aluminum heat sink designed for thermal dispersion. Nickel-plated brass terminals and screw-down connections support secure wiring connections. Protection-status LED diagnostics help indicate overload and speaker-short conditions during operation.

Key Features

• Mono Class D Design: Delivers a single amplified channel for a dedicated subwoofer system.
• Published 1-Ohm Output: Provides up to 3,000 watts on one channel at 1 ohm.
• Variable Low-Pass Filter: Adjusts the bass passband from 40 Hz to 300 Hz.
• Subsonic Filter: Filters frequencies from 10 Hz to 40 Hz for system tuning.
• RCA And High-Level Inputs: Supports aftermarket radios and compatible factory-system integration.

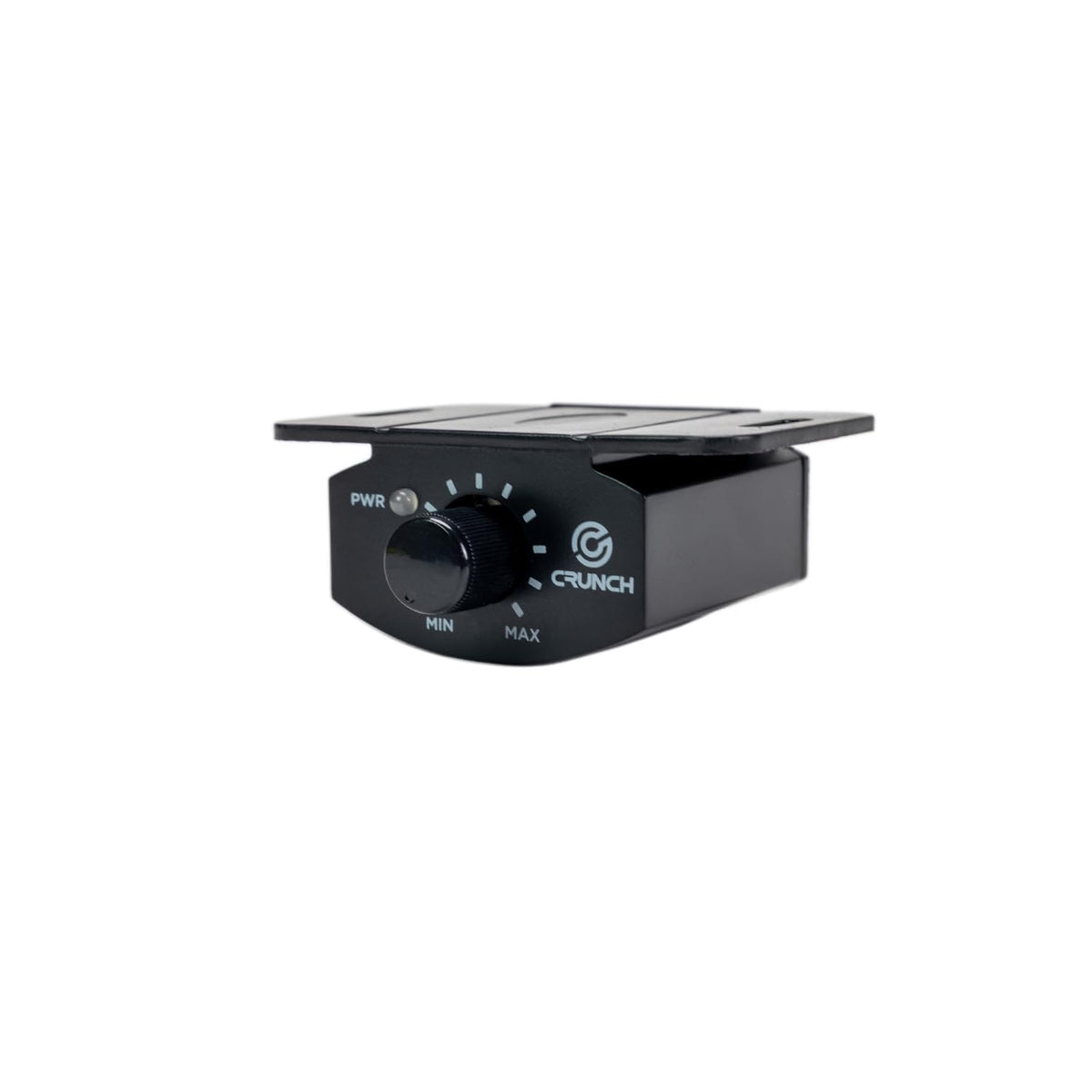

• Wired Bass Remote: Lets you adjust bass level from inside the vehicle.

Design & Installation

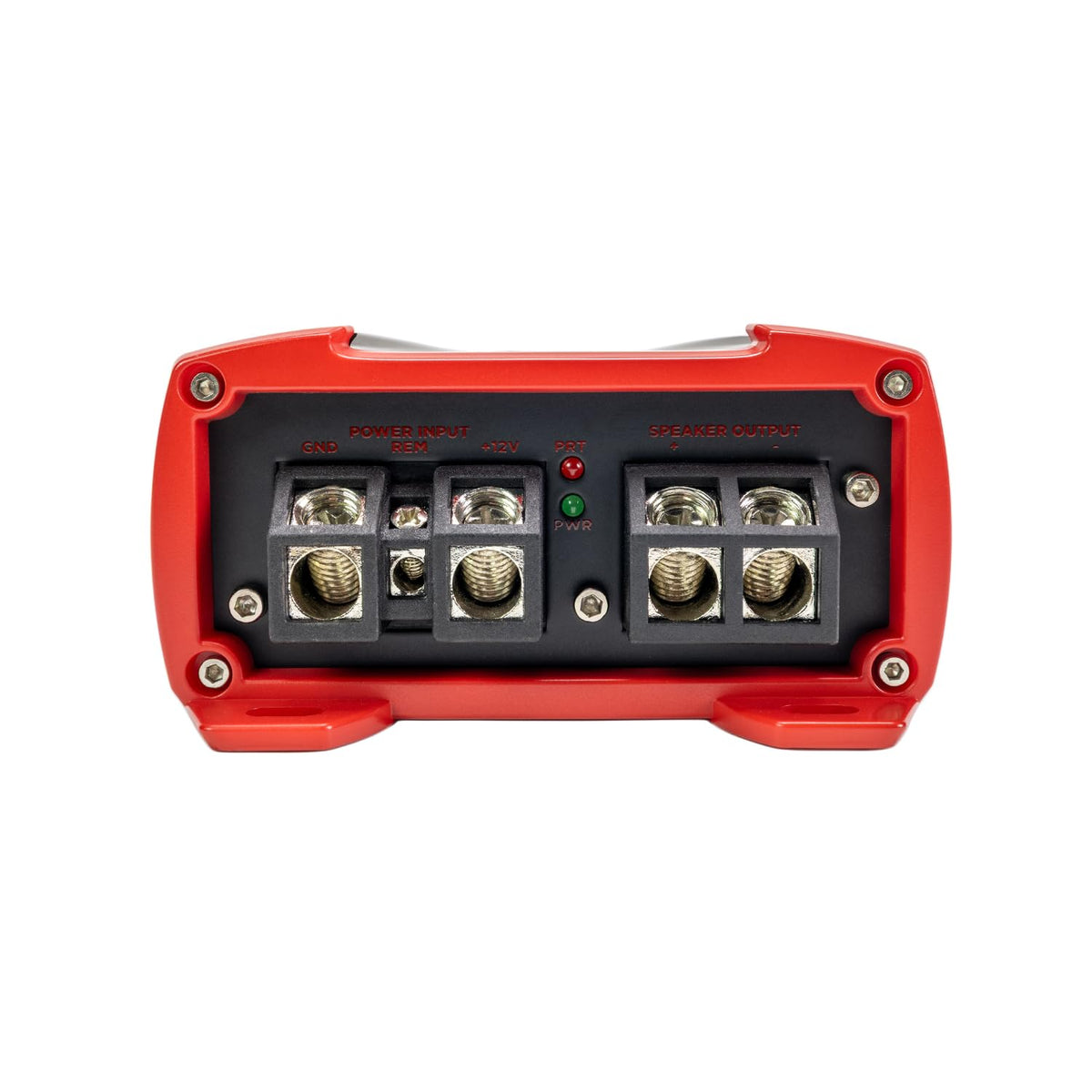

The CRA-3000.1 uses a black Class D amplifier chassis with an aluminum heat sink for thermal dispersion. Its connection layout includes nickel-plated brass terminals with screw-down connectors for power, ground, and speaker wiring. LED protection diagnostics are located on the amplifier end panel to help monitor operating status.

Use 4 AWG cable at the 12-volt and ground terminals and up to 8 AWG speaker wire at the output terminals. The amplifier uses an external 150A fuse, so the vehicle power wiring should be properly fused and installed according to the supplied guide. Set the low-pass filter, subsonic filter, input level, and bass boost to match the connected subwoofer system and source unit.
