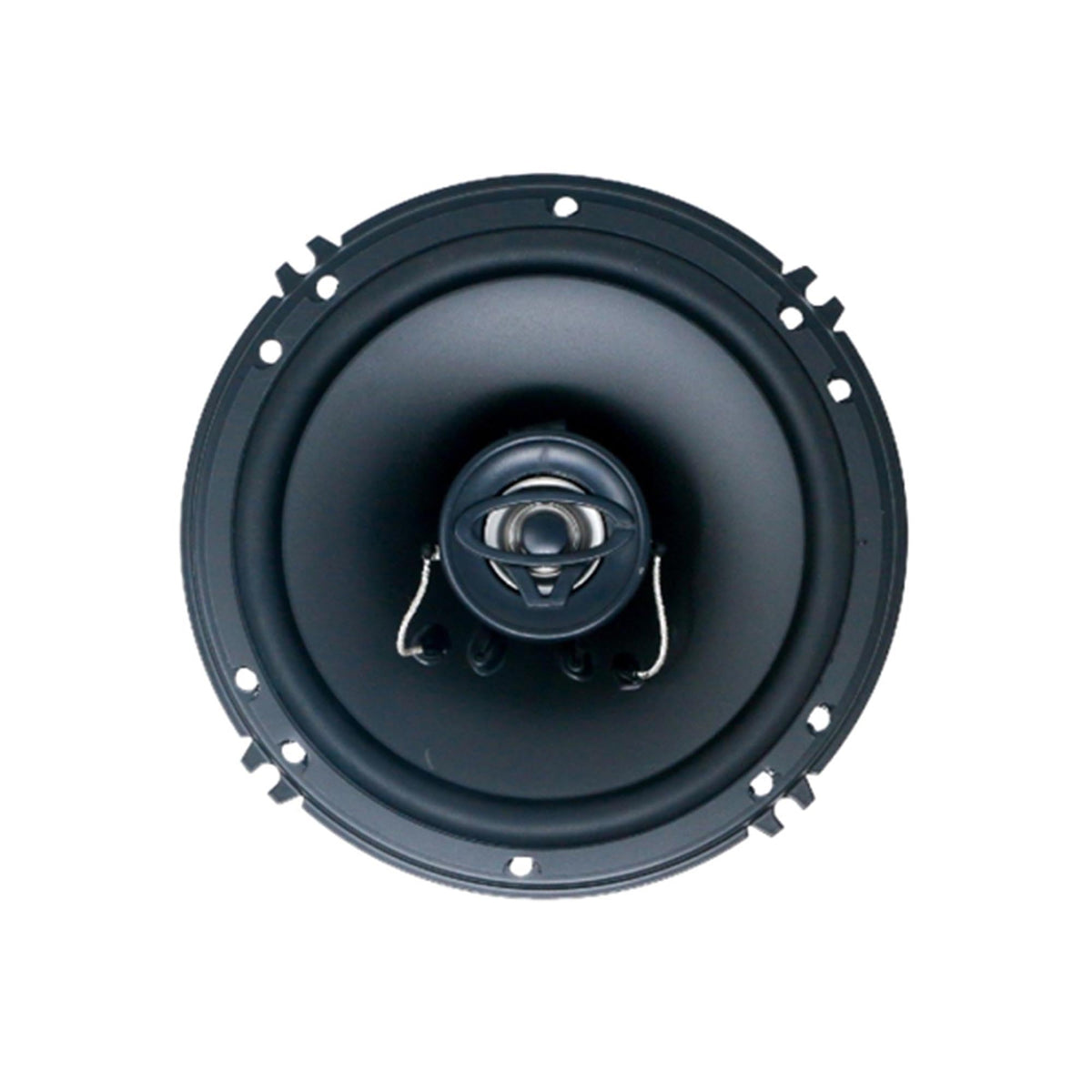

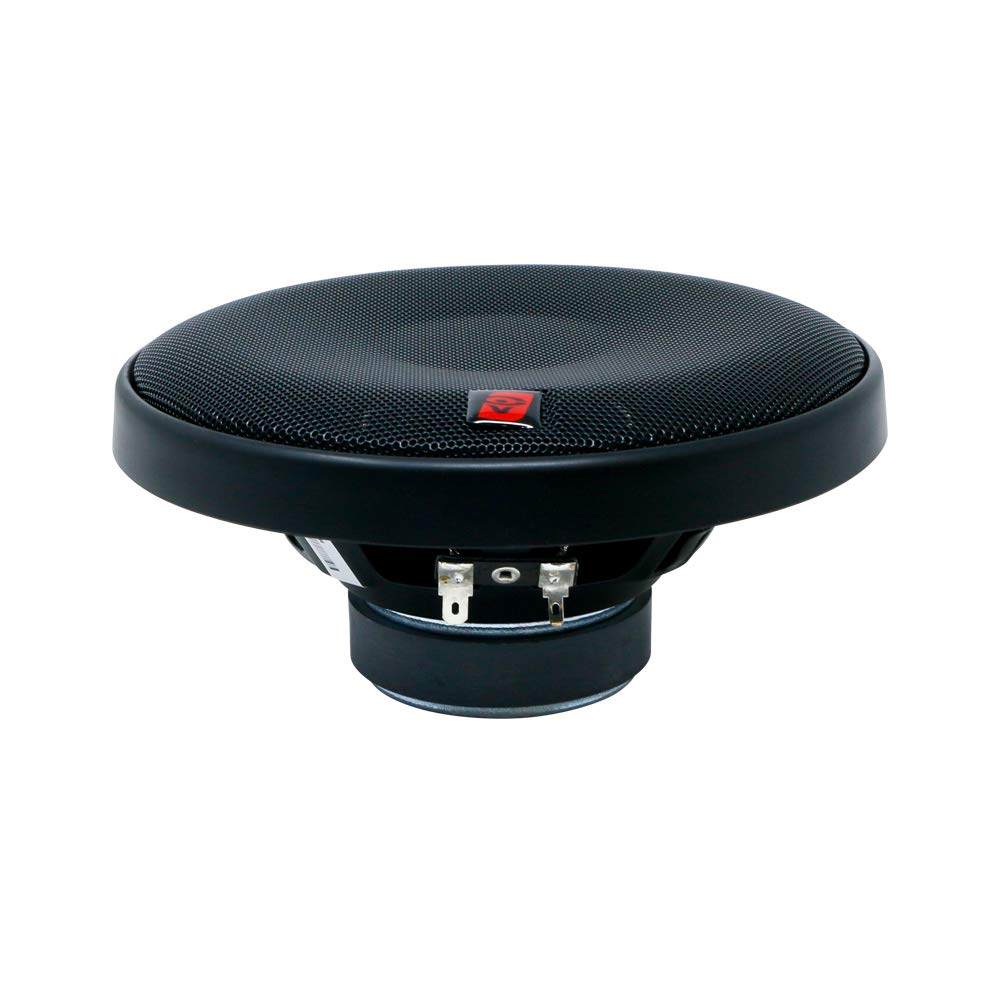

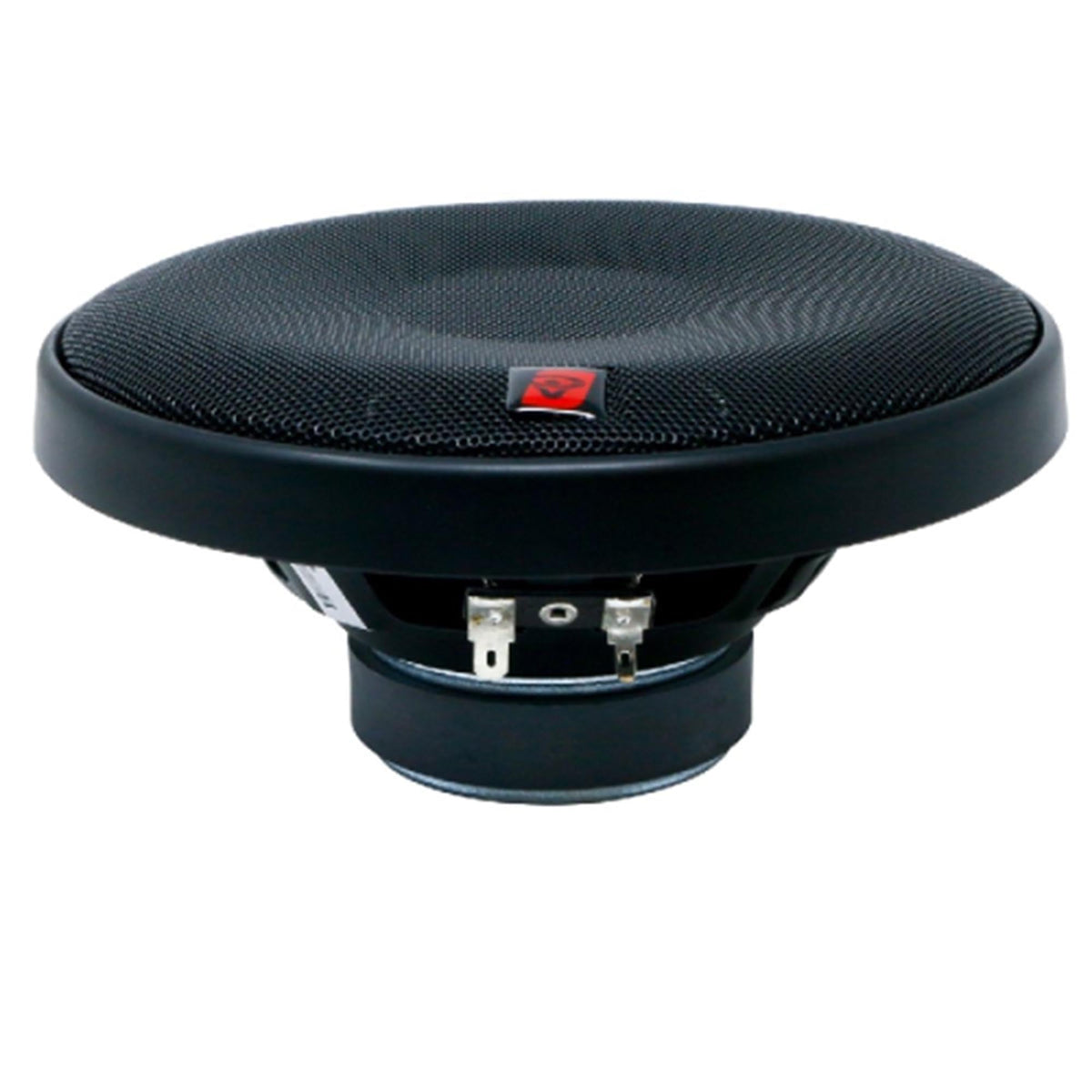

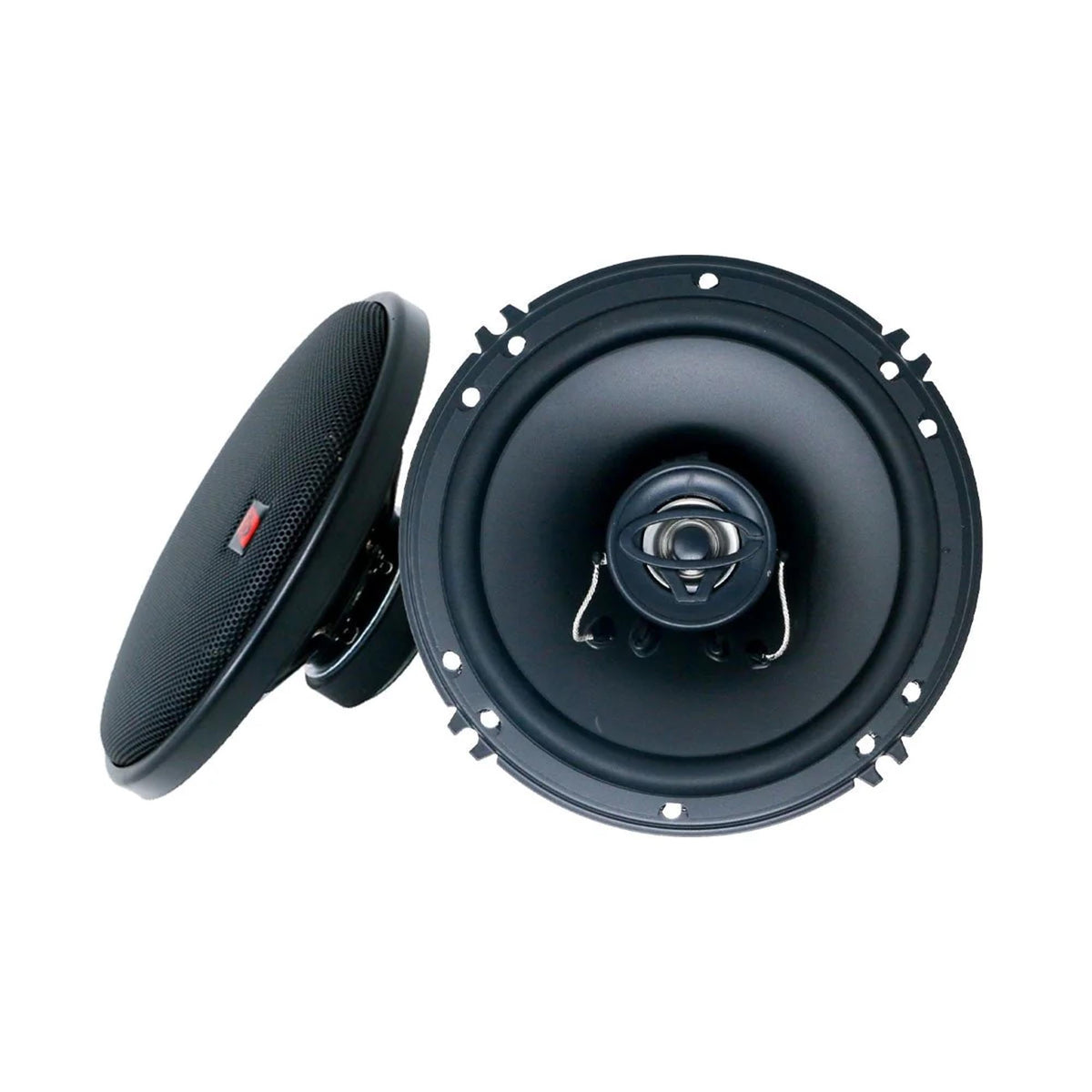

Cerwin-Vega XED62 6.5" 2-Way Coaxial Car Speakers

The Cerwin-Vega XED62 is a 6.5-inch 2-way coaxial speaker system designed to replace worn or basic factory speakers in compatible vehicle locations. It combines the woofer and tweeter in one assembly, simplifying an upgrade for door or rear-deck applications. The 4-ohm design is suited to typical car-audio speaker circuits.

These speakers are intended for drivers seeking more defined full-range playback from a straightforward speaker replacement. The polypropylene cone handles the main vocal and midrange region, while the balanced metal dome tweeter adds high-frequency detail. An internal crossover divides frequencies between the two drivers without requiring a separate external crossover box.

The XED62 is rated for 35 watts RMS and 300 watts maximum power handling. Its specified 50 Hz to 20 kHz frequency response supports a broad portion of the audible range for everyday music and spoken-word listening. It can be used with a factory head unit or an appropriately matched aftermarket amplifier.

A stamped-steel basket provides the speaker's mounting structure, while the ferrite ceramic magnet supports the motor assembly. The treated foam surround is paired with the polypropylene cone for controlled cone movement. A 1-inch voice coil is specified for the woofer assembly.

For an upgrade path, the XED62 can serve as a replacement for compatible 6.5-inch factory speakers before or alongside a receiver or amplifier upgrade. Its 2.2-inch mounting depth and 4.96-inch mounting diameter should be checked against the vehicle's available mounting space. Speaker grilles are included for installations where they are needed.

Key Features

• 2-Way Coaxial Design: Combines woofer and tweeter in one speaker assembly.
• 6.5-Inch Speaker Size: Fits many common vehicle speaker locations.
• Internal Crossover: Directs appropriate frequencies to each driver.
• Polypropylene Cone: Supports clear midrange and midbass reproduction.
• Balanced Metal Dome Tweeter: Adds high-frequency detail to the presentation.
• Included Speaker Grilles: Provides protection for exposed mounting locations.

Design & Installation

The XED62 uses a polypropylene cone, treated foam surround, aluminum tweeter diaphragm, stamped-steel basket, and ferrite ceramic magnet. This combination is built for standard in-vehicle speaker use. The integrated coaxial layout keeps the tweeter centered within the woofer assembly.

Confirm the vehicle's mounting opening, mounting depth, screw pattern, and panel clearance before purchase. The specified mounting diameter is 4.96 inches and mounting depth is 2.2 inches, so adapters may be necessary in some vehicles. Observe correct speaker polarity and use a secure, sealed mounting surface to help prevent air leaks around the frame.
