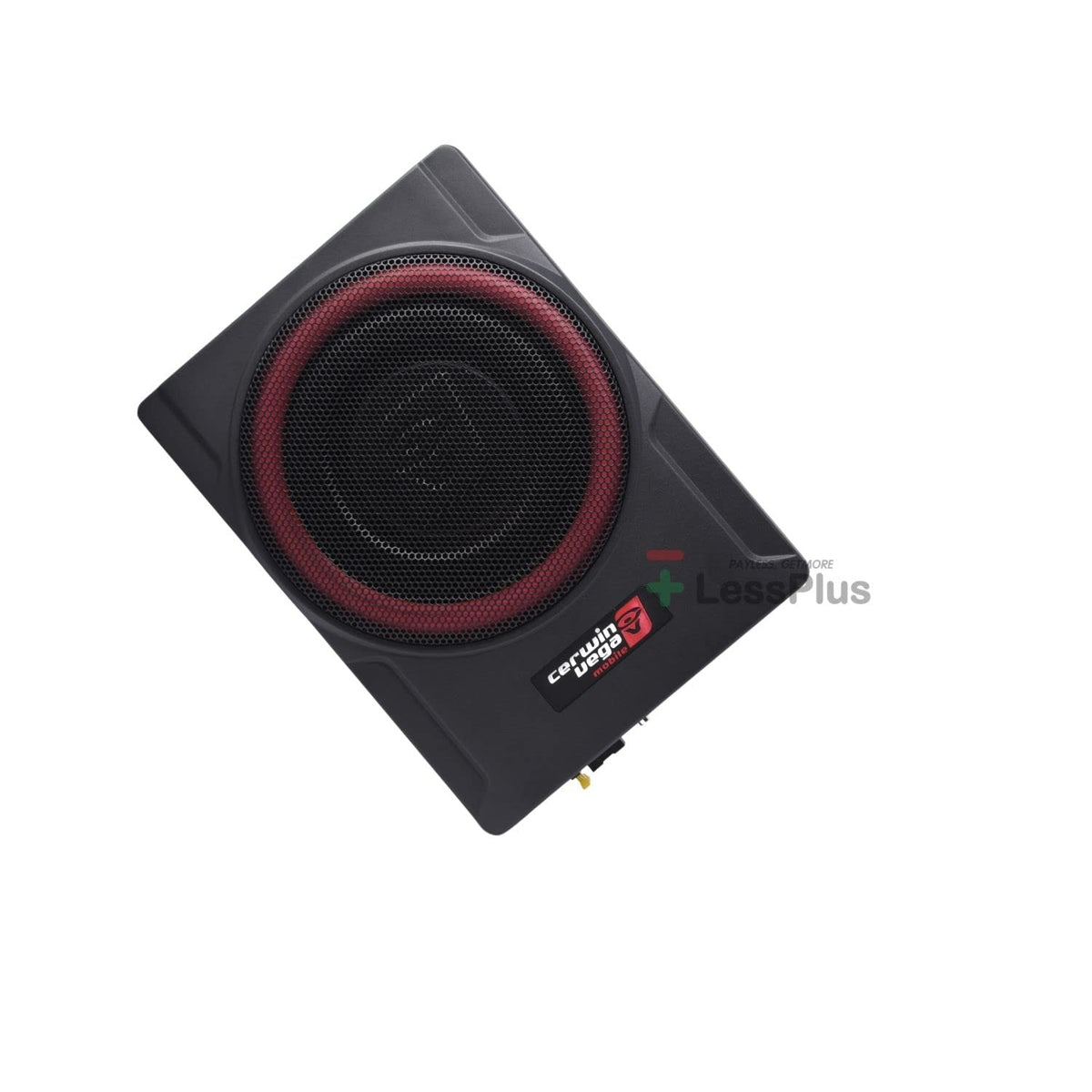

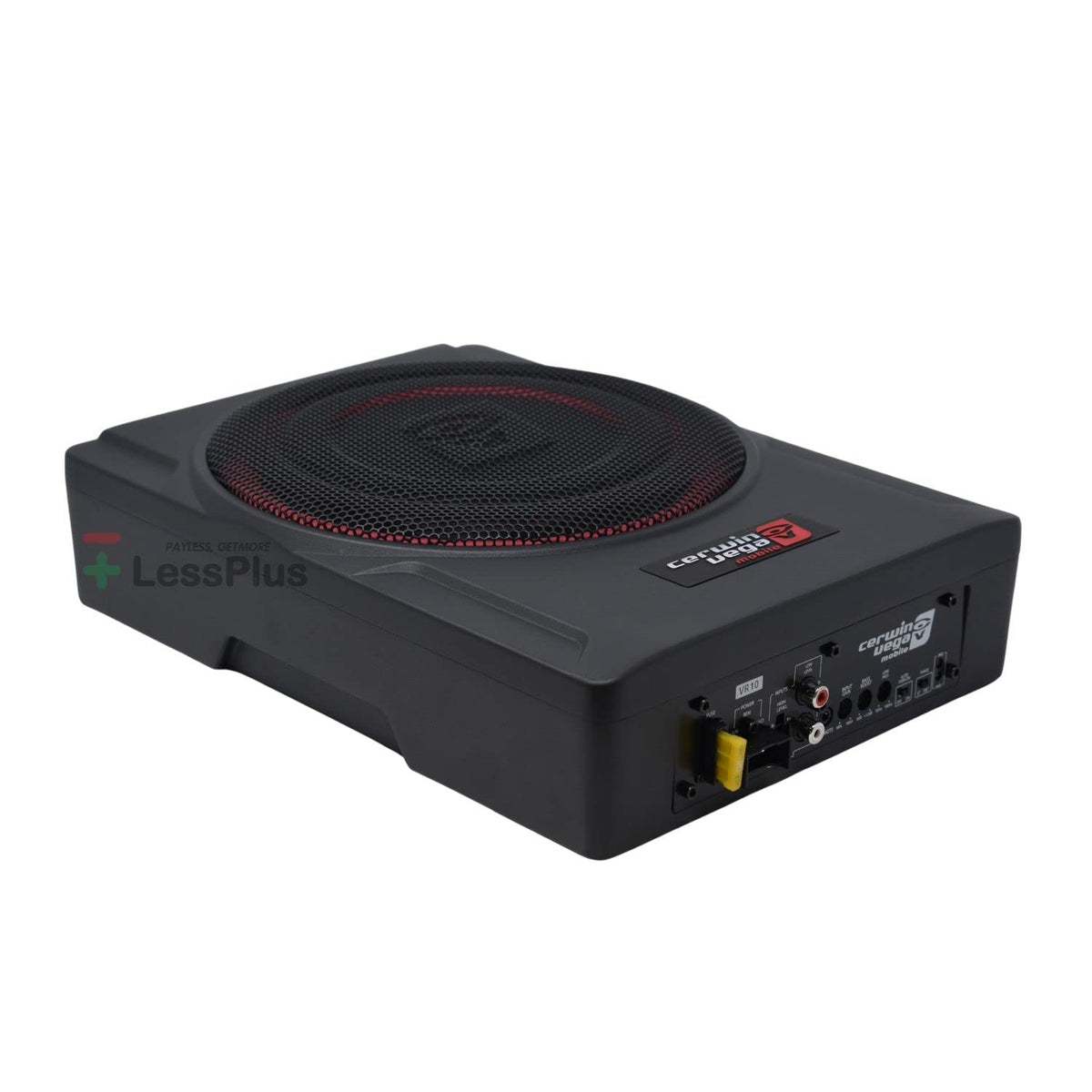

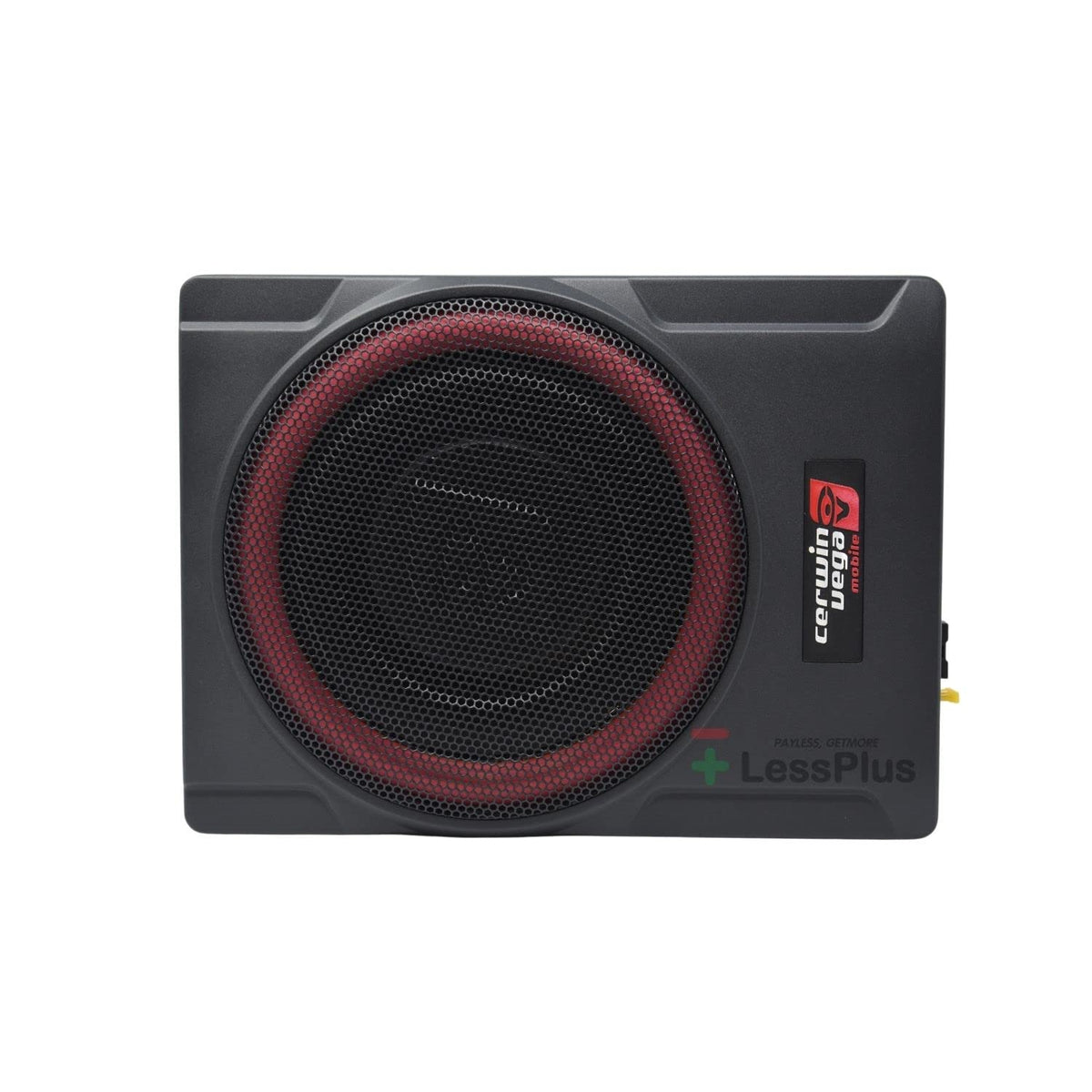

Cerwin Vega VR10 10" Powered Underseat Subwoofer

The Cerwin Vega VR10 is a compact 10-inch active subwoofer enclosure made for adding low-frequency reinforcement without dedicating a large portion of the vehicle to a separate subwoofer box and amplifier. Its slim 12.2 x 9.0 x 3.0-inch enclosure is intended for underseat or other tight-space installations. The integrated amplifier creates a self-contained bass upgrade for compatible factory or aftermarket audio systems.

This model is designed for drivers who want fuller bass response while maintaining usable cargo and cabin space. It combines a 10-inch, 2-ohm subwoofer with a built-in passive radiator to extend low-frequency performance from its compact enclosure. The result is a focused bass addition suited to everyday music listening rather than a large, externally amplified enclosure installation.

The VR10 is rated for 200 watts RMS at 2 ohms and 450 watts maximum power. Its specified frequency response is 35Hz to 150Hz, with an adjustable low-pass filter covering 75Hz to 150Hz. A 0 to 12dB bass boost and 35Hz subsonic filter provide adjustment options for matching the subwoofer to the vehicle and music preferences.

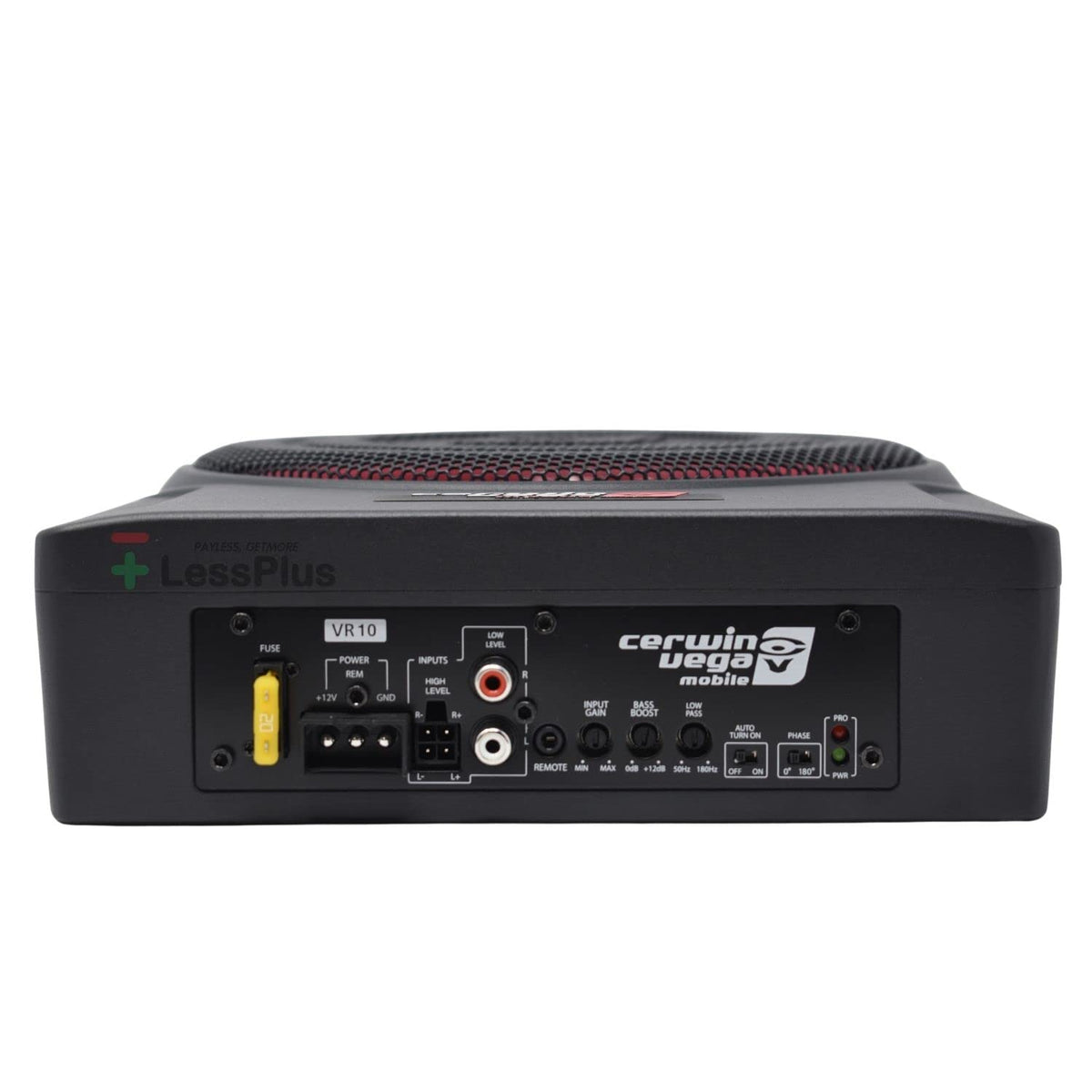

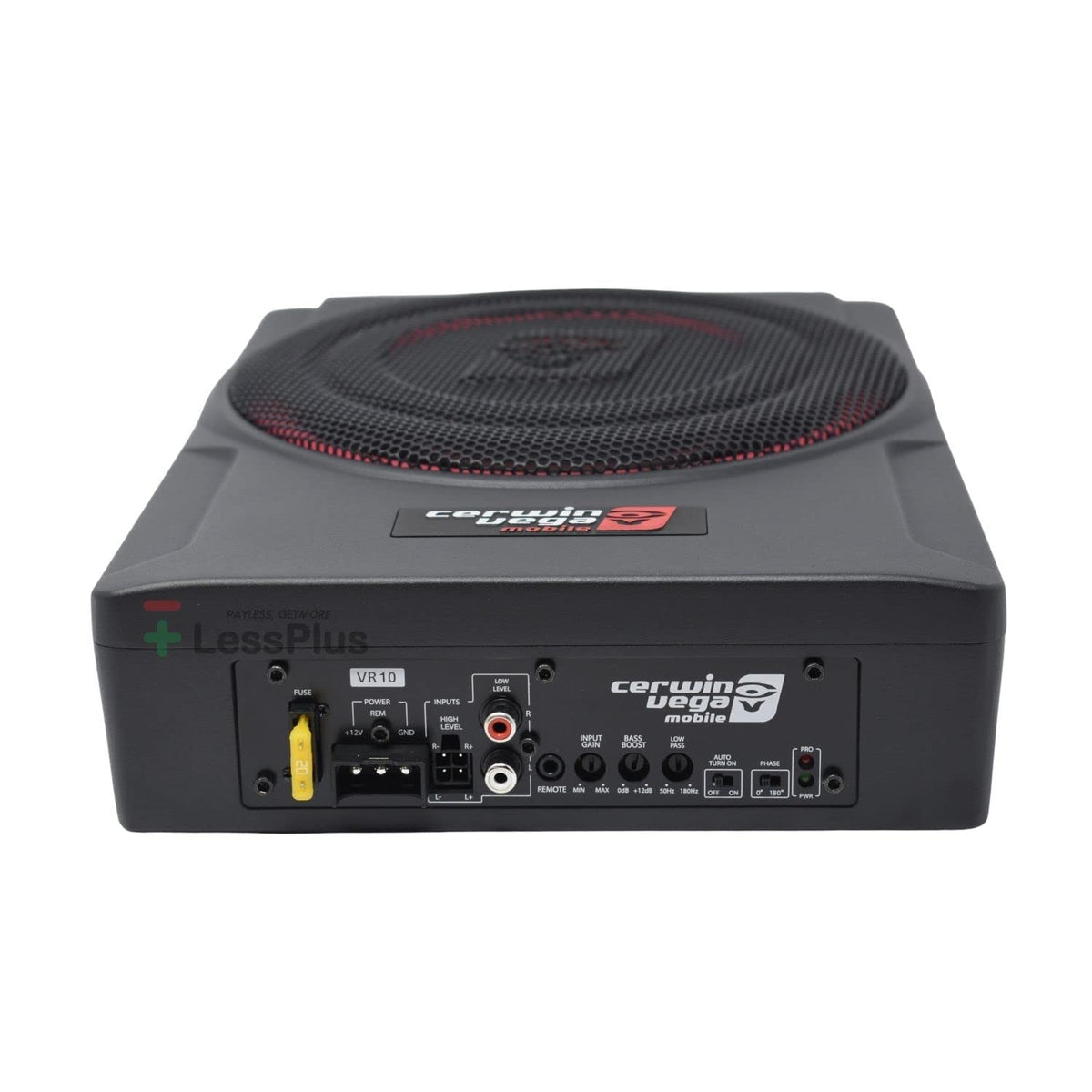

For system integration, the VR10 provides both RCA low-level and high-level signal inputs. This allows it to connect with many aftermarket receivers as well as systems that use speaker-level outputs. Adjustable input sensitivity, delayed soft remote turn-on, and thermal-protection circuitry support practical installation and daily operation.

A wired remote subwoofer control and remote bass knob are included for convenient level adjustment from the front of the vehicle. The amplifier is integrated into a cast-aluminum heat-sink structure, helping manage heat in the compact design. The VR10 can serve as a straightforward standalone bass upgrade without requiring a separate external subwoofer amplifier.

Key Features

• 10-Inch Active Subwoofer: Combines the subwoofer, enclosure, and amplifier in one compact unit.
• 200W RMS Output: Delivers 200 watts RMS at 2 ohms and 100Hz.
• Built-In Passive Radiator: Supports extended bass response from the slim enclosure.
• RCA And High-Level Inputs: Supports connection to many factory and aftermarket systems.
• Adjustable Low-Pass Filter: Lets you set the bass blend from 75Hz to 150Hz.
• Remote Bass Control: Provides convenient adjustment of subwoofer level from the cabin.

Design & Installation

The VR10 uses a slim enclosure format measuring 12.2 x 9.0 x 3.0 inches. Its integrated amplifier is housed with a cast-aluminum heat-sink design, while a built-in passive radiator supports the enclosure's low-frequency performance. PWM MOSFET power-supply design and a thermal-protection circuit are specified for the powered system.

Confirm available clearance before mounting under a seat or in another compact location, including space for wiring and ventilation. Connect the unit using either its RCA low-level inputs or high-level inputs, then use the adjustable input sensitivity, low-pass filter, bass boost, and included remote level control to blend output with the rest of the audio system. Professional installation is recommended when vehicle power, ground, remote-turn-on, or factory-system integration is required.
