Cerwin Vega V6525C 6.5" 3-Way Component Speakers

The Cerwin Vega V6525C is a 6.5-inch, 3-way component speaker system designed for vehicle owners replacing factory speakers with a more complete front-stage setup. It separates low, midrange, and high-frequency reproduction across dedicated drivers rather than combining them in one speaker. This configuration is suited to installations where clearer placement of vocals, instruments, and high frequencies is important.

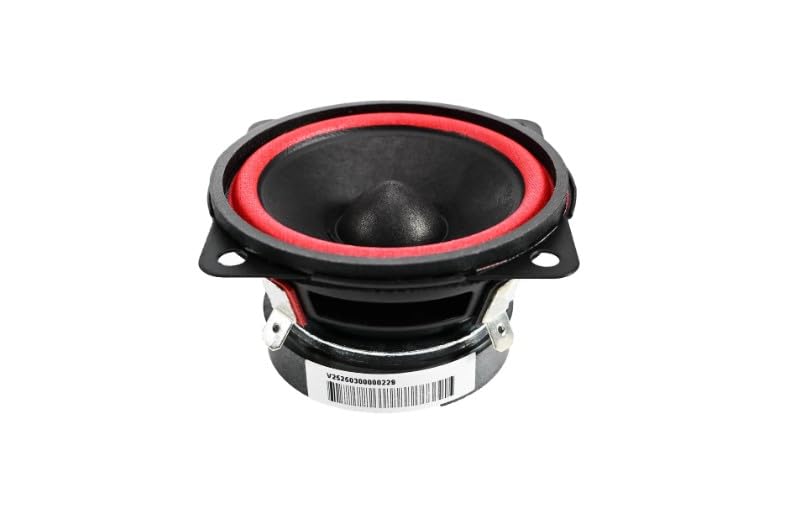

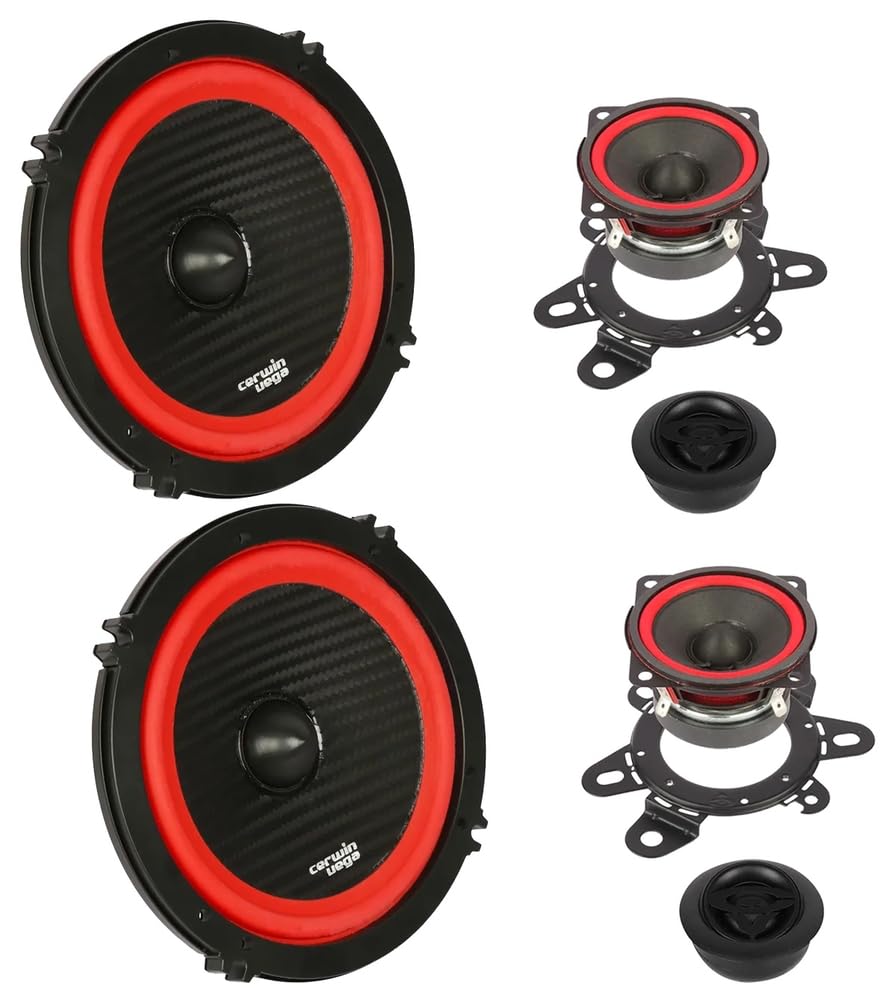

Each set combines 6.5-inch woofers, 2.5-inch midrange speakers, and 1-inch silk dome tweeters. The dedicated midrange driver helps cover the vocal and instrumental range while the separate tweeter handles upper-frequency detail. Passive crossover networks route the signal to the appropriate driver and include tweeter protection.

The V6525C is rated for 140 watts RMS and 420 watts maximum power handling, with a 4-ohm nominal impedance. Its specified frequency response is 89 Hz to 20 kHz, and sensitivity is rated at 88 dB at 1 watt/1 meter. These ratings make it important to match the system with an appropriately configured source unit or amplifier.

Hybrid carbon fiber and polypropylene cones are used for the woofer and midrange drivers, while Santoprene rubber surrounds support driver excursion. The tweeters use dynamically balanced silk domes and neodymium magnets. A strontium ferrite woofer magnet and rigid stamped-steel basket support the main driver assembly.

This component set is intended for custom or upgraded vehicle speaker locations where separate woofer, midrange, tweeter, and crossover placement can be accommodated. The supplied fitment adapters and mesh steel grilles support installation flexibility. It can serve as the foundation of a front-speaker upgrade when paired with correct wiring, secure mounting, and amplifier power appropriate for its rating.

Key Features

• Three-Way Component Layout: Separate woofer, midrange, and tweeter drivers cover distinct frequency ranges.
• 140W RMS Power Handling: Supports amplification matched to the system's continuous power rating.
• Hybrid Composite Cones: Carbon fiber and polypropylene cone construction supports responsive driver operation.
• Silk Dome Tweeters: Dynamically balanced 1-inch tweeters reproduce upper-frequency detail.
• Protected Passive Crossovers: Integrated crossovers divide frequencies and include tweeter protection.
• Installation Accessories Included: Mesh steel grilles and speaker fitment adapters are supplied.

Design & Installation

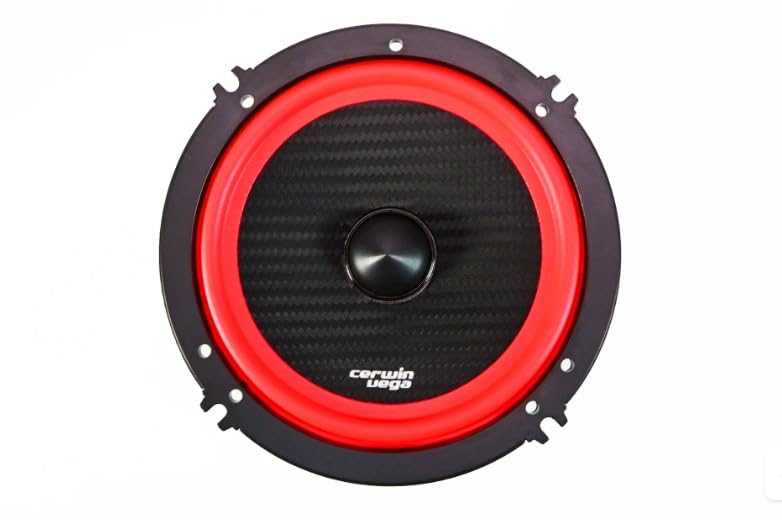

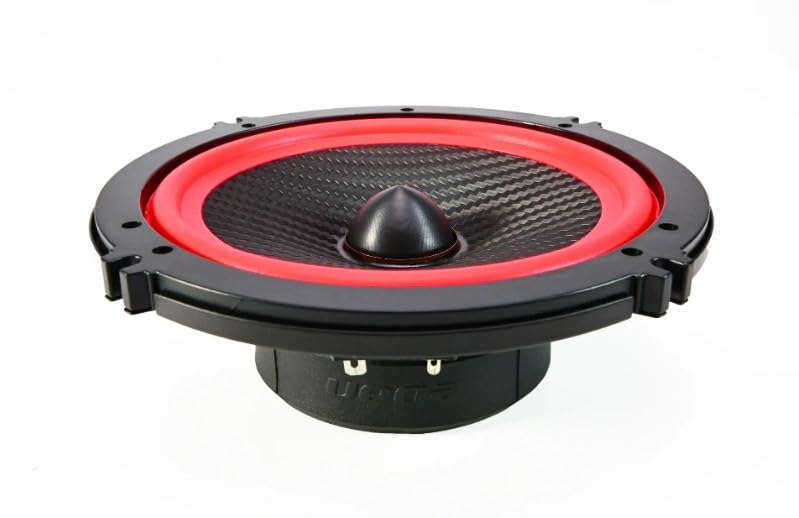

The V6525C uses hybrid carbon fiber/polypropylene cones, Santoprene rubber surrounds, neodymium tweeter magnets, strontium ferrite woofer magnets, and powder-coated stamped-steel baskets. The woofer measures 6.5 inches nominally and has a 1.79-inch mounting depth. Its listed cutout diameter is 4.88 inches, overall diameter is 6.26 inches, and overall height is 2.15 inches.

Plan mounting locations for the 6.5-inch woofers, 2.5-inch midrange drivers, 1-inch tweeters, and two passive crossover networks before installation. Connect the amplifier or source output to the crossover input, then connect the labeled woofer, midrange, and tweeter outputs while observing polarity. For flush-mounted tweeters, the manual specifies a 1.85-inch round opening and at least 1 inch of clearance behind the panel.
