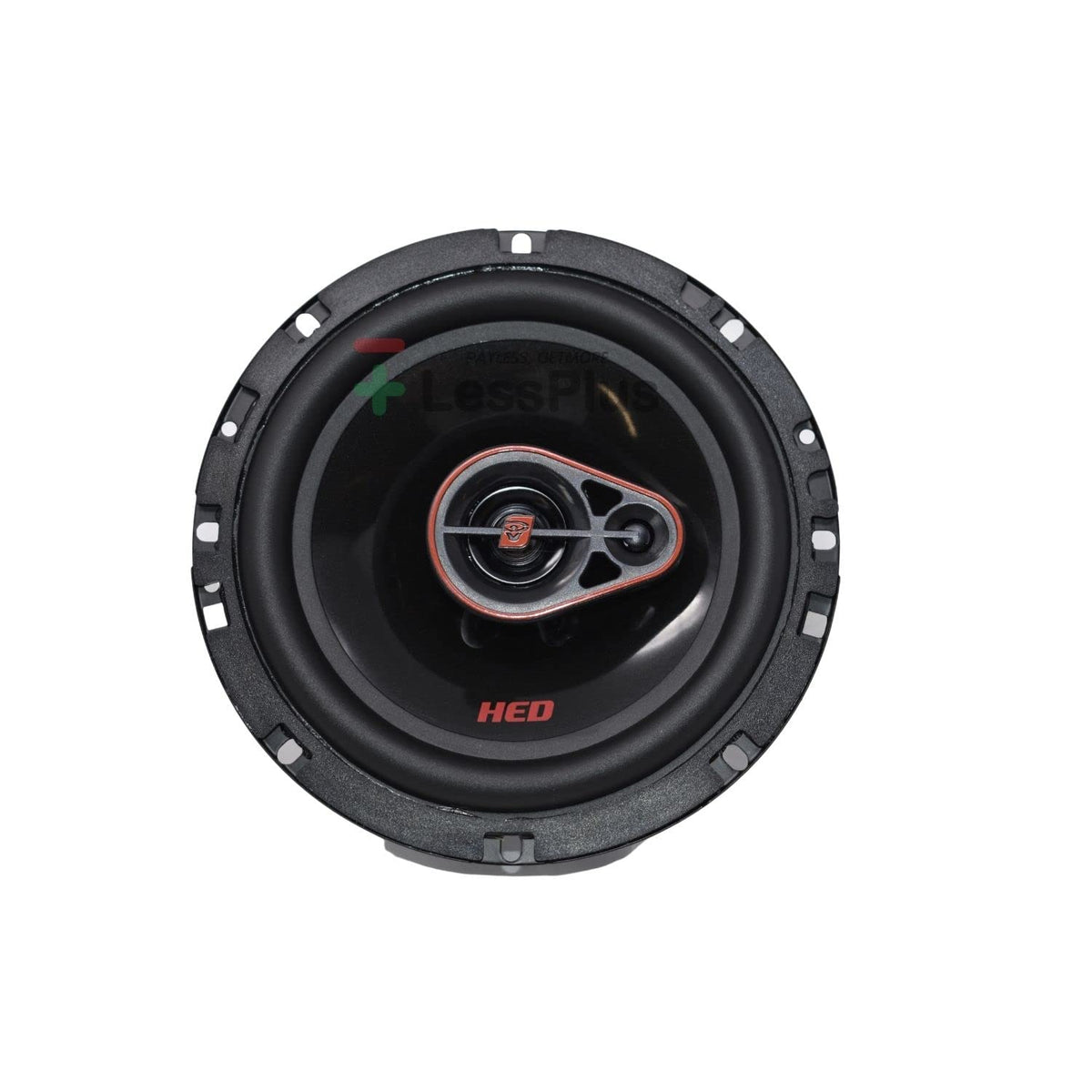

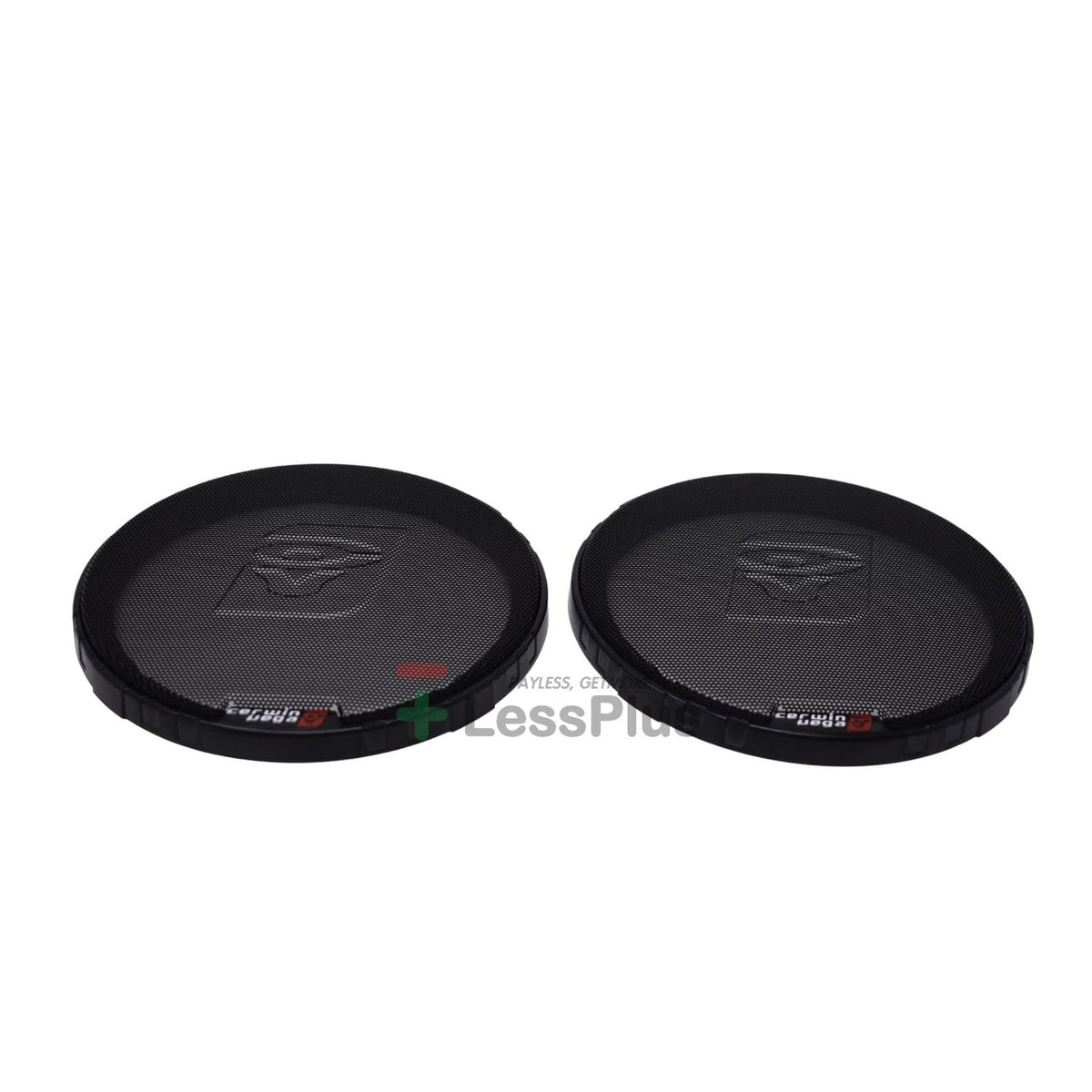

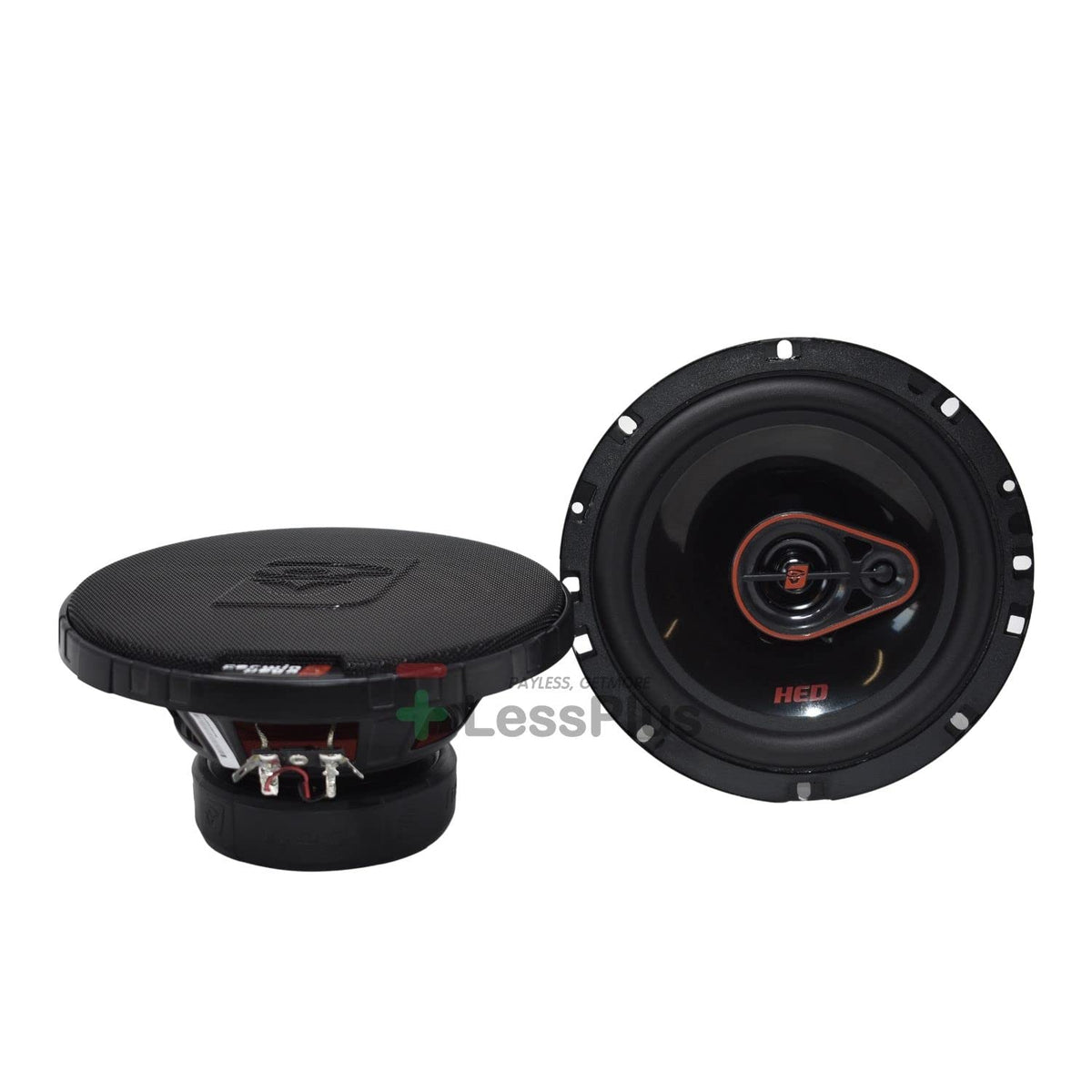

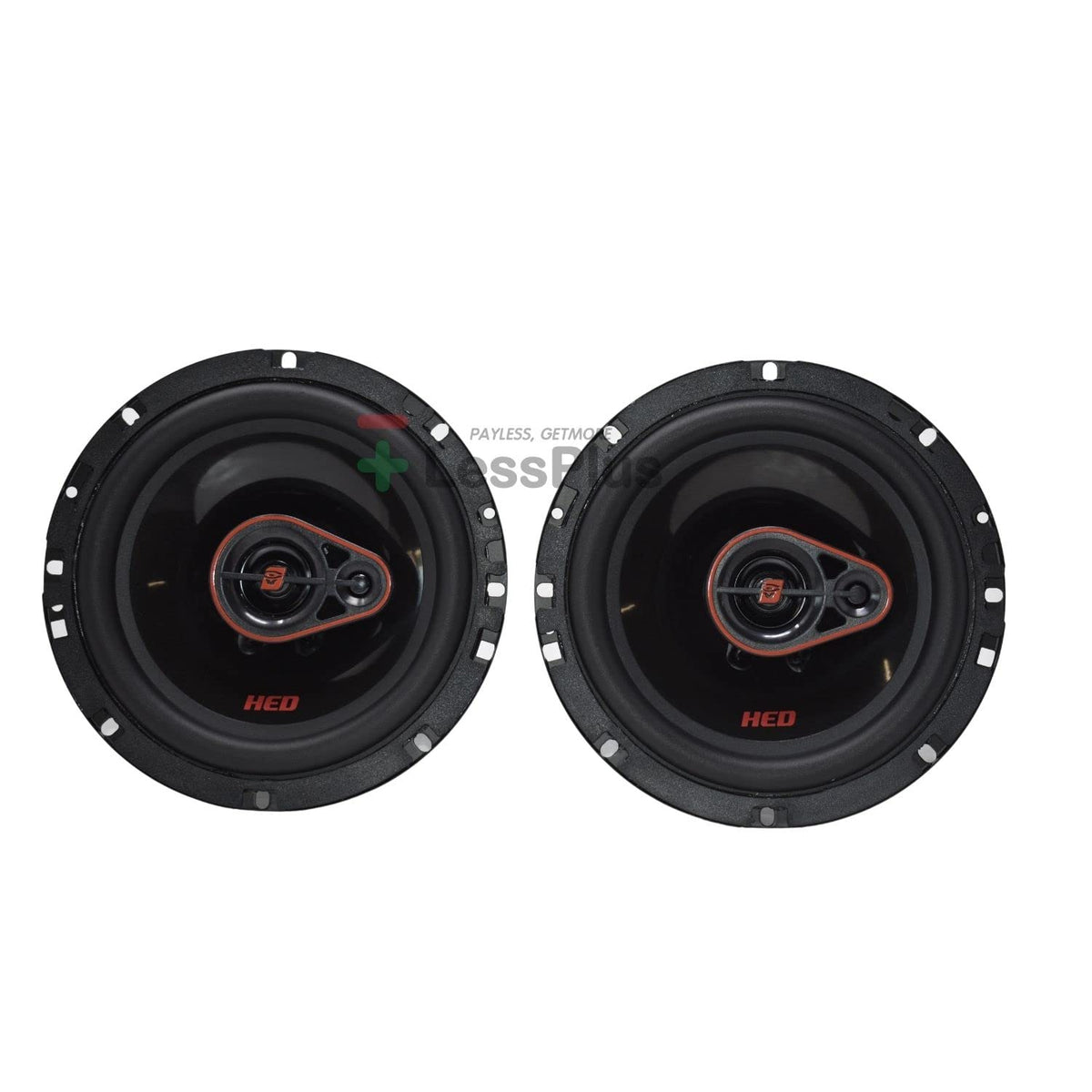

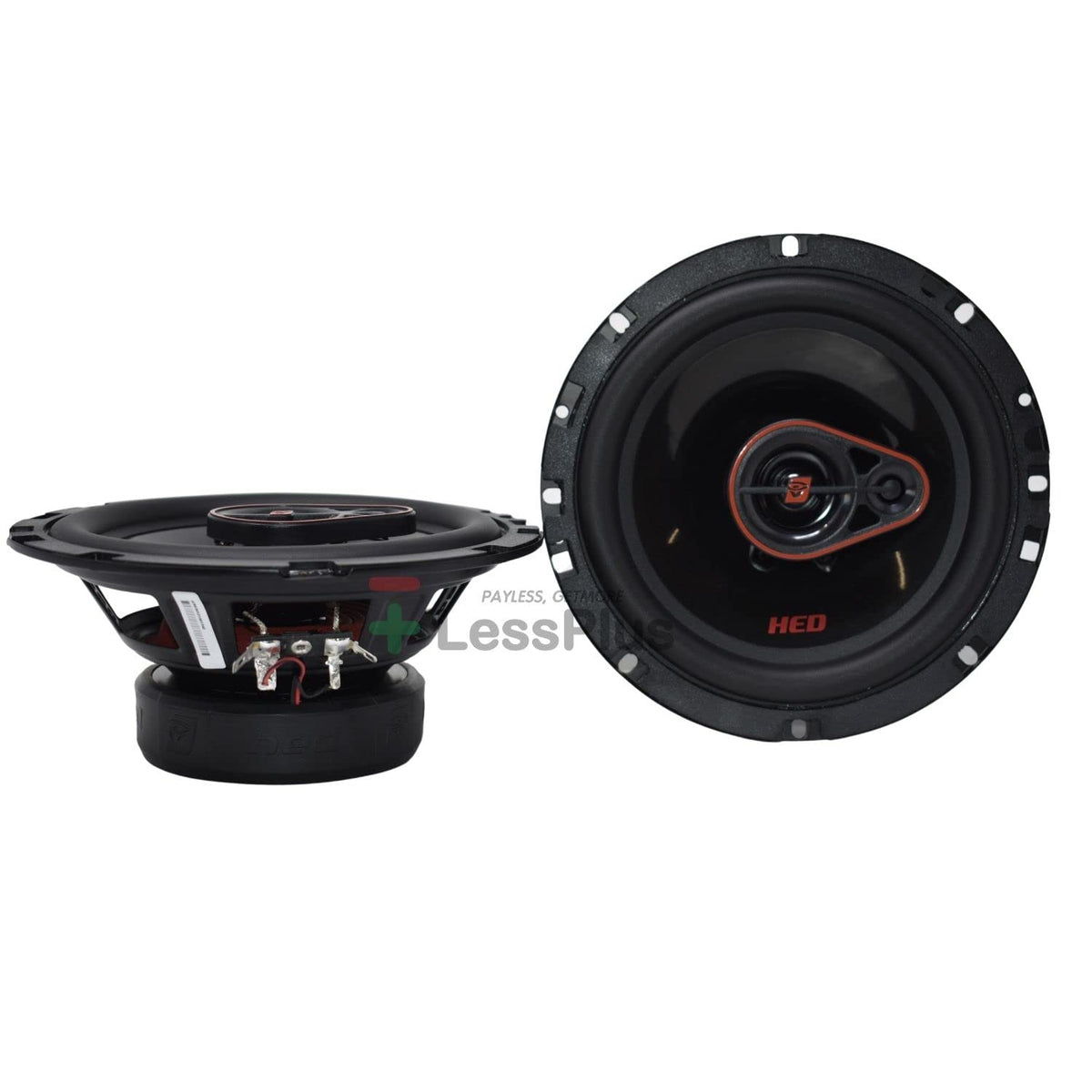

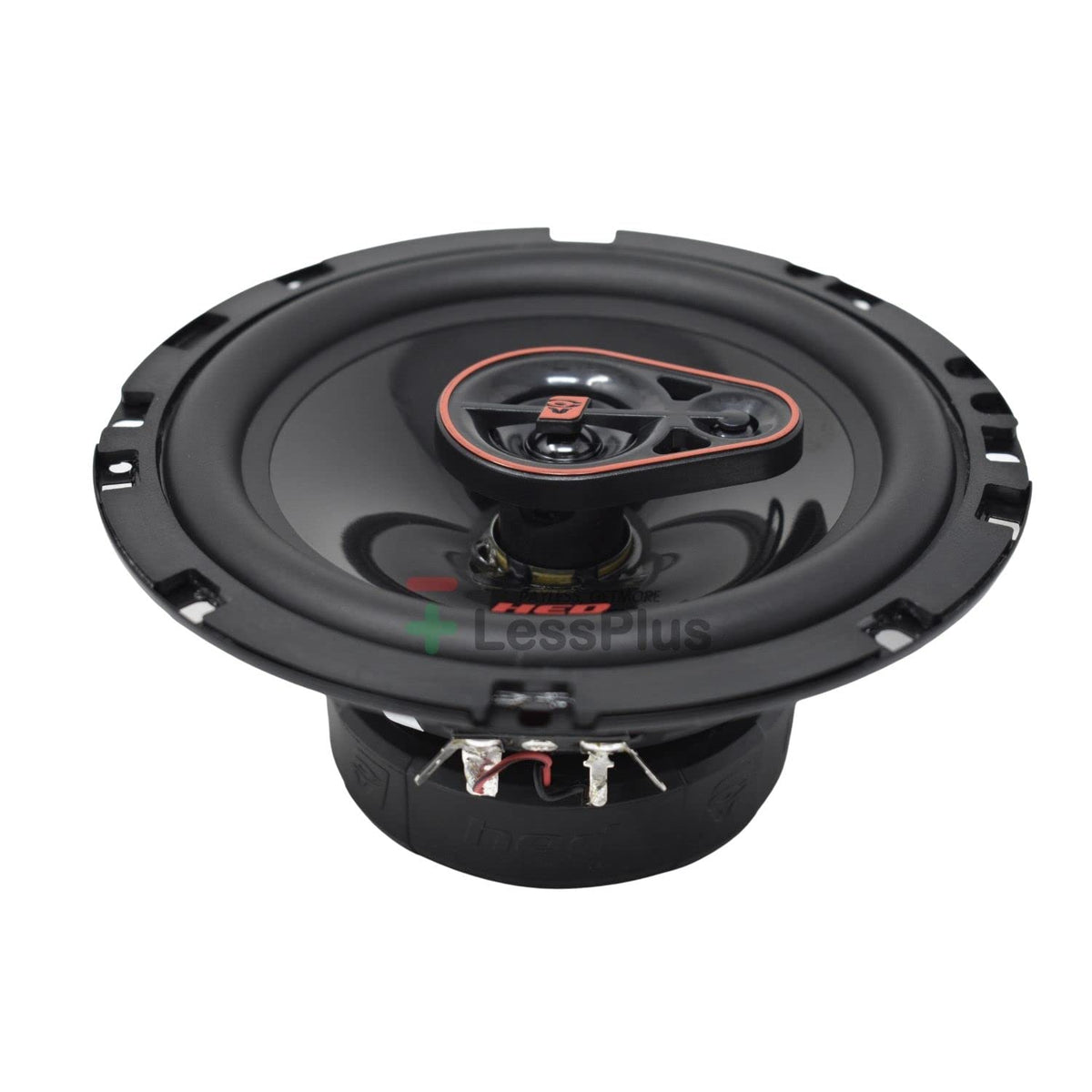

Cerwin-Vega H7653 6.5" 3-Way Coaxial Speakers

The Cerwin-Vega H7653 is a 6.5-inch, 3-way coaxial speaker set designed to replace compatible factory door or rear-deck speakers. Its all-in-one coaxial layout combines low-, mid-, and high-frequency drivers in each speaker, helping simplify an audio-system upgrade. It is intended for listeners seeking clearer, fuller sound from a standard 4-ohm car-audio speaker position.

With 60 watts RMS power handling and 340 watts maximum power handling, the H7653 is suited to appropriately matched factory radios or aftermarket amplification. Its 50 Hz to 20 kHz stated frequency response covers bass, vocal, and treble ranges within a compact speaker format. The 3-way arrangement is designed to add midrange detail and high-frequency definition beyond a basic single-cone factory speaker.

The H7653 uses a single 4-ohm voice coil, making it compatible with many conventional car-audio speaker outputs. An internal crossover is included to direct frequencies among the speaker's integrated drivers. This avoids the need to add a separate external crossover for the coaxial speaker assembly.

Its construction includes a stamped-steel basket and ferrite ceramic magnet, with a polypropylene cone, treated-foam surround, and Mylar diaphragm listed in the manufacturer specifications. Other published product information identifies a treated red spider and a balanced PEI/polypropylene dome tweeter. Together, these elements support a durable replacement-speaker design for everyday vehicle use.

The H7653 can be considered for vehicles with 6.5-inch speaker locations when the mounting cutout and behind-panel clearance are confirmed first. It works as a practical front-door or rear-deck upgrade and can be paired with an aftermarket head unit or amplifier matched to its 4-ohm load and RMS rating. For systems needing deeper low bass, a separate subwoofer remains the appropriate addition.

Key Features

• 3-Way Coaxial Design: Integrates woofer, midrange, and tweeter elements into each speaker assembly.
• 60W RMS Handling: Supports amplifier or radio power matched to its continuous rating.
• 4-Ohm Load: Works with many standard car-audio speaker outputs.
• Internal Crossover: Routes frequencies between the integrated speaker drivers.
• Stamped-Steel Basket: Provides a rigid mounting structure for the speaker assembly.
• 6.5-Inch Fitment: Designed for compatible 6.5-inch door or rear-deck locations.

Design & Installation

The H7653 uses a stamped-steel basket, ferrite ceramic magnet, polypropylene cone, treated-foam surround, and 1-inch voice coil. Its coaxial format places the additional midrange and high-frequency drivers over the main woofer, conserving space compared with a separate component-speaker layout. The speaker includes an internal crossover and uses a single 4-ohm voice coil.

Before purchase, compare the vehicle's opening and clearance with the listed 5.7-inch (145 mm) mounting diameter and approximately 2.09-inch (53 mm) mounting depth. Mount the speaker securely to a flat baffle and seal around its frame to limit air leaks; check door-window travel before installation in a door. Use correct polarity and protect any new wiring with grommets where it passes through metal.
