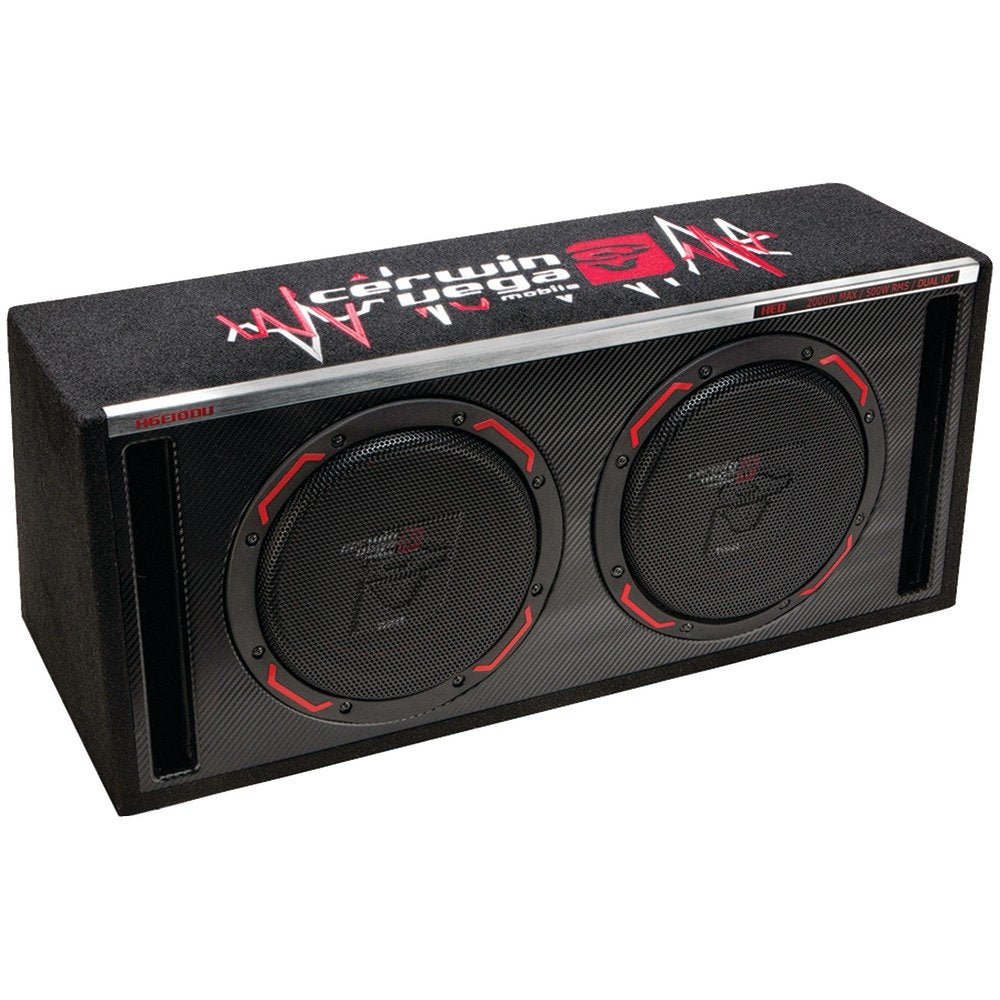

Cerwin-Vega H6E10DV Dual 10" Vented Subwoofer Enclosure

The Cerwin-Vega H6E10DV is a loaded passive subwoofer enclosure built around two 10-inch HED Series subwoofers. It gives a car audio system a dedicated low-frequency foundation without requiring the buyer to select an enclosure and separate woofers. The preloaded design is intended for drivers who want a straightforward bass upgrade from a single enclosure.

This enclosure is suited to listeners who want more bass presence for daily driving and bass-forward music. Its dual-subwoofer layout provides greater cone area than a single 10-inch enclosure. The finished assembly keeps the system focused on low-frequency reproduction while leaving the main speakers to handle mids and highs.

The H6E10DV uses a factory-tuned vented enclosure, a design that uses a port to support efficient low-frequency output. Cerwin-Vega rates the complete enclosure for 500 watts RMS and 2,000 watts maximum power handling. Its final wired impedance is 2 ohms, so amplifier compatibility should be confirmed before installation.

Each subwoofer uses a polypropylene cone with a treated-foam surround, stamped-steel basket, ferrite magnet, and 2-inch voice coil. The stated frequency response is 20 Hz to 500 Hz. These material choices are paired with a 3/4-inch MDF enclosure to provide a substantial platform for the loaded drivers.

The H6E10DV is a passive enclosure rather than a powered subwoofer, so it requires a separate external car amplifier and appropriate wiring. It can be used with an aftermarket receiver or a factory-audio integration setup that provides a suitable amplifier signal path. With its 30-inch length, check available cargo-area space before purchasing.

Key Features

• Dual 10-Inch Drivers: Two HED Series subwoofers are preinstalled in one enclosure.
• 500W RMS Handling: Supports substantial continuous amplifier power when properly matched.
• 2-Ohm Final Impedance: Designed for an amplifier stable at a 2-ohm load.
• Vented MDF Enclosure: Factory-tuned ported construction supports efficient bass output.
• Polypropylene Cones: Durable cone material paired with treated-foam surrounds.
• Protective Grille: Includes a grille to help protect the subwoofer area.

Design & Installation

The enclosure uses 3/4-inch medium-density fiberboard with a black carpet exterior. It has a rectangular form factor, factory-embroidered Cerwin-Vega Mobile branding, and a protective grille. The internal subwoofers use stamped-steel baskets and ferrite ceramic magnets.

Mount the enclosure securely in the vehicle cargo area so it cannot move during driving or high-output playback. Connect its single binding-post terminal to a compatible external amplifier, and verify that the amplifier is stable at the enclosure's 2-ohm final impedance. Measure the planned location against the 30-inch long by 13-inch high by 13-inch wide enclosure dimensions before installation.
