Cerwin-Vega H65C 6.5" 2-Way Component Speaker Set

The Cerwin-Vega H65C is a 6.5-inch, 2-way component speaker set designed for upgrading a vehicle’s front-stage audio. It separates the woofer and tweeter so they can be positioned independently for a more focused listening area than a typical coaxial speaker. The set is suited to factory-speaker replacements and custom car-audio installations where mounting space permits.

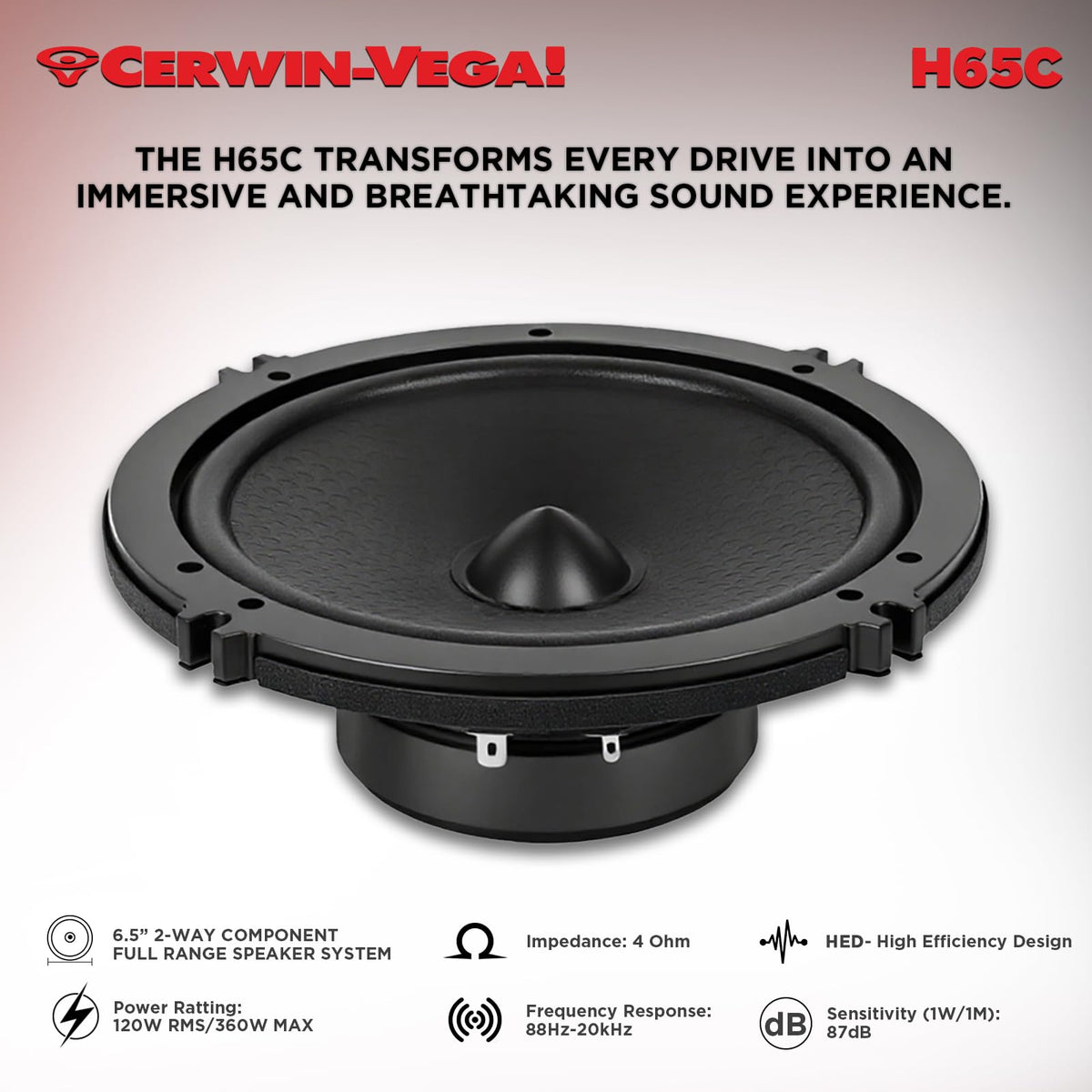

A 6.5-inch polypropylene woofer handles bass and midrange duties, while the separate 1-inch PEI tweeter handles upper-frequency detail. This arrangement is intended to produce balanced output across its rated 88 Hz to 20 kHz frequency response. With 87 dB sensitivity and a 4-ohm nominal impedance, it is designed for common car-audio speaker applications.

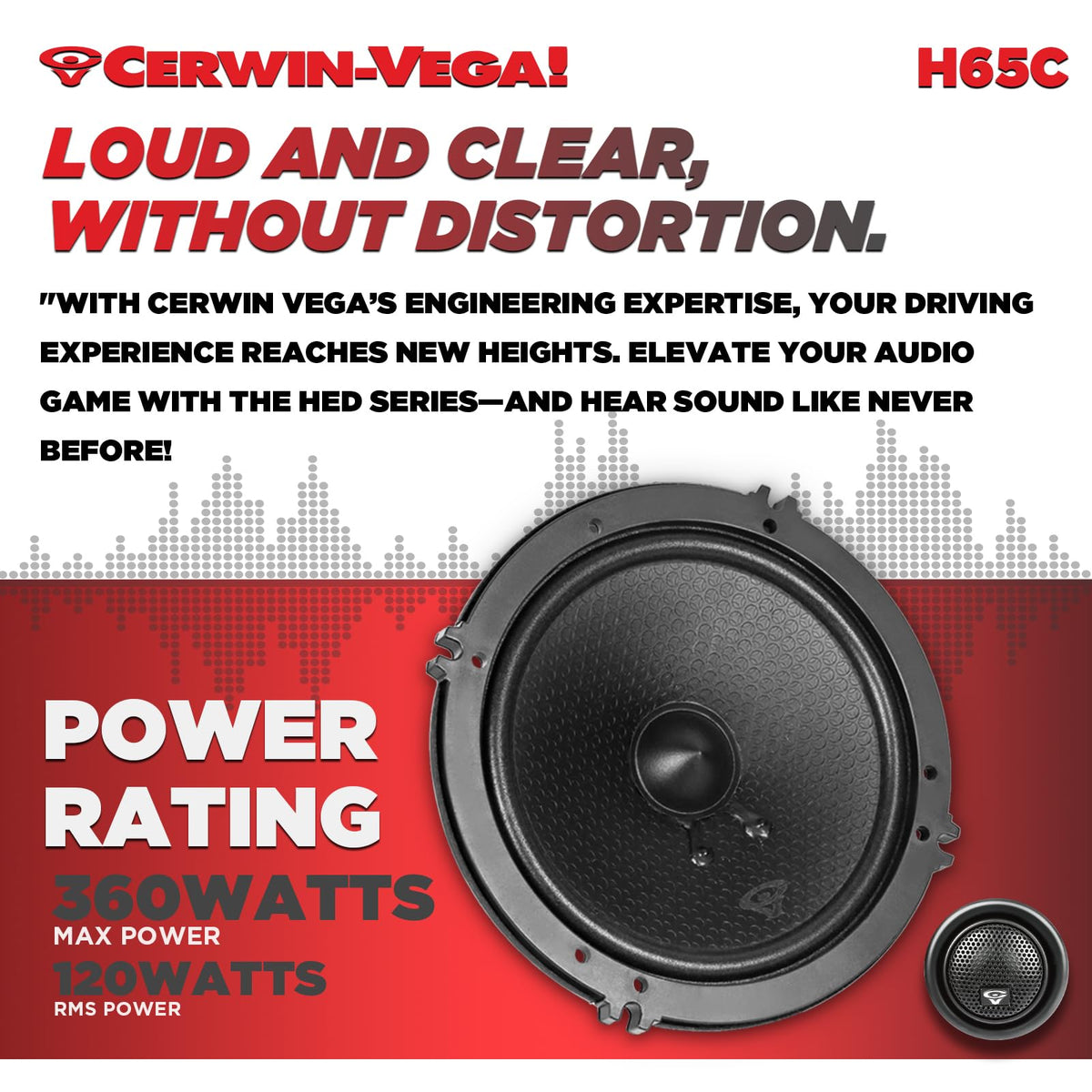

The H65C is rated for 120 watts RMS and 360 watts maximum power handling. Its 79 Hz free-air resonance and polypropylene-cone woofer support a clear, controlled midbass foundation within a properly installed system. The 1-inch tweeter uses a neodymium magnet and dynamically balanced PEI construction for high-frequency reproduction.

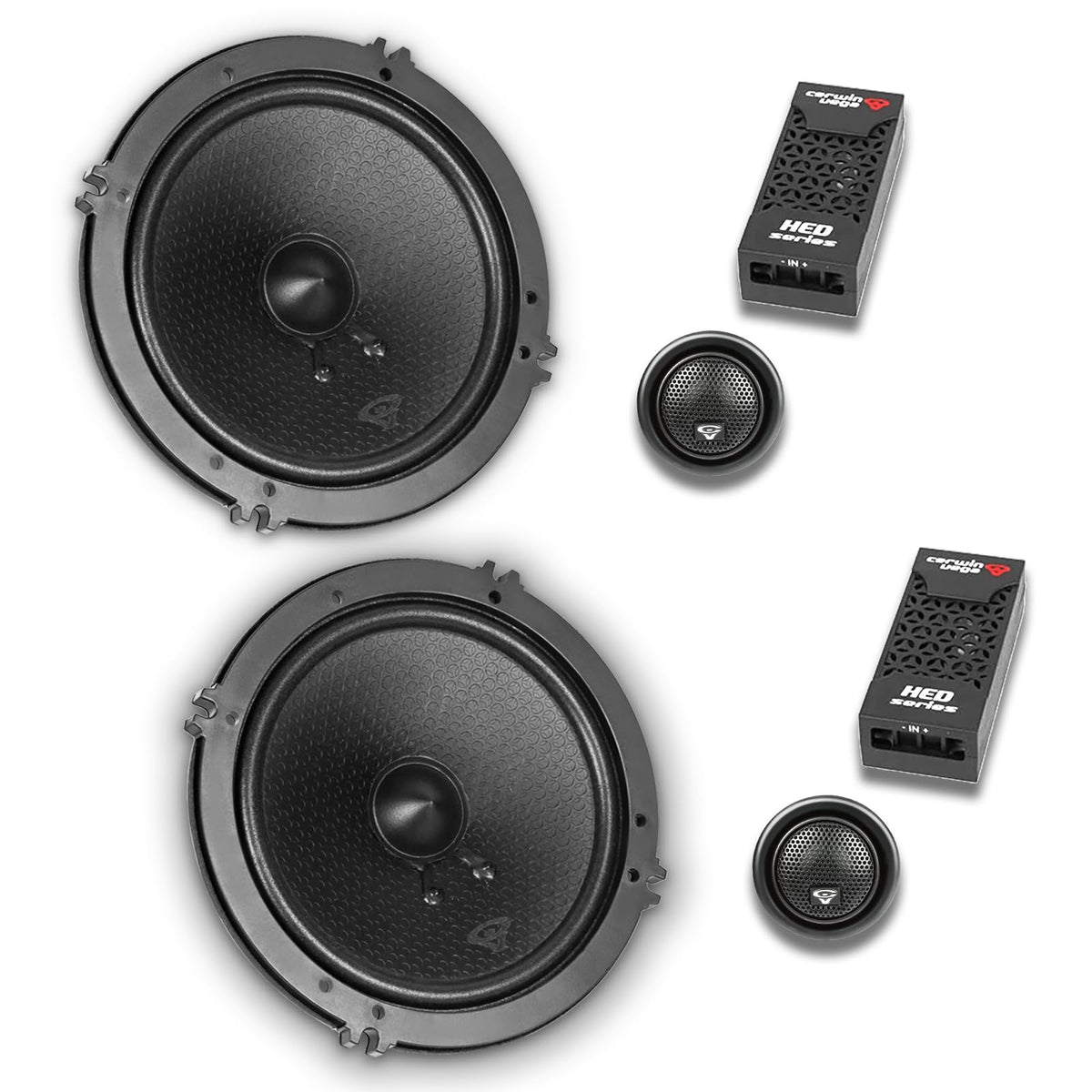

Durability-focused construction includes a UV-treated foam surround, ferrite woofer magnet, and powder-coated stamped-steel basket. The rigid basket provides a stable mounting structure for the woofer, while the treated surround is intended for automotive use. An integrated crossover with tweeter protection manages the handoff between the woofer and tweeter.

This component set can be used when replacing separate factory woofer-and-tweeter systems or when building a custom front stage. Its 4.88-inch cutout diameter and 1.77-inch mounting depth should be checked against the vehicle’s available door, kick-panel, or custom-mounting space. Mesh grilles are included for installations where the drivers require added physical protection.

Key Features

• 2-Way Component Design: Separates woofer and tweeter placement for a more tailored installation.
• 120W RMS Power Handling: Supports amplification matched within the rated continuous-power range.
• Polypropylene Woofer Cone: Handles midbass and midrange reproduction with a responsive design.
• 1-Inch PEI Tweeter: Reproduces high frequencies with a neodymium magnet assembly.
• Protected Crossover: Directs frequencies to the appropriate driver and protects the tweeter.
• UV-Treated Foam Surround: Adds durability for long-term automotive speaker use.

Design & Installation

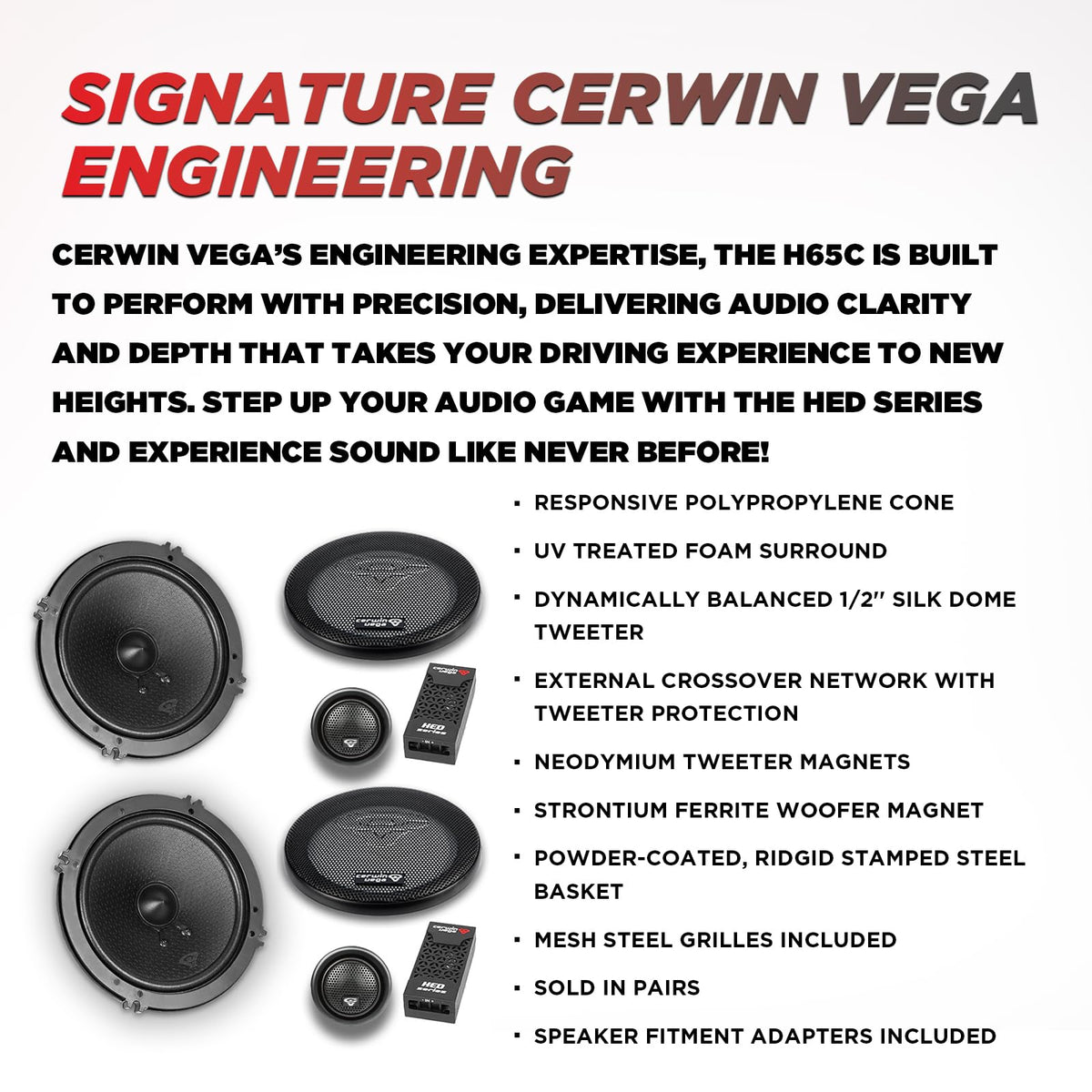

The H65C uses polypropylene woofer cones, UV-treated foam surrounds, strontium ferrite woofer magnets, and dynamically balanced PEI tweeters with neodymium magnets. Each woofer is built around a powder-coated, rigid stamped-steel basket. The set also includes mesh grilles.

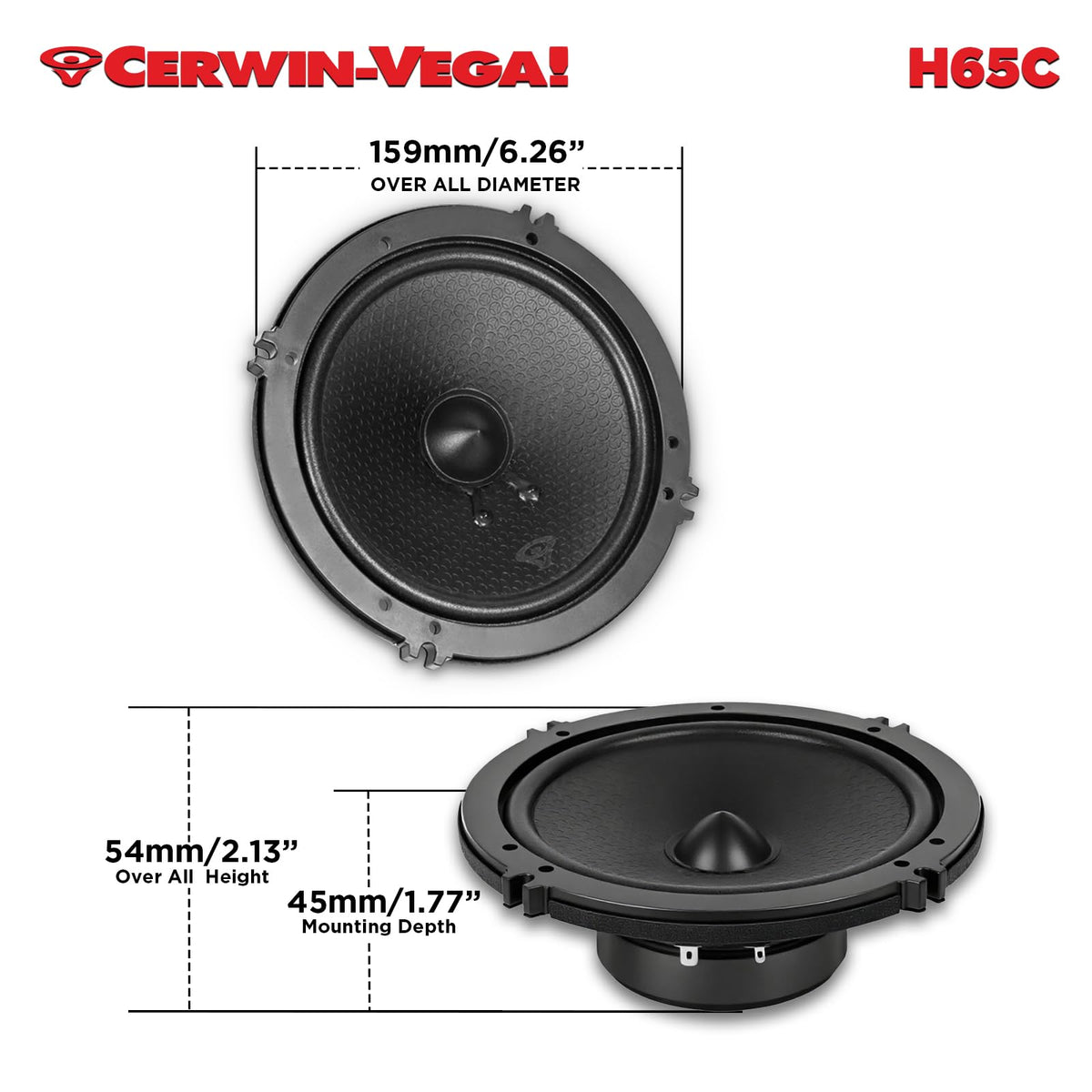

Confirm the 4.88-inch cutout, 6.26-inch overall diameter, 1.77-inch mounting depth, and 2.13-inch overall height before installation. The component system uses crossovers between the amplifier or speaker-output connection, woofer, and tweeter, so correct polarity should be maintained throughout wiring. Install crossover components in a protected, ventilated location away from moisture and factory wiring looms where practical.
