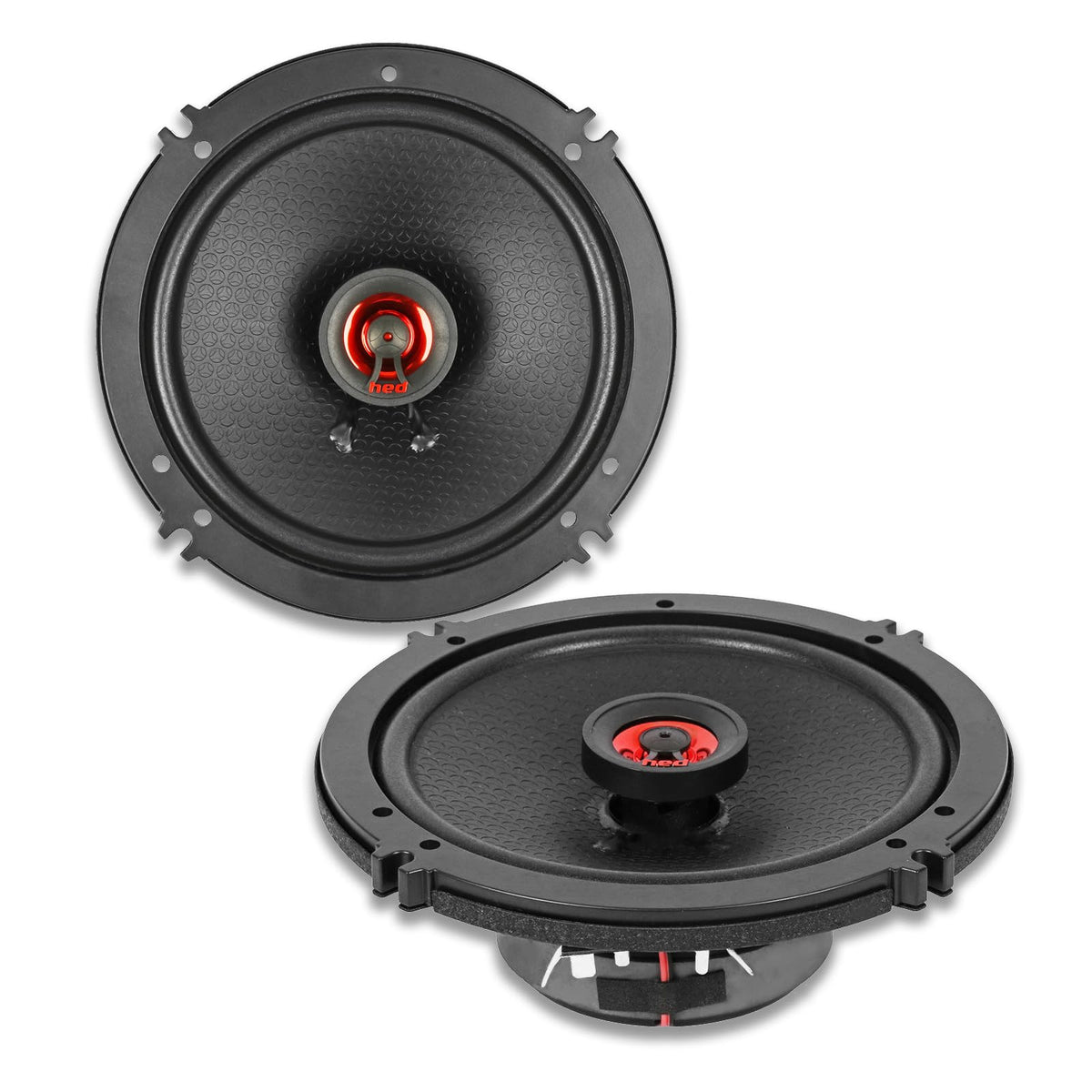

Cerwin-Vega H652 6.5" 2-Way Coaxial Speakers

The Cerwin-Vega H652 is a pair of 6.5-inch, 2-way coaxial full-range car speakers designed for replacing compatible factory speakers or building a straightforward speaker upgrade. Each speaker combines a woofer and tweeter in one assembly, helping deliver a broad frequency range from a standard-size mounting location. The pair is rated for 90 watts RMS and 270 watts maximum power handling.

This HED Series model is intended for listeners who want clearer full-range sound from a 6.5-inch speaker position without moving to a separate component-speaker setup. Its 4-ohm nominal impedance is suited to common car-audio speaker systems that support 4-ohm loads. Confirm your vehicle's opening, mounting depth, and wiring arrangement before installation.

A responsive polypropylene woofer cone handles bass and midrange duties, while the 1-inch PEI tweeter reproduces higher frequencies. The tweeter uses a neodymium magnet and a dynamically balanced design. Together, the coaxial layout provides a compact full-range solution for front or rear speaker locations where fitment permits.

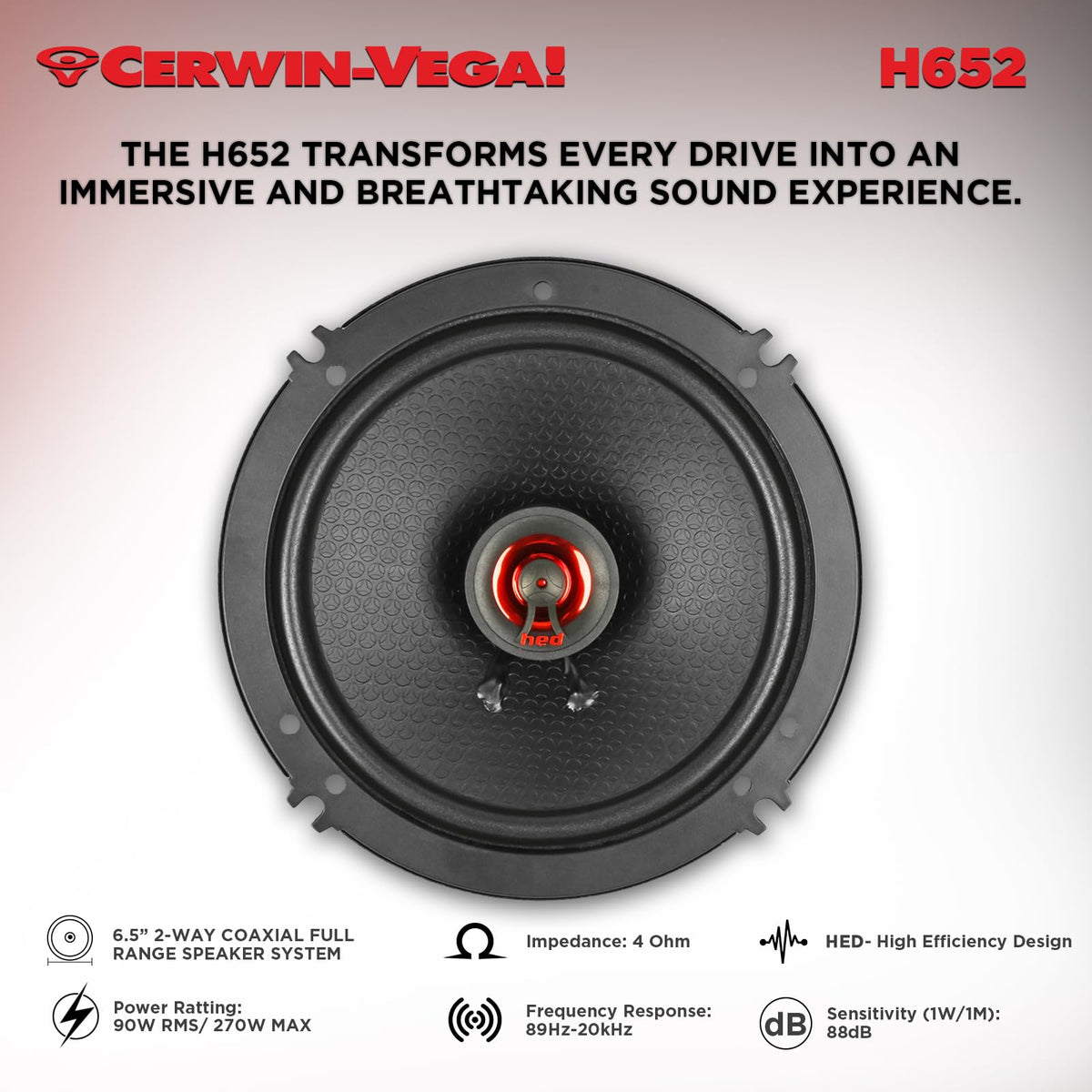

The H652 uses an integrated crossover with tweeter protection to manage the handoff between the woofer and tweeter. This design supports smoother frequency transitions while helping protect the tweeter during higher-volume operation. The speaker's specified frequency response is 89 Hz to 20 kHz, with an 88 dB sensitivity rating at 1W/1M.

For a complete vehicle system, the H652 can be used as a compatible replacement pair or combined with additional speakers and appropriate amplification. Its 1.77-inch mounting depth can be useful where door or rear-deck clearance is limited, but vehicle fitment should always be measured. Mesh grilles are included for installations where the speakers are exposed rather than mounted behind factory panels.

Key Features

• 2-Way Coaxial Design: Combines a 6.5-inch woofer and 1-inch tweeter in each speaker.
• 90W RMS Power Handling: Supports systems matched to its continuous power rating.
• Polypropylene Woofer Cone: Handles bass and midrange reproduction in a durable cone material.
• UV-Treated Foam Surround: Provides the woofer with a durable, compliant outer suspension.
• Integrated Crossover: Directs frequencies between the woofer and tweeter and includes tweeter protection.
• Stamped Steel Basket: Uses a rigid, powder-coated steel frame to support the speaker assembly.

Design & Installation

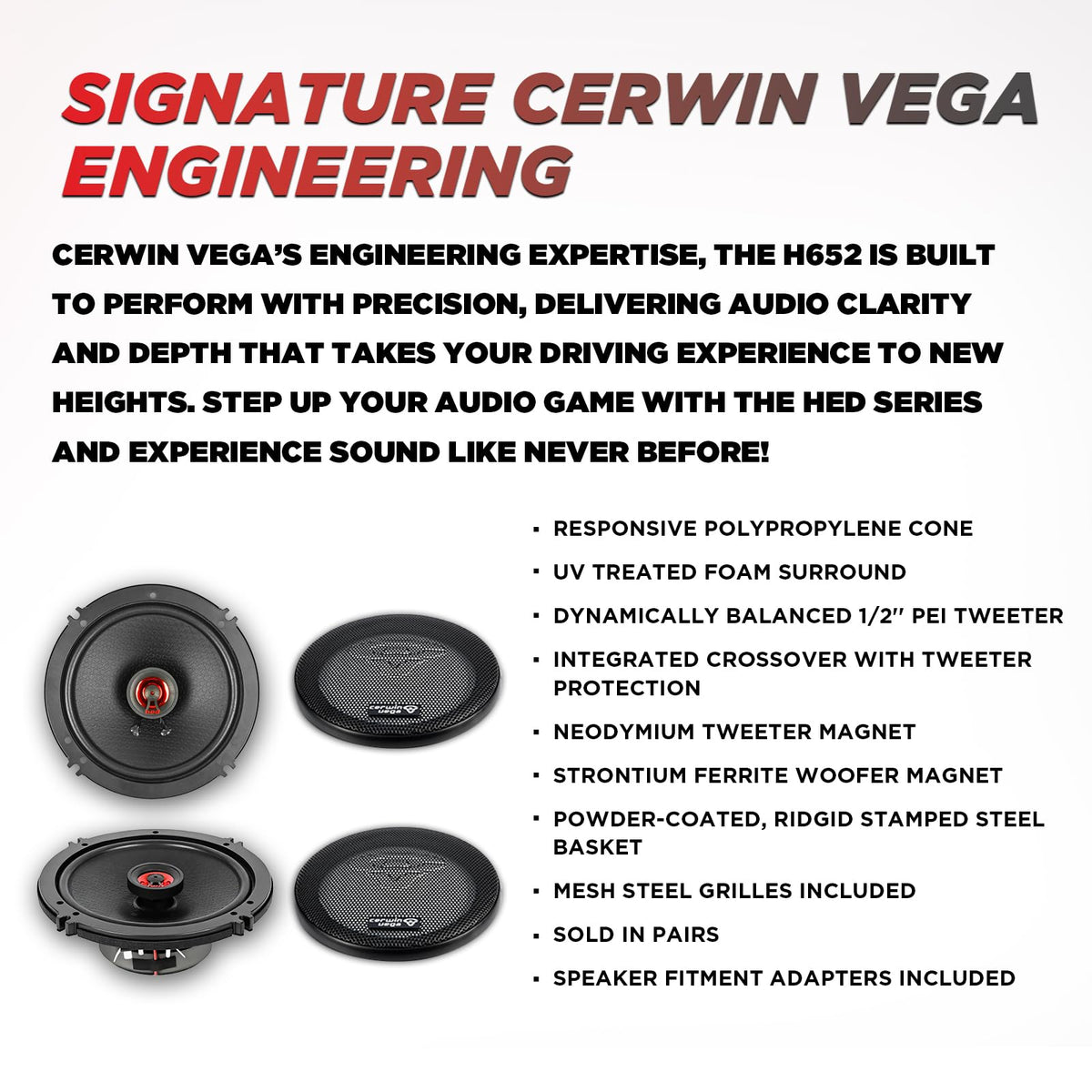

The H652 uses a polypropylene cone, UV-treated foam surround, dynamically balanced PEI tweeter, and strontium ferrite woofer magnet. Its basket is a powder-coated, rigid stamped-steel design. The speakers include mesh grilles and are sold as a pair.

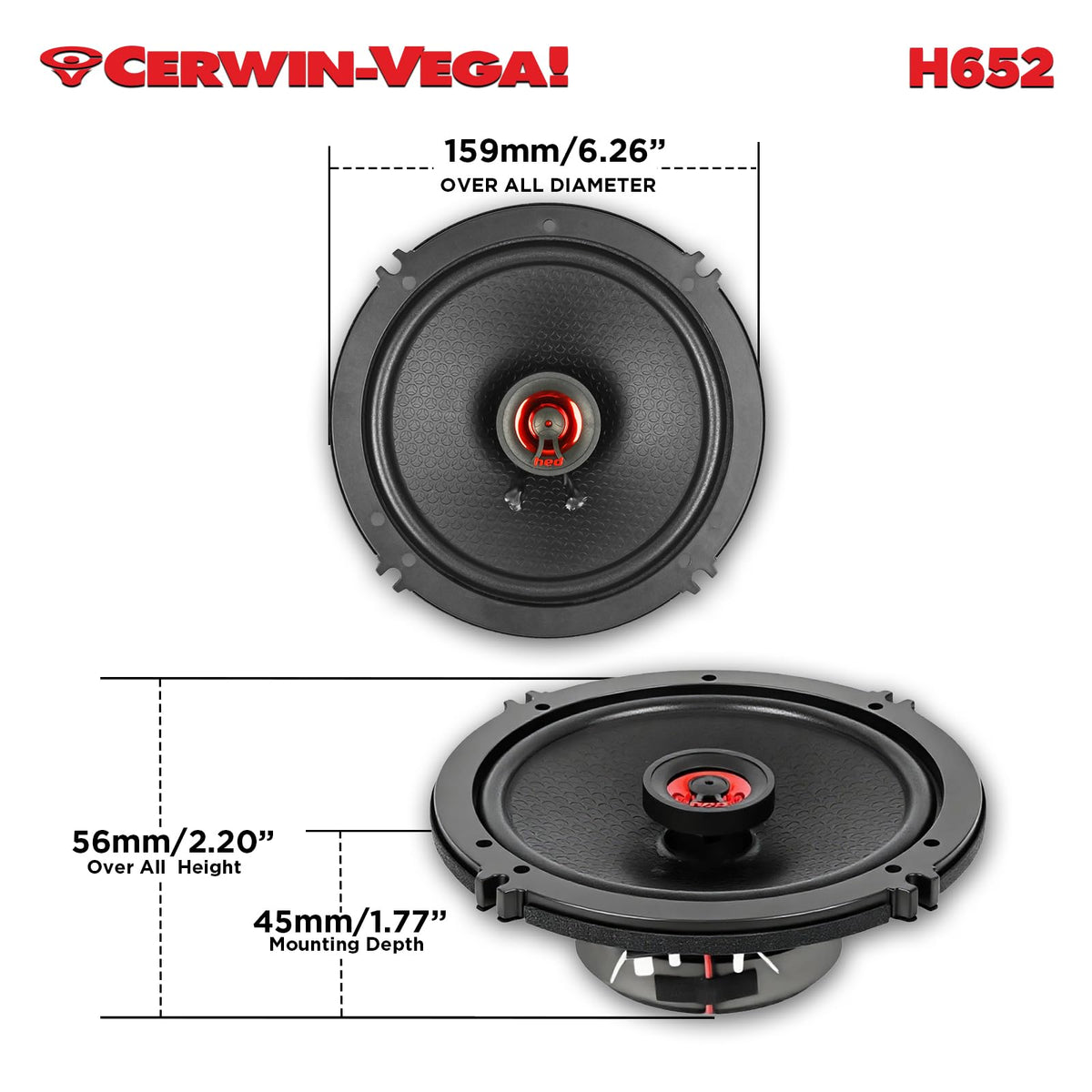

Verify a 4.88-inch cutout, 1.77-inch mounting-depth clearance, and 6.26-inch overall-diameter clearance at the intended location before purchase. Wire each speaker with correct polarity to a compatible 4-ohm car-audio channel. Use the included mesh grilles when the installation does not retain a suitable factory grille or panel.
