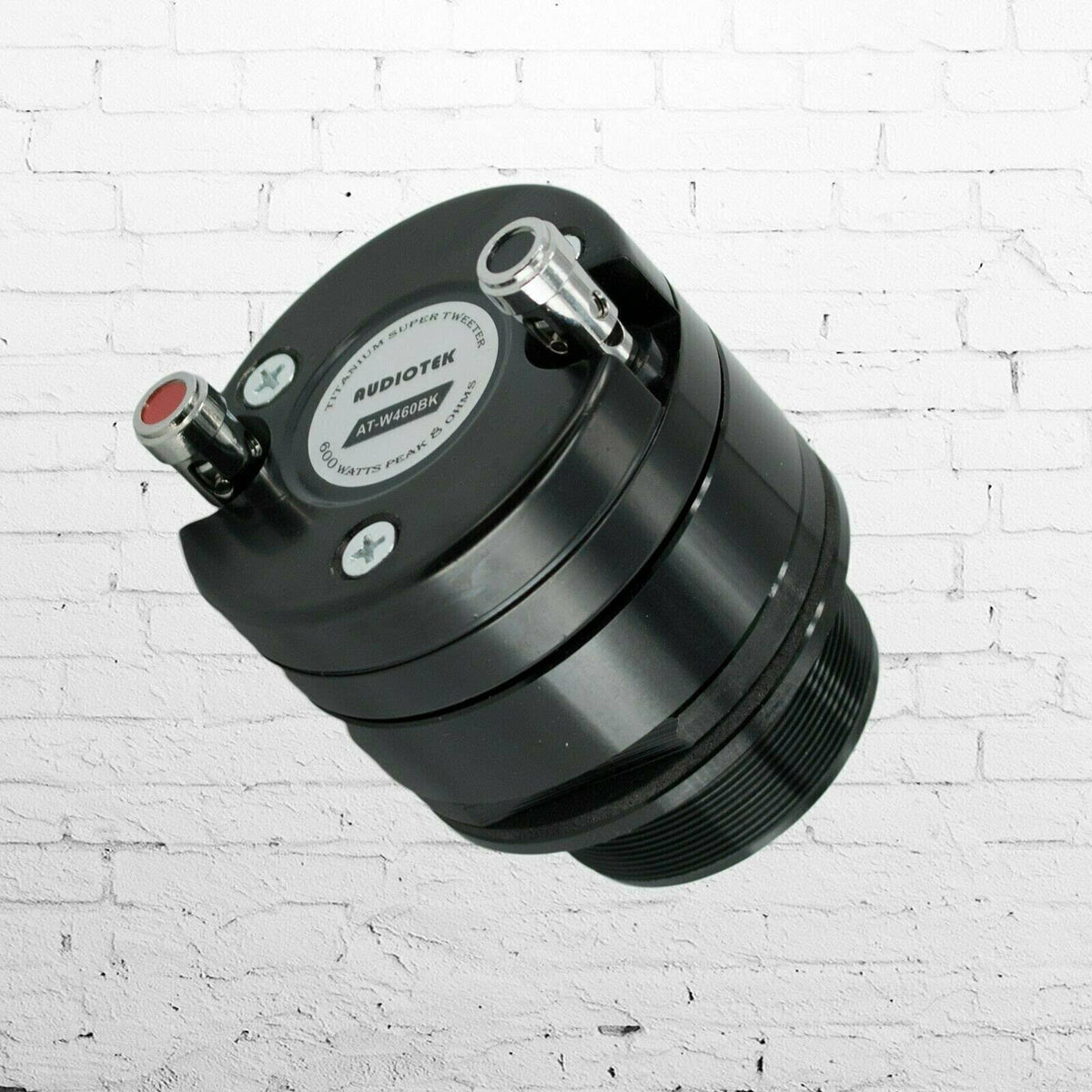

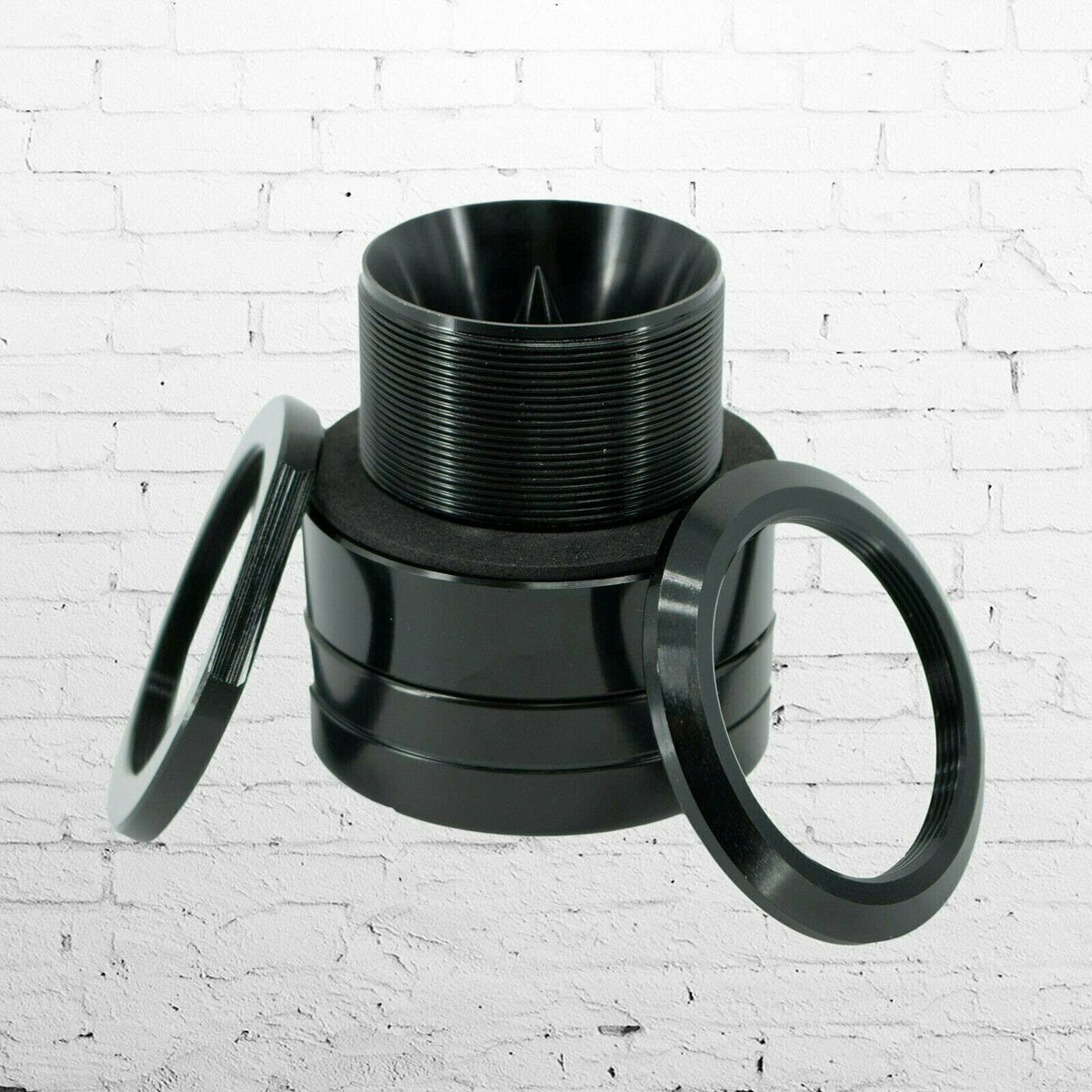

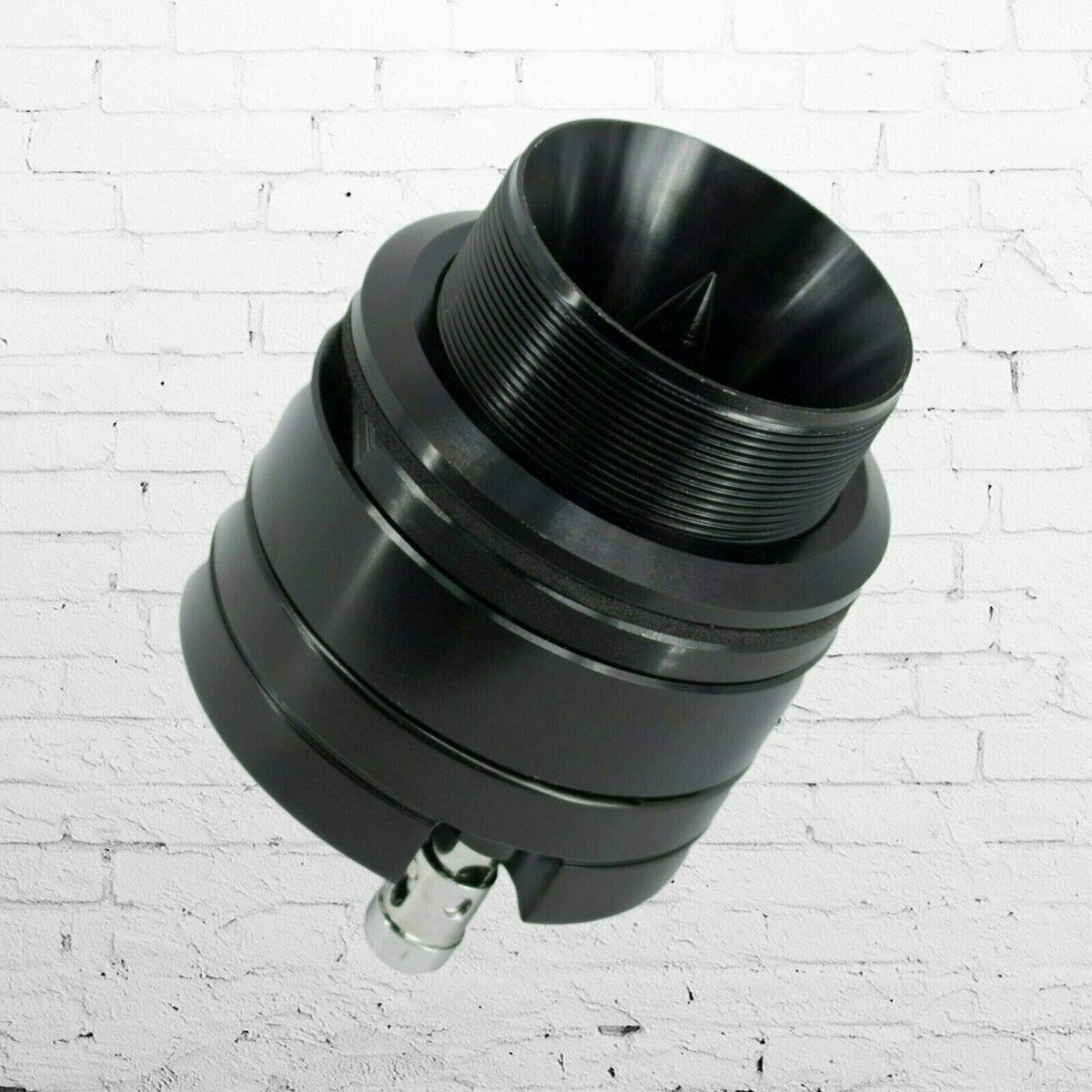

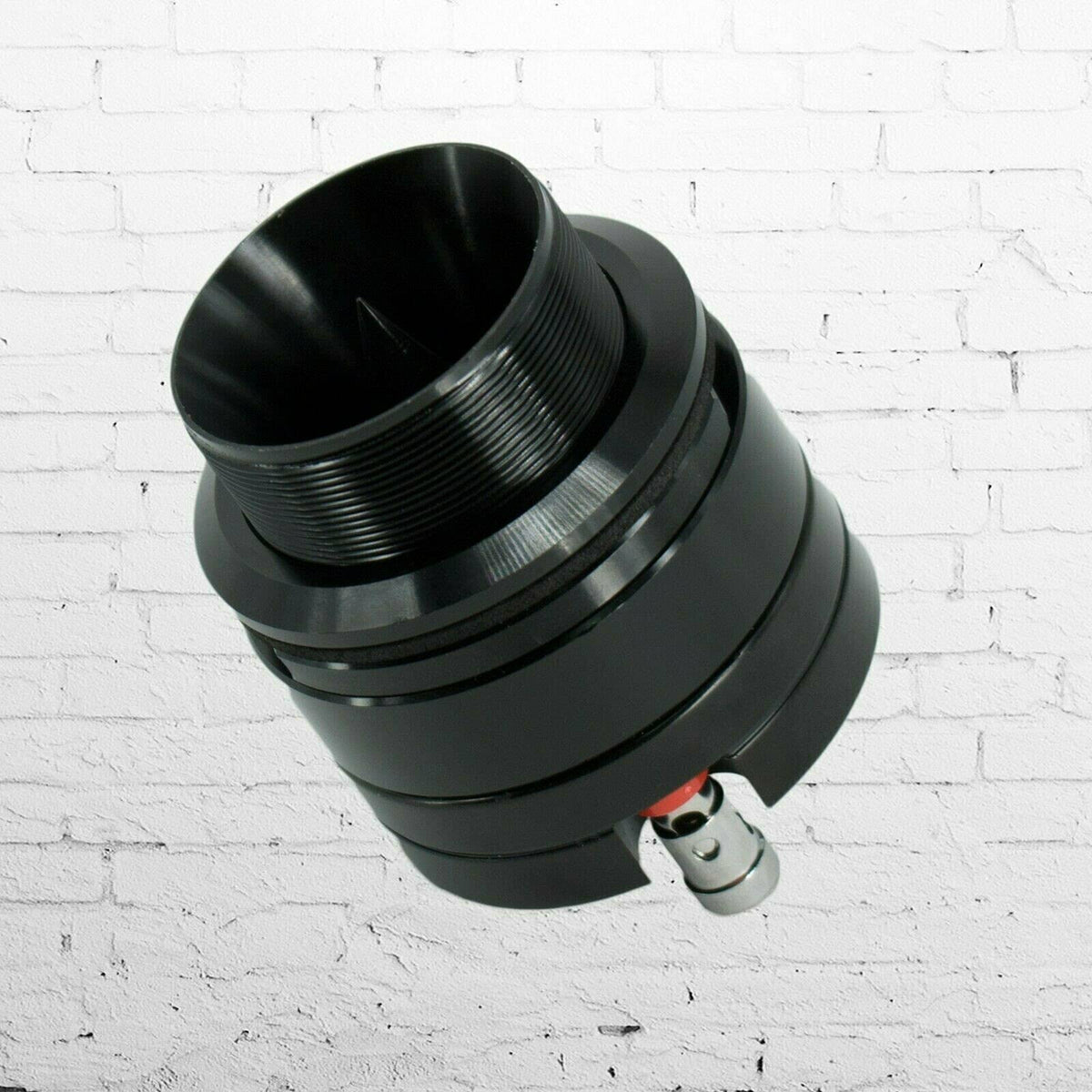

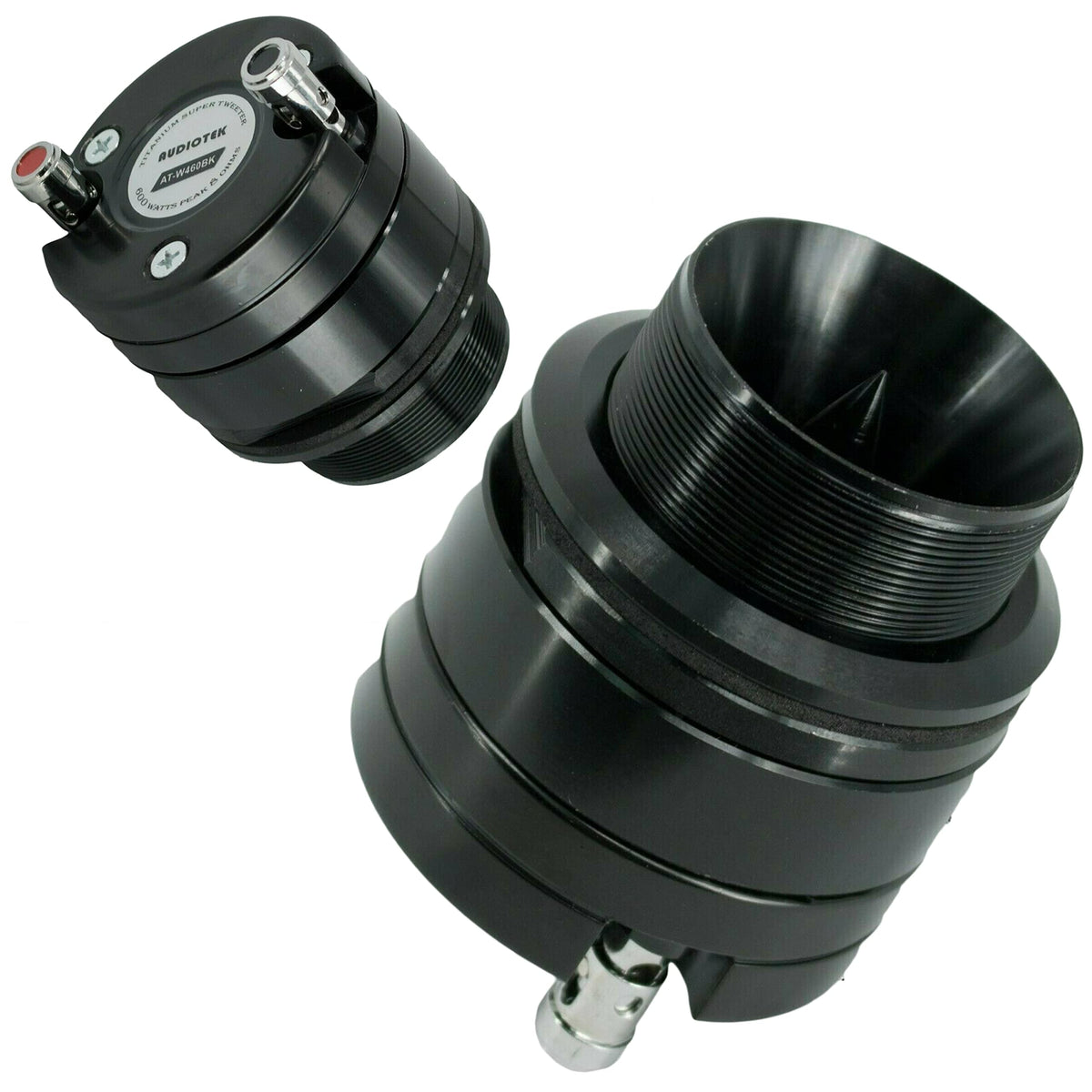

Audiotek ATW460BK 1" 600W Titanium Super Tweeter

The Audiotek ATW460BK is a 1-inch car-audio super tweeter designed to add upper-frequency output to an amplified speaker system. It is intended for listeners who want more definition and projection from vocals, percussion, and other high-frequency details than typical factory speakers provide. Its 8-ohm impedance makes it important to match the tweeter with compatible amplification and system wiring.

This is a dedicated high-frequency driver rather than a full-range speaker or a direct replacement for a complete door-speaker system. The rated frequency response begins at 3,000 Hz and extends to 25,000 Hz, supporting use above midrange drivers or woofers. A built-in capacitor filter is specified to help limit low-frequency content sent to the tweeter.

The ATW460BK is specified with a 600-watt maximum power rating and 100 dB sensitivity. Its output character is intended for systems where clear, forward high frequencies are needed to complement bass and midrange drivers. Because it is a super tweeter, it is most appropriate as part of a multi-speaker setup with a properly planned crossover approach.

A die-cast aluminum frame provides the mounting structure, while the listed diaphragm composition is aluminum. The product is also described as a titanium super tweeter design with a bullet-style center section. This bullet configuration is intended to protect the voice-coil area while supporting focused high-frequency dispersion.

With a 2-inch overall diameter and 2-7/8-inch mounting depth, the ATW460BK can be considered for custom panels, speaker pods, and other locations with adequate rear clearance. Spade terminals are specified for straightforward speaker-wire connections. It is supplied as one tweeter with installation accessories listed in the package contents.

Key Features

• 1-Inch Super Tweeter: Adds dedicated high-frequency output to compatible car-audio systems.
• 600W Maximum Rating: Handles the manufacturer-listed maximum power level.
• 8-Ohm Impedance: Supports matching with compatible amplifier channels and crossover networks.
• 3 kHz–25 kHz Response: Covers upper midrange and high-frequency reproduction.
• 100 dB Sensitivity: Designed for efficient output from suitable system power.
• Built-In Capacitor Filter: Helps block lower frequencies from reaching the tweeter.

Design & Installation

The ATW460BK uses a die-cast aluminum frame and is specified with an aluminum dome and aluminum voice coil. Its compact 1-inch tweeter format is paired with a bullet-style center design. The listed overall diameter is 2 inches, and the mounting depth is 2-7/8 inches.

Use this tweeter with a compatible high-frequency signal path and amplification suited to an 8-ohm load. Confirm mounting clearance before installation, especially behind custom panels or pods. Connect using its spade terminals, observe speaker polarity, and avoid sending low-frequency bass content to the tweeter.
