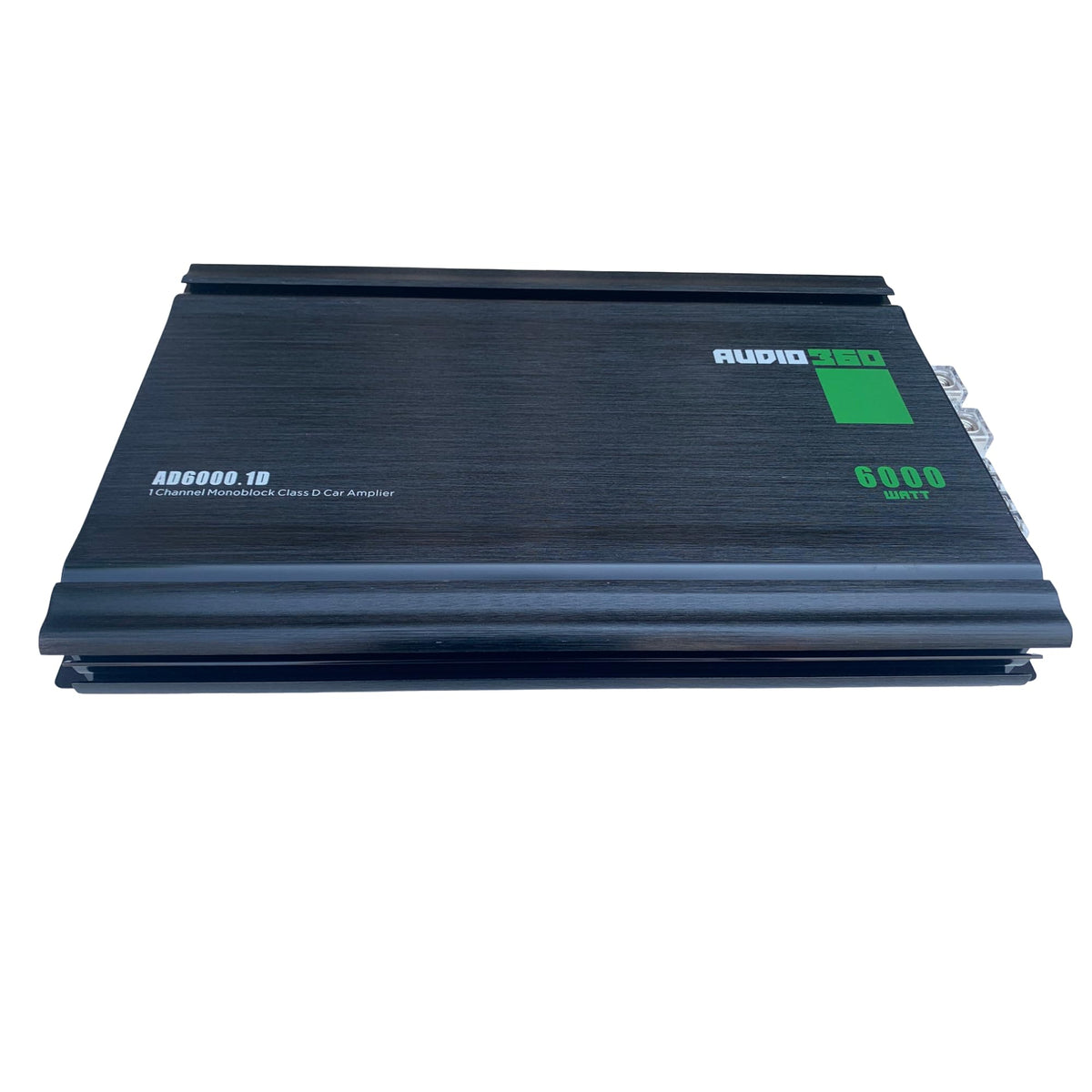

Audio360 AD6000.1 Monoblock Car Amplifier

The Audio360 AD6000.1 is a single-channel Class D car amplifier designed to power a dedicated subwoofer system. It provides a compact option for installers who need substantial bass amplification without using the space typically required by larger amplifiers. Its 1-ohm-stable design supports several common subwoofer wiring configurations.

This amplifier is intended for bass-focused systems rather than full-range speakers. Rated RMS output is 600 watts at 4 ohms, 1,000 watts at 2 ohms, and 1,500 watts at 1 ohm. Those ratings allow the amplifier to be matched to a subwoofer or subwoofer array according to its final wired impedance.

The AD6000.1 carries a stated maximum-power rating of 6,000 watts and a 91 dB signal-to-noise ratio. In practical system planning, the RMS ratings are the useful figures for matching subwoofer power handling. The monoblock layout concentrates its output into one bass channel for a straightforward subwoofer upgrade.

Class D amplification is used to keep the chassis comparatively compact while supporting efficient high-current bass operation. The amplifier measures approximately 13.46 by 8.98 by 2.13 inches, making it suitable for installations where available mounting space is limited. It can be considered for trunk, cargo-area, or other protected vehicle locations with suitable ventilation.

Built-in thermal, overload, and short-circuit protection are specified to help safeguard the amplifier during abnormal operating conditions. Proper power wiring, grounding, fusing, and load selection remain essential for dependable operation. The AD6000.1 is a focused choice for adding a dedicated subwoofer amplifier to a compatible car audio system.

Key Features

• Monoblock Configuration: One-channel design dedicated to subwoofer amplification.
• 1-Ohm Stability: Supports subwoofer systems wired to a 1-ohm load.
• RMS Power Options: Delivers rated output at 4-, 2-, and 1-ohm loads.
• Class D Design: Provides efficient amplification in a compact chassis.
• 91 dB Signal-to-Noise Ratio: Specifies low background noise for bass playback.
• Protection Circuitry: Includes thermal, overload, and short-circuit safeguards.

Design & Installation

The AD6000.1 uses a compact amplifier chassis measuring approximately 13.46 x 8.98 x 2.13 inches. Marketplace product data identifies copper, iron, and plastic among its listed materials. Its low-profile form factor is intended to make placement easier in space-conscious vehicle installations.

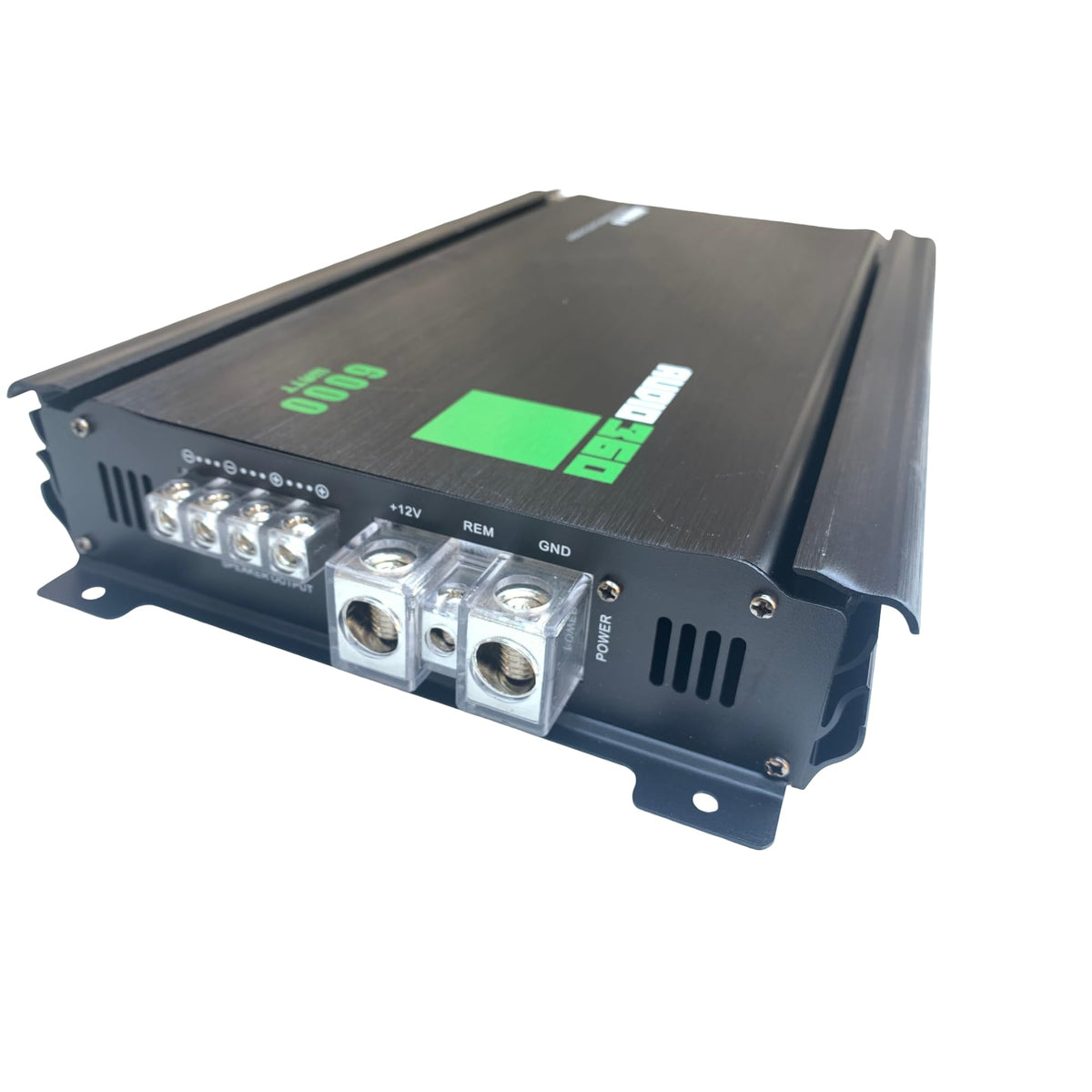

Choose subwoofers and wiring that produce a final impedance of 1, 2, or 4 ohms, and match the system primarily to the applicable RMS rating. Use properly sized power and ground wiring, a correctly installed inline fuse, and a solid chassis ground; wiring-kit specifications are not confirmed for the amplifier sold by itself. Mount the amplifier securely in a dry, ventilated location and avoid blocking its airflow.
