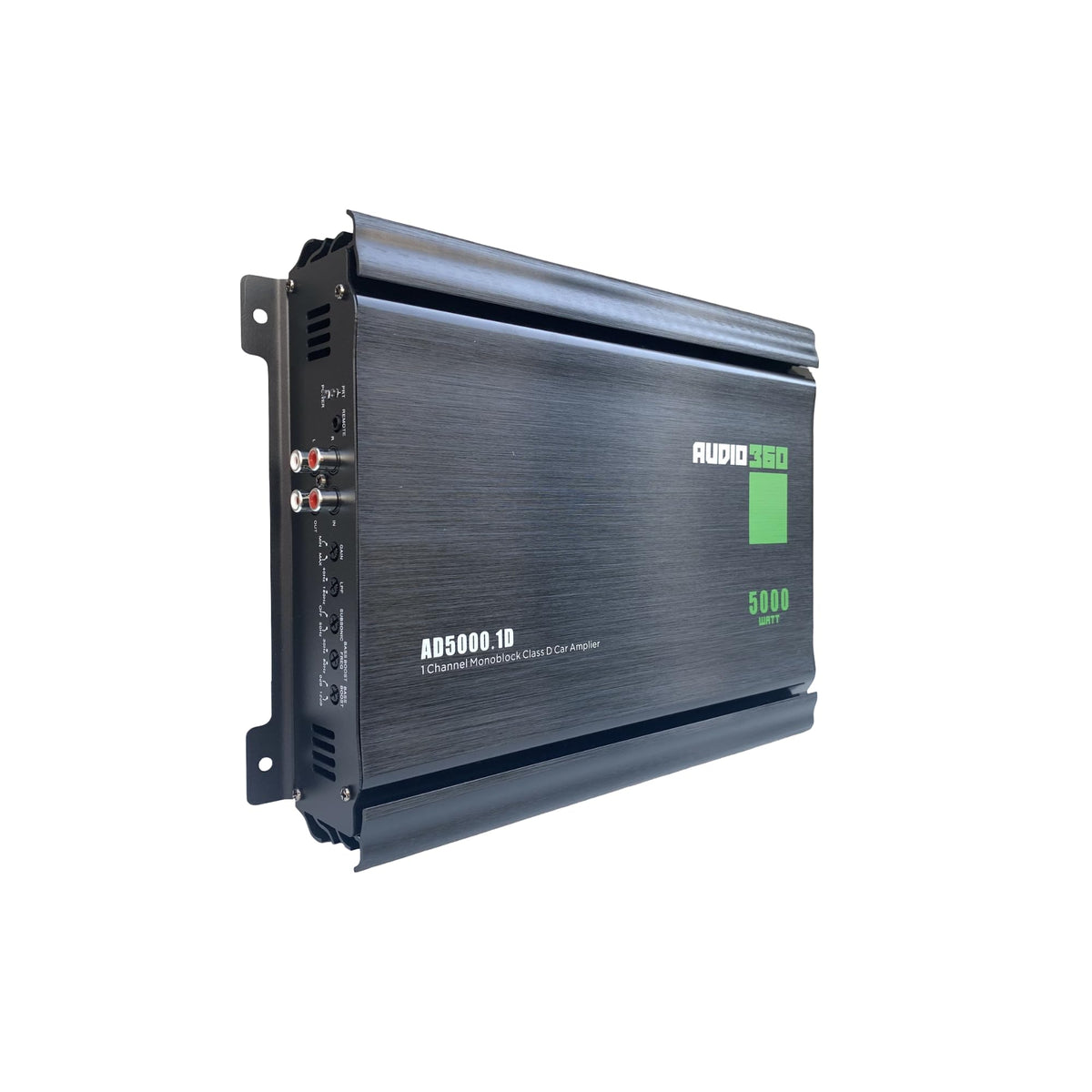

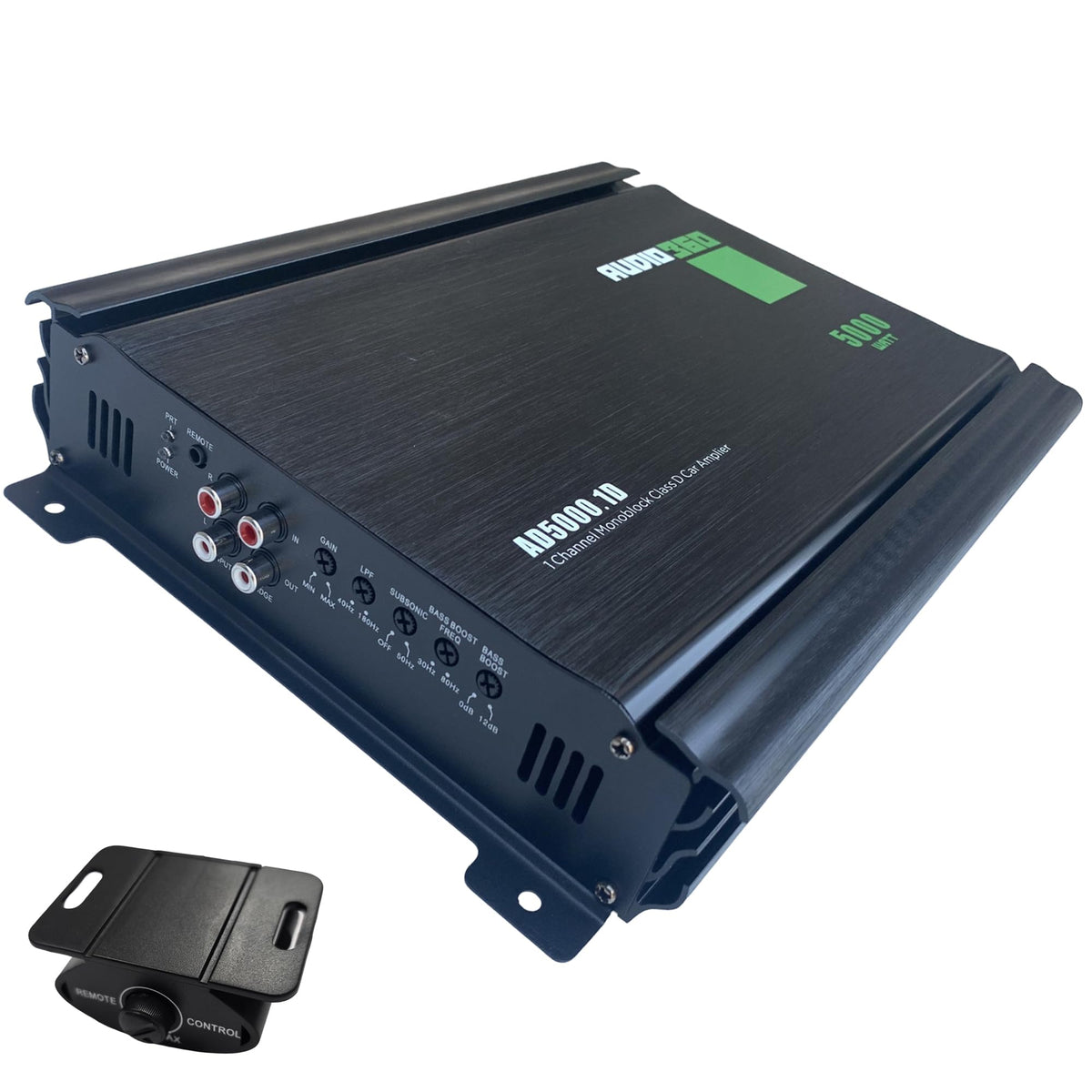

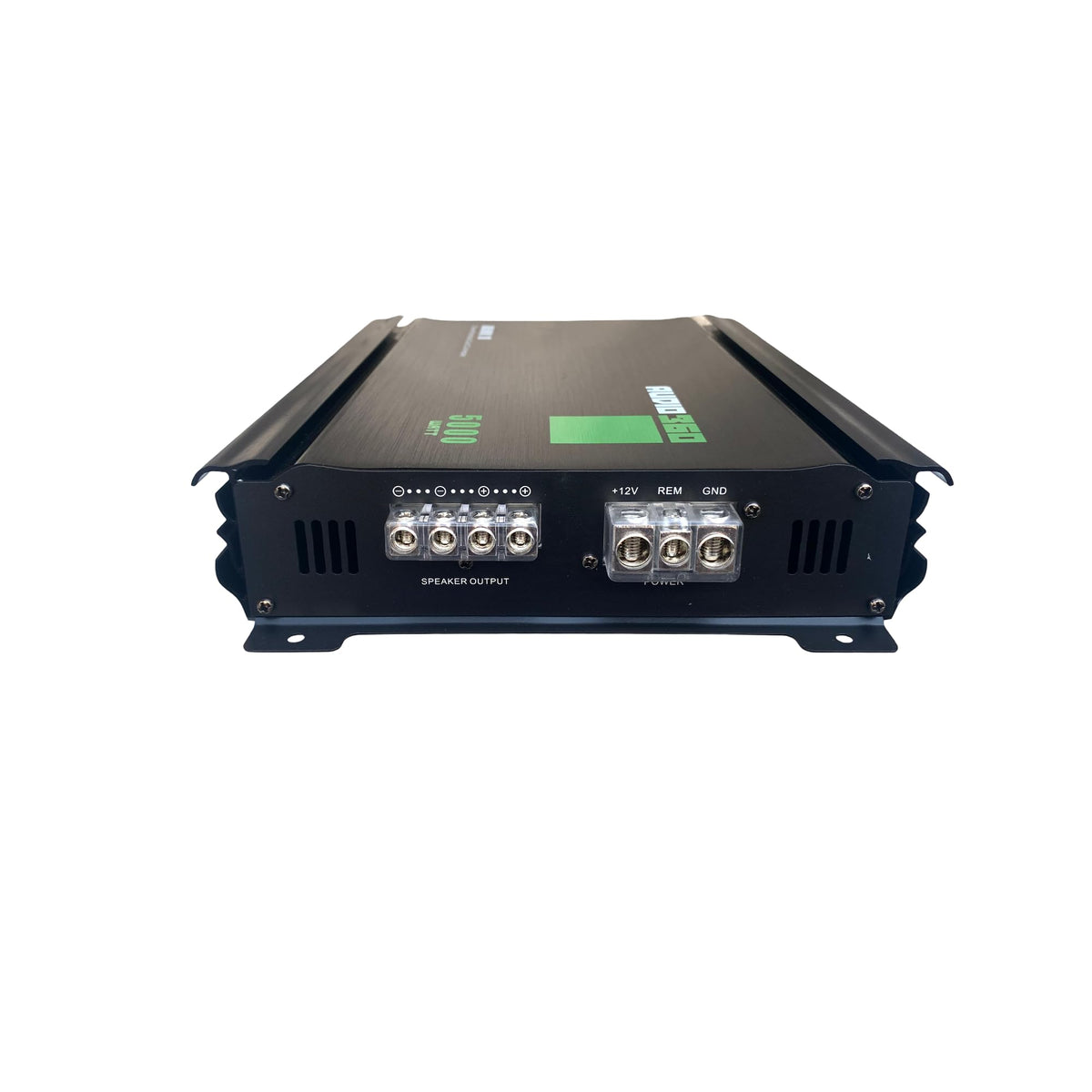

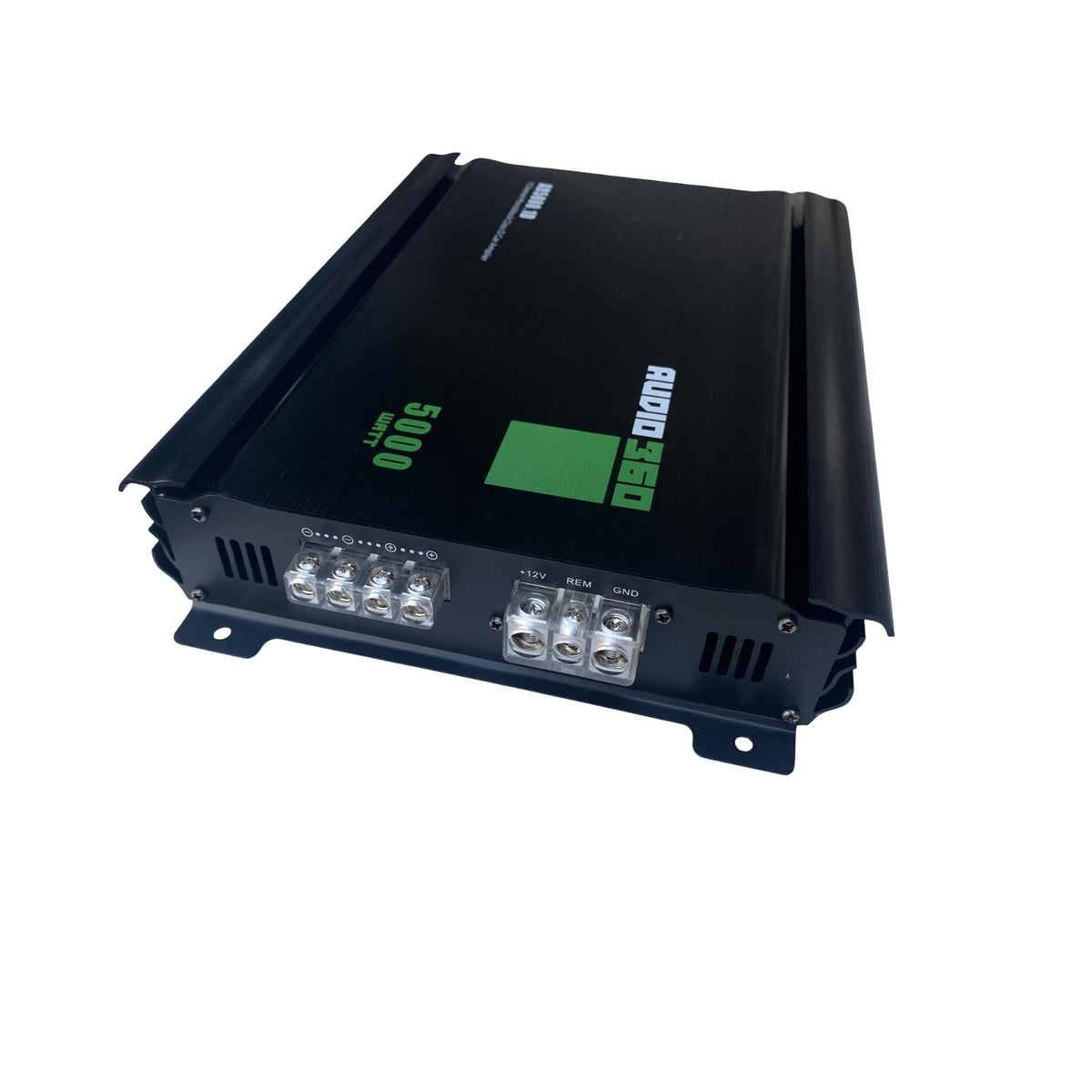

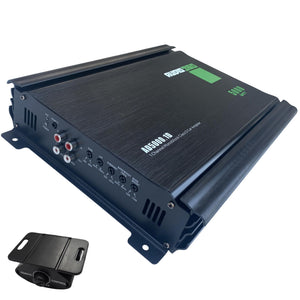

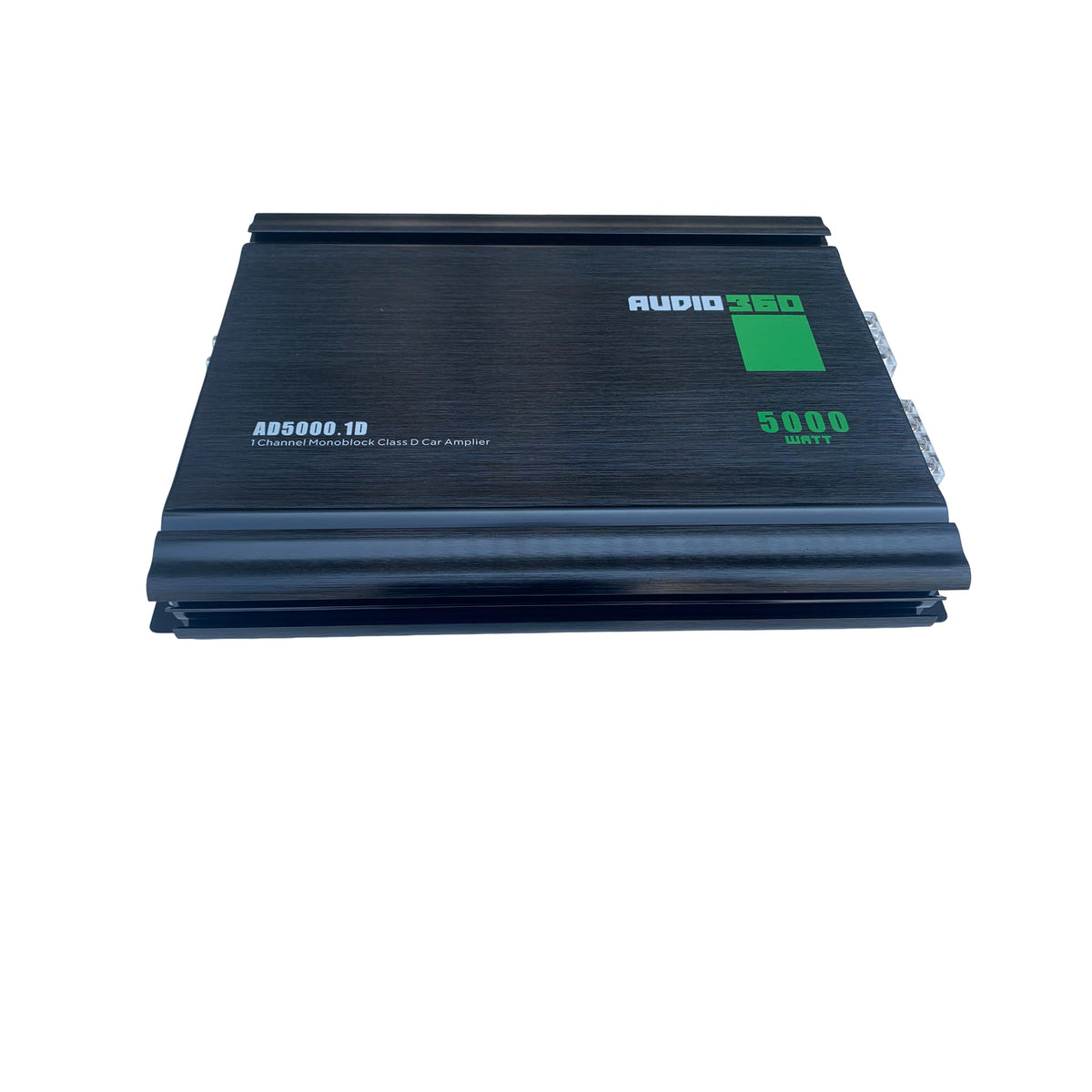

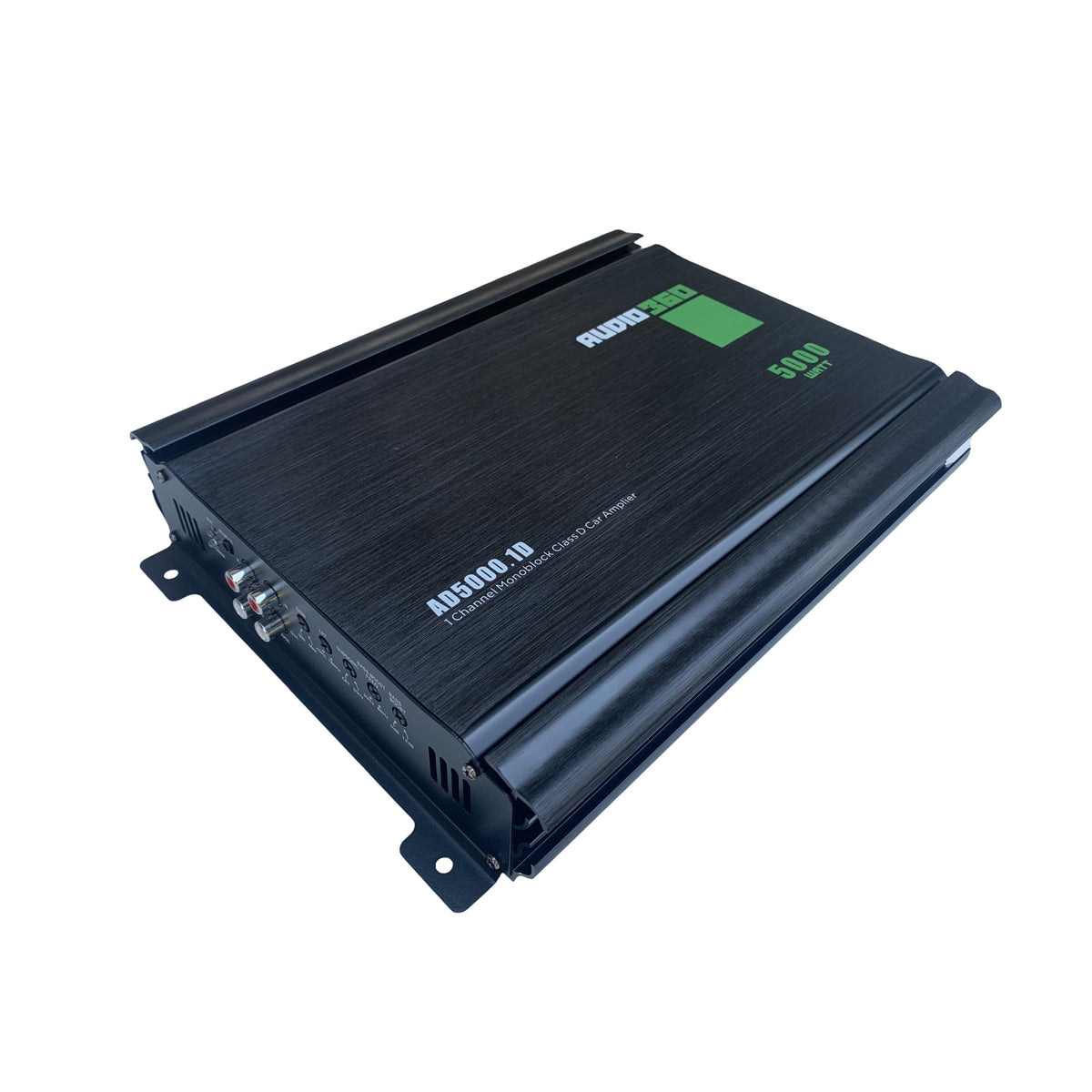

Audio360 AD5000.1 Monoblock Car Amplifier

The Audio360 AD5000.1 is a compact Class D monoblock car amplifier designed to power a subwoofer system. It provides a dedicated low-frequency amplification solution for vehicles where factory audio lacks bass impact. Its single-channel design makes it appropriate for a focused subwoofer upgrade rather than full-range speaker amplification.

Rated for stable operation down to a 1-ohm load, the AD5000.1 can support several common subwoofer wiring configurations. Listed RMS output is 400 watts at 4 ohms, 680 watts at 2 ohms, and 1,000 watts at 1 ohm. Matching the final speaker load and subwoofer power handling to these ratings is important for a balanced installation.

The amplifier carries a listed maximum power rating of 5,000 watts. For system planning, the continuous RMS ratings provide the more useful reference for matching compatible subwoofers. A 90 dB signal-to-noise ratio is specified for the amplifier's low-frequency performance.

Class D amplification helps keep the AD5000.1 compact for installations where available mounting space is limited. At approximately 11.22 by 8.98 by 2.13 inches, it can be considered for trunk, under-seat, or custom-panel installations where clearance permits. Its compact footprint can simplify placement in bass-focused vehicle audio systems.

Integrated thermal, overload, and short-circuit protection circuits are specified to help safeguard the amplifier during operation. The AD5000.1 is intended for use in a car-audio subwoofer system with appropriate power, ground, signal, and speaker wiring. Careful gain setting and load verification are recommended as part of the installation process.

Key Features

• Monoblock Configuration: A single-channel amplifier layout intended for a dedicated subwoofer channel.
• 1-Ohm Stability: Supports properly wired subwoofer loads down to 1 ohm.
• 1,000W RMS at 1 Ohm: Provides its highest listed continuous output at a 1-ohm load.
• Class D Design: Uses an efficient amplifier topology in a compact chassis.
• 90 dB Signal-to-Noise Ratio: Specifies low background noise relative to the audio signal.
• Protection Circuitry: Includes thermal, overload, and short-circuit protection.

Design & Installation

The AD5000.1 uses a compact amplifier chassis measuring approximately 11.22 by 8.98 by 2.13 inches. Its Class D architecture is designed for efficient operation and reduced space requirements compared with larger amplifier formats. Specific housing materials and finish details are not confirmed in the available product information.

Mount the amplifier on a secure surface with suitable ventilation and verify clearance before installation. Use a properly configured subwoofer load between 1 and 4 ohms, and set gain conservatively after the power, ground, signal, and speaker connections are completed. Professional installation is advisable when vehicle wiring, load configuration, or mounting requirements are uncertain.
