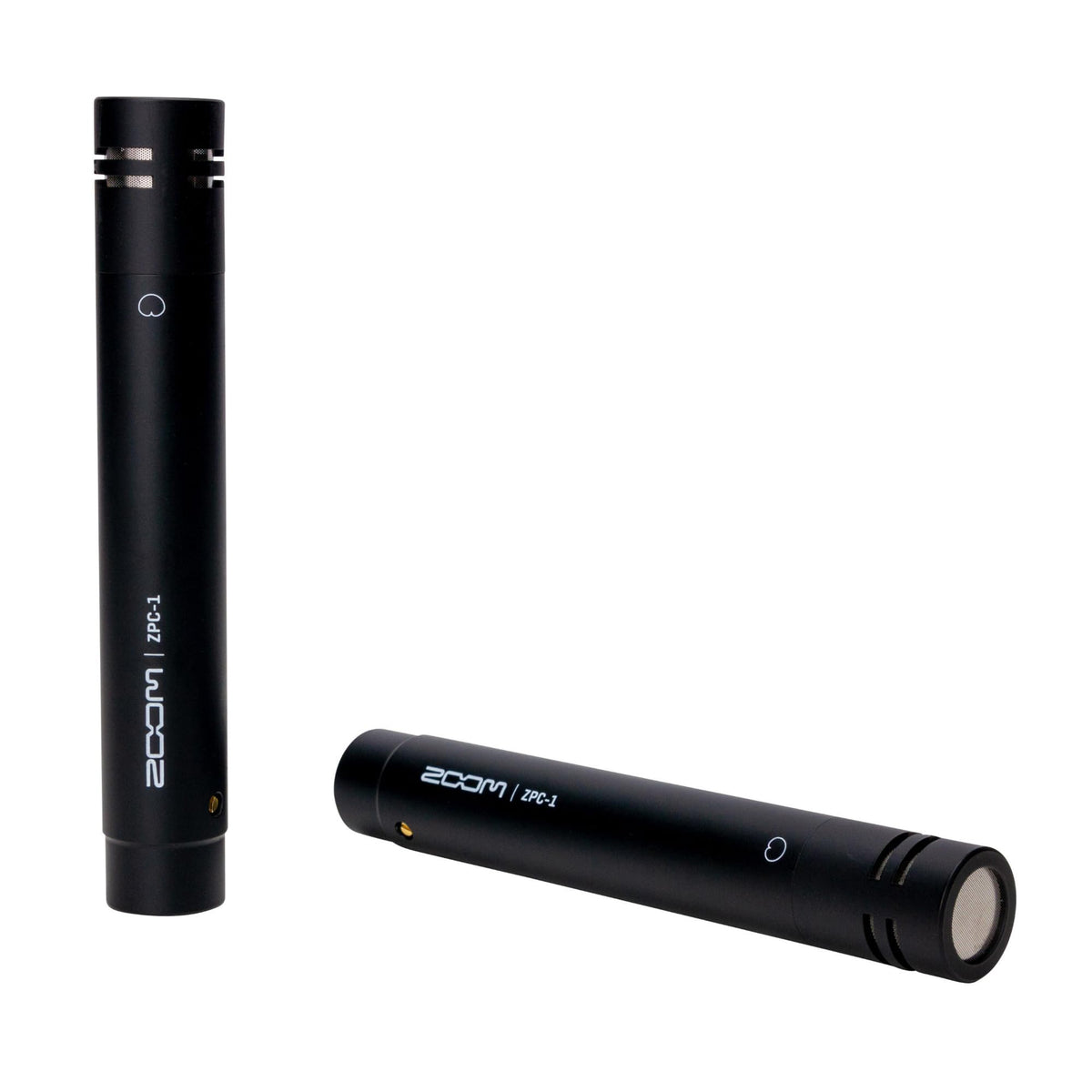

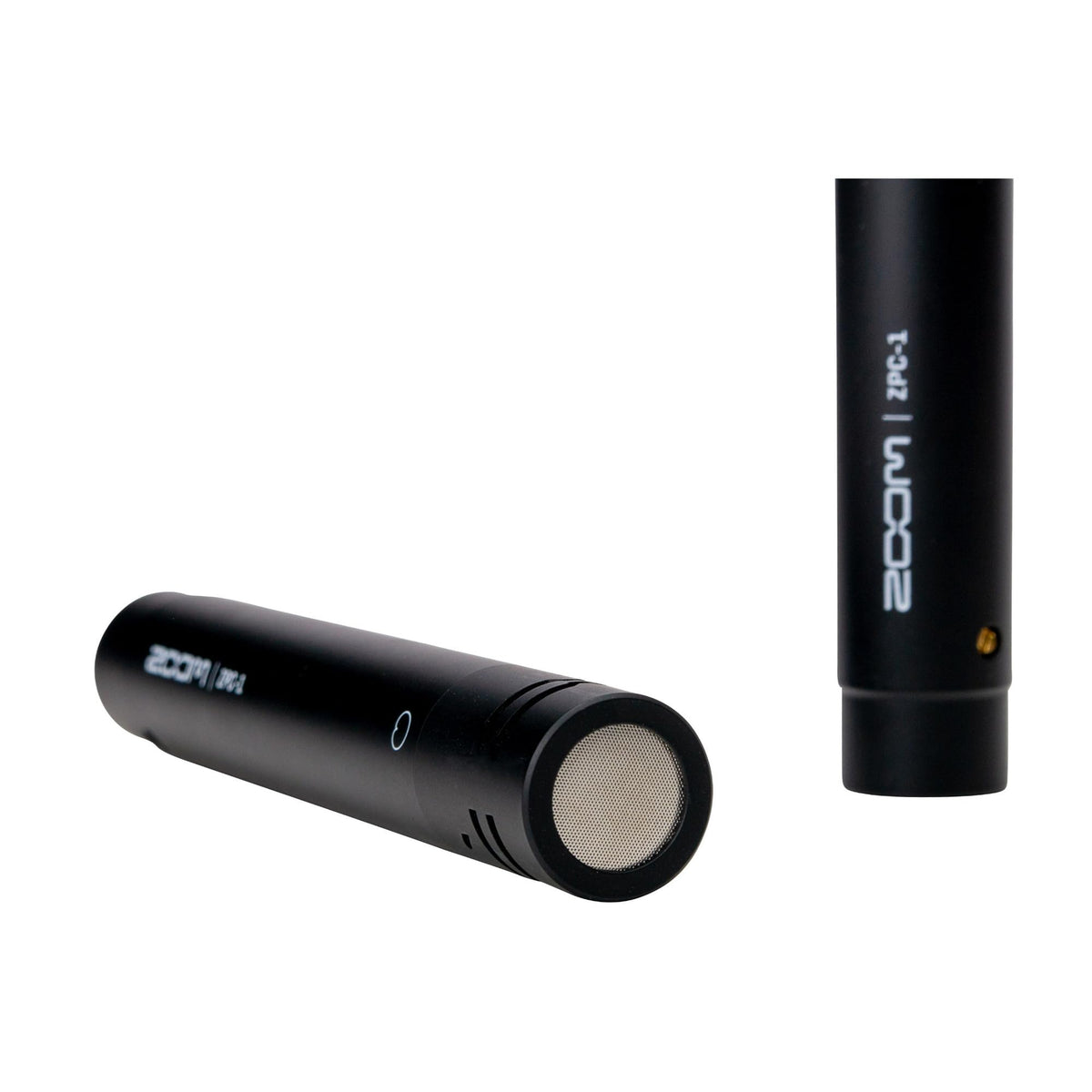

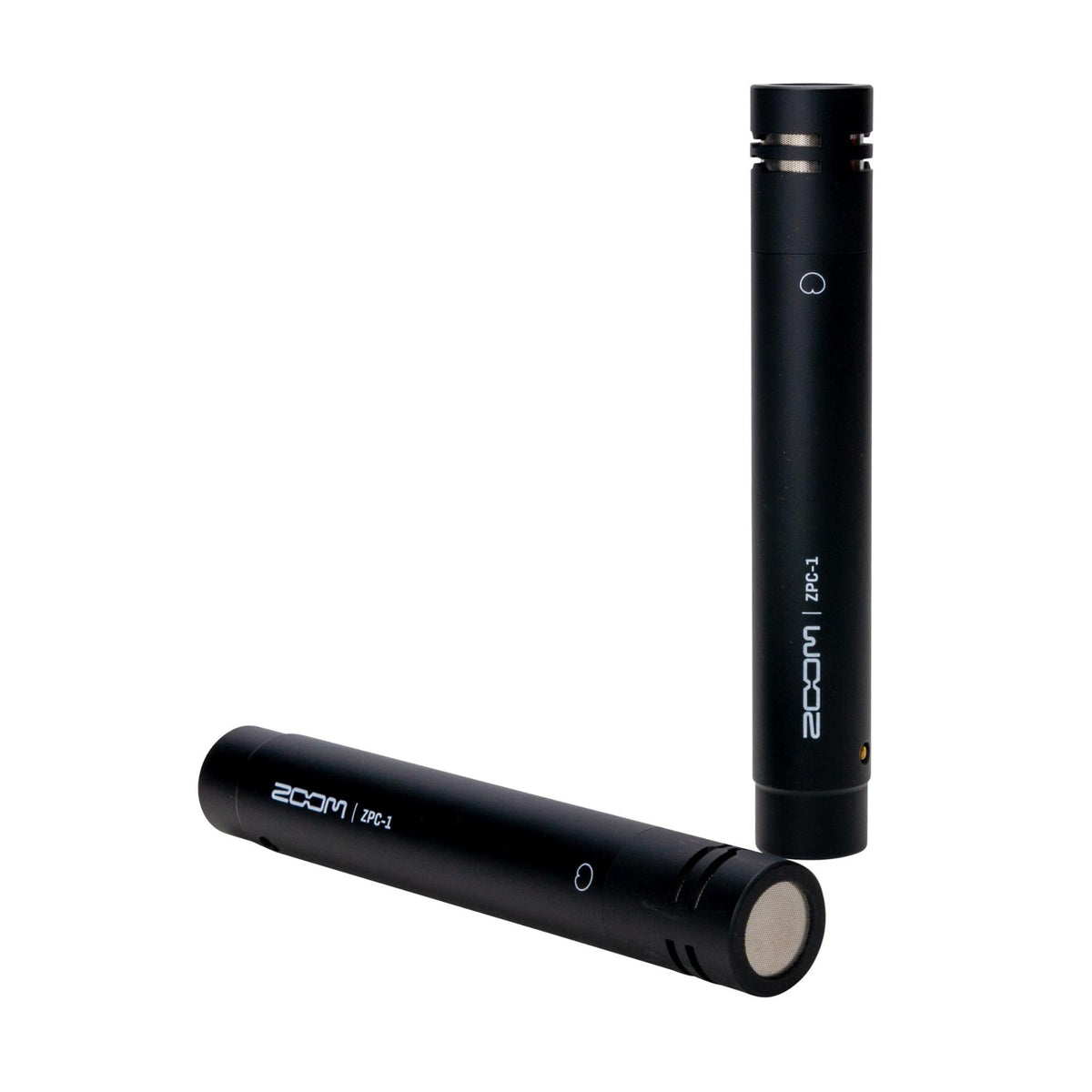

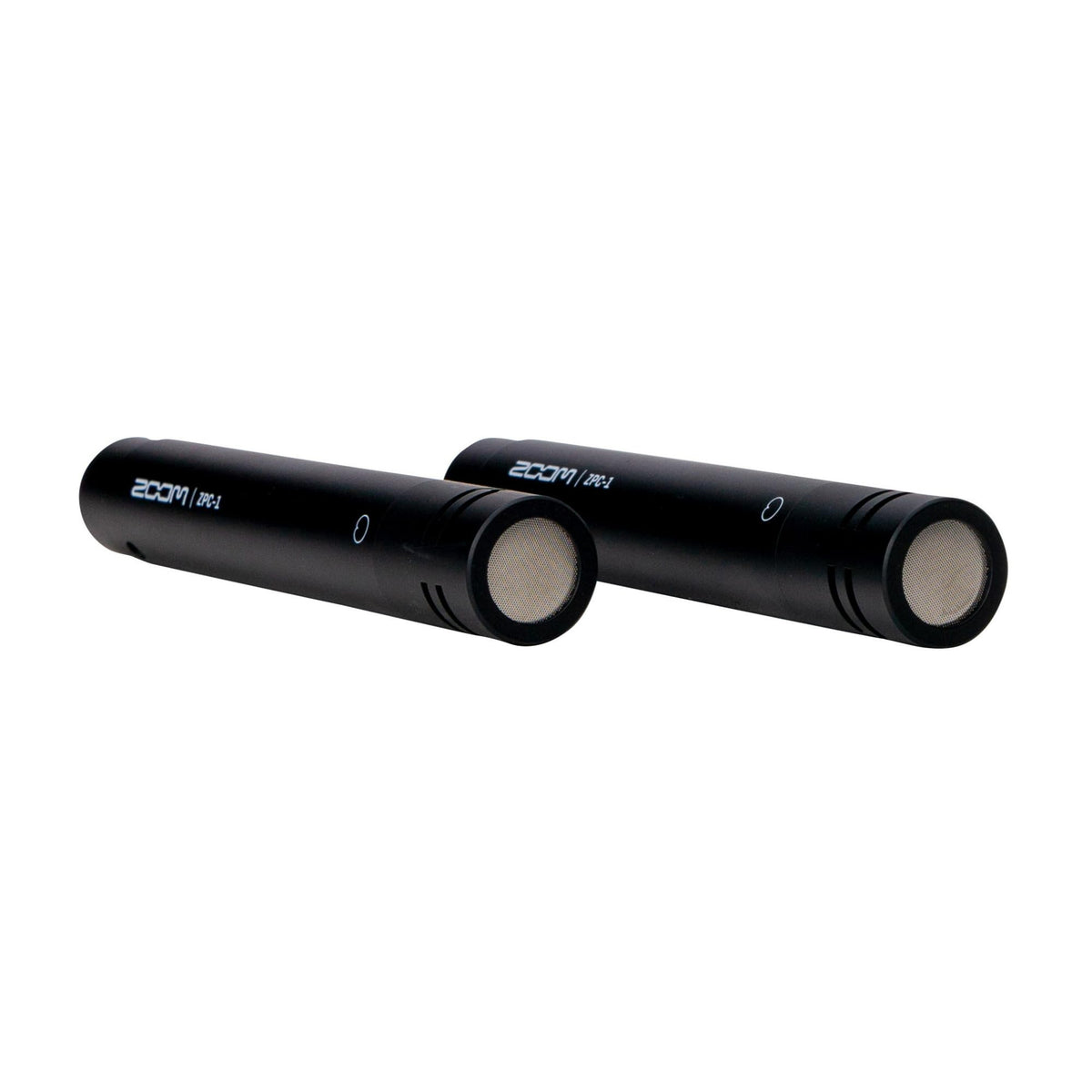

Zoom ZPC-1 Matched Pencil Condenser Microphone Pair

The Zoom ZPC-1 is a matched pair of small-diaphragm pencil condenser microphones designed for stereo recording in studio, stage, and field applications. It gives creators a coordinated two-microphone setup for capturing instruments, ensembles, ambience, and other sources with a focused cardioid pickup pattern. The pair is suited to users who need consistent stereo capture without assembling separate microphones.

Each ZPC-1 uses a back electret condenser design with a 16 mm diaphragm and a 40 Hz to 20 kHz frequency range. Its cardioid pattern emphasizes sound in front of the microphone while reducing pickup from the rear. With a maximum sound pressure level of 134 dB SPL, the microphones can also be positioned near louder acoustic sources when appropriate.

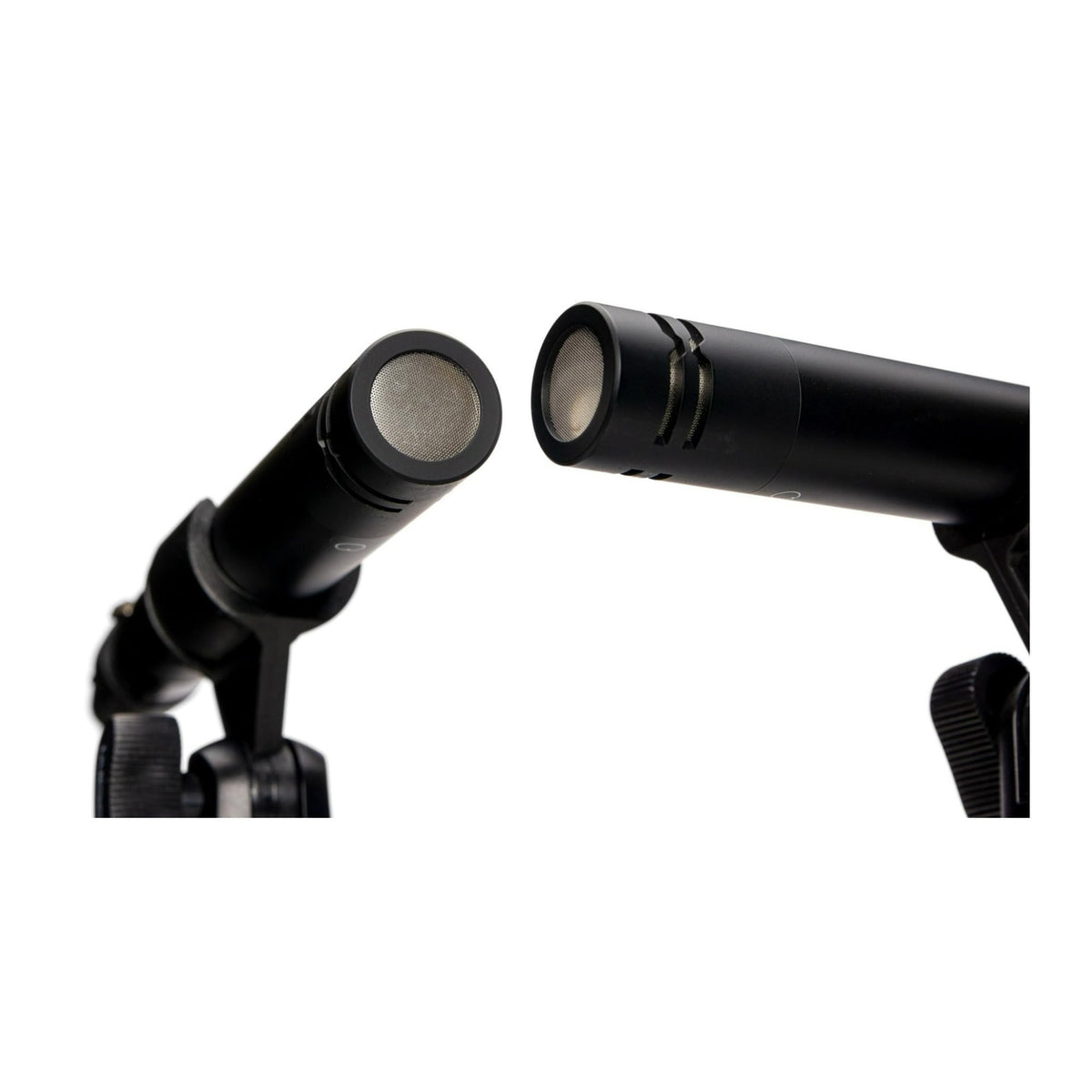

The microphones are matched at 1 kHz and 100 Hz to support a consistent stereo result between channels. They can be arranged in an X/Y configuration for a tighter stereo image with depth or in an A/B configuration for a wider stereo image. This makes the pair practical for drum overheads, acoustic guitar, ensembles, room capture, and field recording.

A low equivalent input noise specification of less than 12 dB SPL A-weighted and an 82 dB signal-to-noise ratio support detailed capture of quieter material. The 200-ohm output impedance and XLR-3 connection make the ZPC-1 compatible with professional microphone inputs. Each microphone requires standard +48 V phantom power at 3.5 mA.

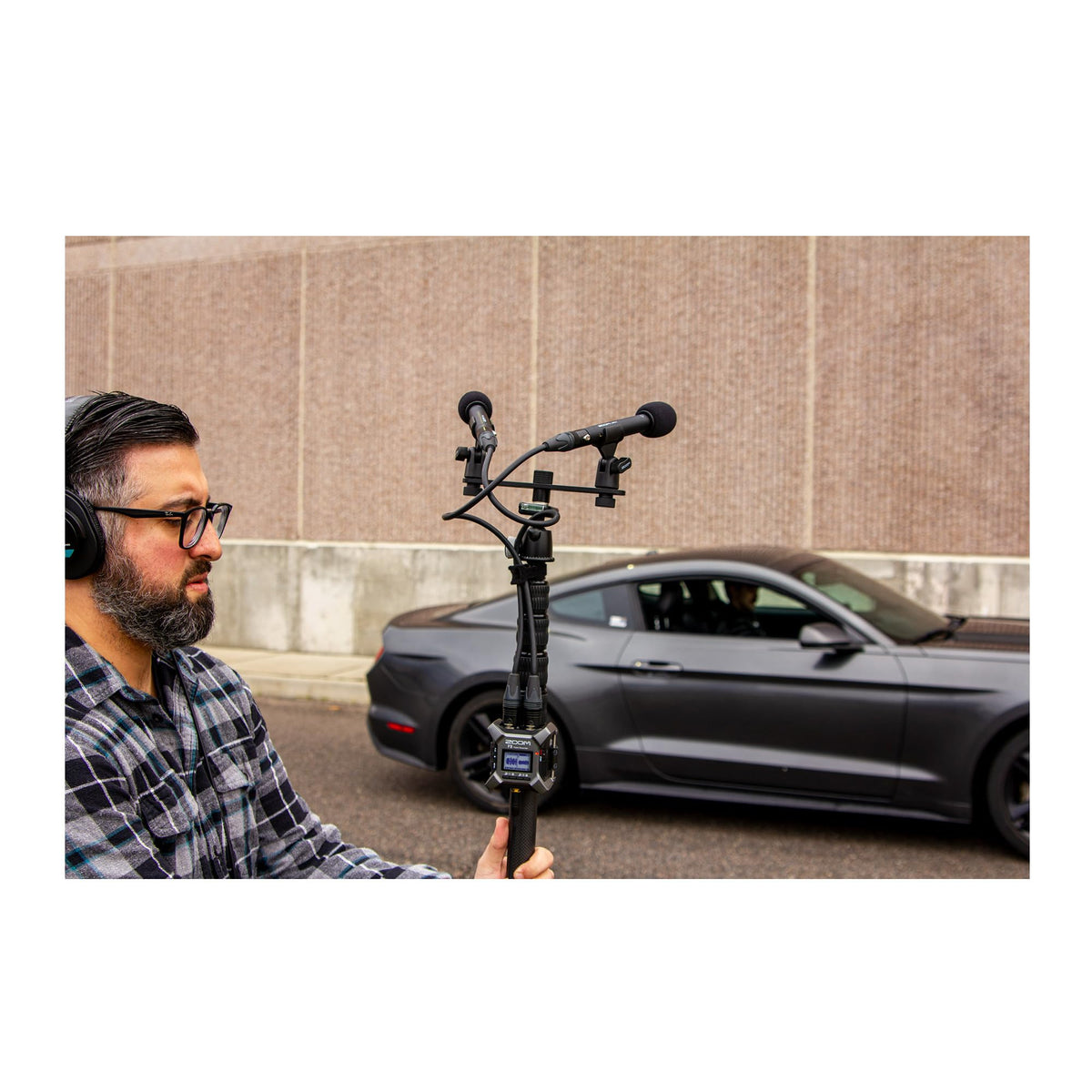

The ZPC-1 pair fits naturally with a recorder, audio interface, or mixer that has two phantom-powered XLR microphone inputs. Adjustable clips, thread adapters, foam windscreens, and individual carry pouches are included for a ready-to-mount setup. Its compact pencil form factor also makes it convenient to add stereo capability to an existing recording rig.

Key Features

• Matched Stereo Pair: Two microphones are matched at 1 kHz and 100 Hz for coordinated stereo recording.
• Cardioid Pickup: Focuses capture toward the source while reducing rear pickup.
• Back Electret Condenser: Provides condenser-microphone operation in a compact pencil design.
• 134 dB SPL Handling: Supports placement near louder acoustic instruments and sound sources.
• +48 V Phantom Power: Works with compatible XLR-equipped mixers, interfaces, and recorders.
• Complete Mounting Kit: Includes clips, windscreens, thread adapters, and carry pouches.

Design & Installation

Each ZPC-1 has a solid metal body and measures 20 mm in diameter by 127 mm long. The included adjustable mic clips are made from high-impact plastic, while the foam windscreens use rubber-ringed openings for a snug fit. Two lint-free carrying pouches help keep the microphones and accessories together during transport.

Mount each microphone in an included clip on a compatible 5/8-inch or 3/8-inch mic stand, stereo bar, or other suitable mount. Connect each XLR-3 output to a separate microphone input that supplies +48 V phantom power, then use X/Y placement for a tighter stereo image or A/B placement for a wider image. Use the included foam windscreens when reducing wind and air noise is helpful.
