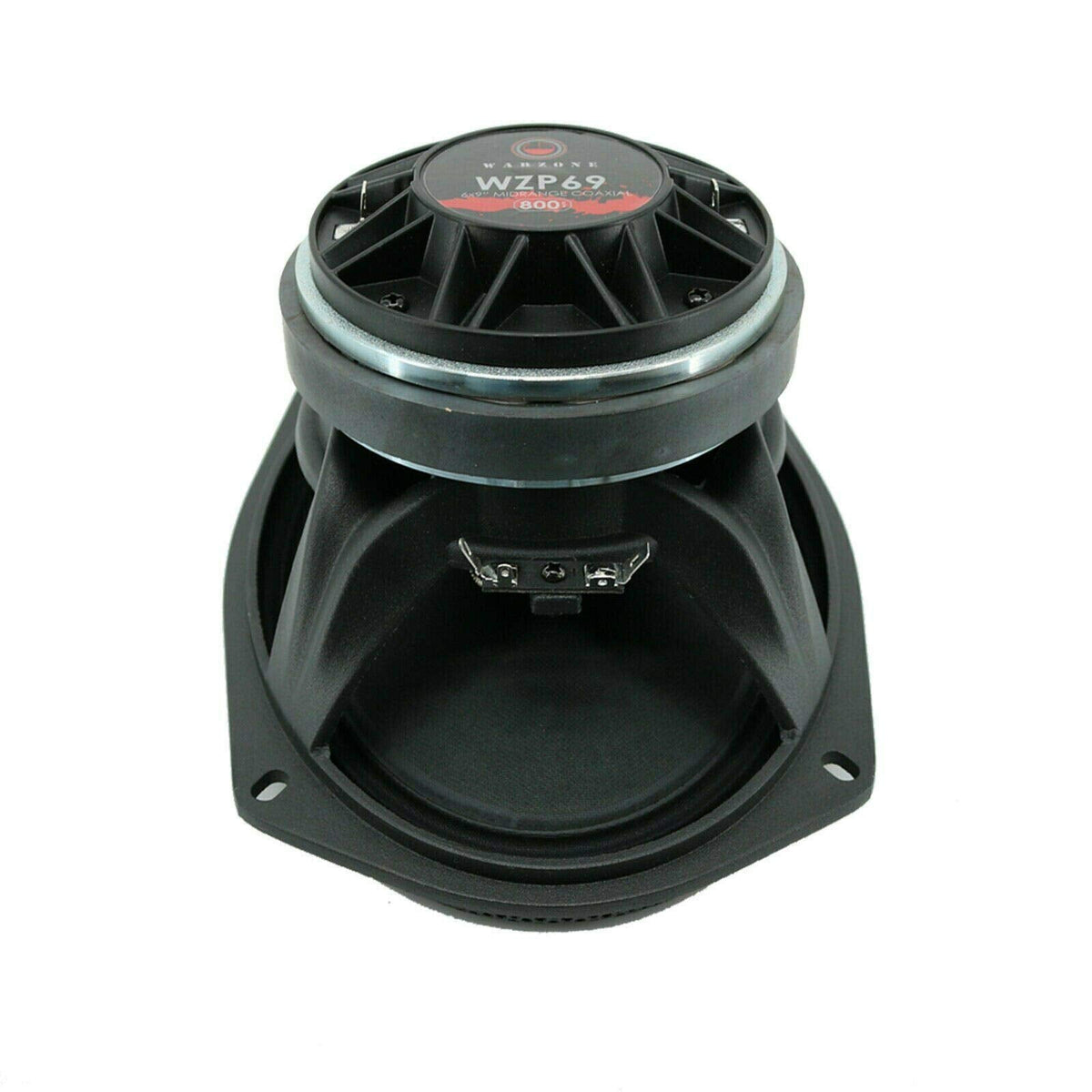

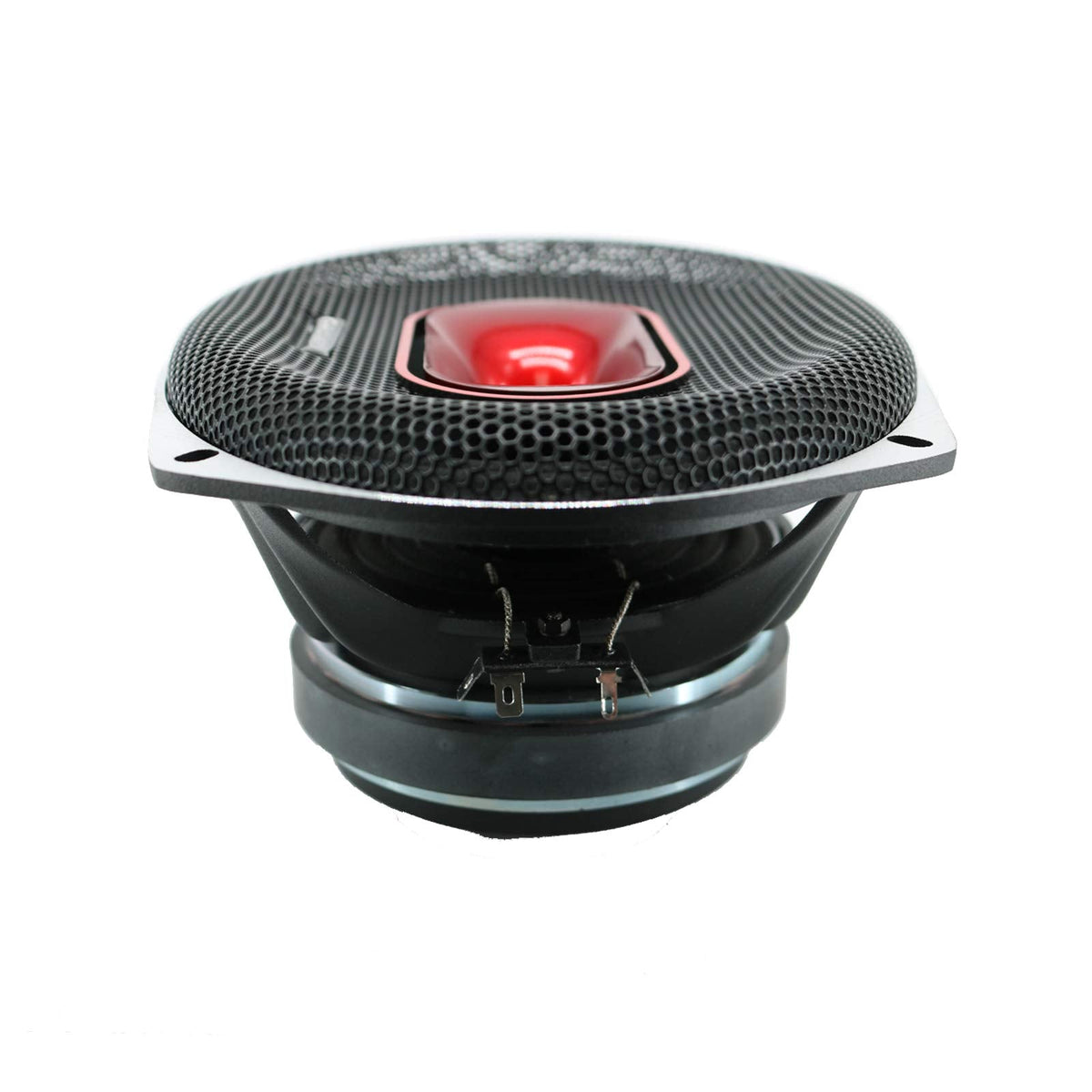

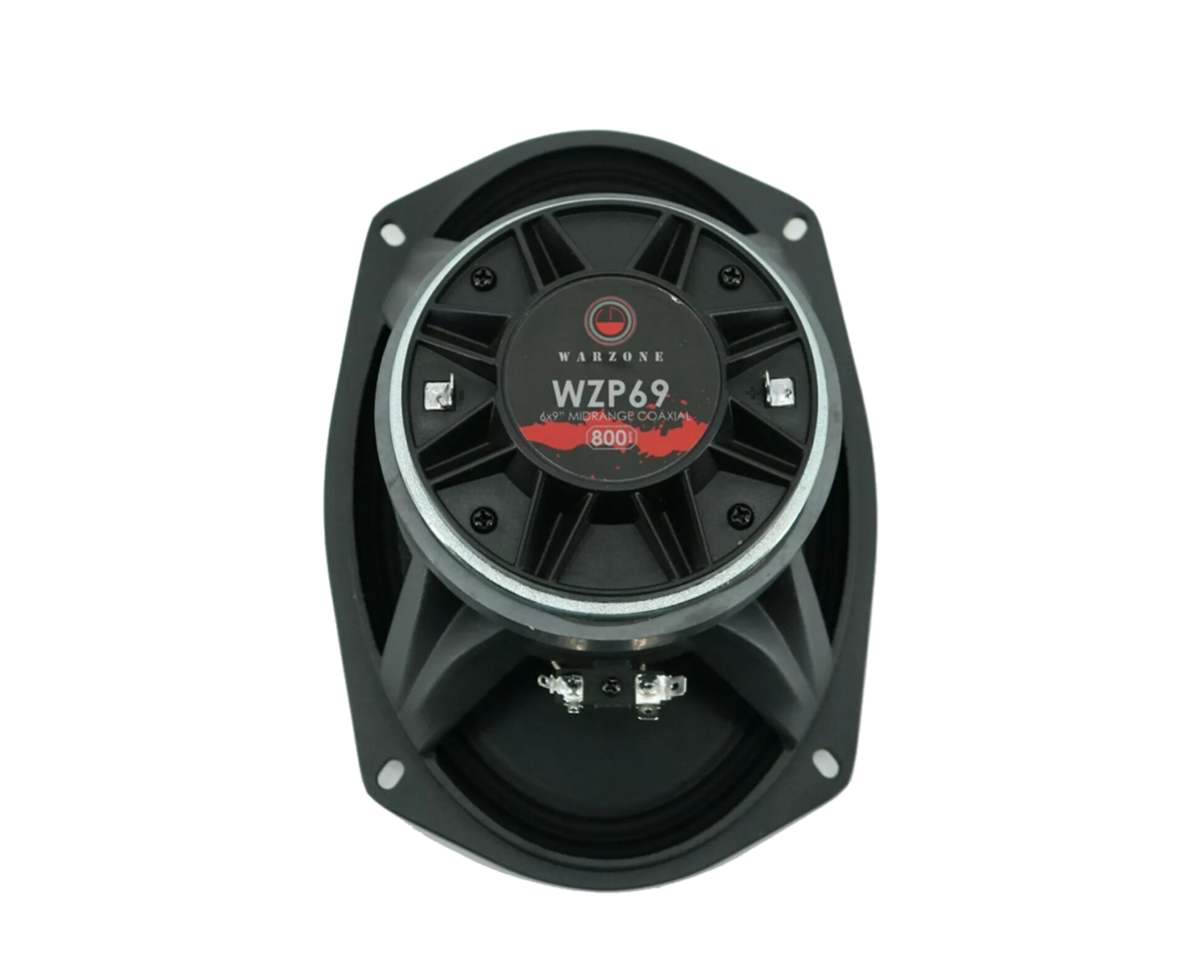

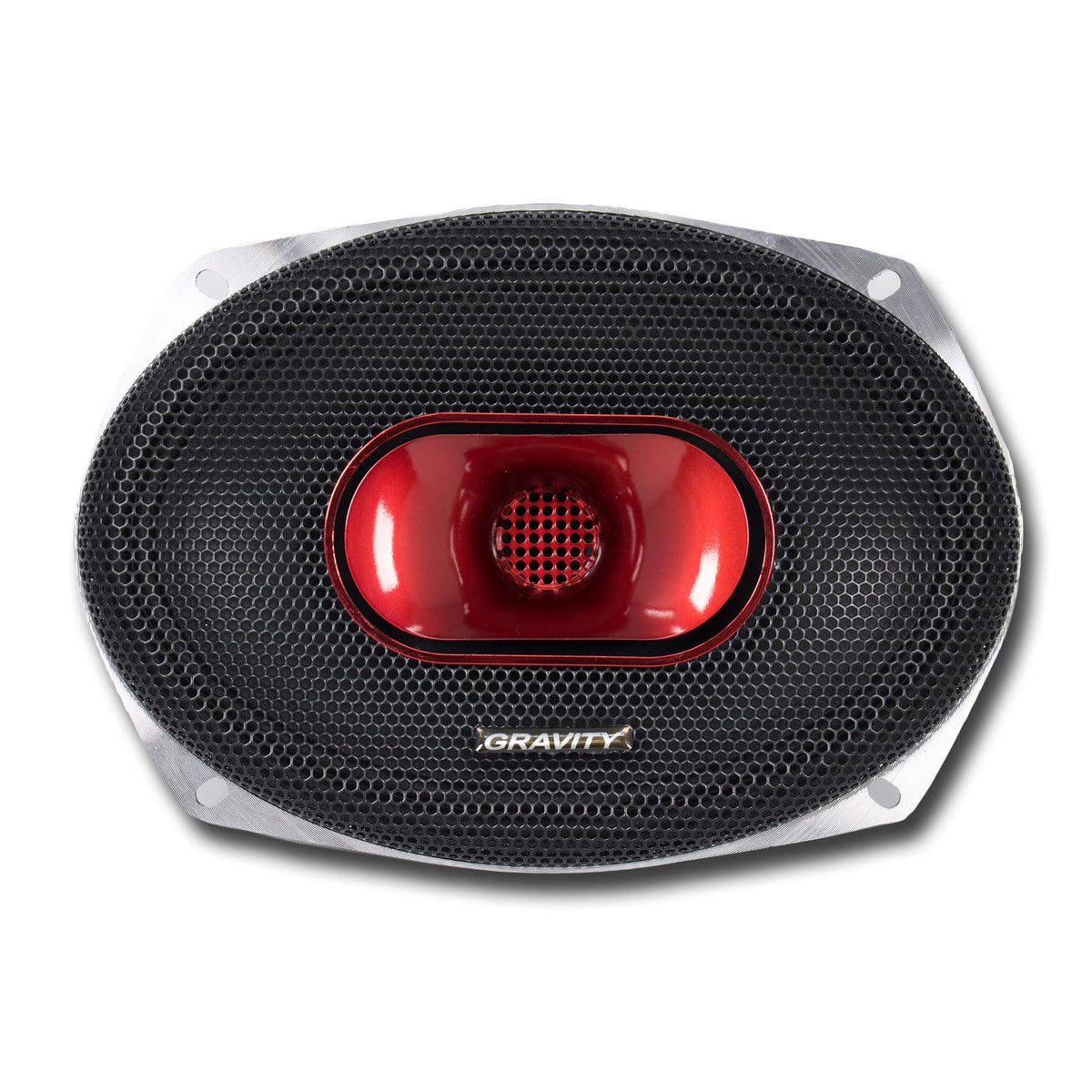

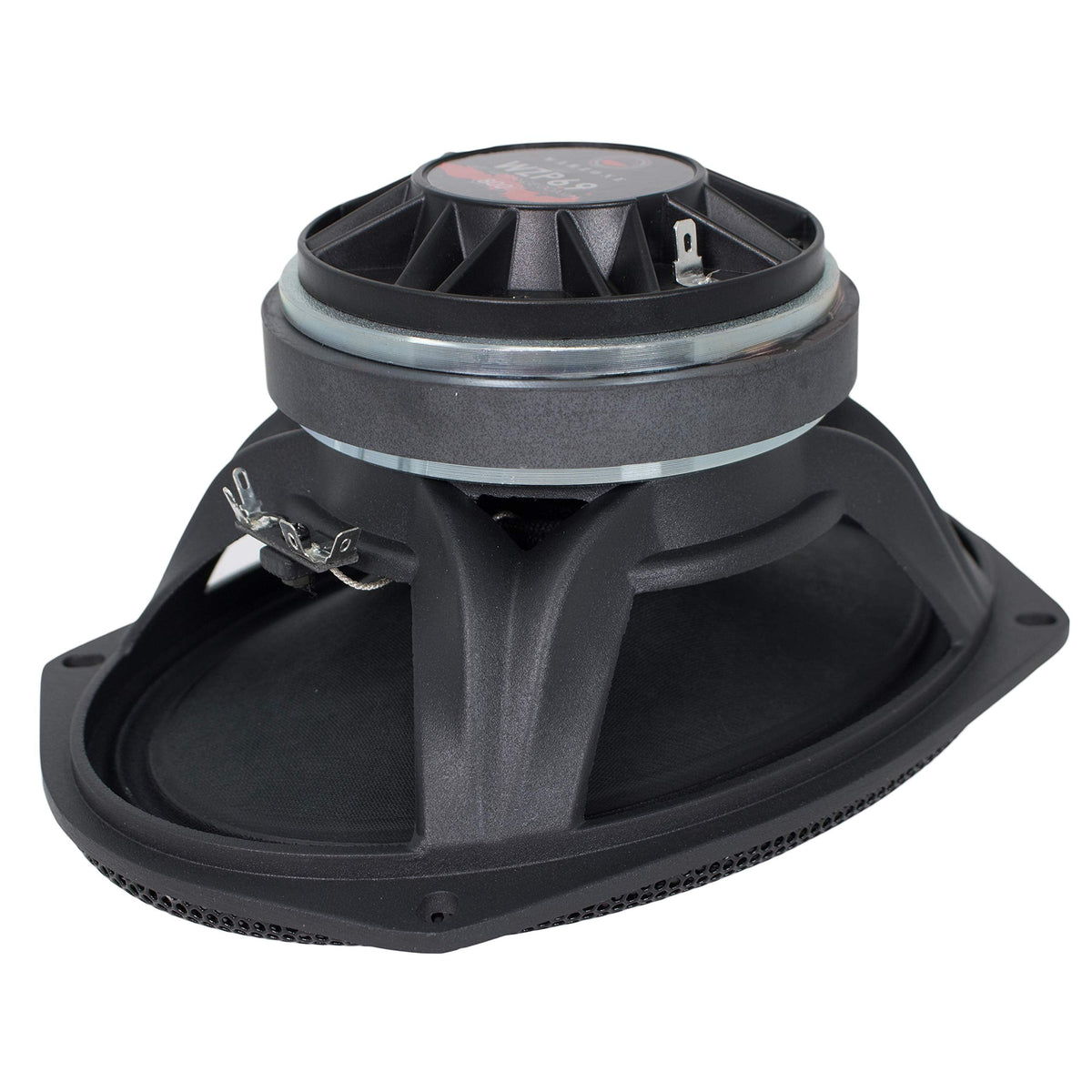

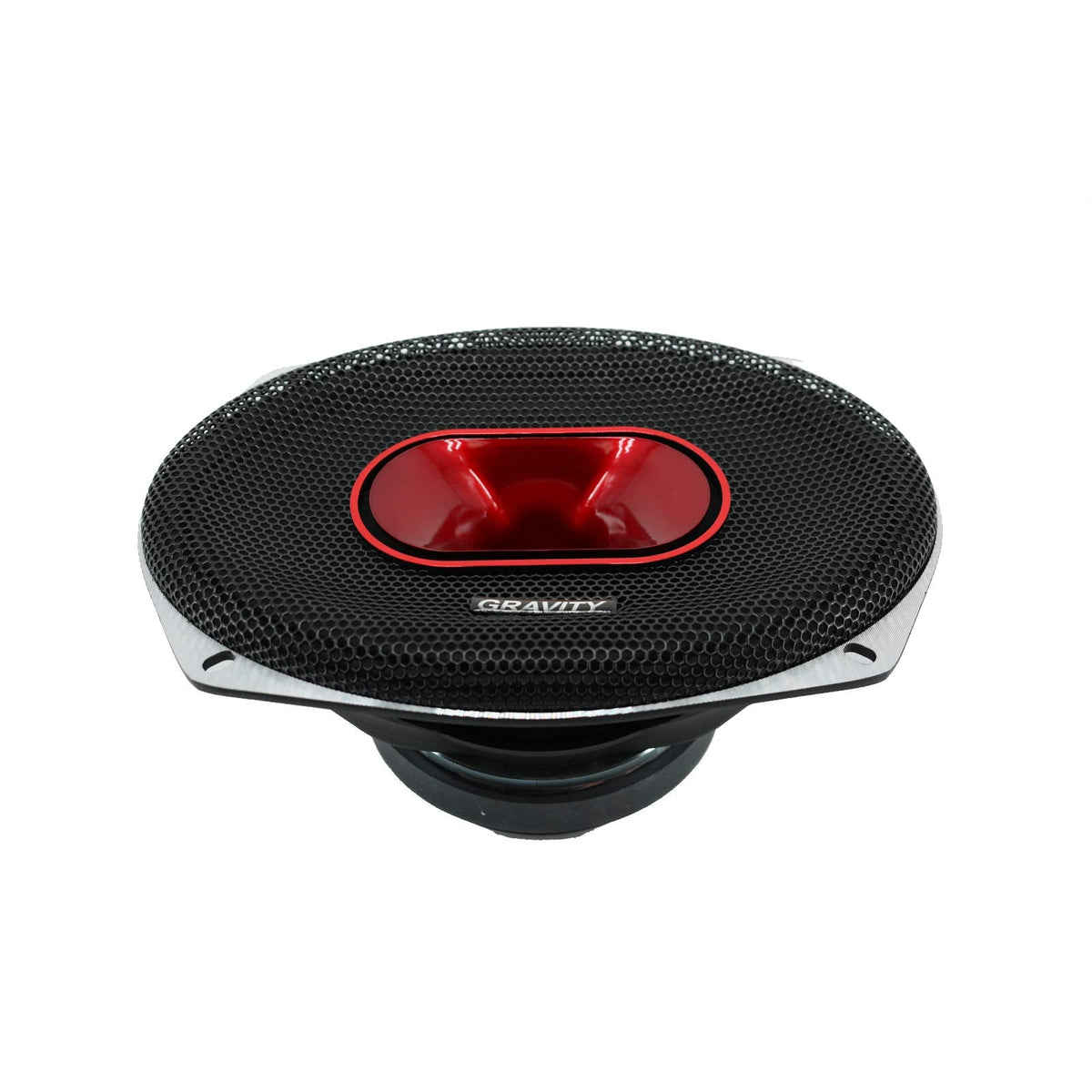

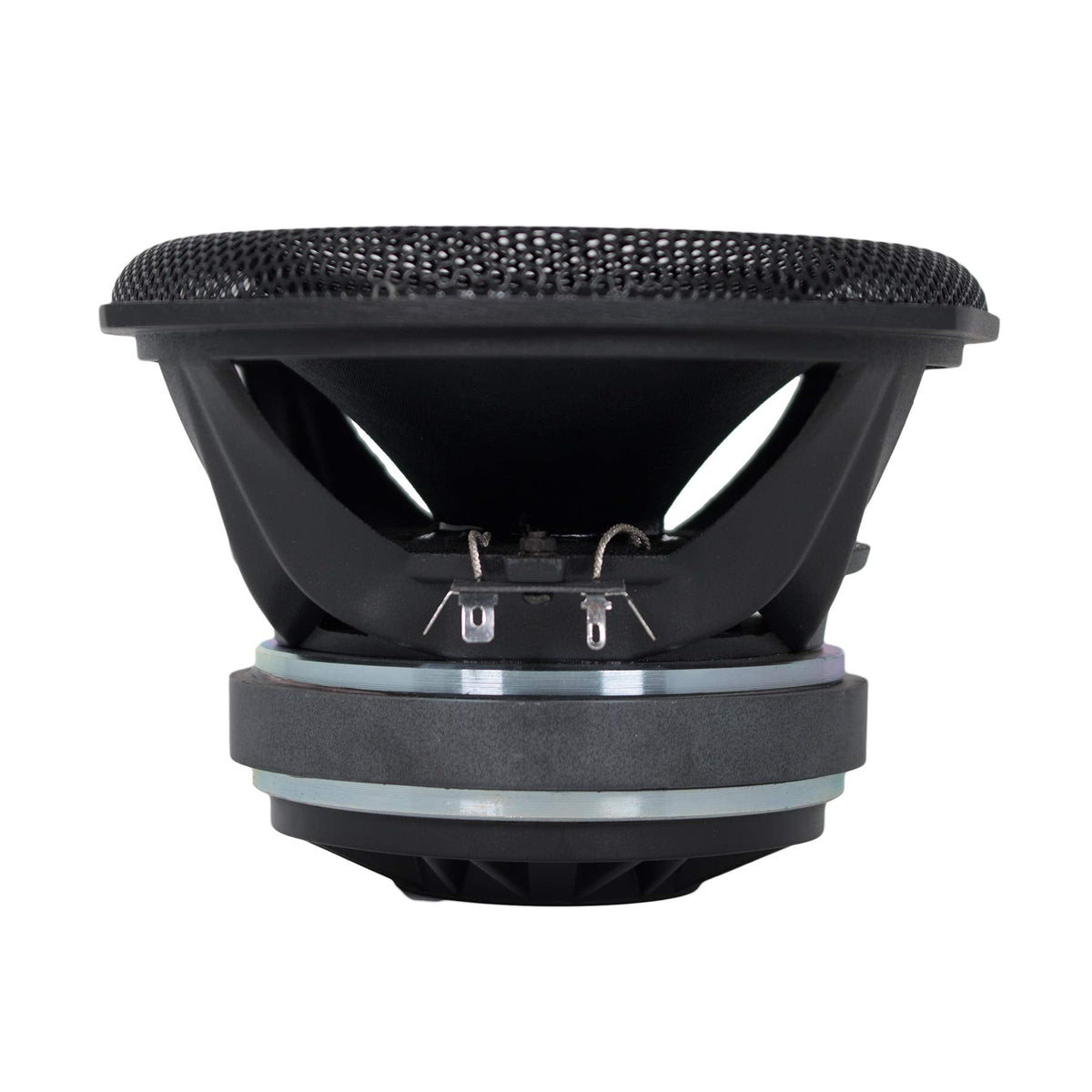

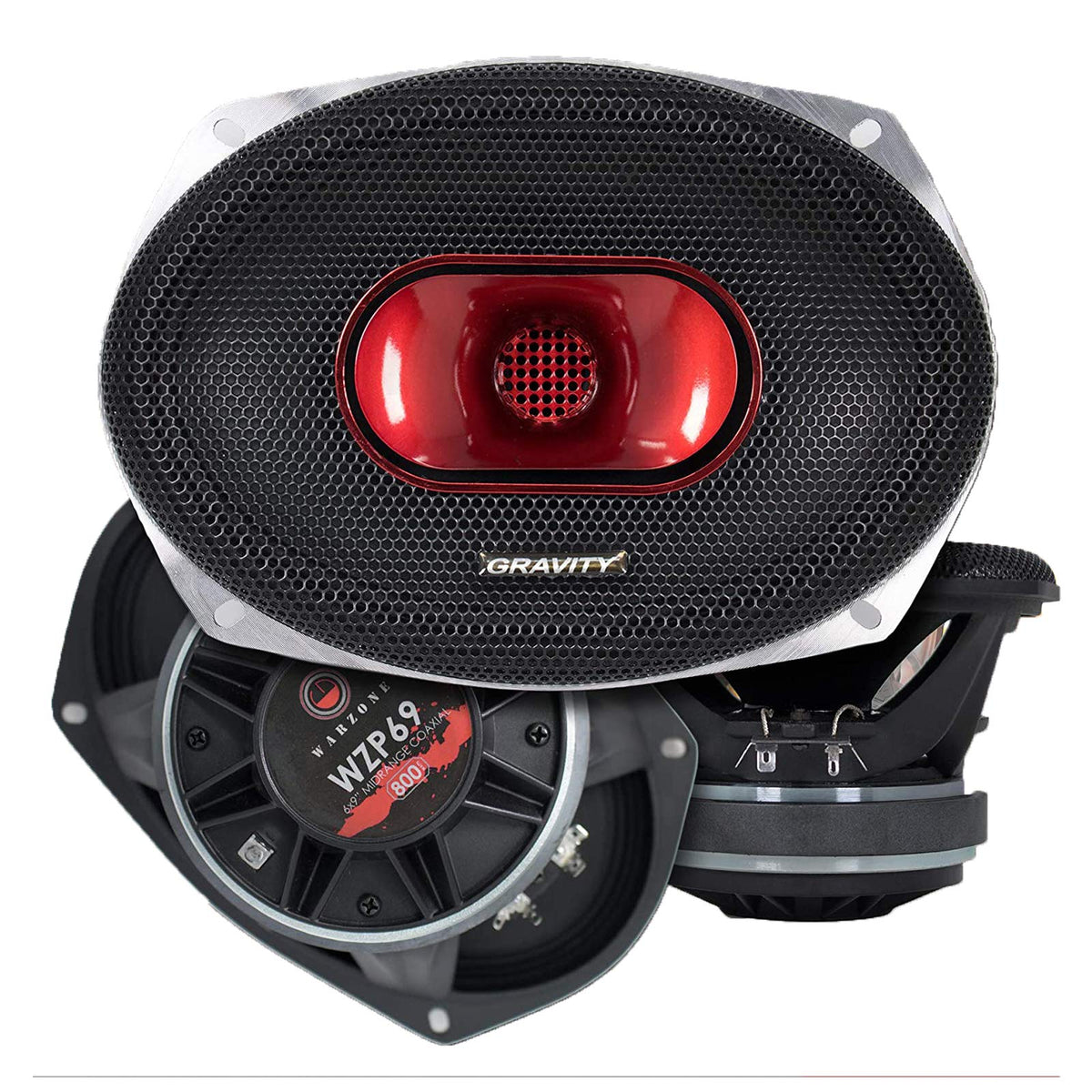

WARZONE WZP69 6x9" Pro Midrange Coaxial Speaker

The WARZONE WZP69 is a 6 x 9-inch pro midrange coaxial speaker designed for car-audio systems that need strong, clear vocal and instrument reproduction. Its 4-ohm design supports use with compatible aftermarket amplification and speaker wiring. The speaker is intended for enthusiasts building or upgrading a vehicle sound system with dedicated midrange coverage.

With a stated 800-watt maximum power rating and 95 dB sensitivity, the WZP69 is built to deliver assertive output from an appropriately matched system. Its stated 85 Hz to 22 kHz frequency response covers a broad midrange-to-high-frequency range. The coaxial configuration helps consolidate that coverage into a single 6 x 9-inch speaker location.

The WZP69 uses a corrugated surround and an oversized magnet motor structure to support its pro-audio-oriented construction. A 25-ounce high-energy magnet is specified for the speaker. These components are intended to provide stable operation in demanding mobile-audio installations.

This speaker is a practical option for systems using 6 x 9-inch mounting locations or custom speaker panels. Its 4-ohm impedance should be matched with an amplifier or head-unit channel rated to operate at 4 ohms. Because the listed 800-watt figure is a maximum rating, amplifier selection should be based on confirmed continuous-power specifications where available.

For a more complete system, the WZP69 can be used alongside dedicated low-frequency speakers or subwoofers for bass support. Its stated frequency range begins at 85 Hz, so system tuning and crossover choices should reflect the vehicle, installation position, and other speakers in use. Verify cutout dimensions and mounting clearance before installation.

Key Features

• 6 x 9-Inch Pro Speaker: Fits applications designed for 6 x 9-inch car-audio drivers.
• Coaxial Design: Combines midrange-oriented coverage in one speaker assembly.
• 800W Maximum Power: Supports high-output system designs with proper matching.
• 4-Ohm Impedance: Works with compatible 4-ohm amplifier or receiver channels.
• 95 dB Sensitivity: Helps produce strong output from available amplifier power.
• 25-Ounce Magnet: Supports the speaker's oversized magnet motor structure.

Design & Installation

The WZP69 features a corrugated speaker surround, 25-ounce high-energy magnet, and oversized magnet motor structure. Its pro midrange coaxial format is designed for vehicle audio use and is listed as having undergone high-standard reliability testing. The nominal basket measures 9.29 by 6.56 inches.

Confirm the 8.82 by 6.04-inch mounting opening and 4.21-inch mounting-depth requirement before purchasing. Connect it to a compatible 4-ohm speaker channel, observe amplifier and crossover manufacturer guidance, and ensure the installation location has adequate rear clearance. The product is listed as one speaker, so a left-and-right installation requires two units.
