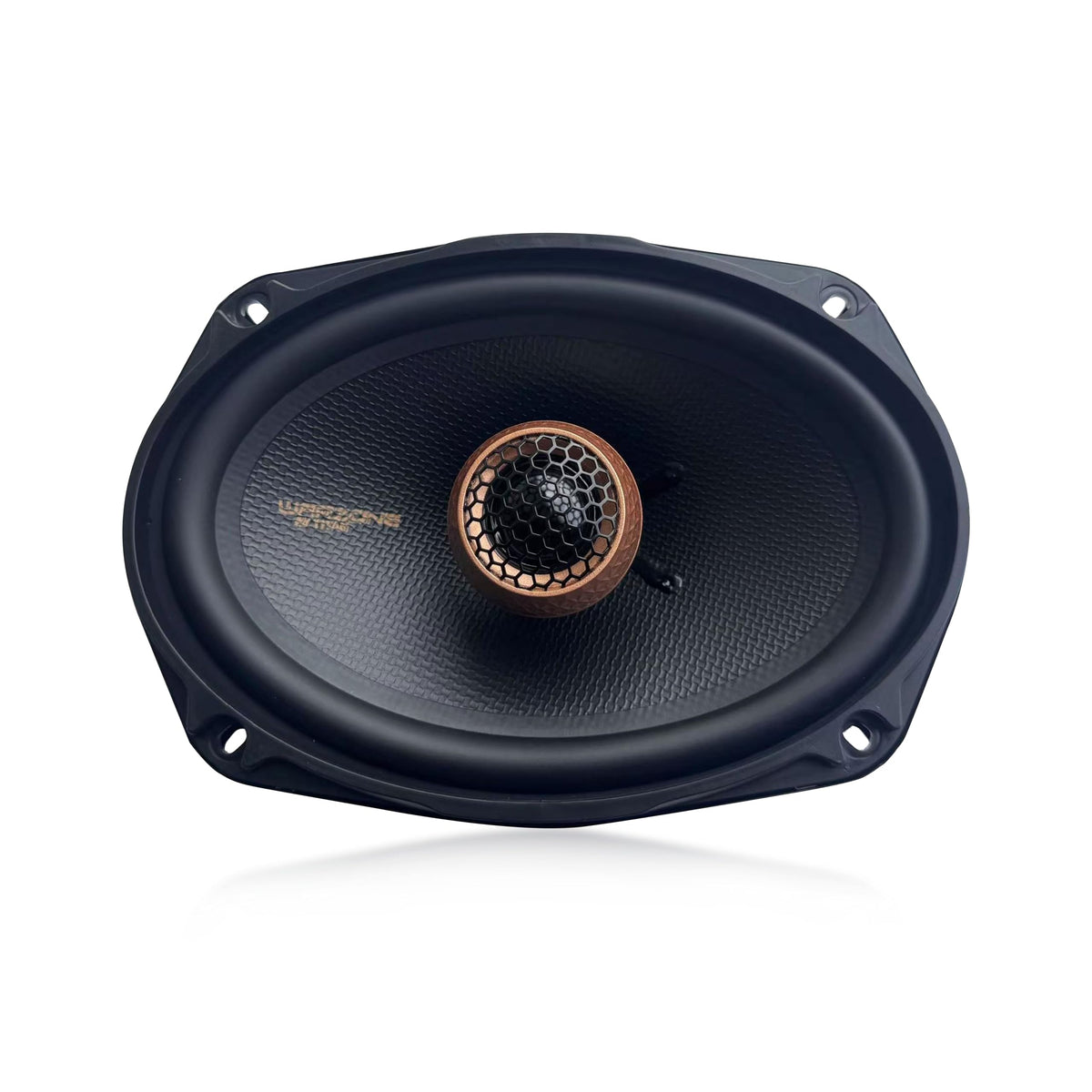

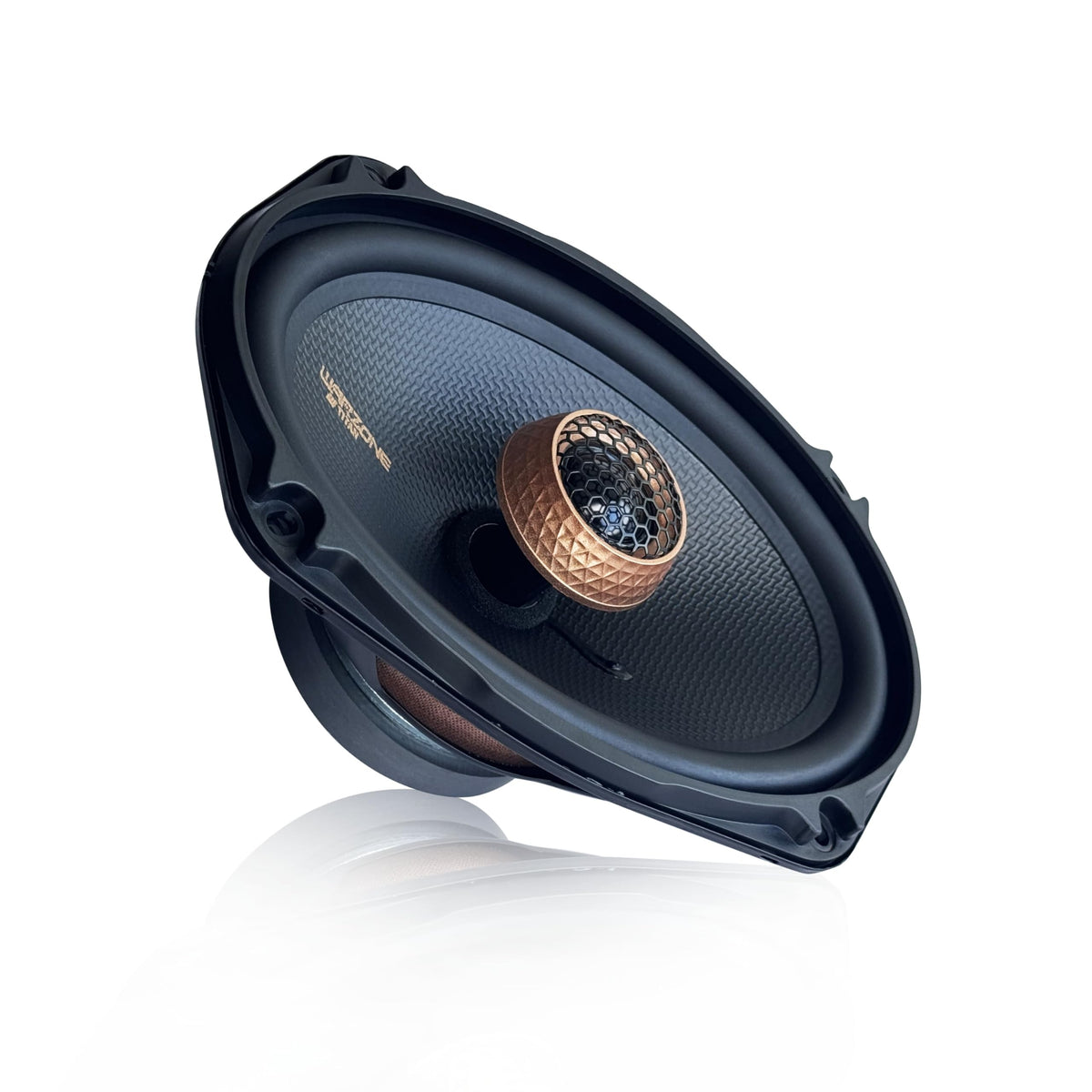

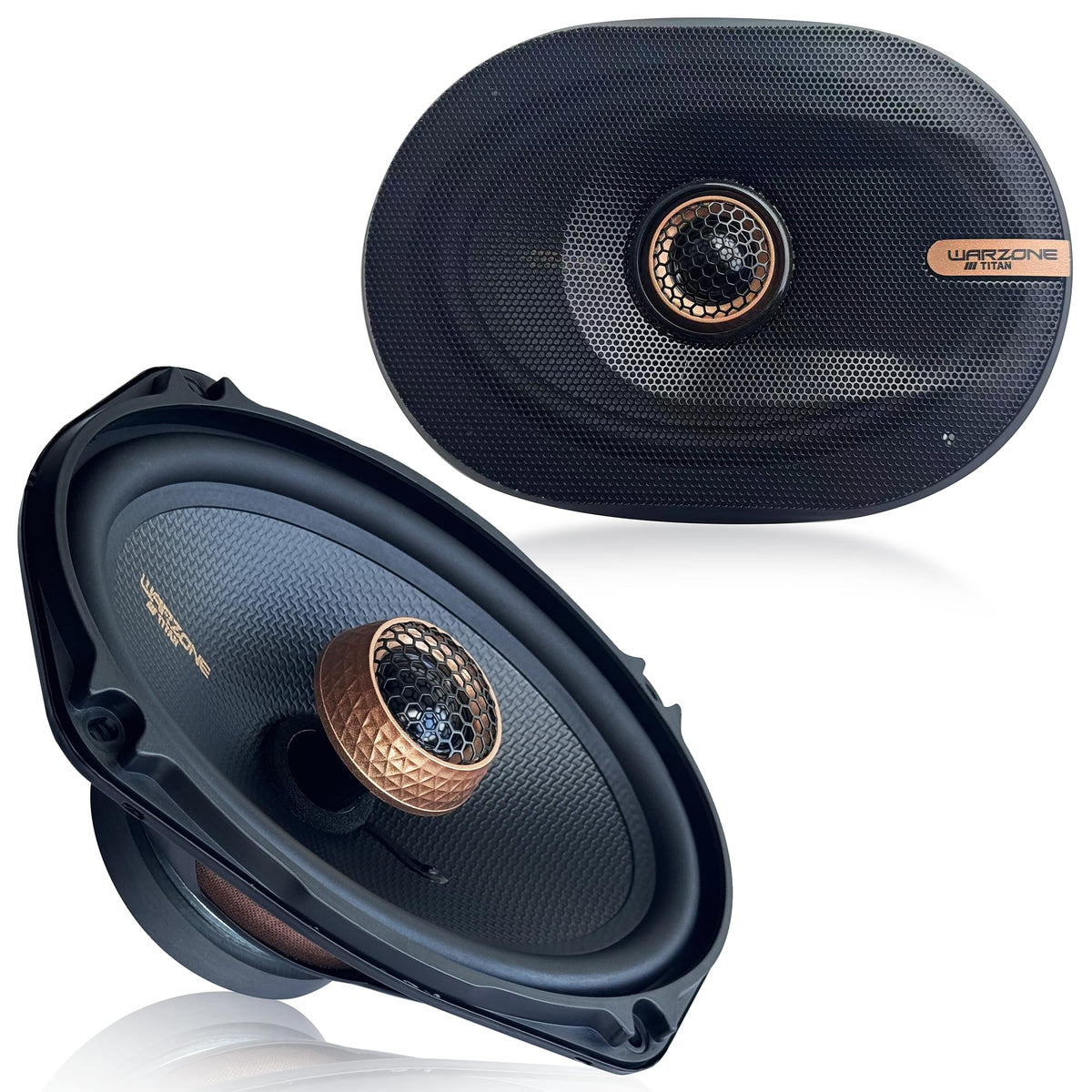

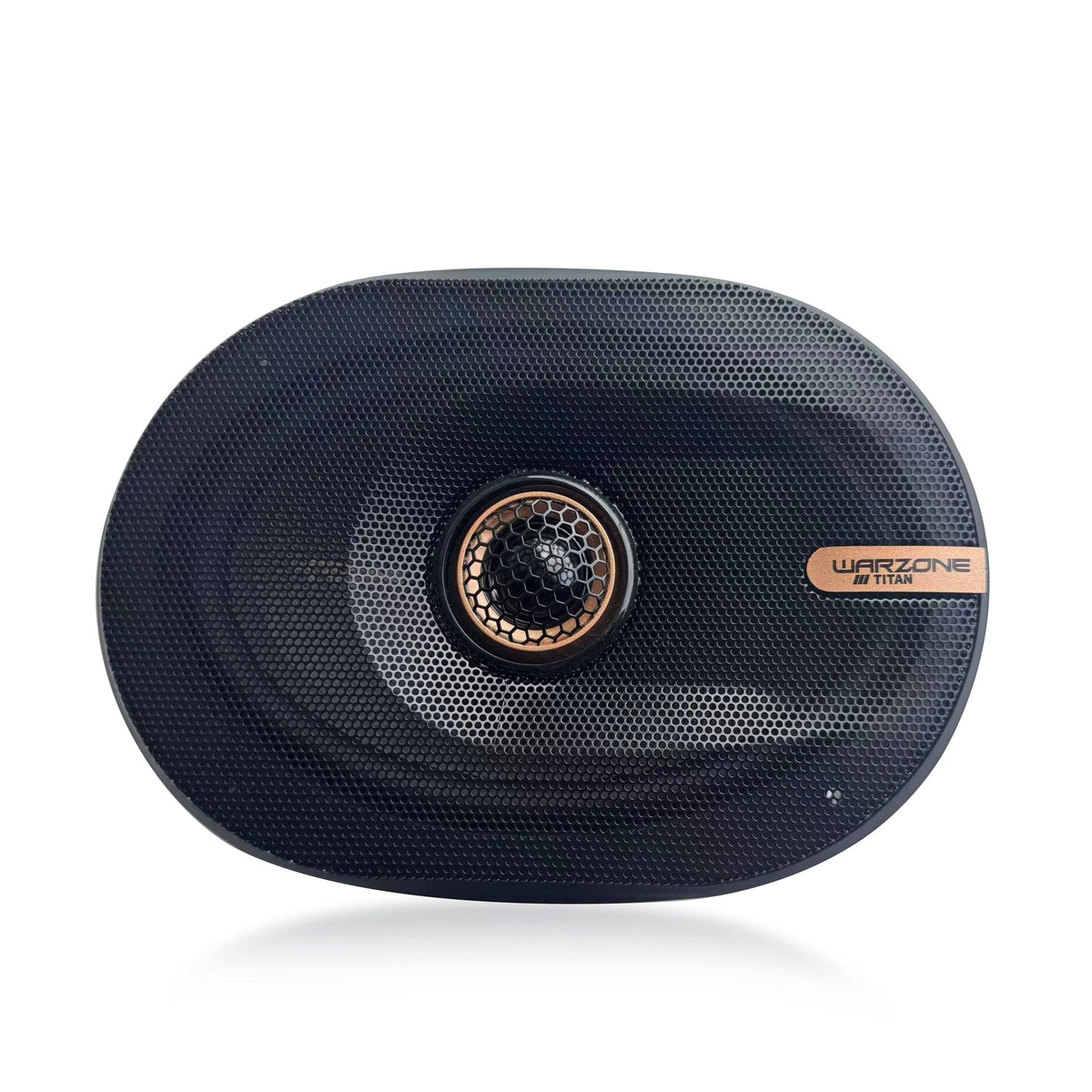

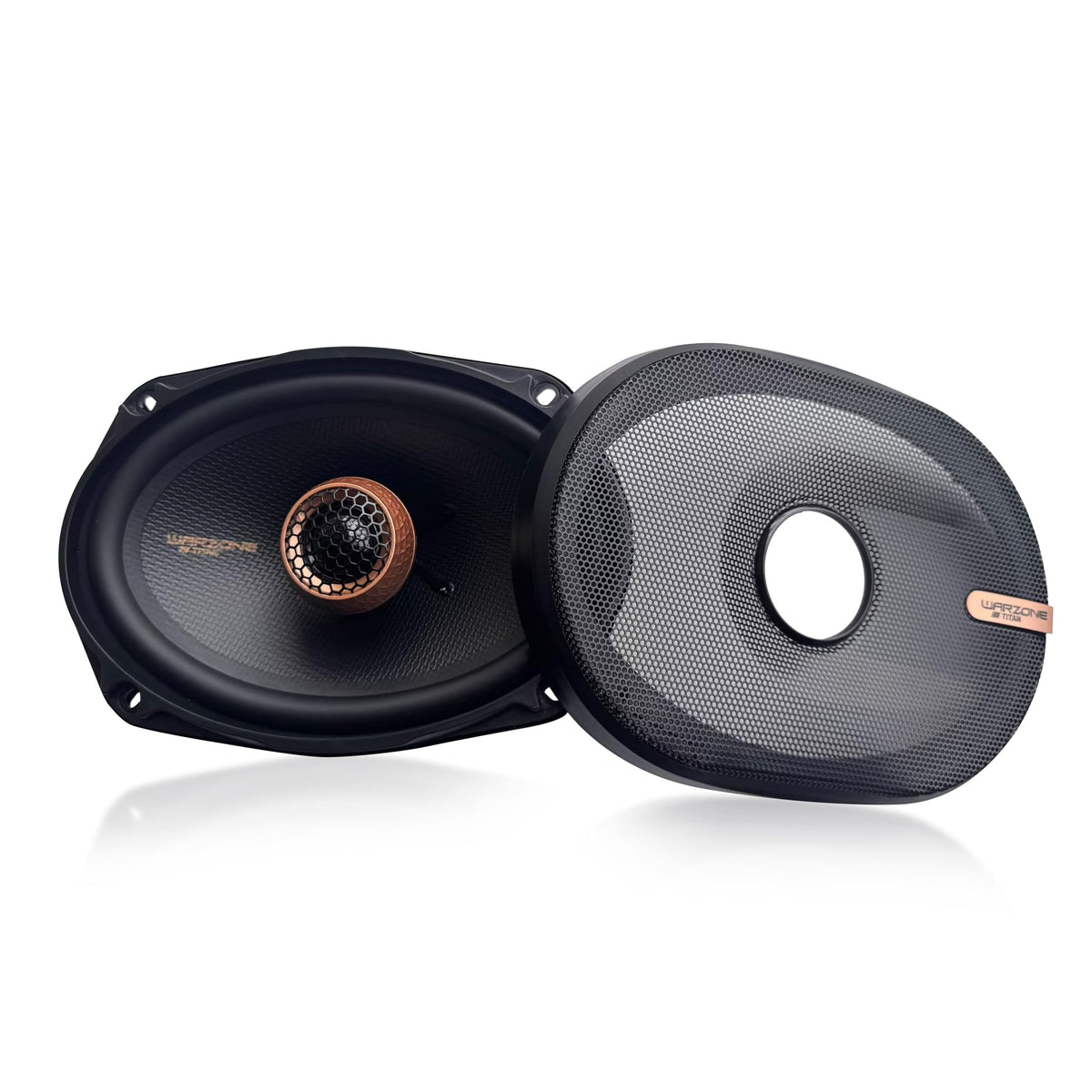

Warzone WZ69PTi 6x9" Two-Way Coaxial Speakers

The Warzone WZ69PTi is a pair of 6x9-inch coaxial car speakers designed to replace or upgrade factory door or rear-deck speakers. Its 4-ohm design is suited to common aftermarket and factory-style car-audio applications where a full-range speaker is needed. The pair combines woofer and tweeter elements in each speaker to provide a compact, integrated solution.

With 650 watts maximum and 200 watts RMS system power handling, the WZ69PTi is intended for systems that need more output capability than basic replacement speakers. Its 92 dB sensitivity supports efficient operation from a compatible head unit or external amplifier. Matching amplifier output to the RMS rating is the practical approach for system planning.

The two-way coaxial arrangement uses a glass-fiber woofer cone for the lower and middle frequency range, paired with a 50 mm PEI dome tweeter for upper-frequency reproduction. A built-in 4 kHz crossover divides the signal between the drivers. This integrated layout helps keep installation straightforward while retaining dedicated high-frequency reproduction.

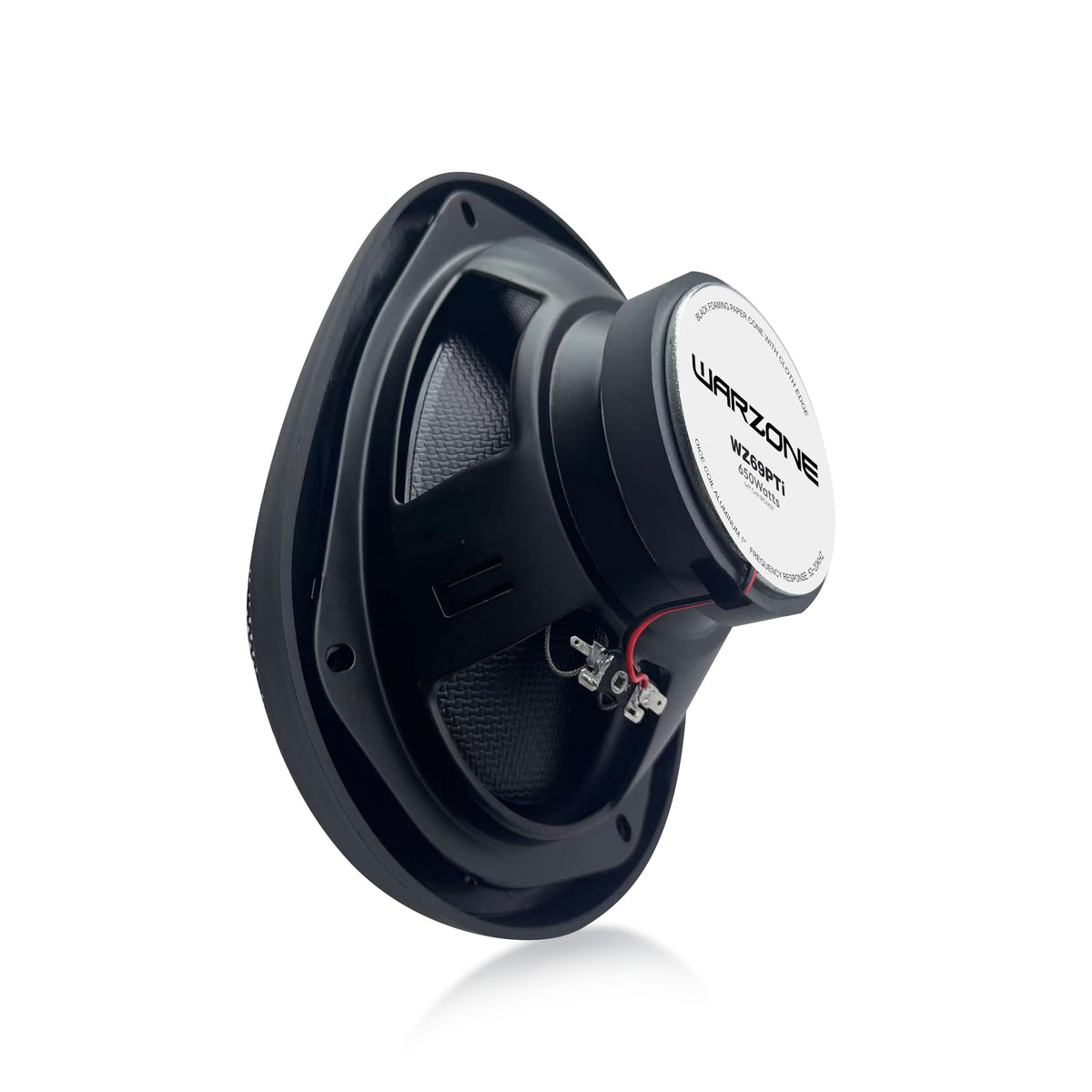

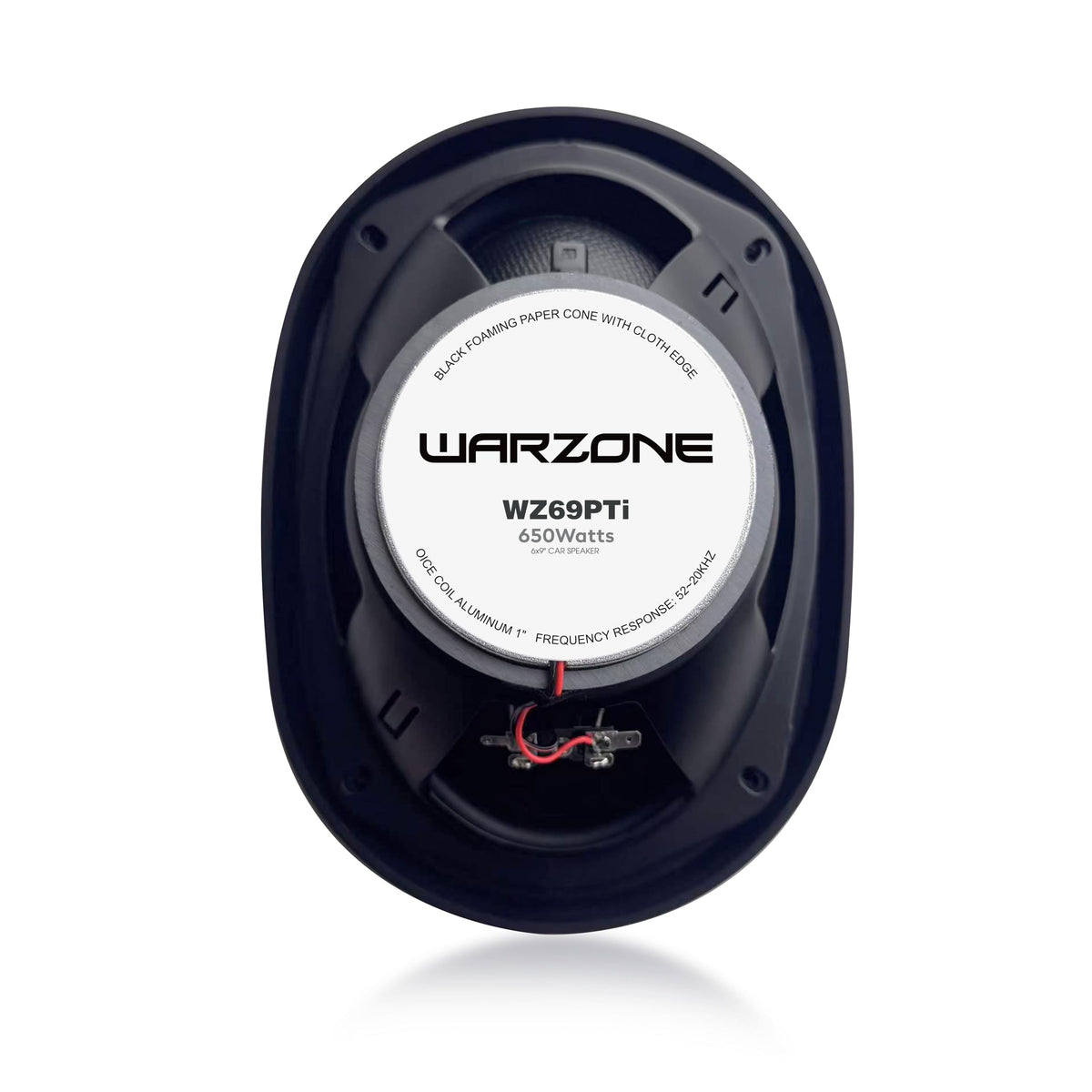

The WZ69PTi has a stated frequency response of 52 Hz to 20 kHz and uses a 20-ounce ferrite magnet structure. These specifications make it suitable for listeners seeking a broad full-range response from a 6x9-inch speaker location. It can be used as part of a front-stage, rear-fill, or full speaker replacement upgrade, depending on vehicle fitment and system design.

Before installation, confirm the vehicle's factory opening, mounting depth, and panel clearance. The speaker's listed frame dimensions, cutout requirements, and 3.15-inch mounting depth provide useful fitment references. Because this is a passive speaker pair, it requires connection to compatible speaker-level amplifier or receiver outputs.

Key Features

• Two-Way Coaxial Design: Integrates woofer and tweeter drivers in each 6x9-inch speaker.
• 200W RMS System Handling: Supports amplifier matching based on the pair's continuous-power rating.
• Glass-Fiber Woofer Cone: Provides the primary low- and mid-frequency driver surface.
• 50 mm PEI Dome Tweeter: Handles high-frequency detail within the coaxial assembly.
• 4 kHz Built-In Crossover: Directs appropriate frequencies to the woofer and tweeter.
• 92 dB Sensitivity: Helps produce usable output with compatible car-audio power.

Design & Installation

The WZ69PTi uses a glass-fiber woofer cone, PEI dome tweeter, and ferrite magnet assembly. Its coaxial architecture places the high-frequency driver within the woofer assembly, allowing both drivers to fit within a conventional 6x9-inch speaker footprint. The passive design does not include onboard amplification.

Verify the 4.65 by 6.62-inch cutout, 6.45 by 9.33-inch overall frame size, and 3.15-inch mounting depth against the vehicle before purchase. Connect each speaker to a compatible 4-ohm speaker channel and observe polarity during wiring. For amplified systems, select amplifier power with the 200-watt RMS system rating in mind rather than the maximum-power figure.
