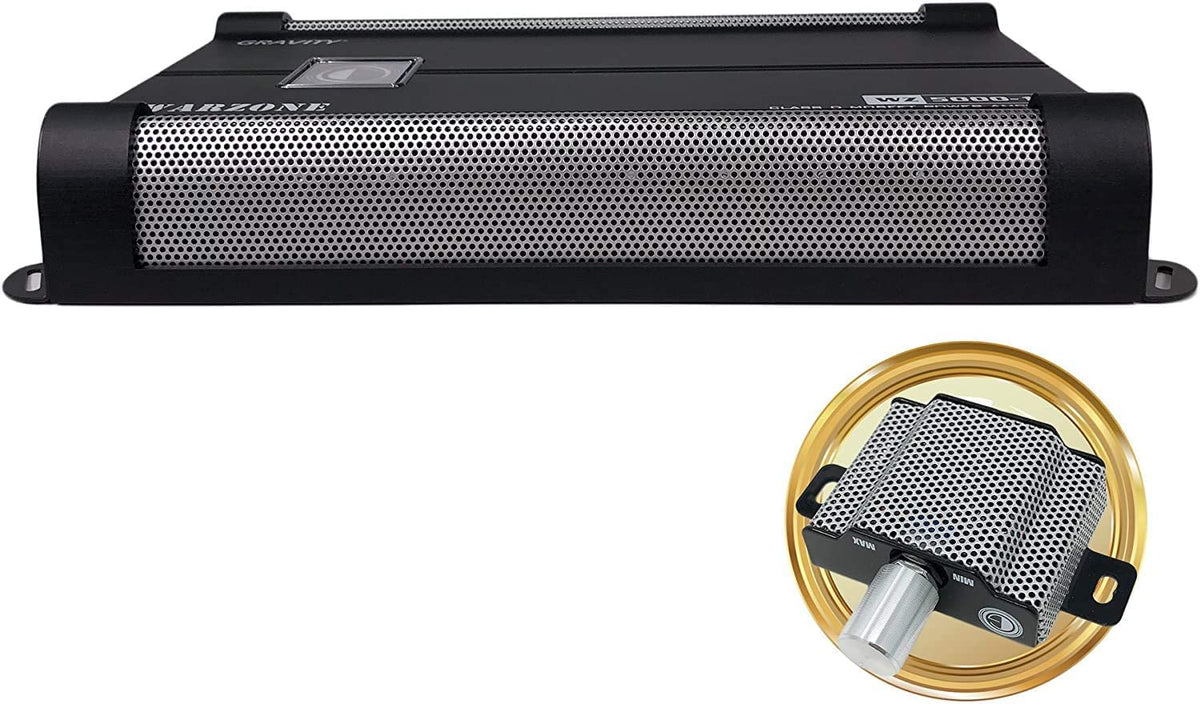

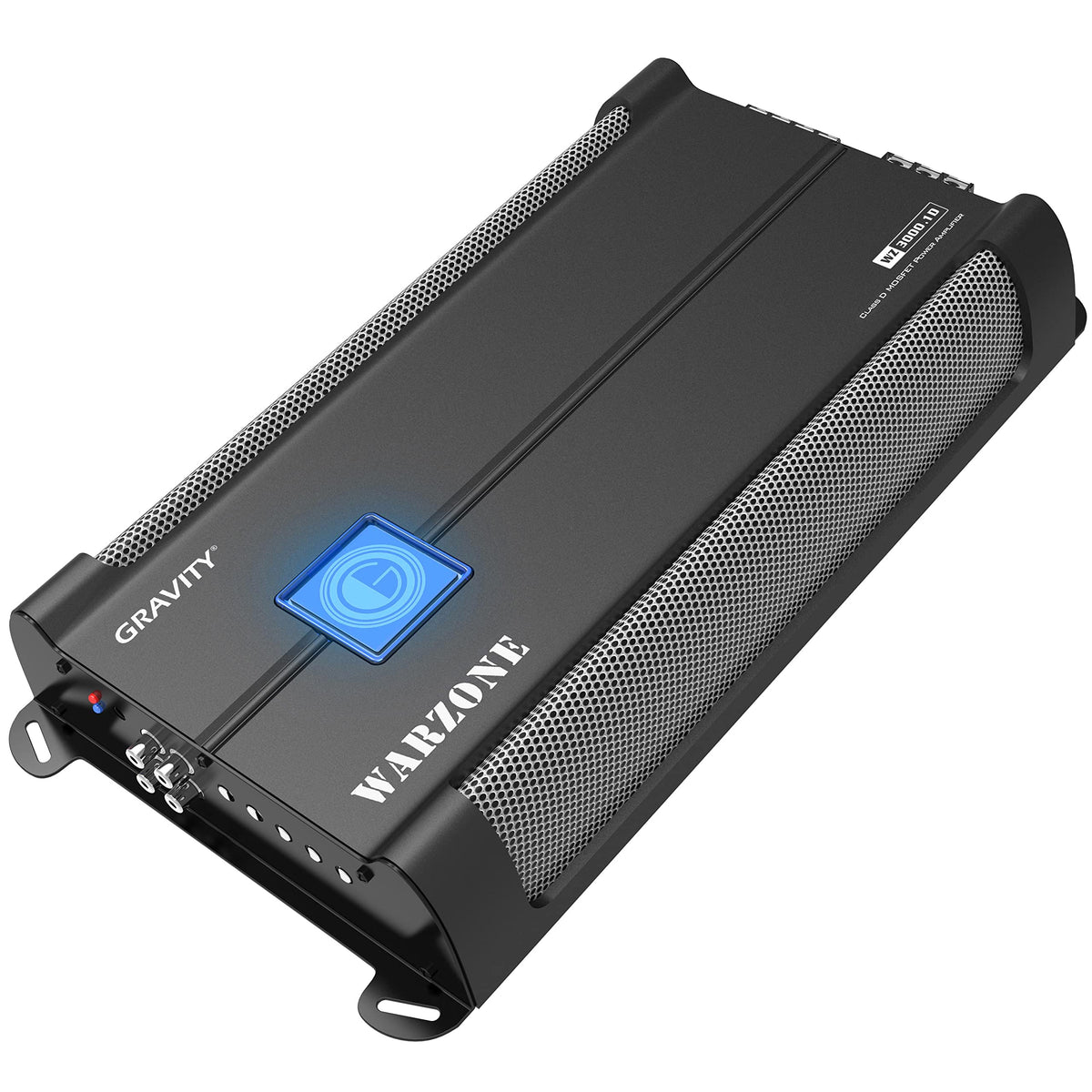

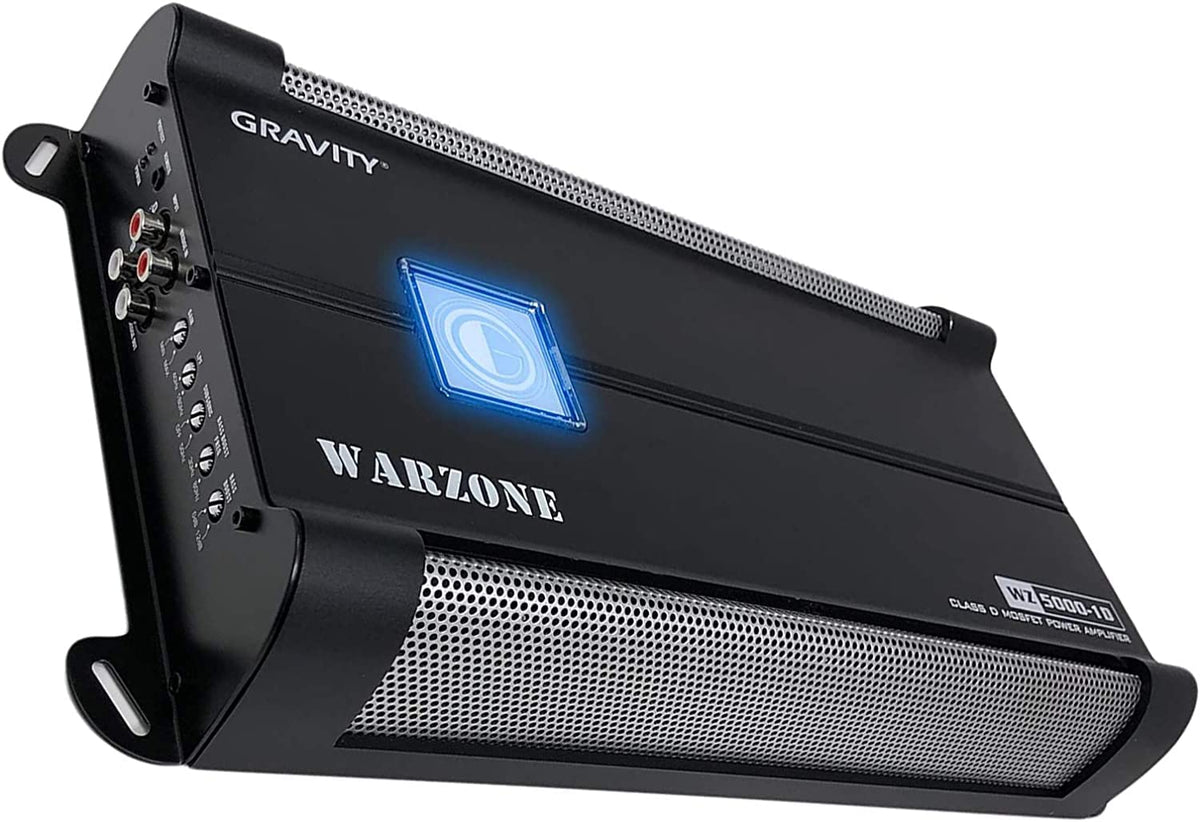

WARZONE WZ3000-1D Class D Monoblock Amplifier

The WARZONE WZ3000-1D is a compact Class D monoblock amplifier designed to add dedicated power for a vehicle subwoofer system. It is intended for installations that need strong low-frequency output without using a multi-channel amplifier. Its 1/2/4-ohm stability provides flexibility when matching compatible subwoofer wiring configurations.

This amplifier is rated for 1,500 watts RMS at 1 ohm, 900 watts RMS at 2 ohms, and 600 watts RMS at 4 ohms. Those stepped output ratings help installers select an appropriate subwoofer load and set gain responsibly. As a mono amplifier, it is purpose-built for bass reproduction rather than full-range speaker amplification.

Class D amplification and a MOSFET pulse-width-modulated power supply support efficient operation in a vehicle electrical system. The amplifier also uses a heat-dissipation design intended to manage temperature during sustained playback. A variable low-pass crossover, subsonic filter, and bass-boost control provide adjustment for a subwoofer-focused system.

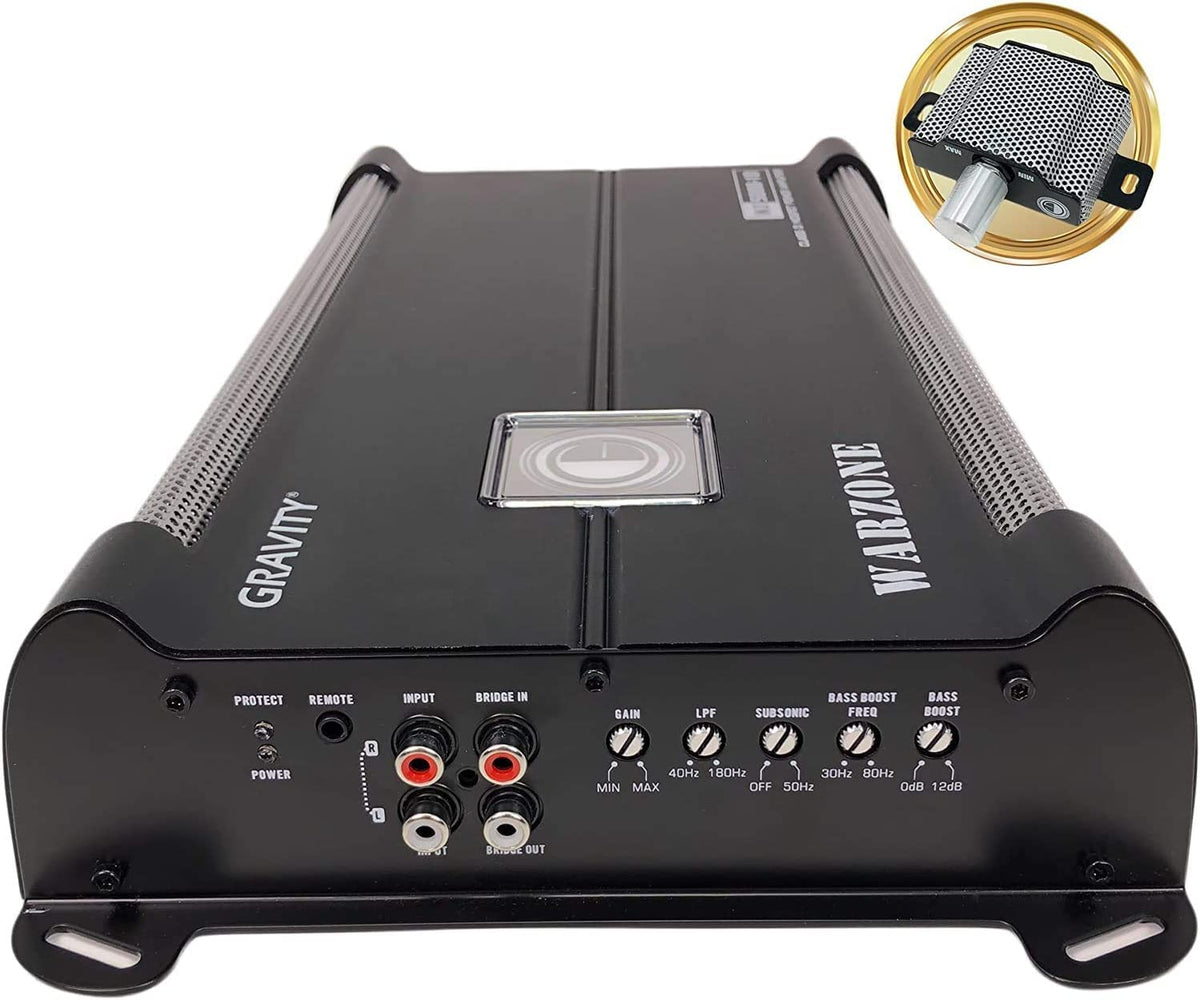

High-level and low-level inputs allow the amplifier to work with a range of source-unit configurations. The included bass knob provides convenient level adjustment from the listening position. This makes the amplifier suitable for a system where the subwoofer level may need adjustment for different recordings or listening preferences.

The WZ3000-1D is a practical choice for a dedicated bass upgrade when paired with compatible subwoofers, correct wiring, and an appropriately fused power installation. Its protection circuitry monitors high voltage, low voltage, over-current, and high-temperature conditions. Confirm the final speaker load is not below 1 ohm before installation or operation.

Key Features

• Monoblock Class D Design: Supplies dedicated amplification for a subwoofer channel.
• 1-Ohm RMS Rating: Delivers up to 1,500 watts RMS at 1 ohm.
• Flexible Load Stability: Supports compatible 1-, 2-, and 4-ohm loads.
• MOSFET PWM Supply: Provides efficient power conversion for vehicle audio use.
• Adjustable Bass Controls: Includes low-pass, subsonic, and bass-boost adjustment.

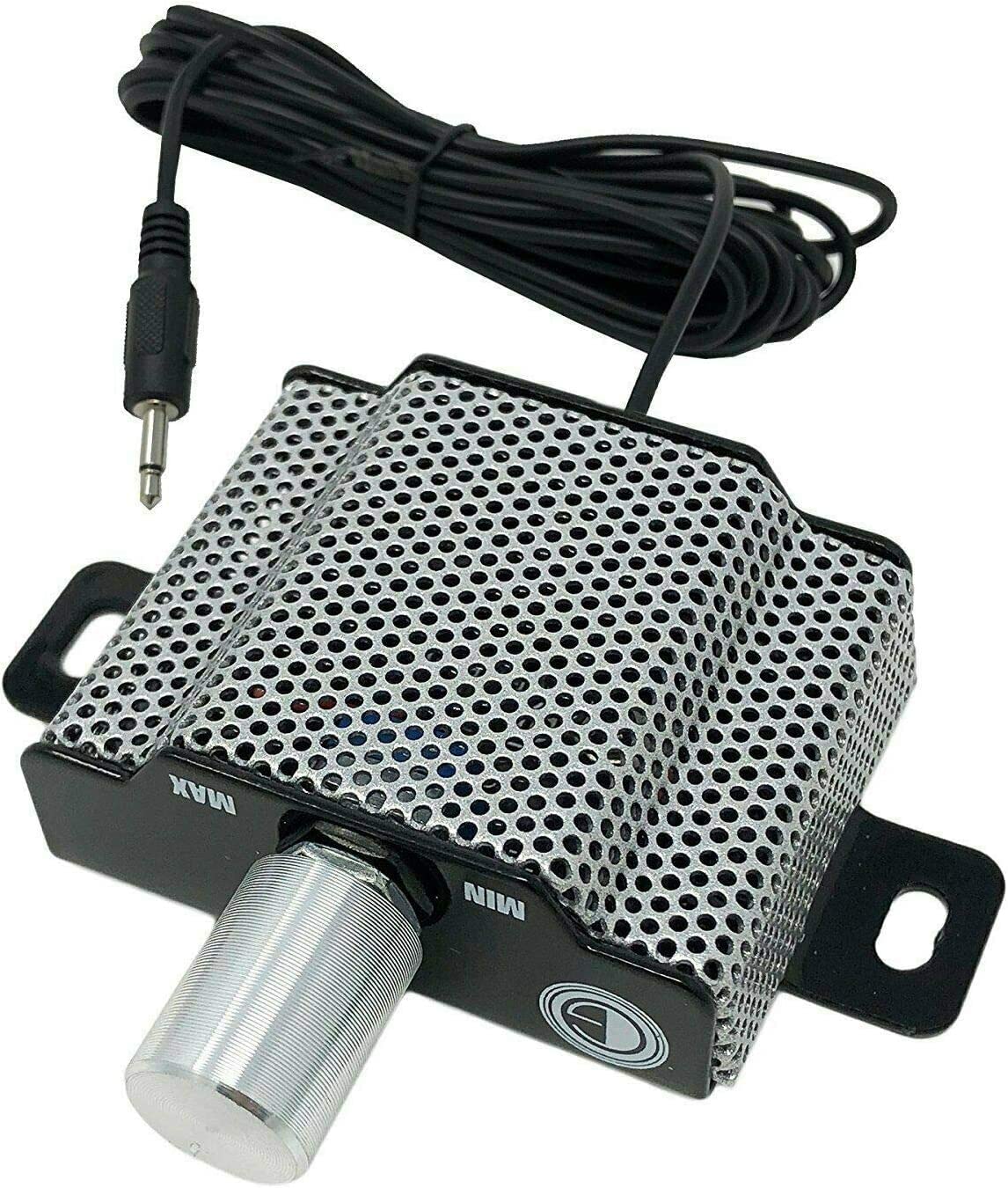

• Included Bass Knob: Enables accessible subwoofer-level adjustment from the cabin.

Design & Installation

The amplifier uses a compact surface-mount chassis measuring 13.8 by 8.3 by 2.5 inches. Its Class D circuit design, MOSFET pulse-width-modulated power supply, and integrated thermal-management approach are intended for a dedicated low-frequency amplifier application. Four-way protection circuitry is included to address voltage, current, and temperature-related operating conditions.

Mount the amplifier on a secure, ventilated surface and leave room around it for airflow. Use high-level or low-level inputs as appropriate for the source unit, set the low-pass and subsonic filters for the installed enclosure and subwoofer, and match the final wired impedance to the amplifier's 1/2/4-ohm capability. A proper fused power connection, solid ground, compatible subwoofer wiring, and careful gain setup are required for a complete installation.
