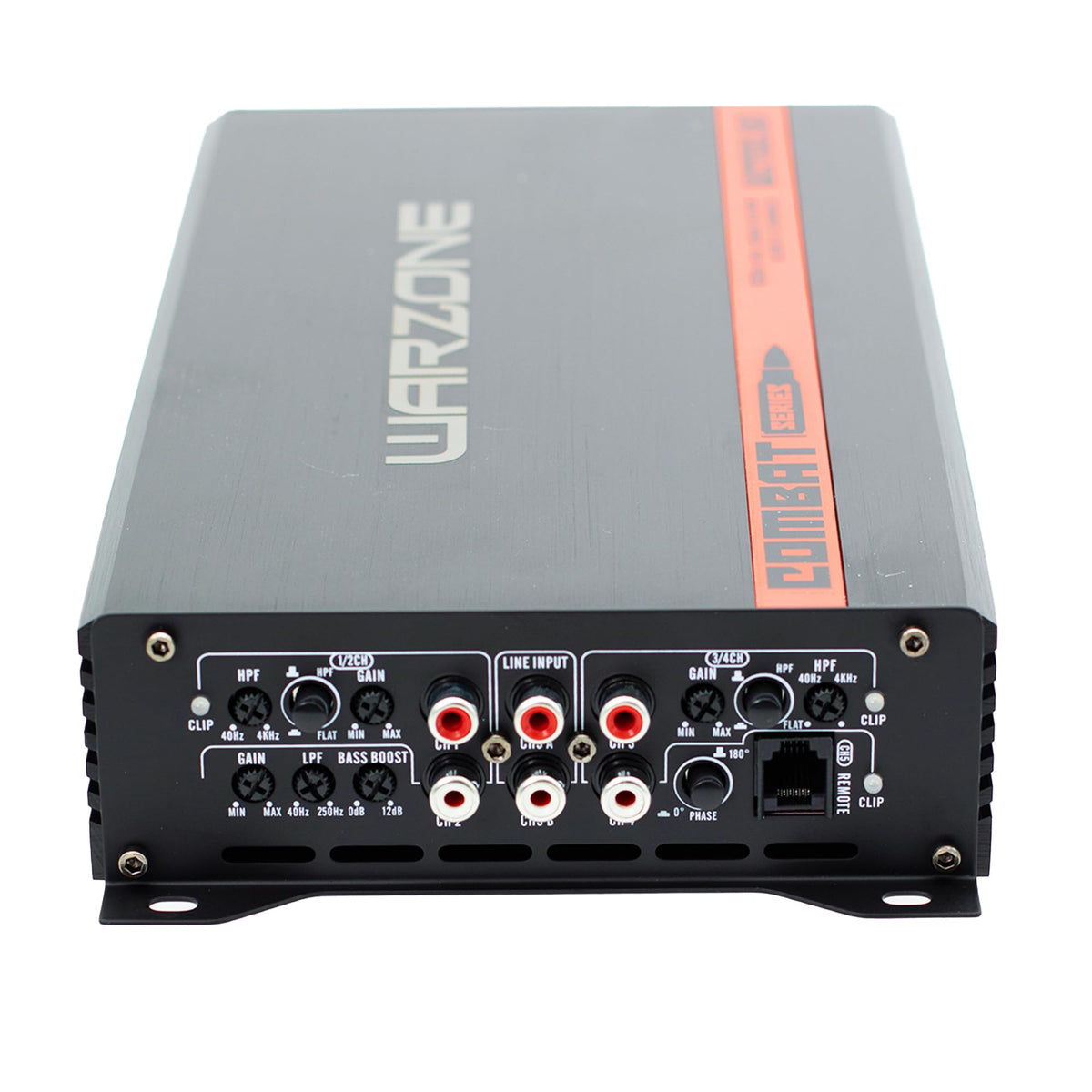

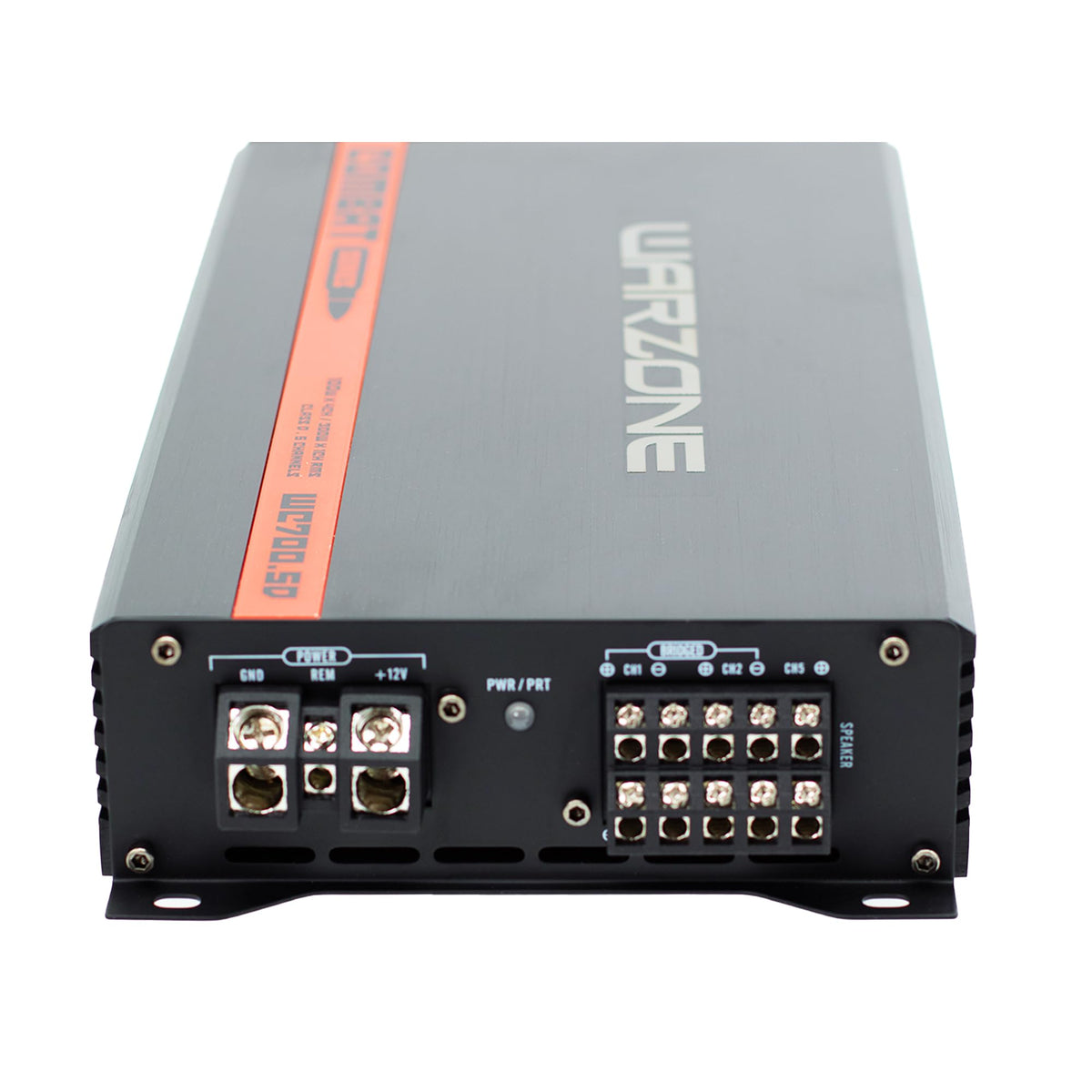

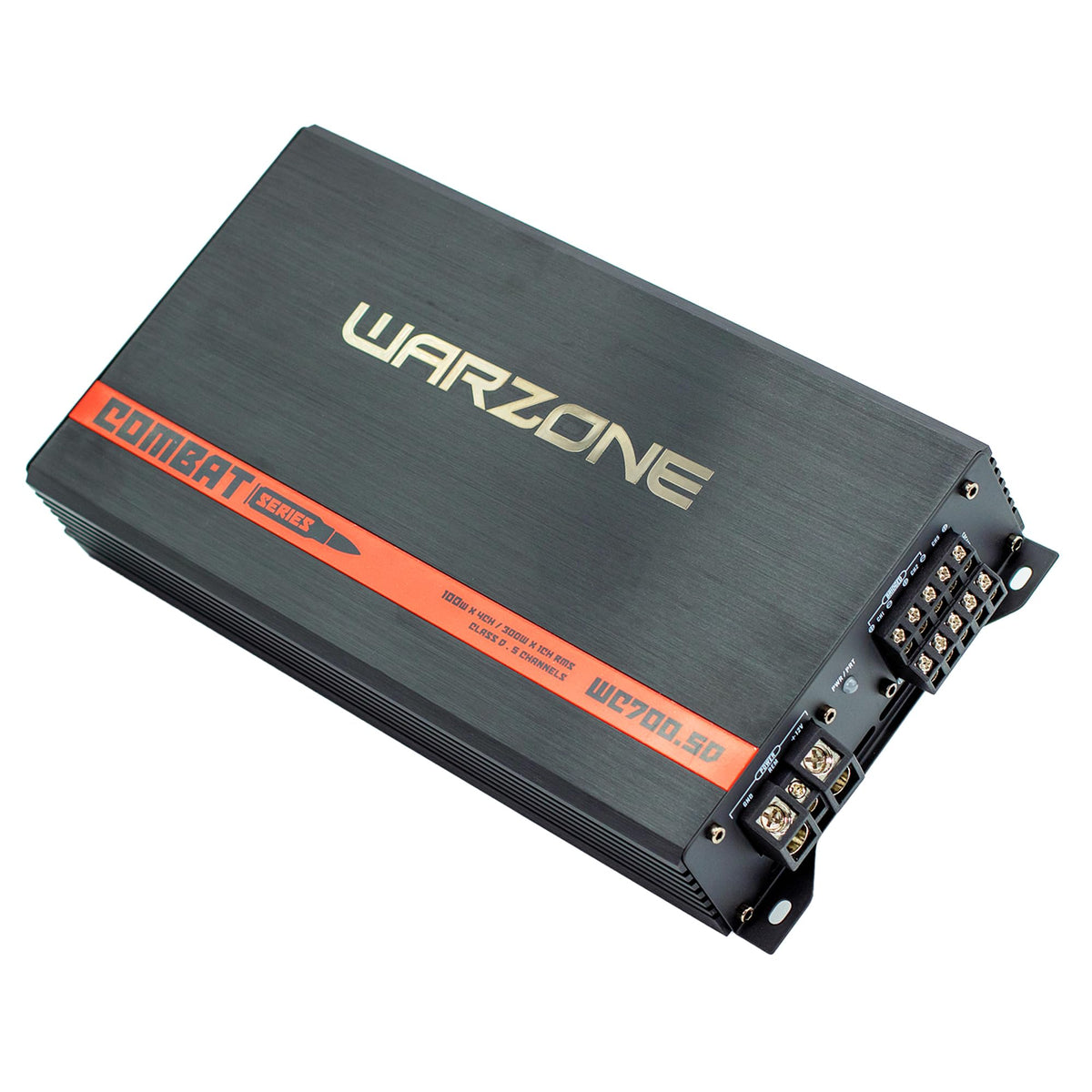

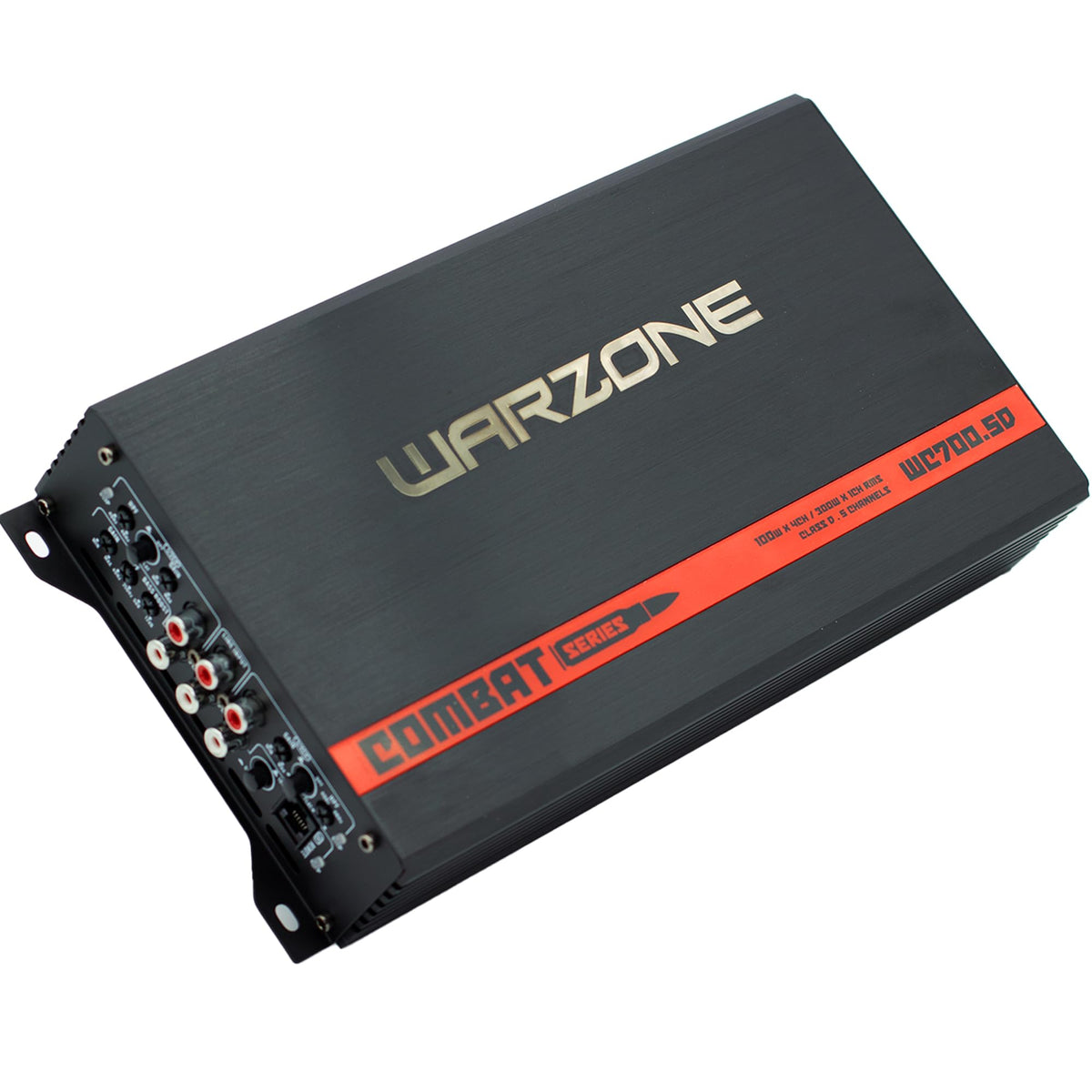

Warzone WC700-5D 700W 5-Channel Class D Amplifier

The Warzone WC700-5D is a 700W, 5-channel car audio amplifier designed for systems that need to power multiple speakers from one chassis. Its five-channel format makes it suited to upgrading factory audio or building a more complete aftermarket speaker-and-subwoofer system. It provides a centralized amplification solution for drivers seeking more control than a head unit's built-in power can offer.

This amplifier uses a Class D design intended to provide efficient operation with reduced heat compared with less-efficient amplifier designs. The Warzone series is marketed around true RMS power delivery for consistent audio performance. Its configuration is aimed at everyday vehicle installations where available space and electrical efficiency both matter.

The WC700-5D is listed as stable with 1-, 2-, and 4-ohm speaker-load options, allowing it to work with a range of compatible car-audio setups. Proper load planning remains important, especially when combining full-range speakers and a subwoofer in a five-channel system. Match the amplifier's supported wiring arrangement to the impedance and RMS ratings of the connected speakers.

Built-in low-pass and high-pass filtering helps separate bass and full-range frequencies within the system. This allows installers to direct lower frequencies toward compatible bass drivers while limiting deep bass sent to smaller speakers. The result is a more purposeful setup without requiring every speaker to reproduce the entire frequency range.

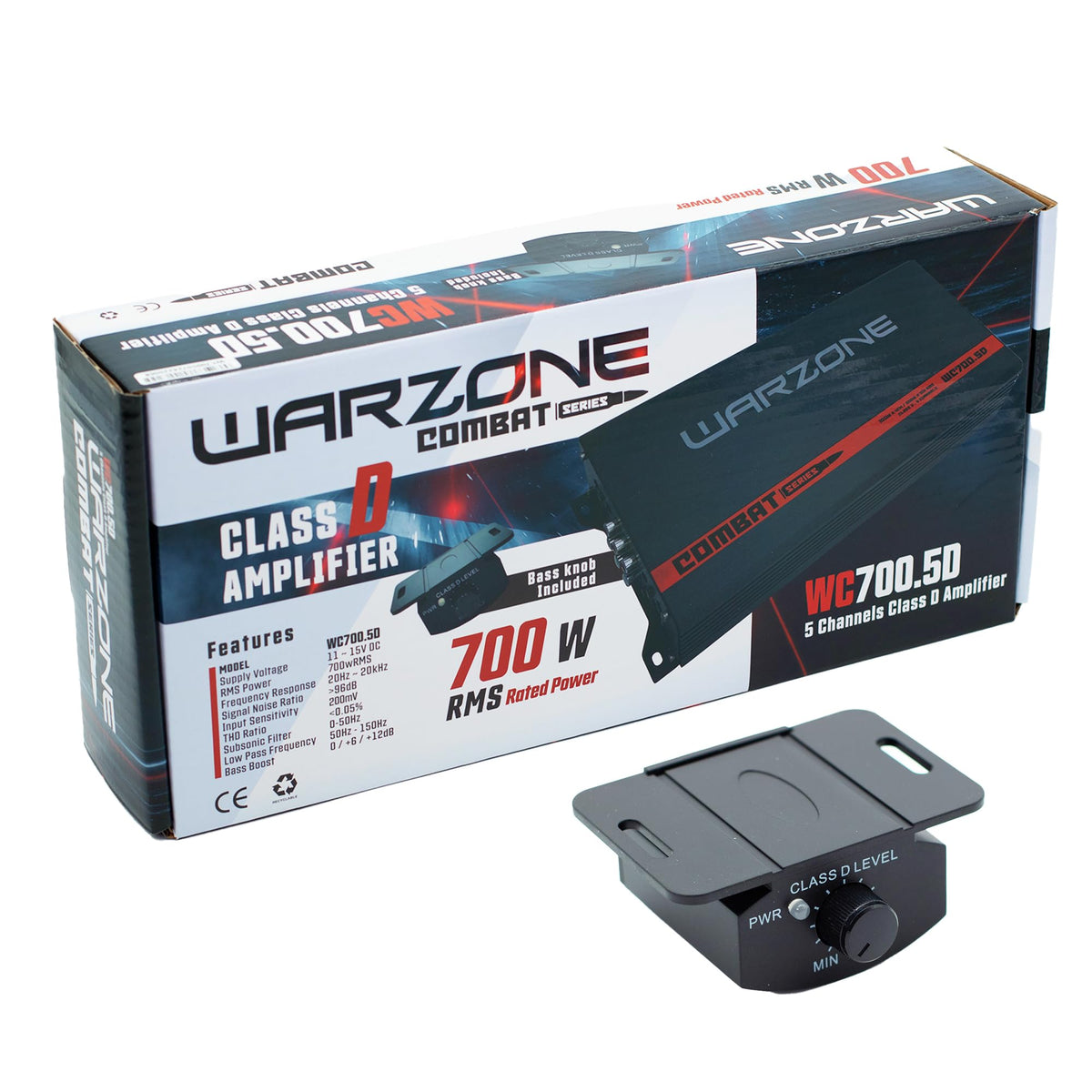

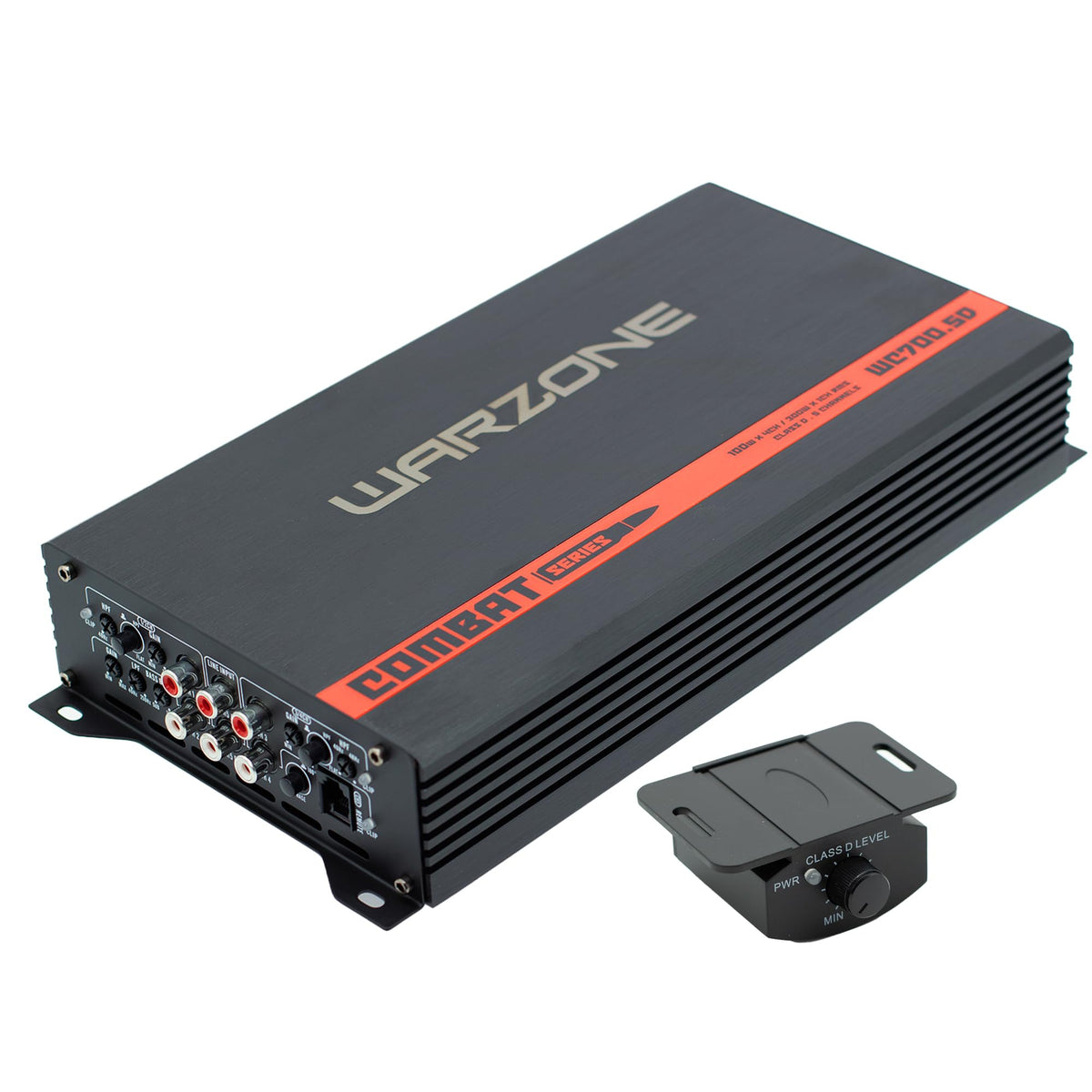

A remote subwoofer control is included for convenient bass-level adjustment from the driver's seat. This is useful when recorded music, road noise, or listening preferences call for a quick change in subwoofer output. The amplifier is backed by a stated one-year full replacement warranty.

Key Features

• Five-Channel Layout: Supports a multi-speaker car audio system from one amplifier.
• 700W Advertised Output: Provides the listed total power capacity for compatible system designs.
• Class D Design: Promotes efficient operation and reduced heat generation.
• Multi-Ohm Stability: Listed for 1-, 2-, and 4-ohm compatibility.
• LPF/HPF Filters: Helps tailor frequency distribution between connected speakers.
• Remote Sub Control: Allows convenient adjustment of bass level from the cabin.

Design & Installation

The WC700-5D is built around a sturdy amplifier chassis and a Class D platform intended for vehicle use. Its design focuses on delivering multi-channel amplification while managing heat efficiently. The compact-system approach can simplify an upgrade that includes both full-range speakers and bass reinforcement.

Mount the amplifier securely in a ventilated location and use appropriately sized power, ground, speaker, and signal wiring for the vehicle audio system. Confirm the final impedance presented to each applicable channel before connecting speakers or subwoofers. Use the high-pass and low-pass controls to set frequency duties, then position the included remote subwoofer control where it can be safely reached by the driver.
