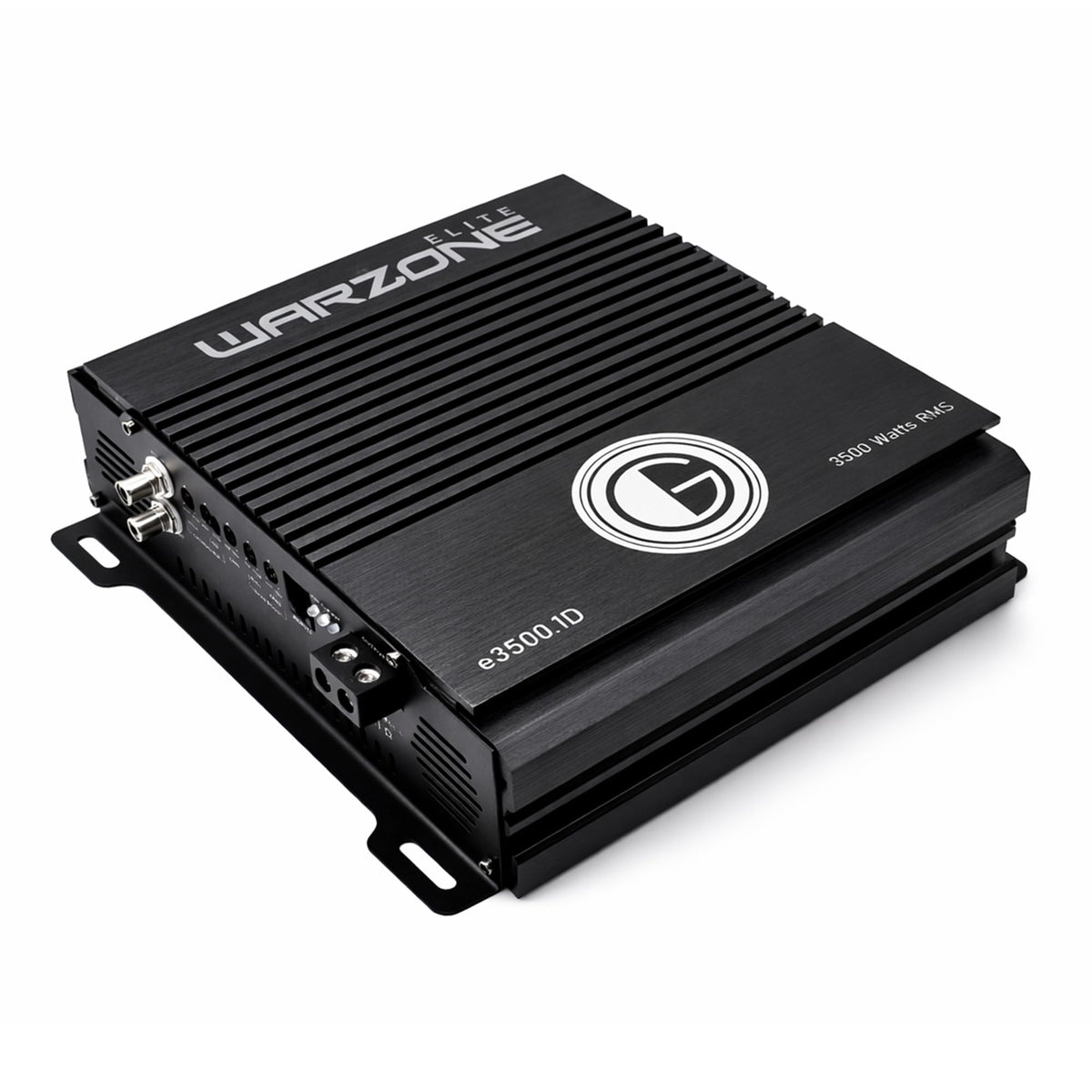

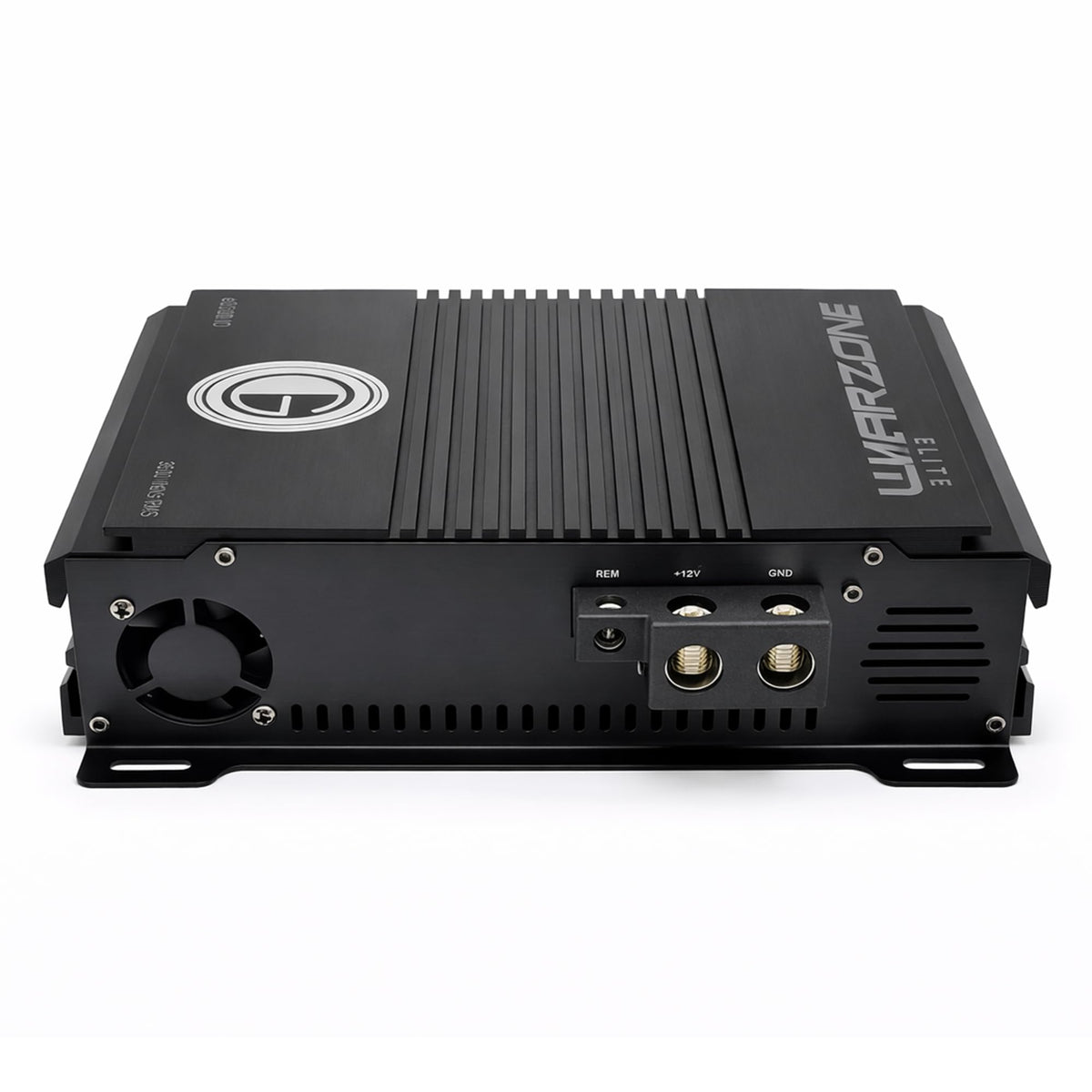

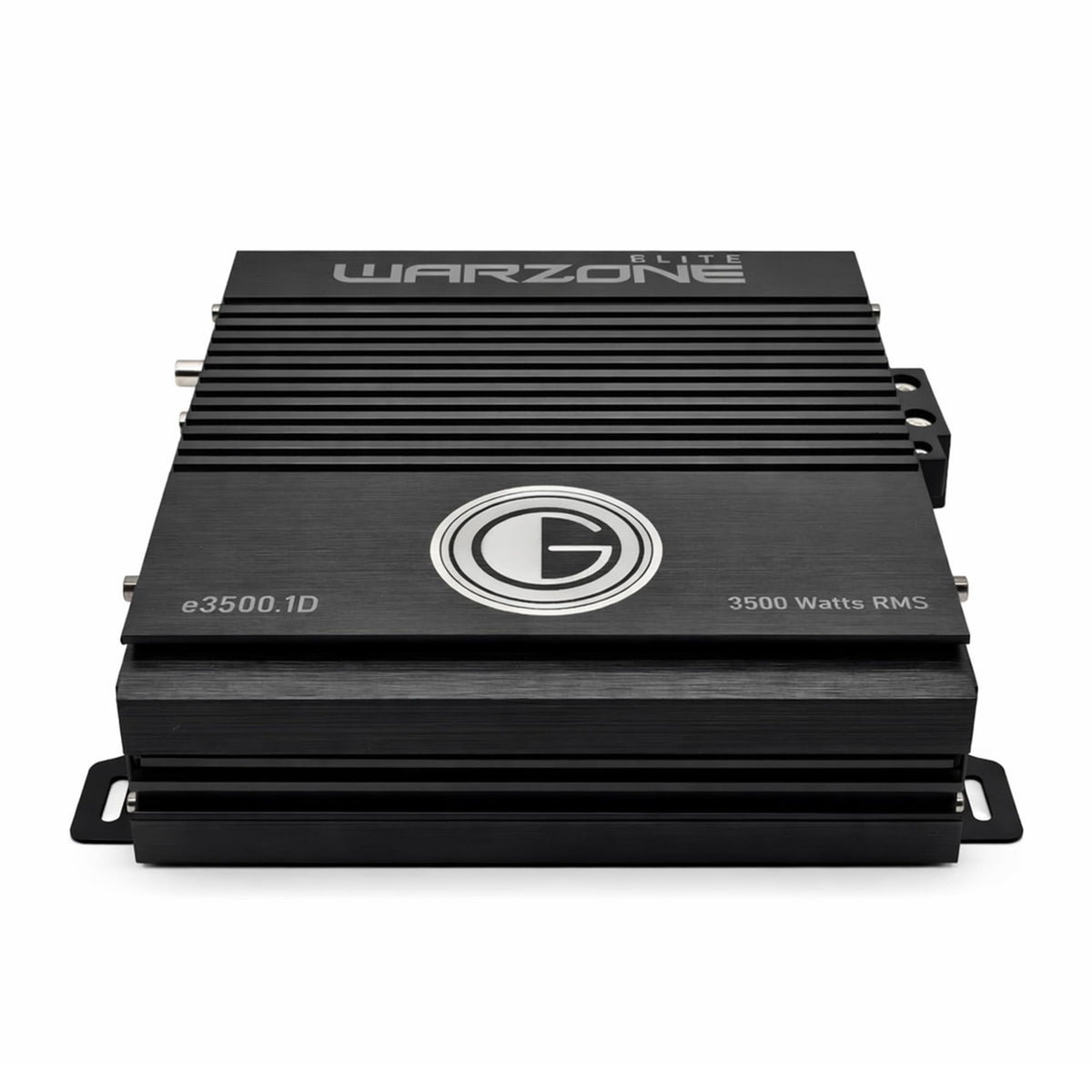

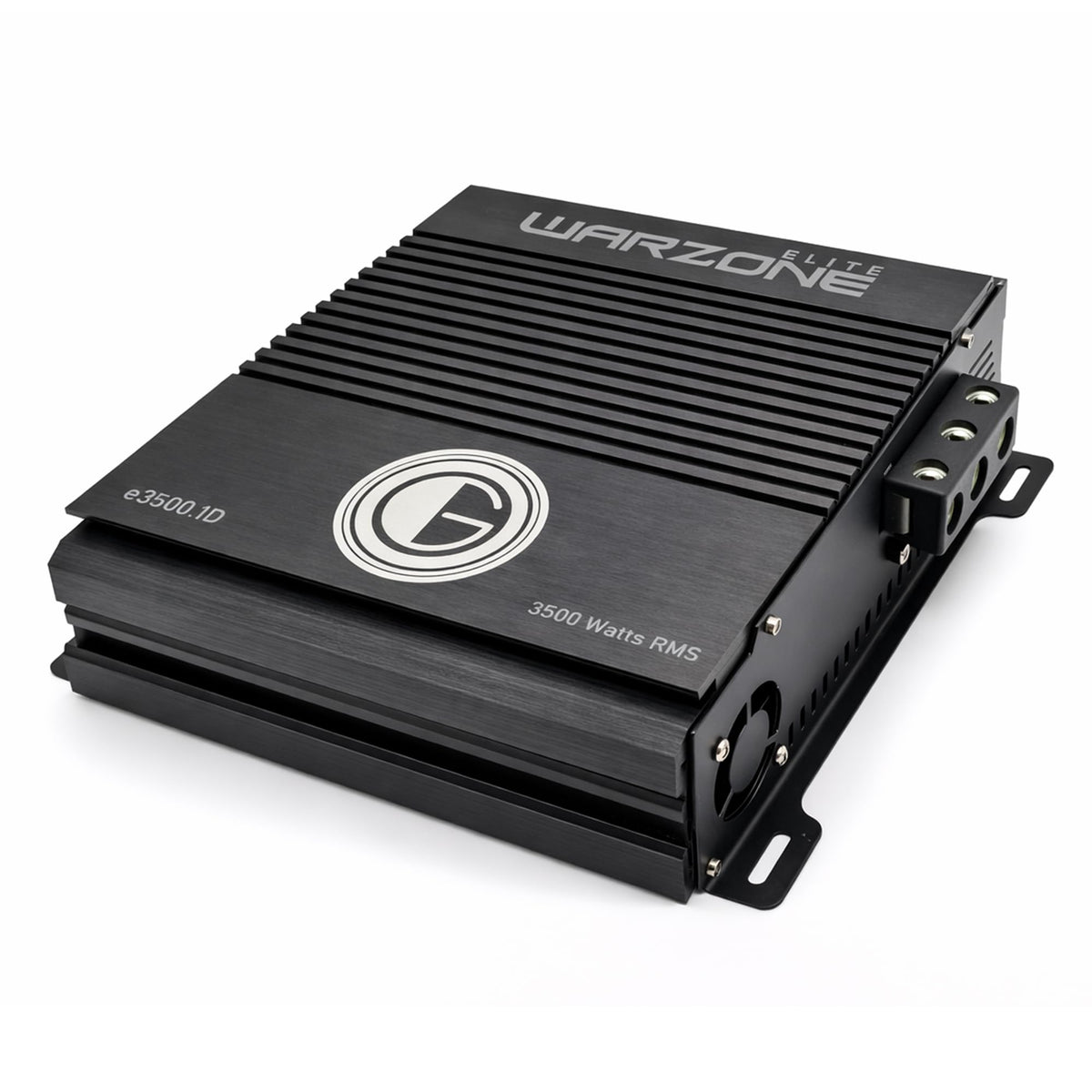

Warzone E-3500-1D Class D Mono Car Amplifier

The Warzone E-3500-1D is a mono Class D car amplifier designed to provide dedicated power for a vehicle subwoofer system. It is suited to installers building a bass-focused upgrade who need an amplifier compatible with 1-, 2-, or 4-ohm speaker loads. Its single-channel design keeps the system focus on low-frequency reinforcement rather than full-range speaker amplification.

Published output ratings list 3,000 watts RMS at 1 ohm, 2,112 watts RMS at 2 ohms, and 1,156 watts RMS at 4 ohms. This range gives system builders options when matching the amplifier to a subwoofer or a wired subwoofer array. Final impedance should be confirmed before installation to keep the connected load within the amplifier's supported range.

The E-3500-1D uses a MOSFET pulse-width-modulated power supply, an efficient switching design commonly used in Class D amplification. The product information also identifies heat-dissipation engineering intended to support sustained playback. This makes it a practical fit for high-output bass systems where installation space and thermal management both matter.

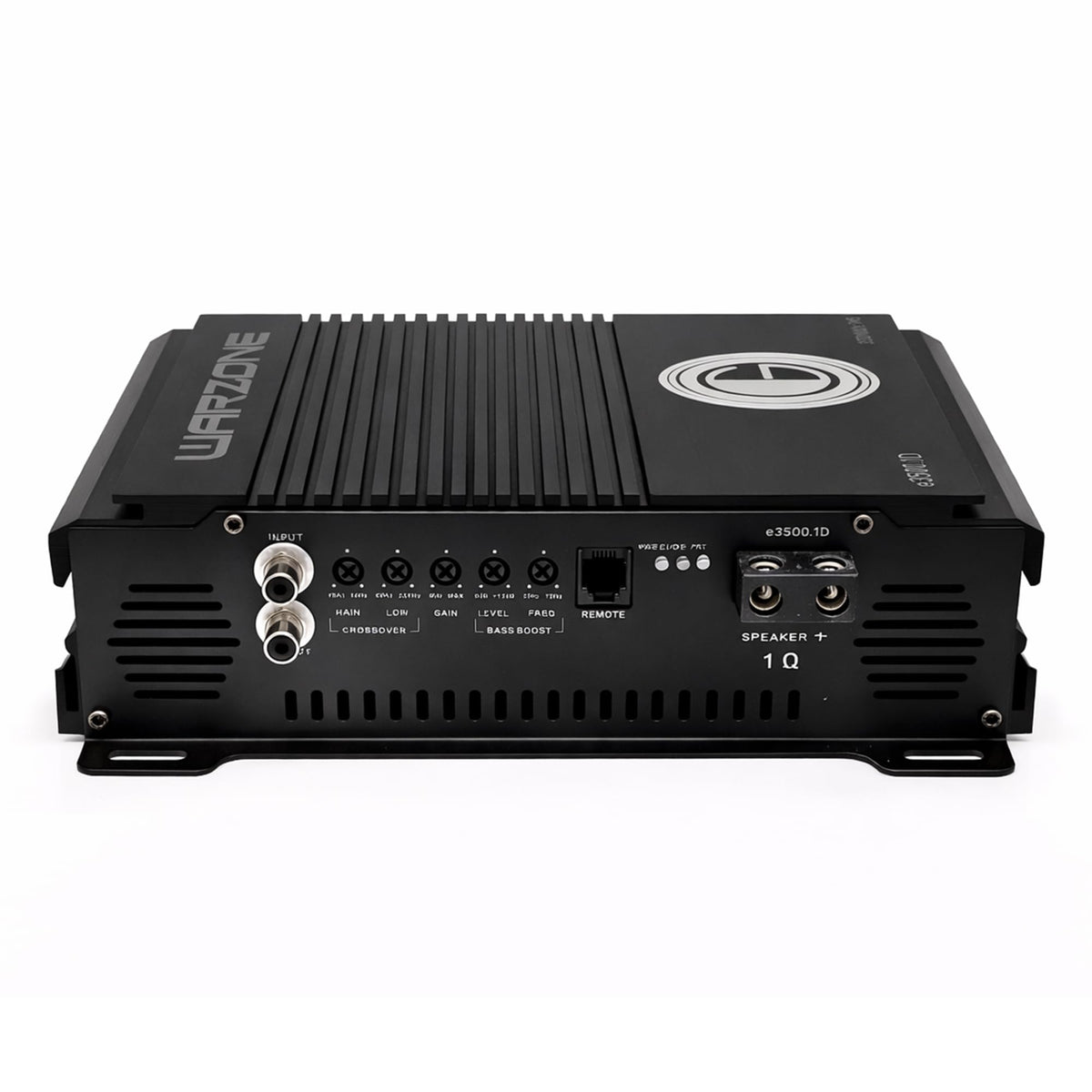

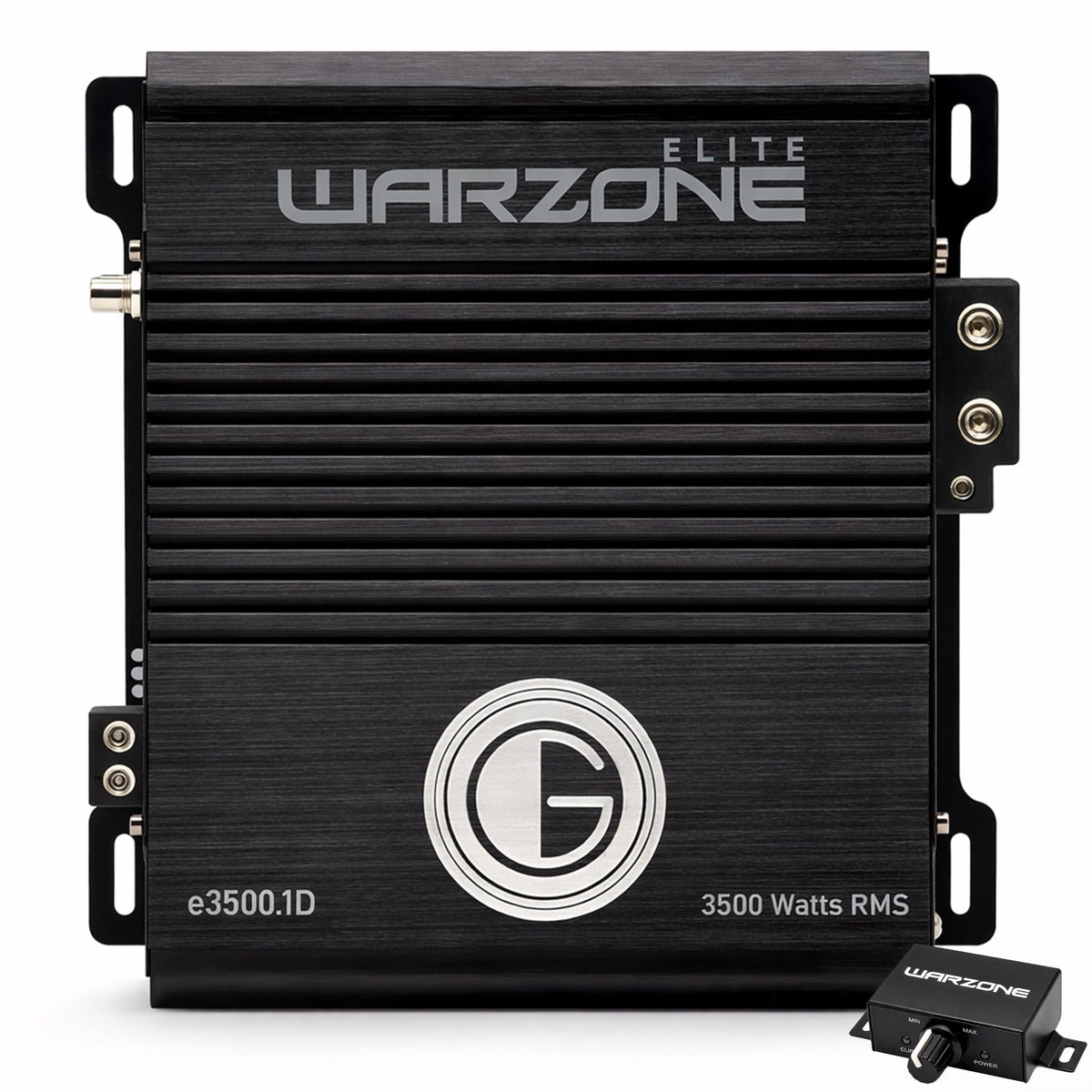

Sound adjustment is handled through adjustable low-pass and high-pass filters plus bass-boost control. These controls allow the amplifier's output to be shaped around the subwoofer system and the rest of the vehicle audio setup. A wired remote level control is included for convenient level adjustment from the driver's area.

For system protection, the amplifier is listed with four-way circuitry addressing high voltage, low voltage, overcurrent, and overheating conditions. The compact chassis is intended to simplify placement in vehicles with limited available mounting space. Pair it with appropriately matched subwoofers, suitable power wiring, and a correctly configured source signal for a complete bass upgrade.

Key Features

• Mono Class D Design: Provides dedicated single-channel power for a subwoofer-focused system.
• 1/2/4-Ohm Compatibility: Supports several common final subwoofer load configurations.
• MOSFET PWM Supply: Uses an efficient switching power-supply design.
• Adjustable Filters: Lets you tailor frequency output to the installed system.
• Bass Boost Control: Provides additional low-frequency adjustment when needed.
• Remote Level Control: Allows convenient output-level adjustment from the cabin.

Design & Installation

The E-3500-1D combines a compact amplifier chassis with a Class D platform and MOSFET pulse-width-modulated power supply. Its protection circuitry is specified to monitor high voltage, low voltage, overcurrent, and overheating conditions. The design is intended for vehicle installations where strong subwoofer output is desired without using an oversized amplifier footprint.

Mount the amplifier securely in a location with ventilation and use vehicle-appropriate power, ground, speaker, and signal wiring. Select a subwoofer wiring configuration that presents a 1-, 2-, or 4-ohm final load, then set the filter, bass-boost, and remote-level controls conservatively during initial tuning. Professional installation is advisable for high-power car-audio systems and for verifying charging-system and wiring suitability.
