Rockford Fosgate T400X2ad 400-Watt 2-Channel Amplifier

The Rockford Fosgate Power T400X2ad is an ultra-compact two-channel car amplifier designed for adding substantial full-range power where installation space is limited. It delivers 200 watts RMS per channel at either 2 or 4 ohms, making it suitable for powering upgraded component speakers, coaxial speakers, or a compact high-output system. Its small chassis helps make amplifier placement easier in cars, trucks, motorcycles, and side-by-side UTVs.

This amplifier is intended for listeners who need more clean output than a factory or aftermarket receiver can provide. Its Class-AD circuit topology is engineered for efficient operation, with average efficiency rated above 75 percent. The T400X2ad can be used as a stereo amplifier for a left and right speaker pair or bridged to power one compatible 4-ohm load.

Rockford Fosgate Constant Power technology allows the amplifier to produce its rated 200 watts RMS per channel at both 4-ohm and 2-ohm stereo loads. This gives installers flexibility when selecting compatible speakers without changing the rated stereo output. Dynamic Power ratings are specified at 223 watts x 2 at 4 ohms, 248 watts x 2 at 2 ohms, and 449 watts bridged at 4 ohms.

System tuning is supported by variable high-pass and low-pass filters, each adjustable from 50 Hz to 250 Hz with 12 dB/octave Butterworth slopes. A selectable all-pass setting is also available, while onboard treble and bass controls allow targeted adjustment at 12.5 kHz and 45 Hz. Input and output clip indicators support more careful gain setup.

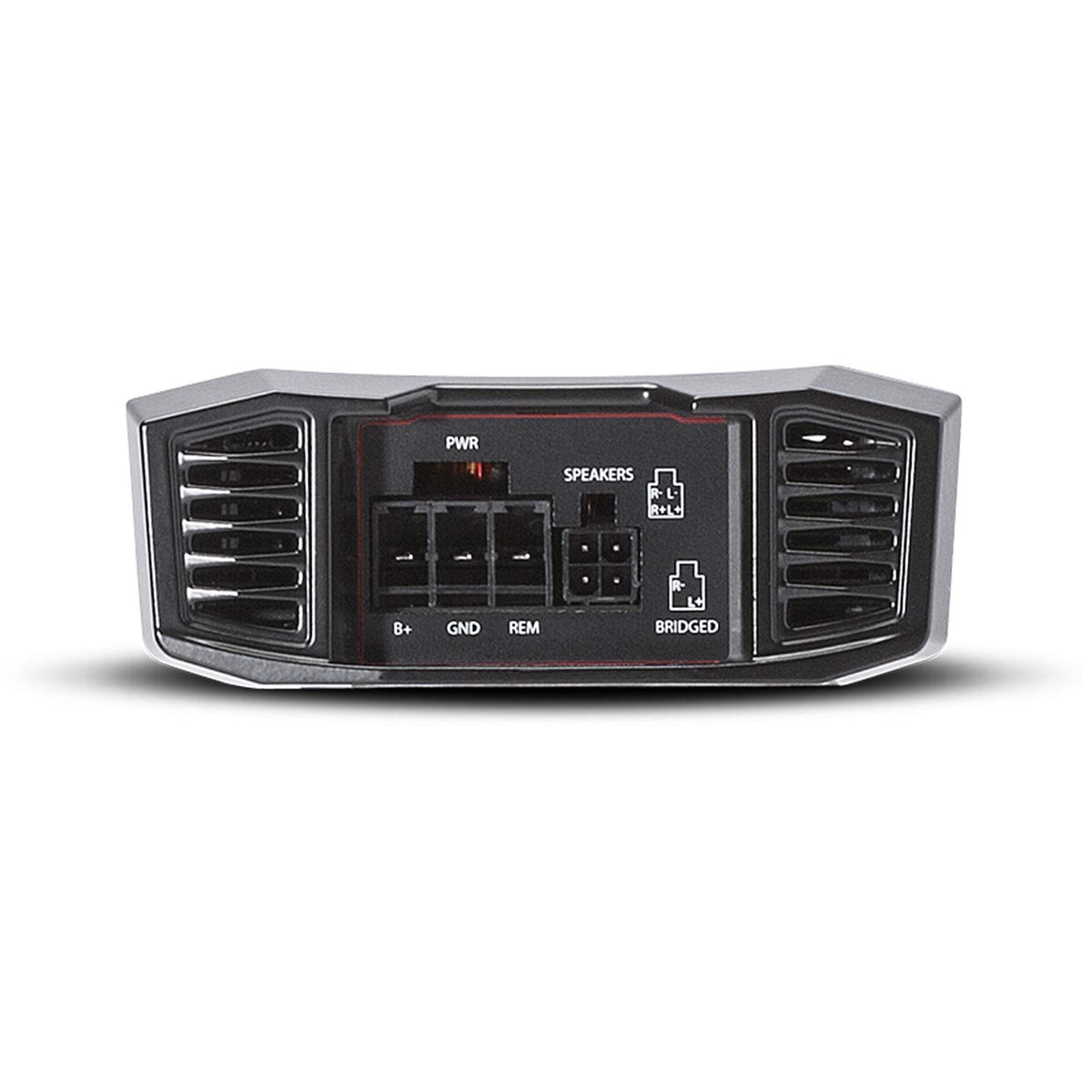

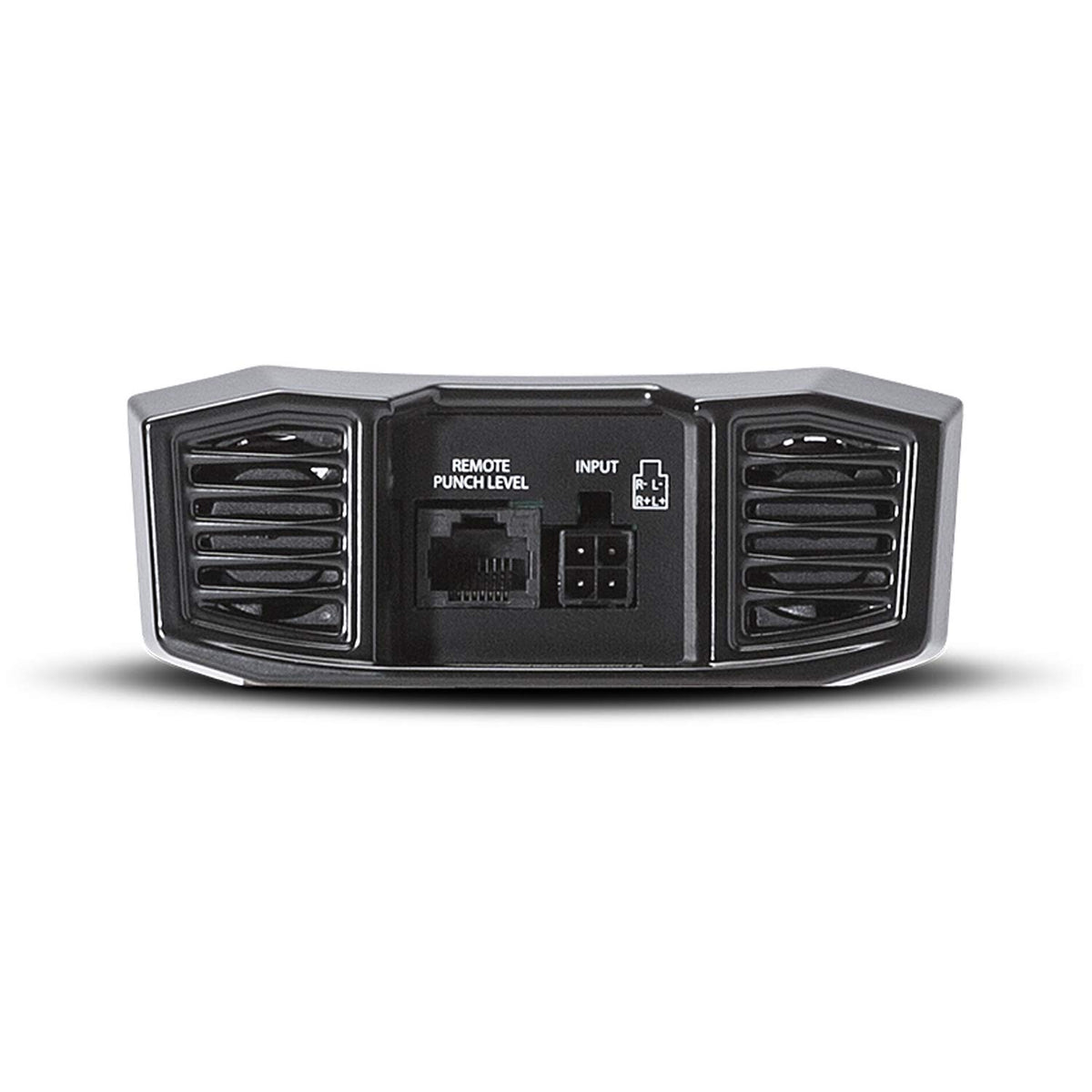

The T400X2ad accepts high-level or low-level signal through its 4-pin input harness and supports automatic turn-on when using high-level input. Its compact housing includes top-mounted controls, dual fan cooling, and detachable power and speaker connectors. It is a practical choice for a focused two-speaker upgrade or as a bridged amplifier in a compact audio system.

Key Features

• Constant Power Output: Delivers 200 watts RMS per channel at 2 or 4 ohms.
• Class-AD Topology: Provides efficient full-range amplification in a compact chassis.
• Bridgeable Two-Channel Design: Supports 400 watts RMS to one 4-ohm bridged load.
• High/Low-Level Inputs: Helps integrate with aftermarket or factory audio systems.
• Variable Crossovers: Tailor speaker frequency range from 50 Hz to 250 Hz.
• C.L.E.A.N. Clip Indicators: Helps identify input and output clipping during setup.

Design & Installation

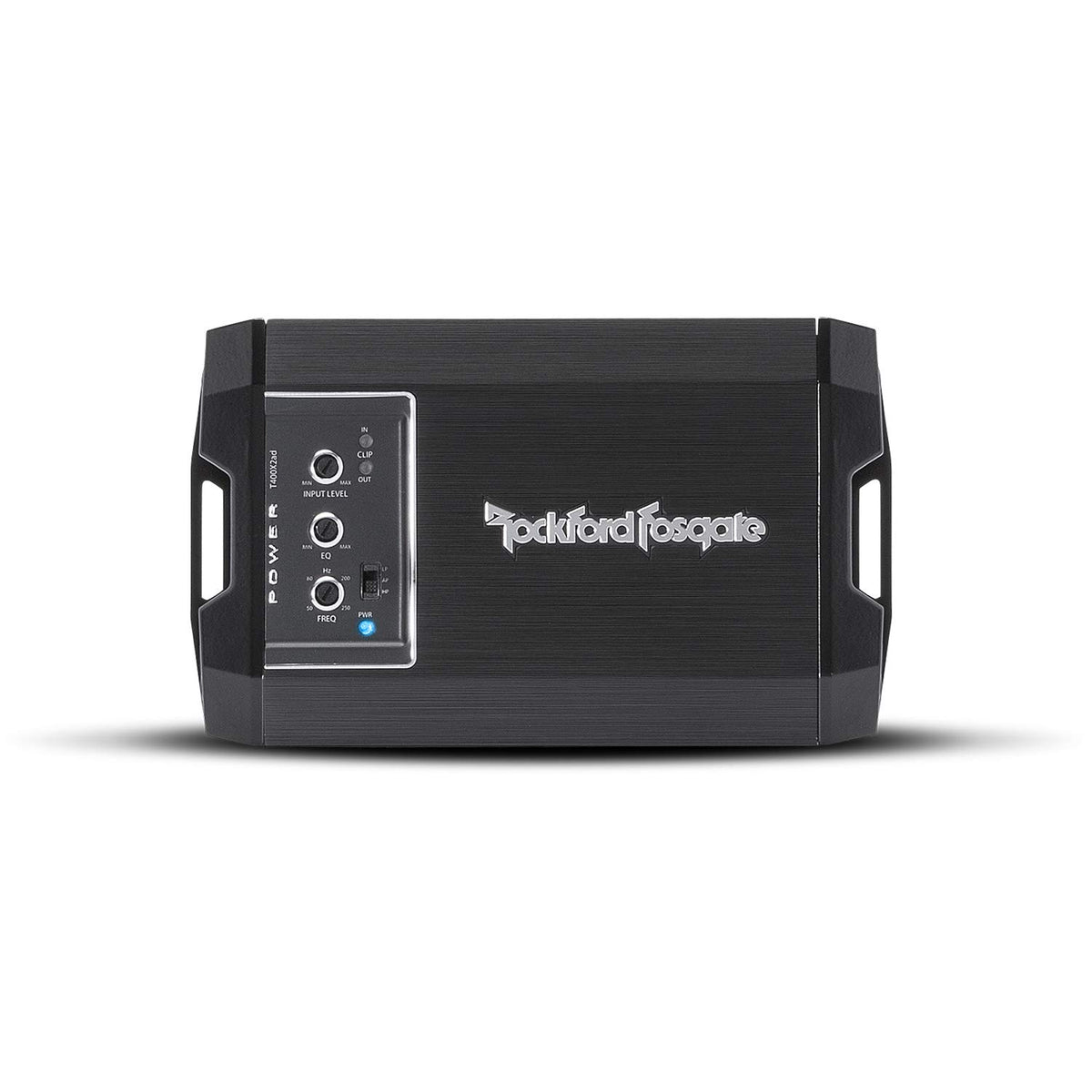

The T400X2ad uses a compact 1.6 x 4.3 x 7-inch chassis with top-mounted adjustment controls for convenient access after installation. Dual fan cooling and dual extruded heat sinks are used to manage heat in demanding installations. Blue power and red protect indicators provide at-a-glance operating status.

Plan for 8 AWG power wiring, a properly sized 60-amp fuse, secure grounding, and adequate airflow around the amplifier. Use the high-pass filter for full-range speakers or the low-pass filter for appropriate bass-duty applications; select all-pass only when filtering is handled elsewhere in the system. For bridged use, connect only a compatible 4-ohm load to the specified left-positive and right-negative speaker terminals.
