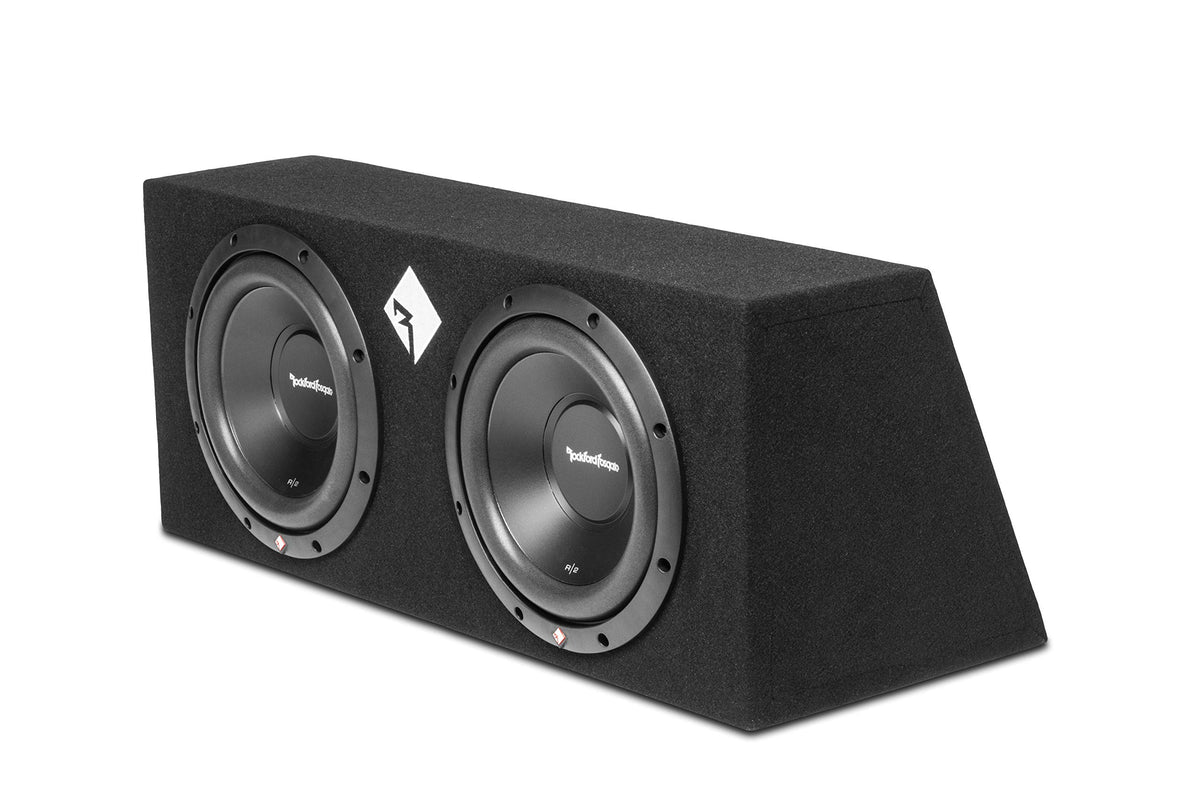

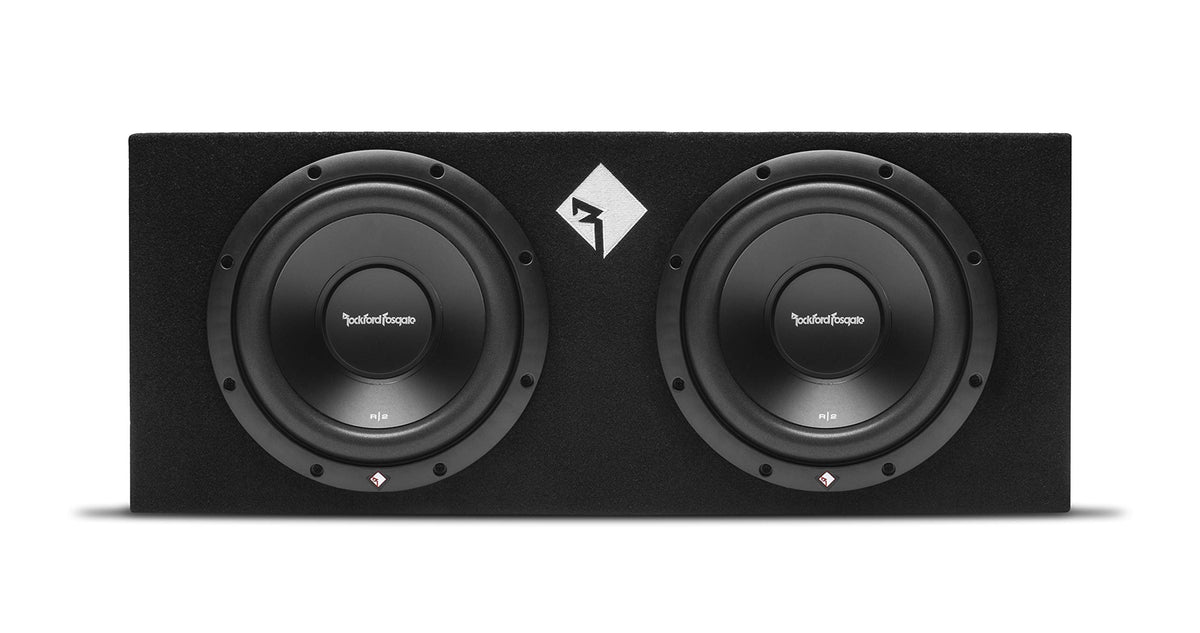

Rockford Fosgate R2-2X10 Dual 10" Sealed Subwoofer Enclosure

The Rockford Fosgate R2-2X10 is a dual 10-inch loaded subwoofer enclosure for adding dedicated low-frequency output to a car audio system. It combines two Prime R2 dual-voice-coil subwoofers in a factory-built sealed enclosure, eliminating the need to select separate drivers and build a box. This makes it a practical option for listeners who want a ready-to-wire bass upgrade.

The enclosure is internally wired as a 2-ohm mono load and is rated for 500 watts RMS total power handling. Its sealed alignment is suited to systems seeking a compact, controlled bass foundation rather than the added enclosure complexity of a custom ported design. An external amplifier is required to operate the enclosure.

Each enclosure uses an R2D2-10 replacement woofer with a dual voice coil design, polypropylene cone, foam surround, and integrated trim ring. The two-driver layout increases cone area over a single 10-inch subwoofer while keeping the enclosure in a trunk-friendly rectangular format. High-current binding posts provide a straightforward connection point for speaker wire from the amplifier.

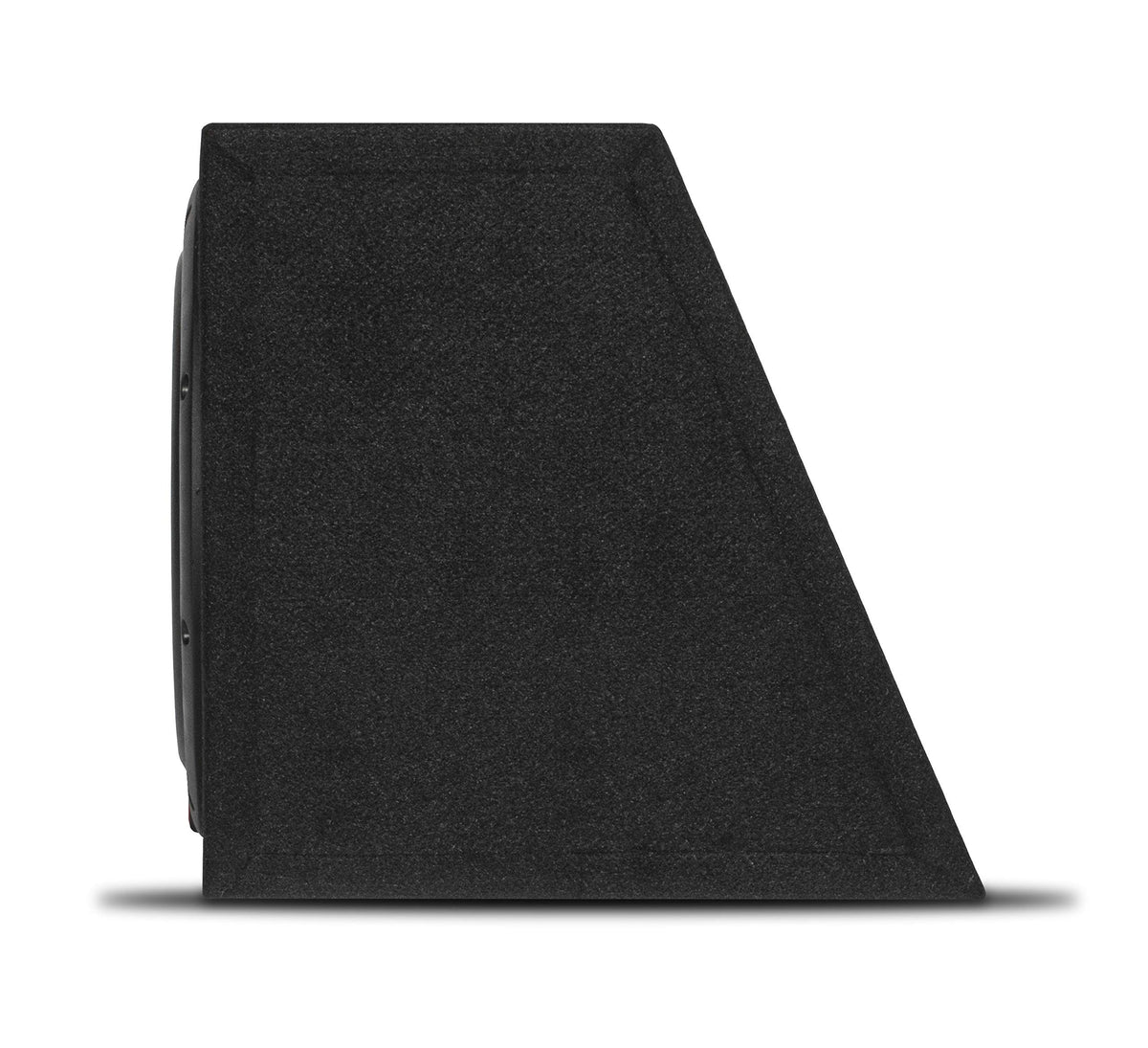

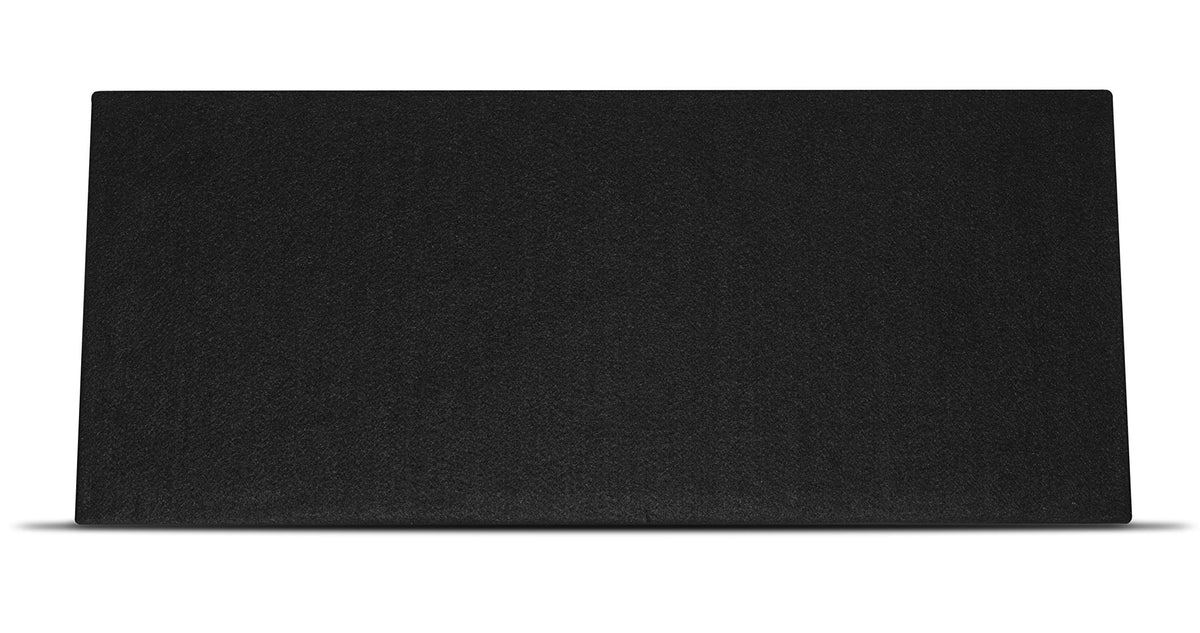

Rockford Fosgate builds the cabinet from 5/8-inch MDF and covers it in high-density carpet for a finished appearance and everyday vehicle use. The enclosure measures 12.2 inches high, 30.12 inches wide, and 12.11 inches deep. Its black carpeted finish helps it integrate cleanly with many trunk and cargo-area installations.

The R2-2X10 fits well into a system built around a compatible 2-ohm-stable mono amplifier and an existing factory or aftermarket source unit. Because the woofers and enclosure are already matched and wired, installation can be simpler than assembling individual subwoofers, a separate box, and internal wiring. Use appropriate amplifier setup, secure mounting, and safe wire routing to complete the upgrade.

Key Features

• Dual 10-Inch Design: Two pre-installed R2D2-10 subwoofers provide increased cone area in one enclosure.
• 500-Watt RMS Handling: Supports 500 watts RMS total system power handling.
• 2-Ohm Mono Load: Internal wiring presents a 2-ohm load to a compatible amplifier.
• Sealed Enclosure: Factory-built sealed cabinet simplifies subwoofer system integration.
• 5/8-Inch MDF Cabinet: MDF construction provides a rigid foundation for the loaded drivers.
• High-Current Binding Posts: Rear terminals accept 16 AWG to 12 AWG speaker wire.

Design & Installation

The R2-2X10 uses a precision-built sealed enclosure constructed from 5/8-inch MDF and finished in high-density black carpet. It is loaded with two R2D2-10 dual-voice-coil subwoofers featuring polypropylene cones, foam surrounds, stamped baskets, integrated trim rings, and dual 12 AWG compression terminals. The cabinet uses high-current binding posts for its external amplifier connection.

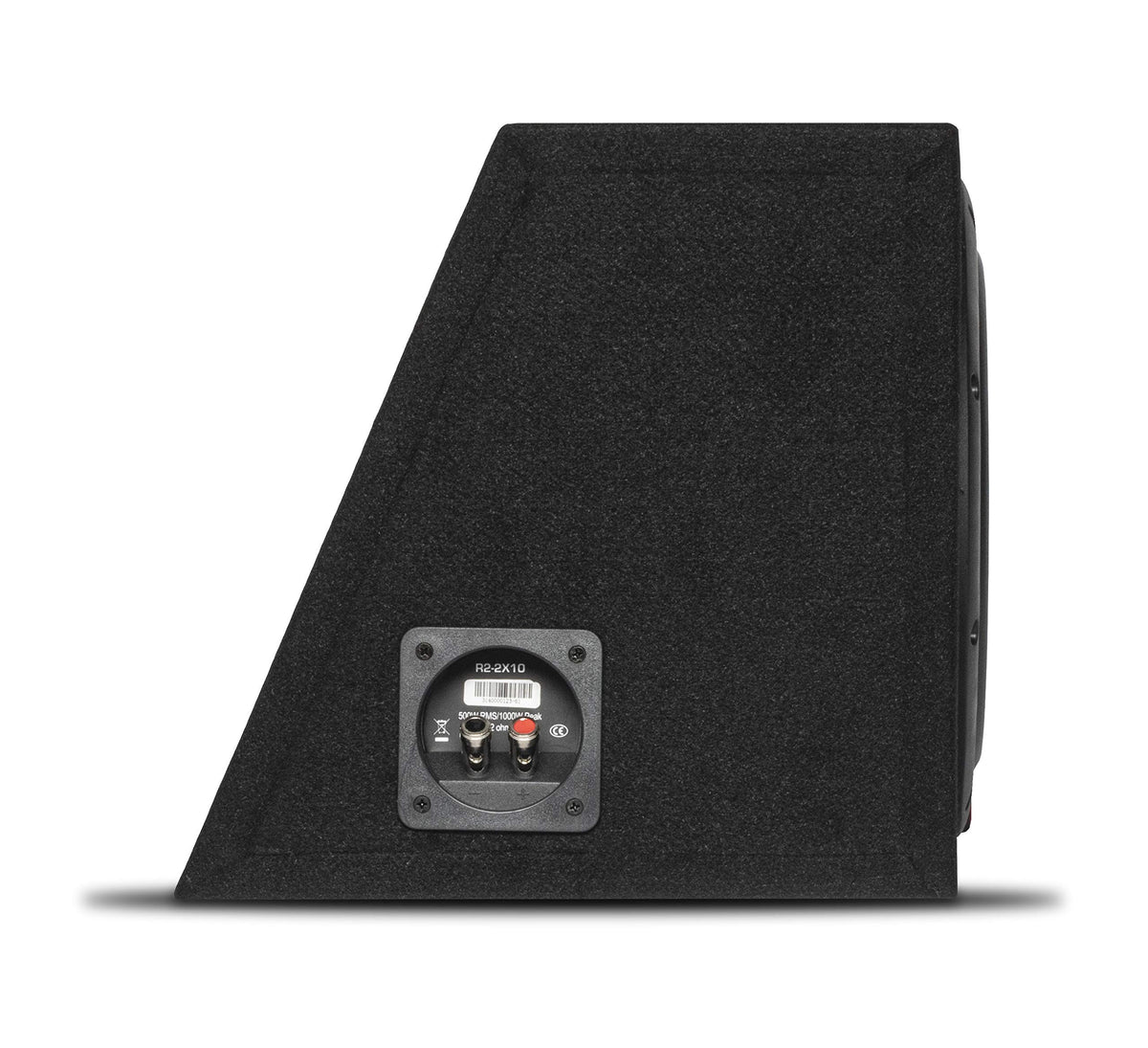

Connect the amplifier's positive speaker output to the enclosure's red terminal and the negative output to the black terminal. Use 16 AWG to 12 AWG speaker wire, strip approximately 5/8 inch of insulation, and route speaker wire away from high-current vehicle wiring where possible. Disconnect the vehicle battery's negative terminal before installation, securely mount the enclosure, and pair it with a 2-ohm-stable mono amplifier matched appropriately to its 500-watt RMS total rating.
