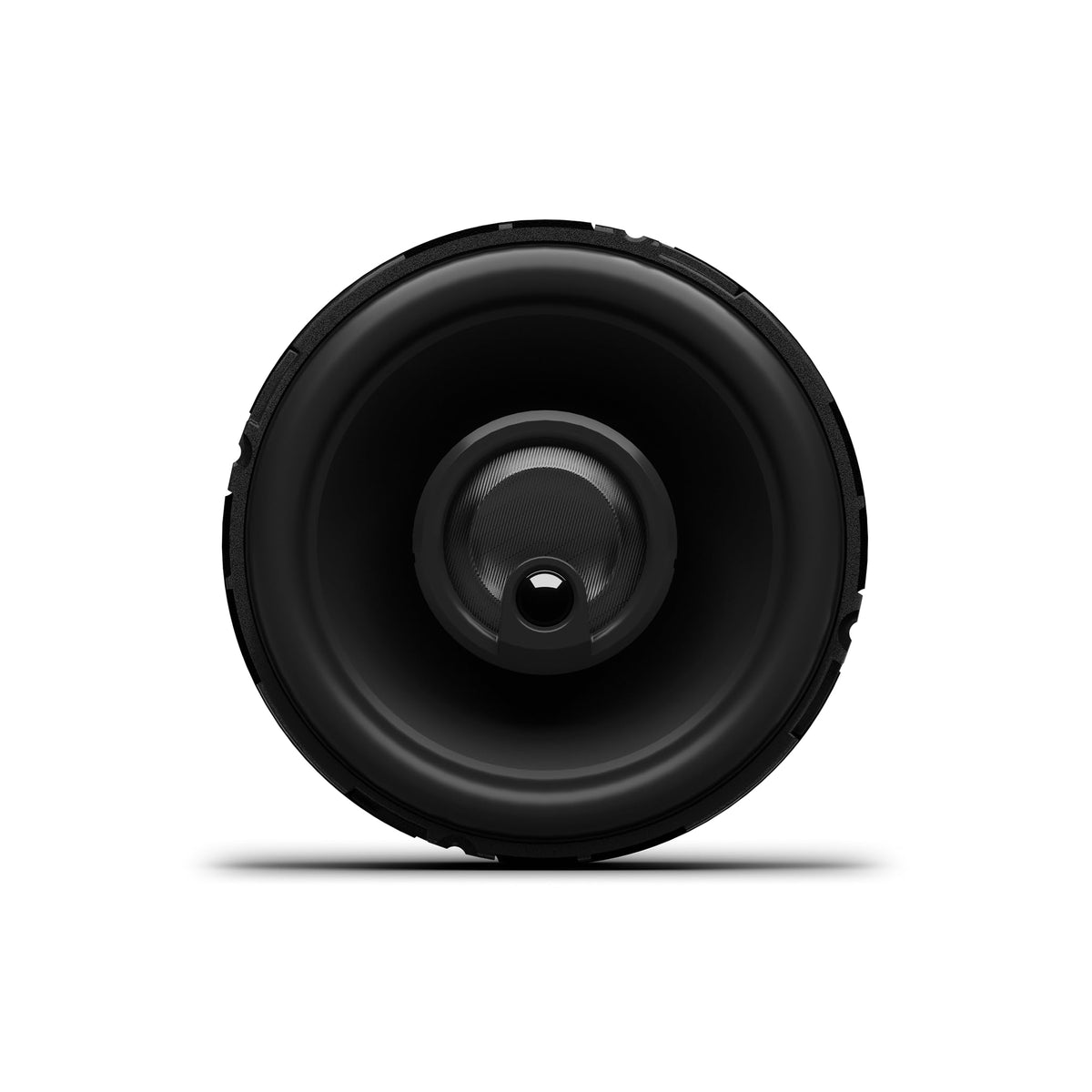

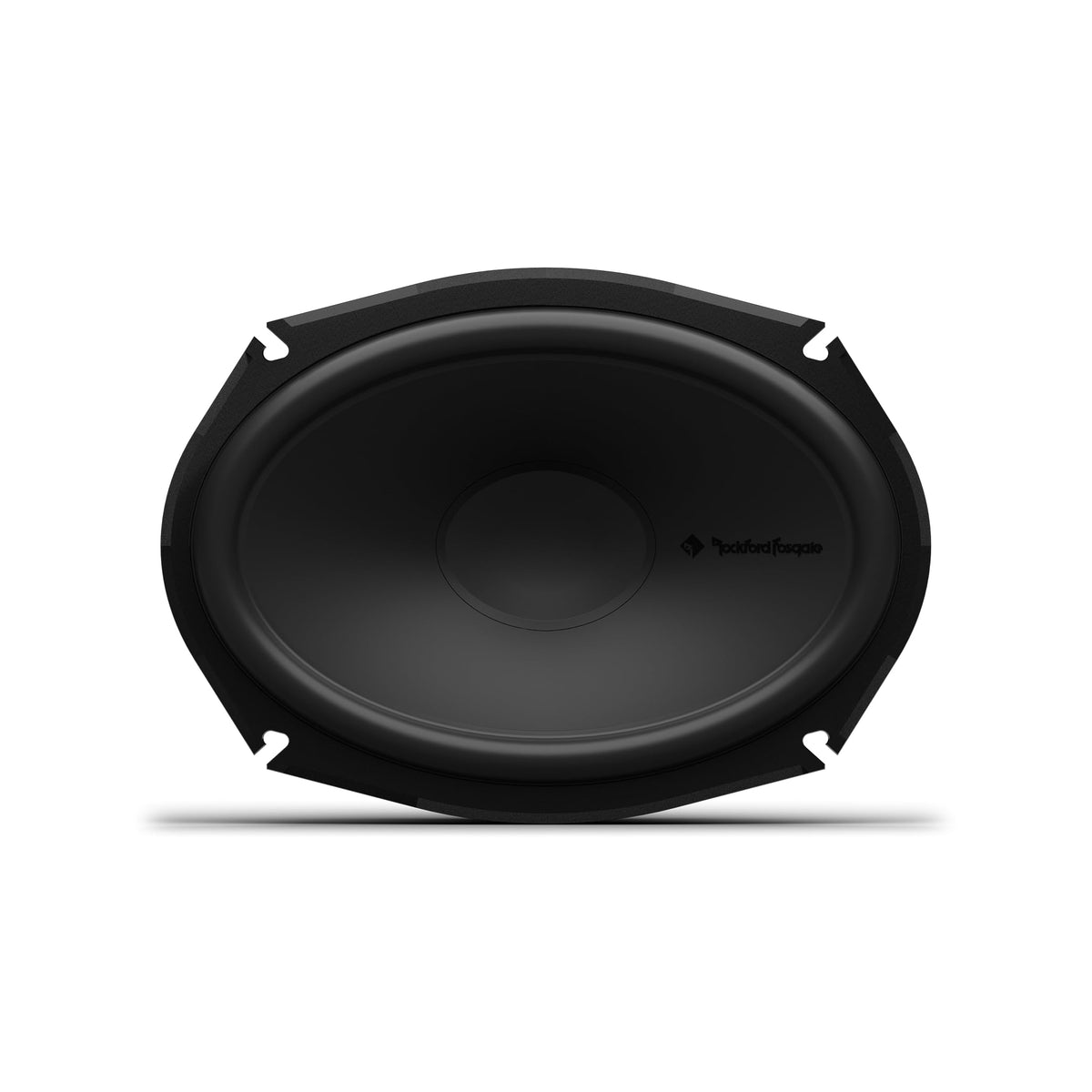

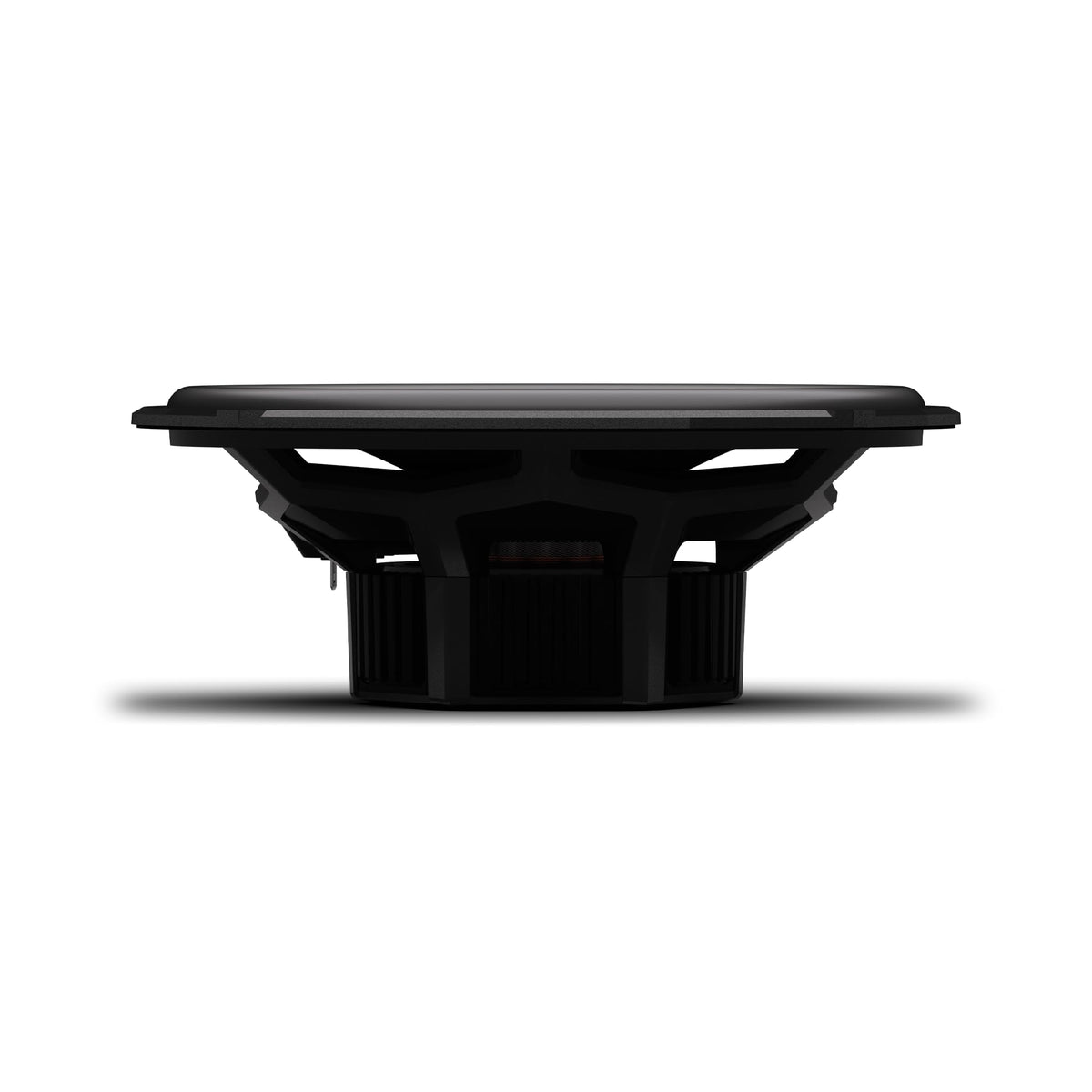

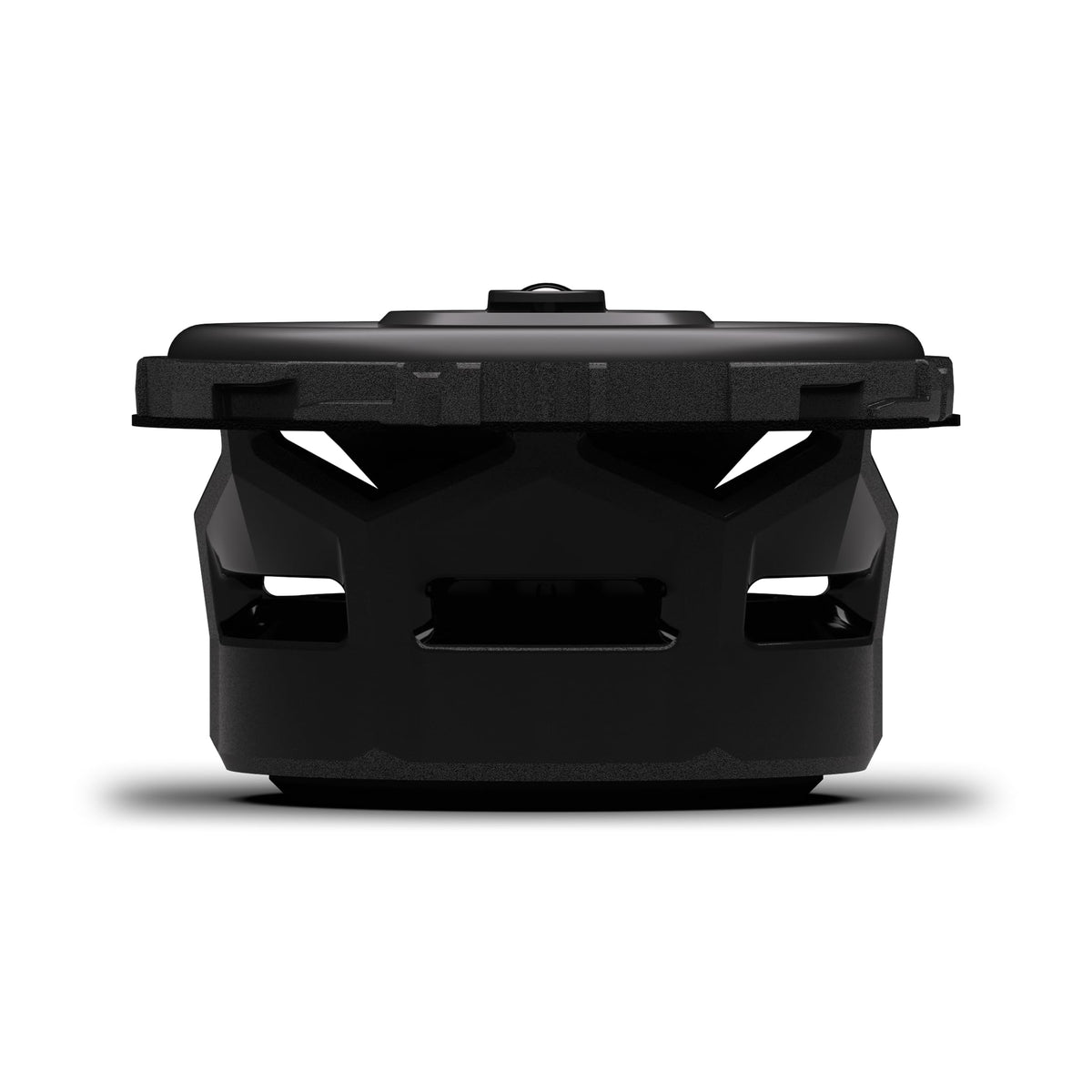

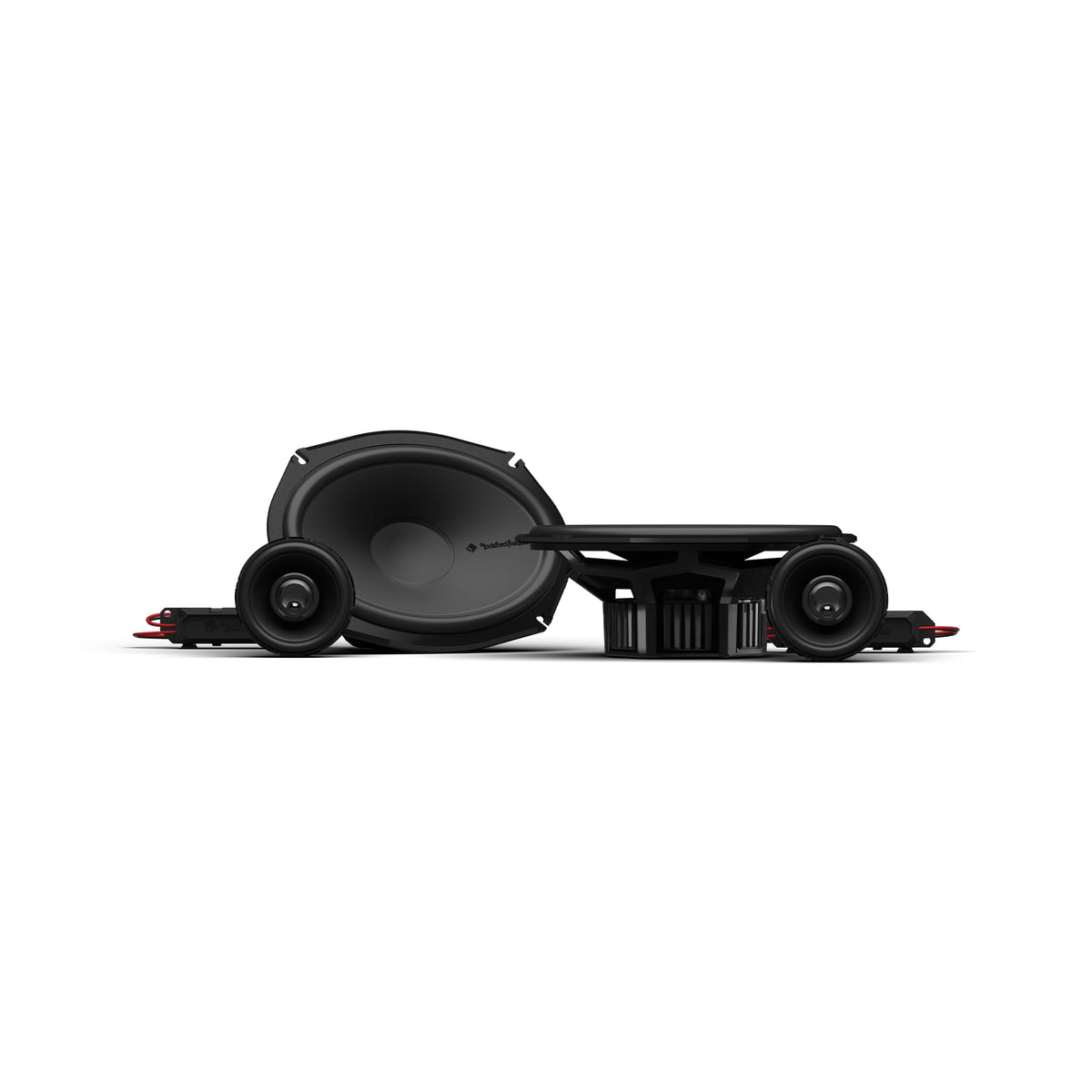

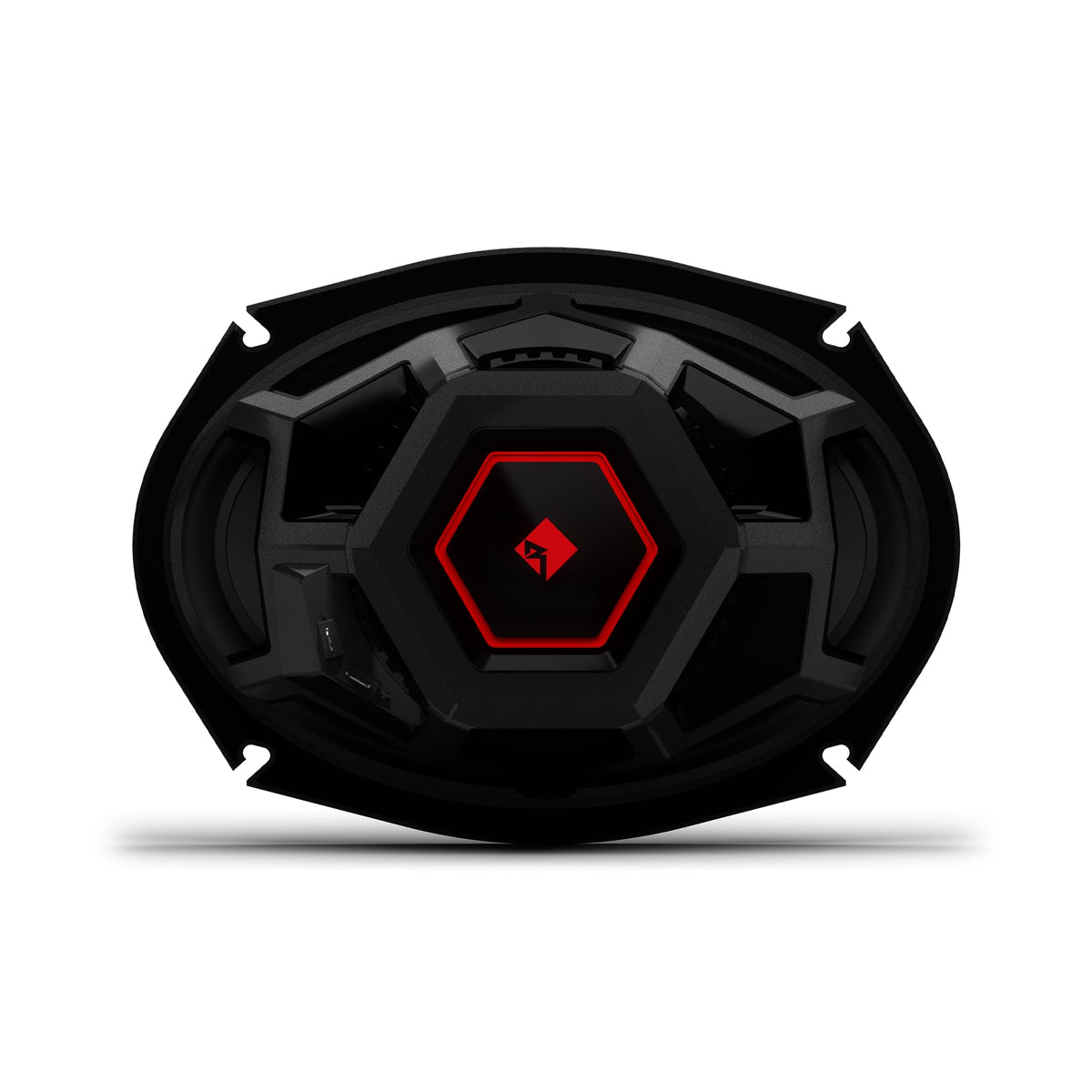

Rockford Fosgate P3V2-69C3 6x9-Inch 3-Way Component System

The Rockford Fosgate P3V2-69C3 is a 6x9-inch, 3-way coaxial/component speaker system designed for vehicles that use separate larger woofers and compact dash or upper-door speakers. It combines a pair of 6x9-inch woofers with a pair of 3.5-inch 3-way coaxial speakers to replace multiple factory drivers as one matched system. This approach helps address the limited bass output and reduced high-frequency detail common with basic OEM speaker arrangements.

This system is intended for shoppers upgrading compatible factory door and dash locations while retaining an OEM-oriented installation layout. The included 3.5-inch twist-lock adapters support several mounting-tab configurations, but vehicle fitment must still be verified before purchase. Its 4-ohm nominal impedance makes it suited to compatible aftermarket amplifiers and many conventional car-audio installations.

The P3V2-69C3 is rated for 75 watts RMS and 150 watts peak power handling, with a published system frequency response of 49 Hz to 25 kHz. The 6x9-inch woofers handle the lower range while the 3.5-inch coaxial speakers add midrange and high-frequency reproduction. The result is a system built to provide more complete coverage than a single pair of coaxial speakers in the same vehicle locations.

Its woofers use mica-reinforced polypropylene cones, Santoprene rubber surrounds, Nomex spiders, and ferrite motor structures. Rockford Fosgate's VAST 2.0 surround design increases effective cone area, while the removable woofer motor cover can help with clearance in tighter installations. The 3.5-inch coaxial speakers incorporate a 3/4-inch Tetolon inverted-dome tweeter and a 3/8-inch polypropylene piezo super tweeter.

The supplied passive woofer networks and non-polarized bass blockers divide the system so the smaller coaxial speakers are protected from lower-frequency content. Modular crossover connections allow the woofer crossover sections to be mounted together or separately when installation space is limited. For a complete upgrade, pair the system with appropriate wiring, secure mounting, and amplification or a receiver that can operate safely with 4-ohm speakers.

Key Features

• True 3-Way Layout: Combines 6x9-inch woofers with 3.5-inch coaxial speakers.
• 75-Watt RMS Rating: Supports properly matched amplified car-audio systems.
• VAST 2.0 Surround: Increases usable woofer cone area for output.
• Modular Woofer Crossovers: Allows flexible crossover placement during installation.
• Twist-Lock Adapters: Supports several 3.5-inch OEM-style mounting arrangements.
• Removable Motor Covers: Helps the 6x9-inch woofers fit tighter locations.

Design & Installation

The 6x9-inch woofers use mica-reinforced polypropylene cones, Santoprene rubber surrounds, linear Nomex spiders, and glass-fiber-reinforced composite baskets. A Y35 ferrite magnet motor structure and vented Kapton voice-coil former support the woofer assembly, while the 3.5-inch coaxial drivers use a Tetolon inverted-dome tweeter and polypropylene piezo super tweeter. Grilles and trim rings are not included.

Confirm the vehicle's speaker locations, cutout dimensions, mounting depth, and window or mechanism clearance before installation. The woofer cutout is 8.41 by 5.71 inches, and the standard woofer mounting depth is 3.13 inches; the 3.5-inch coaxial speakers use included twist-lock adapters for front- or rear-loading arrangements. Install the supplied bass blockers inline with the positive lead for the 3.5-inch speakers, observe speaker polarity, and mount the passive woofer crossovers securely.
