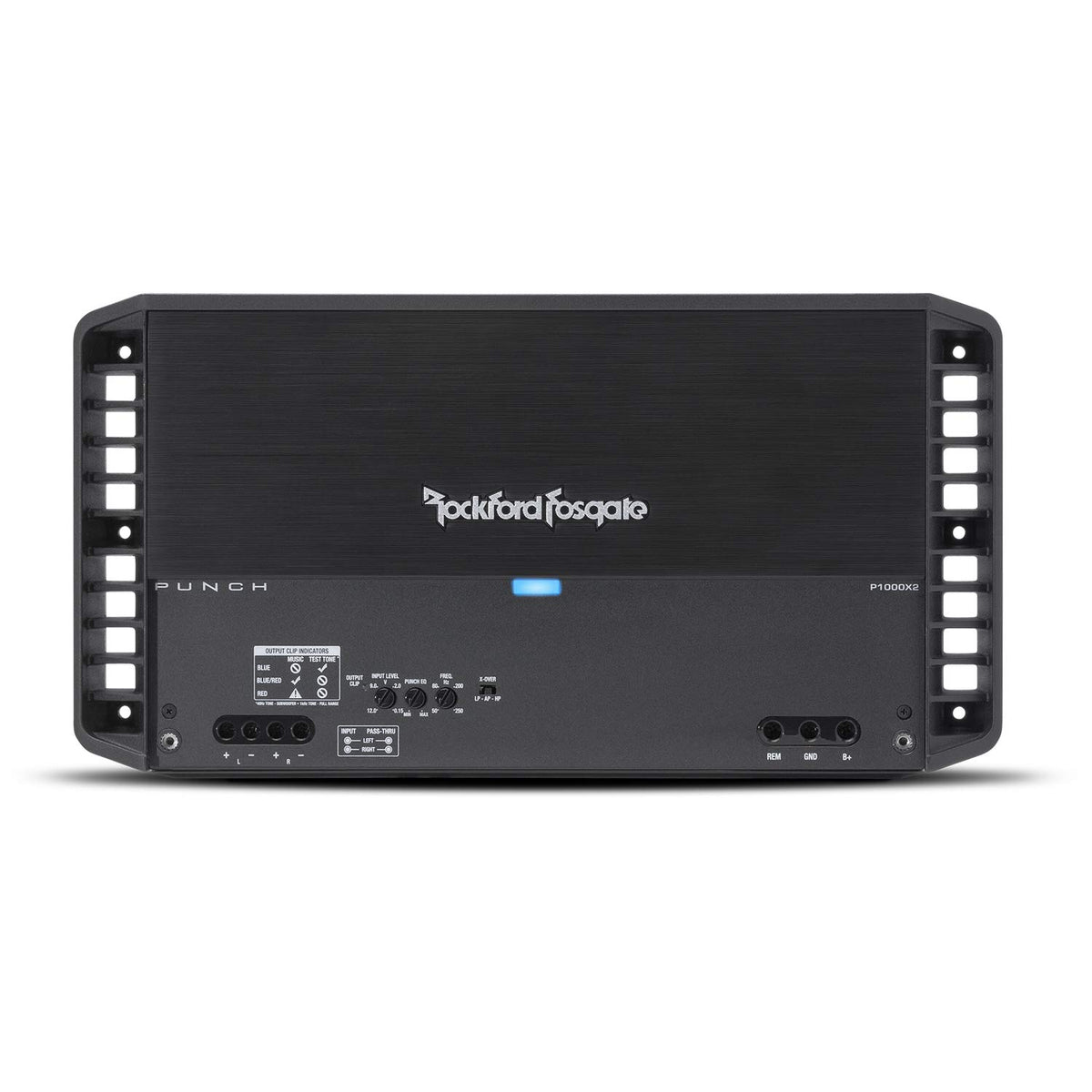

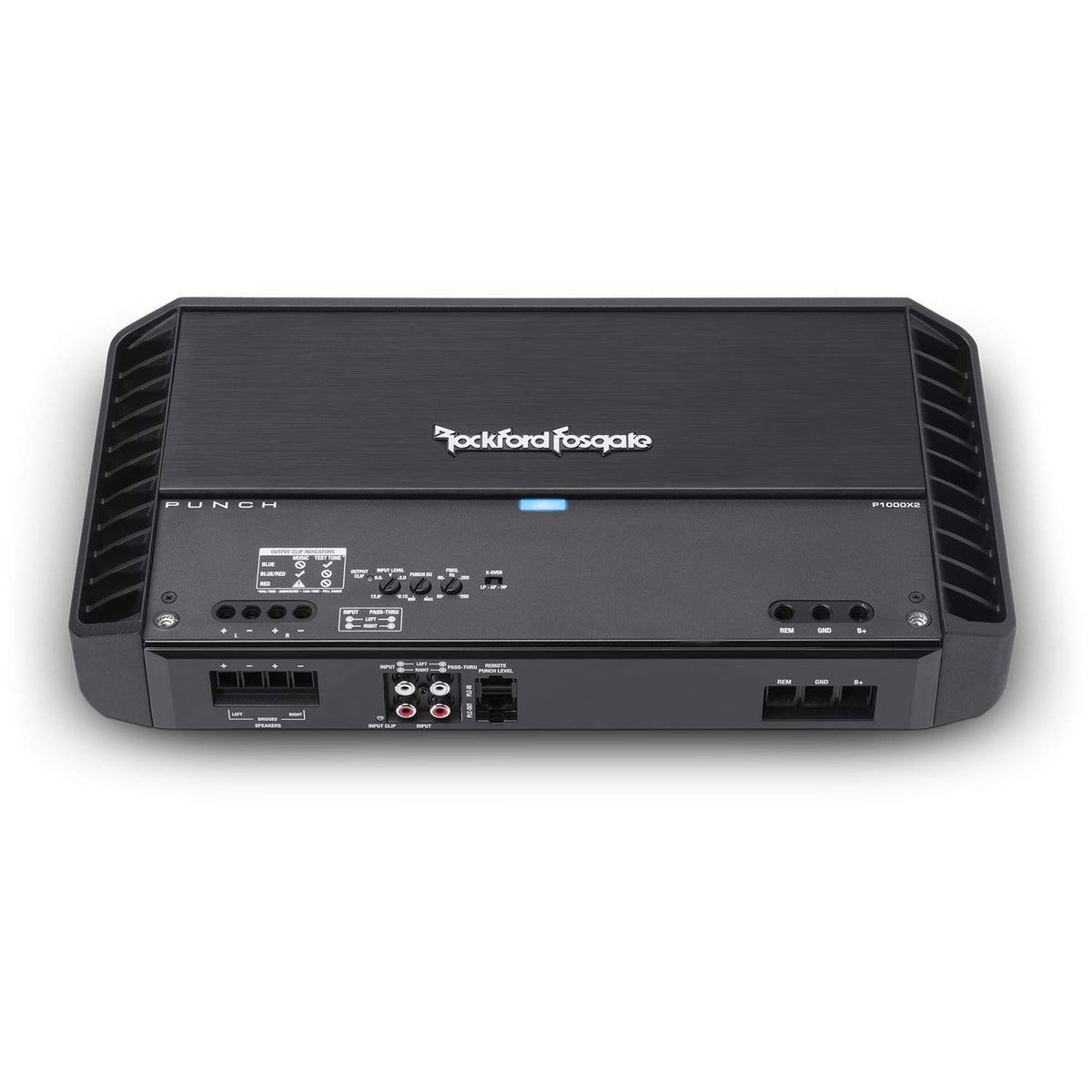

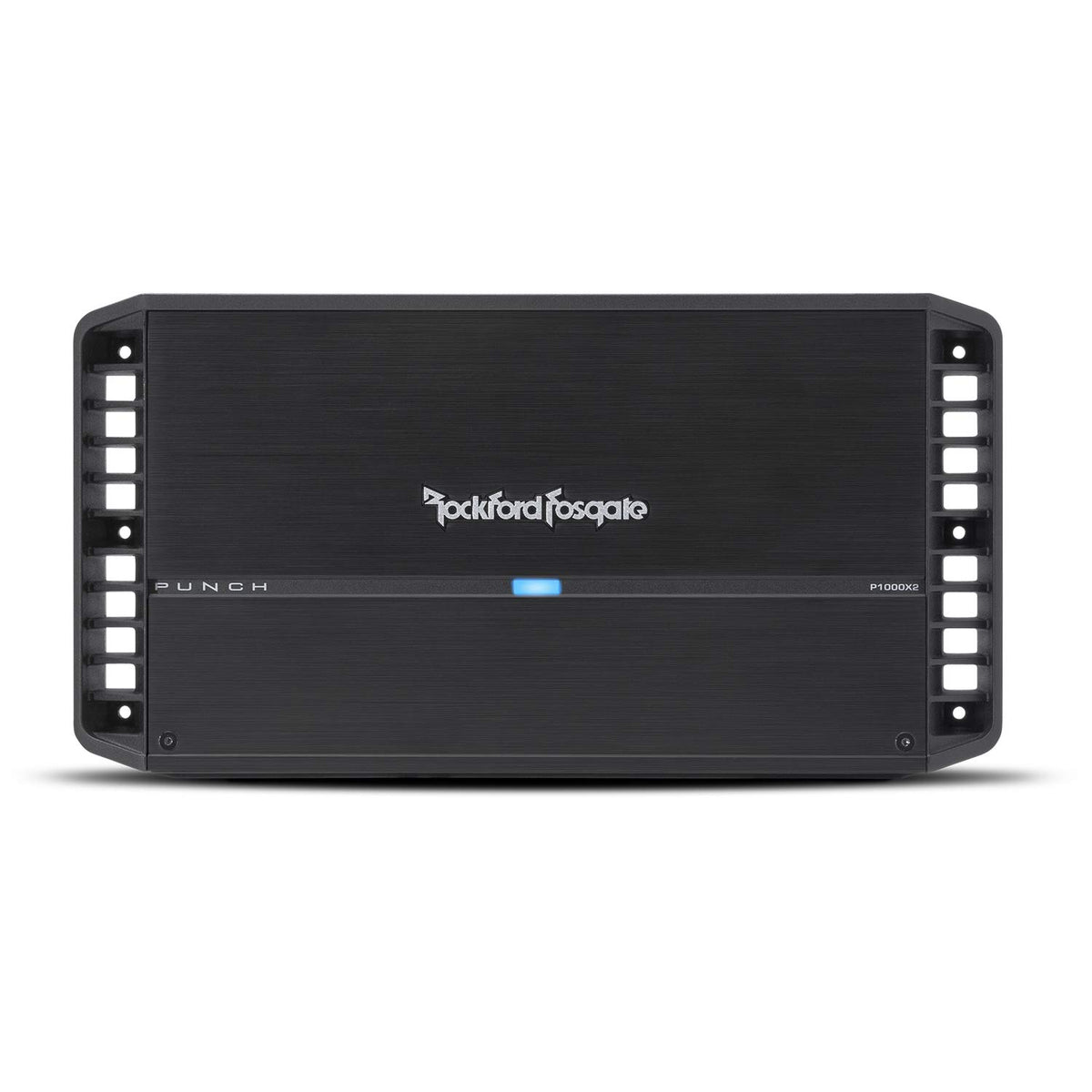

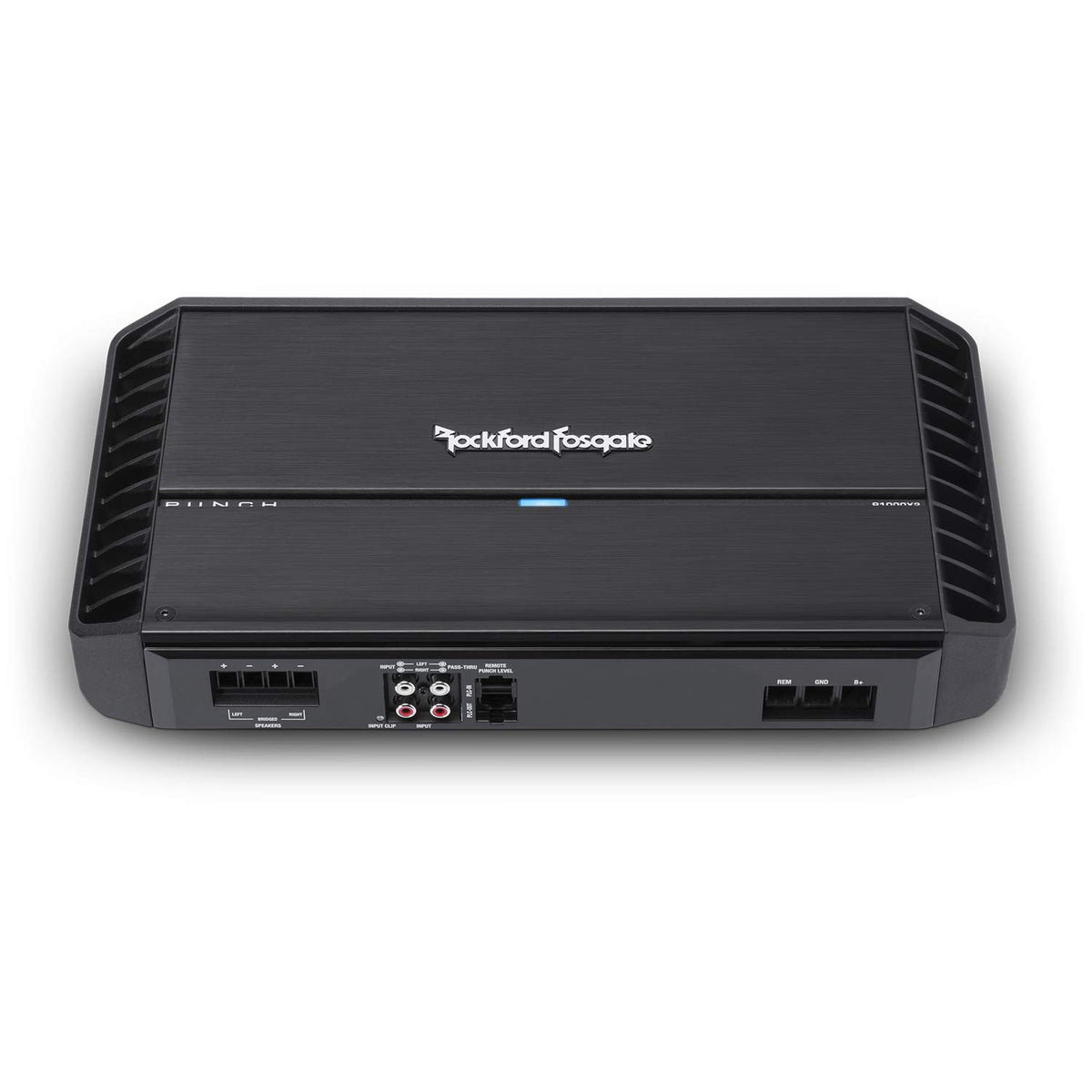

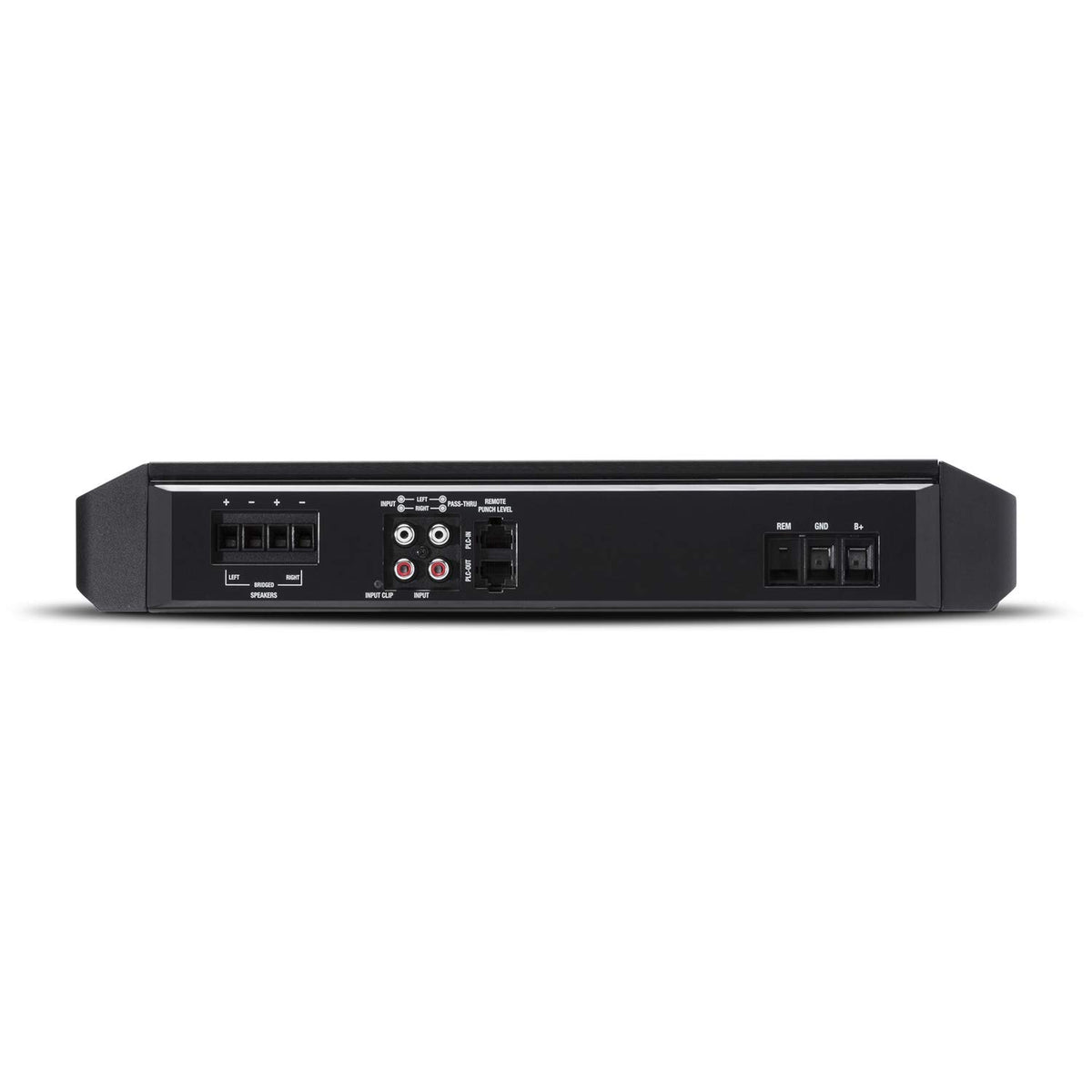

Rockford Fosgate P1000X2 2-Channel Car Amplifier

The Rockford Fosgate Punch P1000X2 is a full-size 2-channel car amplifier designed to add substantial power to an aftermarket audio system. It provides separate left and right channels for speakers or components, and it can be bridged into a single high-power channel for compatible subwoofer applications. This flexibility helps solve the common need for more output than a receiver or compact amplifier can provide.

It is a practical choice for listeners building a strong front-stage, component-speaker, or subwoofer-focused system. The amplifier delivers 300 watts RMS per channel at 4 ohms and 500 watts RMS per channel at 2 ohms. In bridged operation, it delivers 1,000 watts RMS at 4 ohms for a properly matched mono load.

Its Class A/B circuit topology is intended for full-range operation, with a rated frequency response of 20 Hz to 20 kHz. Variable high-pass, low-pass, and all-pass crossover selection helps tailor the amplifier to speakers, components, or subwoofers. The adjustable Punch EQ2 adds bass or treble shaping according to the selected crossover mode.

The P1000X2 includes Rockford Fosgate C.L.E.A.N. setup technology, using input and output clip indicators to assist with level setting. Its RCA input accepts either high-level speaker signal or low-level RCA signal, reducing the need for a separate line-output converter in many factory-radio installations. A passive RCA pass-through output can feed an additional amplifier.

For a larger system, the P1000X2 can power a stereo pair while its pass-through output supports signal distribution to another amplifier. It requires a correctly sized charging system, 4 AWG power wiring, a 140-amp fuse, and proper speaker-load planning. The compact full-chassis footprint allows installation on an amp rack, trunk panel, or other ventilated mounting location.

Key Features

• 1,000-Watt RMS Total Power: Supplies high continuous output for demanding speaker or subwoofer systems.
• Bridgeable Two-Channel Design: Combines both channels for a 4-ohm mono application.
• High- and Low-Level Inputs: Connects to factory speaker wiring or aftermarket RCA outputs.
• C.L.E.A.N. Setup: Clip LEDs help set source and amplifier levels.
• Variable Butterworth Crossovers: Supports high-pass, low-pass, or all-pass system tuning.
• Punch EQ2: Adds adjustable bass or treble contouring when needed.

Design & Installation

The P1000X2 uses a cast-aluminum heatsink with convection cooling and a stealth top-mounted control panel. Its captive C-clamp power and speaker terminals are designed for secure wiring connections, while Power, Protect, Thermal, input-clip, and output-clip indicators provide operating feedback. Short-circuit and over-current protection are included.

Use 4 AWG power and ground wiring, install a 140-amp fuse near the battery, and maintain at least 1 inch of air space around the heatsink. The amplifier is rated for loads no lower than 2 ohms per channel in stereo or 4 ohms bridged. Mount it in a ventilated interior location, connect a compatible source signal, and match its RMS output and impedance capability to the connected speakers or subwoofers.
