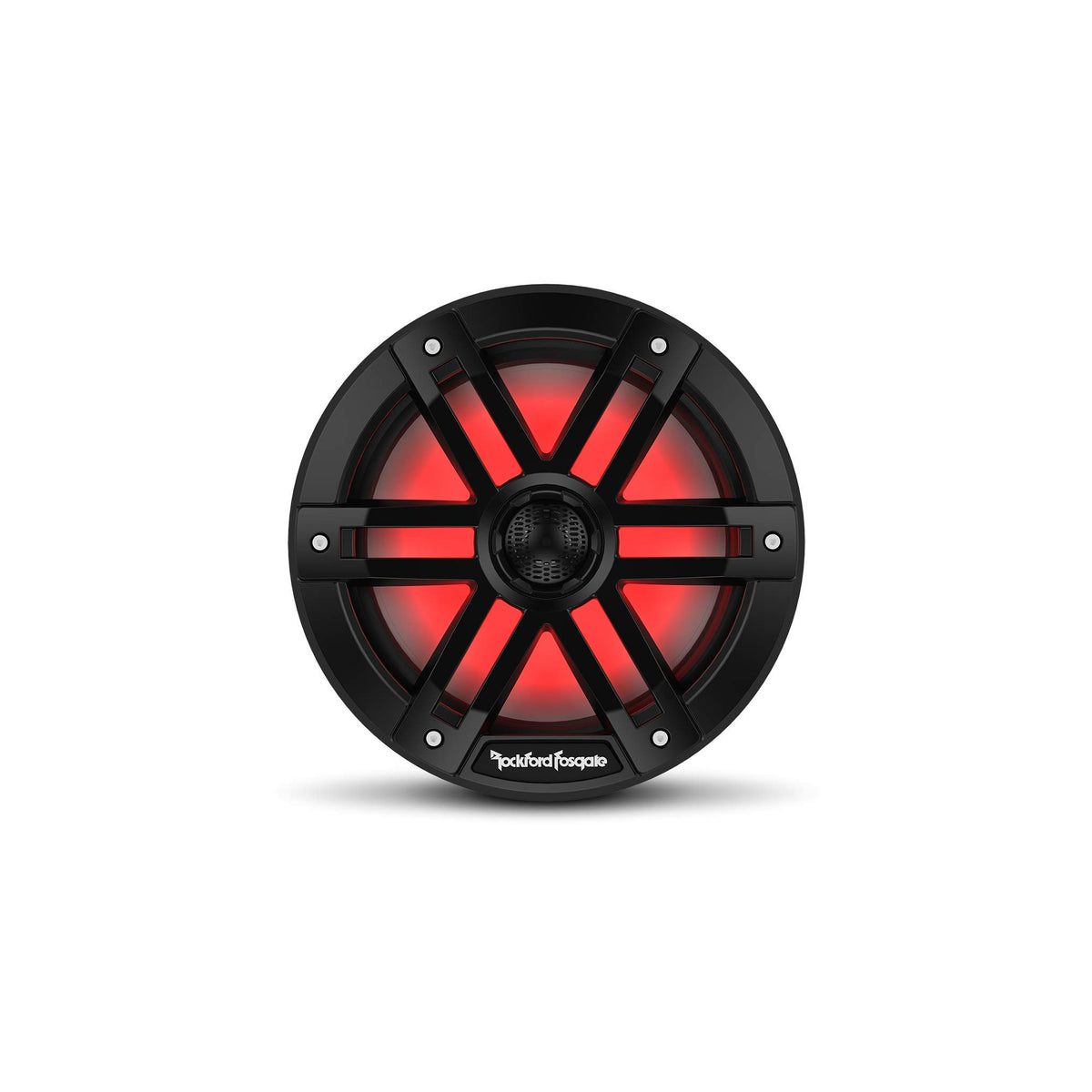

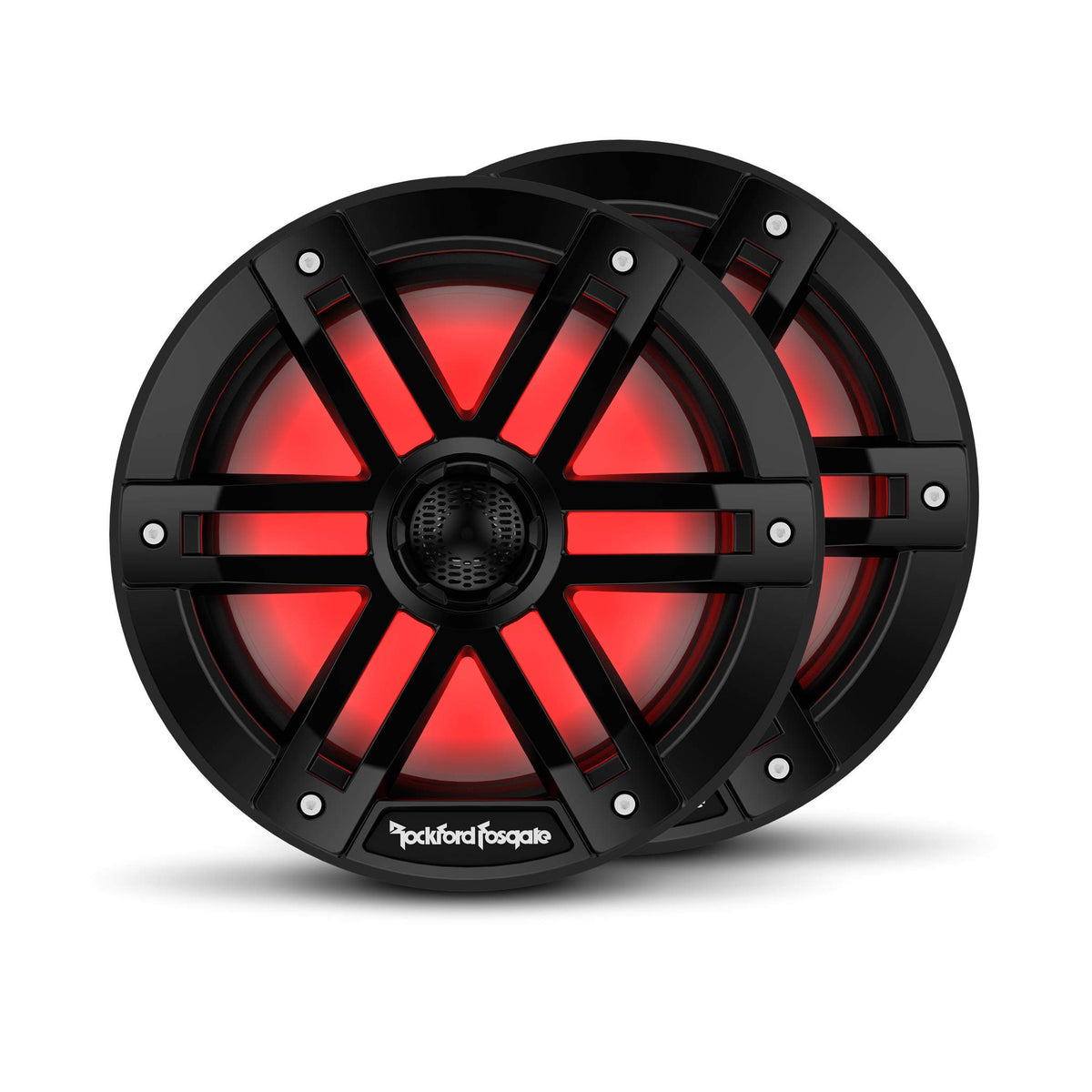

Rockford Fosgate M1-8B 8" Color Optix Marine Speakers

The Rockford Fosgate M1-8B is a pair of 8-inch, 2-way coaxial marine speakers designed for boats, powersports vehicles, and other exposed installations. They provide a full-range audio upgrade where conventional speakers may be vulnerable to water spray, salt, vibration, and ultraviolet exposure. The black grille and trim presentation suits darker interior and exterior marine installations.

Each speaker uses a 4-ohm design with a 1-inch balanced-dome tweeter and an integrated crossover network. With 150 watts RMS and 600 watts peak power handling, the M1-8B is suited to systems that need stronger output than a basic factory speaker setup. Its 35 Hz to 22 kHz frequency response supports substantial midbass along with detailed high-frequency playback.

Color Optix RGB lighting is built into the speakers for coordinated illumination in compatible Rockford Fosgate marine systems. The speakers work with the separately sold PMX-RGB Color Optix controller and RF Connect app for lighting control. Integrated Deutsch and Amphenol-style connectivity is intended to simplify compatible audio and lighting connections.

Element Ready construction focuses on materials and design choices intended for outdoor use. The speakers use a mineral-filled polypropylene cone, Santoprene VAST surround, sealed motor design, UV-stable ASA frame and grille, and marine-grade connection terminals. Their IPX6 water-intrusion rating supports installations exposed to powerful water jets.

The M1-8B is a practical fit for a Rockford Fosgate Color Optix system using compatible source units, controllers, amplifiers, speakers, and subwoofers. It can also serve as a stand-alone full-range speaker upgrade when RGB lighting control is not required. Plan the installation around its 7.1-inch cutout requirement and 3.3-inch mounting depth before ordering.

Key Features

• 8-Inch 2-Way Coaxial Design: Combines woofer and tweeter performance in one marine-ready speaker assembly.
• 150-Watt RMS Power Handling: Supports use with appropriately matched external amplification for stronger output.
• Color Optix RGB Lighting: Adds configurable illumination when used with the optional PMX-RGB controller and RF Connect app.
• Element Ready Construction: Uses weather-resistant materials selected for marine and motorsports environments.
• Integrated Sealed Crossover: Directs high frequencies to the tweeter without requiring an external crossover module.
• Marine-Grade Hardware: Includes stainless-steel mounting hardware and corrosion-resistant connection terminals.

Design & Installation

The M1-8B uses a co-molded mineral-filled polypropylene cone body with a Santoprene VAST surround, a 1-inch LCP balanced-dome tweeter, and a high-temperature Kapton woofer voice-coil former. Its sealed motor and fully sealed integrated concealed crossover support use in exposed environments. The black ASA plastic frame and grille are UV-stable, while zinc-nickel-plated brass terminals help support durable connections.

Confirm a 7.1-inch cutout diameter and at least 3.3 inches of mounting depth at each location. The speakers include grilles and stainless-steel mounting hardware; route speaker wiring separately from Color Optix lighting wiring, and use the optional PMX-RGB controller for app-based RGB control. Rockford Fosgate recommends at least 20-gauge wire when hardwiring Color Optix speakers, and the lighting circuit requires a 9-16 volt supply with a 1-amp recommended fuse rating.
