Rockford Fosgate HD9813SG-STG3 6.5"/6x9" Harley Audio Kit

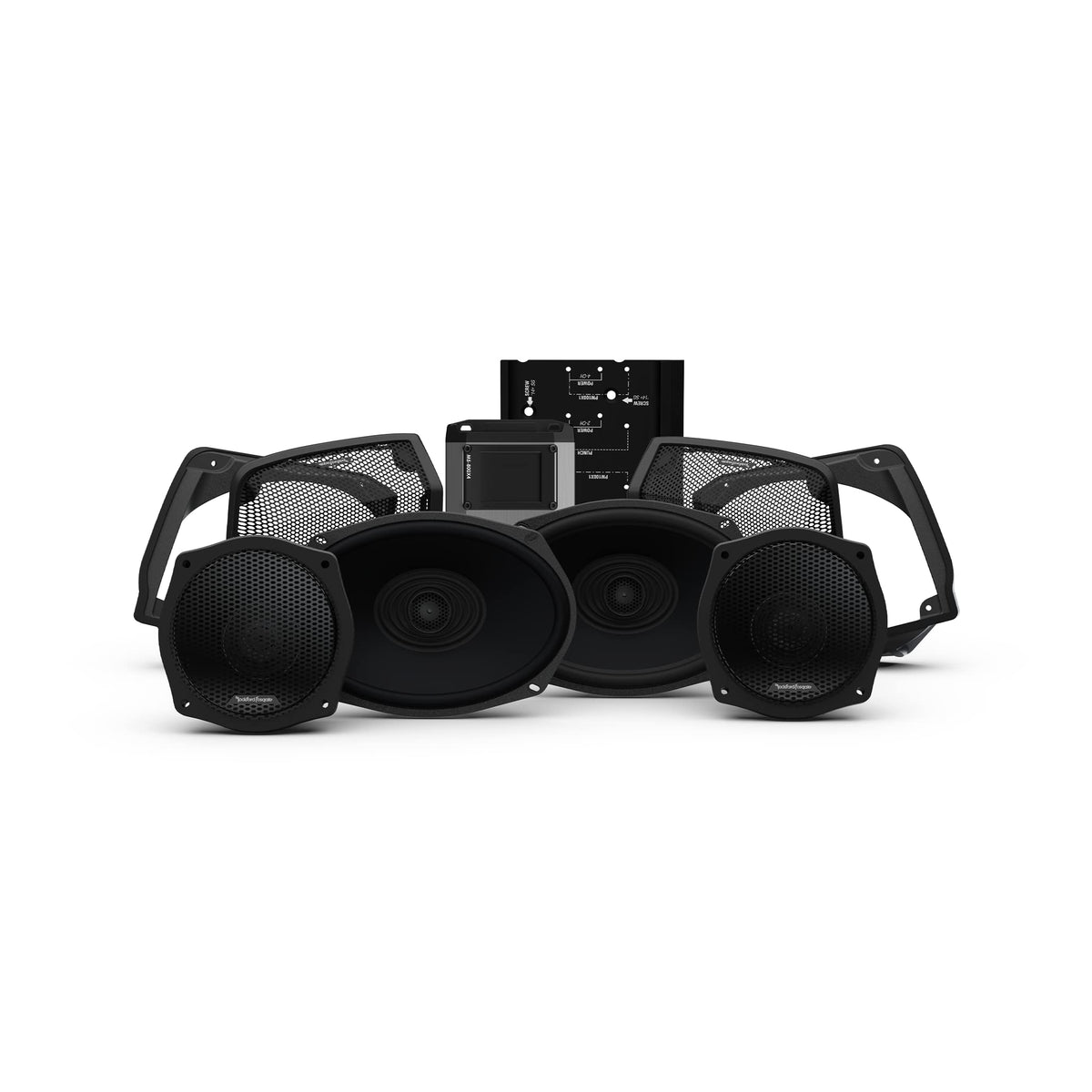

The Rockford Fosgate HD9813SG-STG3 is a Stage 3 motorcycle audio package for select 1998-2013 Harley-Davidson Street Glide and Electra Glide models. It combines two 6.5-inch fairing speakers, two 6x9-inch saddlebag speakers, a four-channel amplifier, and a model-specific installation kit. The package is intended for riders who want a more capable, amplified audio system while retaining factory-oriented fitment.

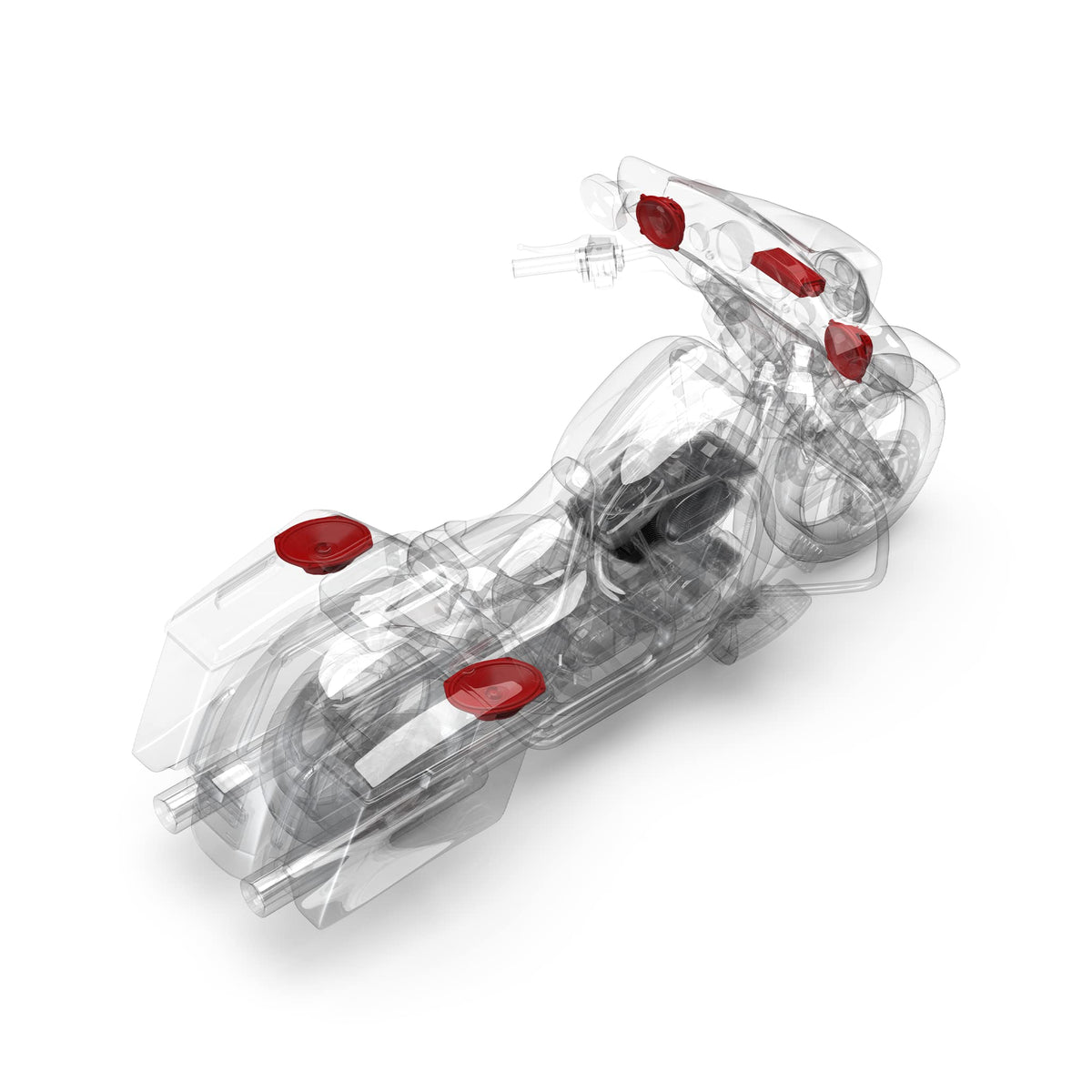

The system uses dedicated front and rear speaker locations to provide broader sound coverage than a fairing-only upgrade. Its 6.5-inch TMS6SG fairing speakers handle front-stage listening, while the TMS69BL9813 6x9-inch saddlebag kit adds rear output and low-frequency presence. This arrangement is designed for listening in an open-air motorcycle environment with wind, road, and exhaust noise present.

At the center of the kit is the Rockford Fosgate M5-800X4, an IPX6-rated four-channel Element Ready amplifier. It is rated for 100 watts RMS per channel at either 2 or 4 ohms, with four amplifier channels available for the included speakers. The amplifier also provides selectable high-pass, low-pass, or all-pass filtering for system setup.

The TMS6SG fairing speakers are 6.5-inch, 2-way models with phase-aligned 25 mm tweeters and Street Glide-specific grilles. The rear TMS69BL9813 kit uses a pair of 6x9-inch, 2-way speakers made to retrofit compatible factory Harley-Davidson hardshell saddlebag lids. Both speaker sets are part of Rockford Fosgate's Element Ready line for exposure to the outdoor motorcycle environment.

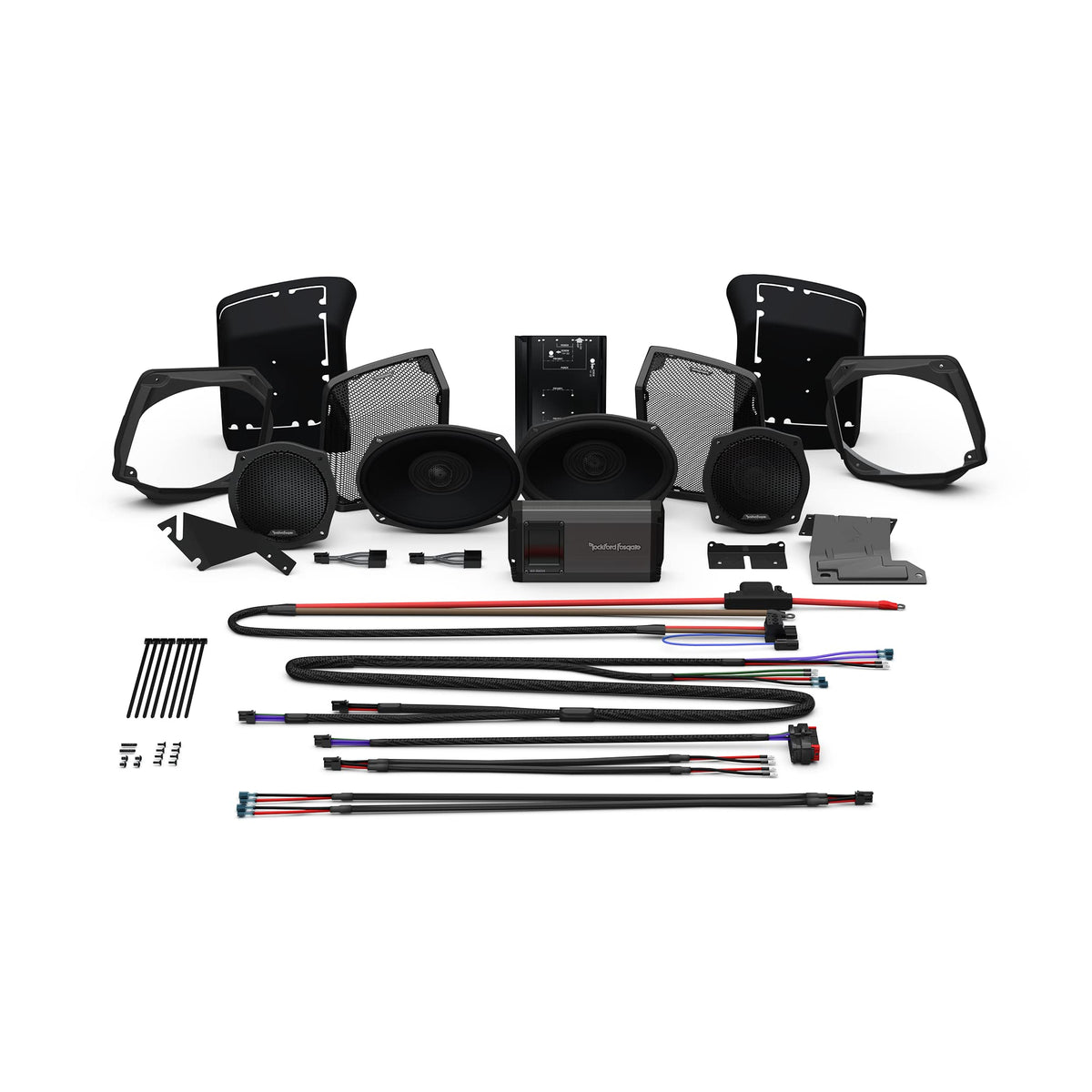

The supplied RFK-HD9813M5 installation kit is tailored to the amplifier and compatible 1998-2013 Harley-Davidson applications. It includes the amplifier mounting hardware, power wiring, front and rear harnessing, and output Y-adapters used by the system. A compatible multimedia source unit can be added later, but it is not included with this package.

Key Features

• Four-Speaker Configuration: Includes two 6.5-inch fairing speakers and two 6x9-inch saddlebag speakers.
• M5-800X4 Amplifier: Four-channel amplified platform with 800-watt total dynamic power rating.
• Element Ready Construction: Components are built for water, UV, vibration, dirt, and corrosion exposure.
• Factory-Oriented Fitment: Designed around select Harley-Davidson fairing and saddlebag mounting locations.
• Phase-Aligned Front Tweeters: TMS6SG speakers use 25 mm tweeters for coherent front-stage output.
• Complete Installation Kit: Includes mounting hardware and direct-connect vehicle-specific wiring harnesses.

Design & Installation

The M5-800X4 amplifier uses an Element Ready chassis, conformal-coated circuit boards, heavy-duty molded connectors, and a die-cast aluminum heat sink. The included speakers are engineered for motorcycle use, while the TMS69BL9813 saddlebag speakers use carbon-fiber-reinforced polypropylene cones and Santoprene surrounds. The kit also includes grilles and mounting hardware where required for its intended installation locations.

Installation is intended for compatible 1998-2013 Harley-Davidson Street Glide and Electra Glide applications using the included RFK-HD9813M5 hardware and harnessing. The saddlebag speaker kit is for factory ABS plastic hardshell lids and is not compatible with fiberglass lids or Harley-Davidson Power Lock kits. Verify the motorcycle's exact trim, existing audio equipment, saddlebag configuration, and fitment notes before installation; CVO and Screaming Eagle models require modification rather than plug-and-play installation.
