Pioneer TS-A6971F 6x9" 4-Way Coaxial Speakers

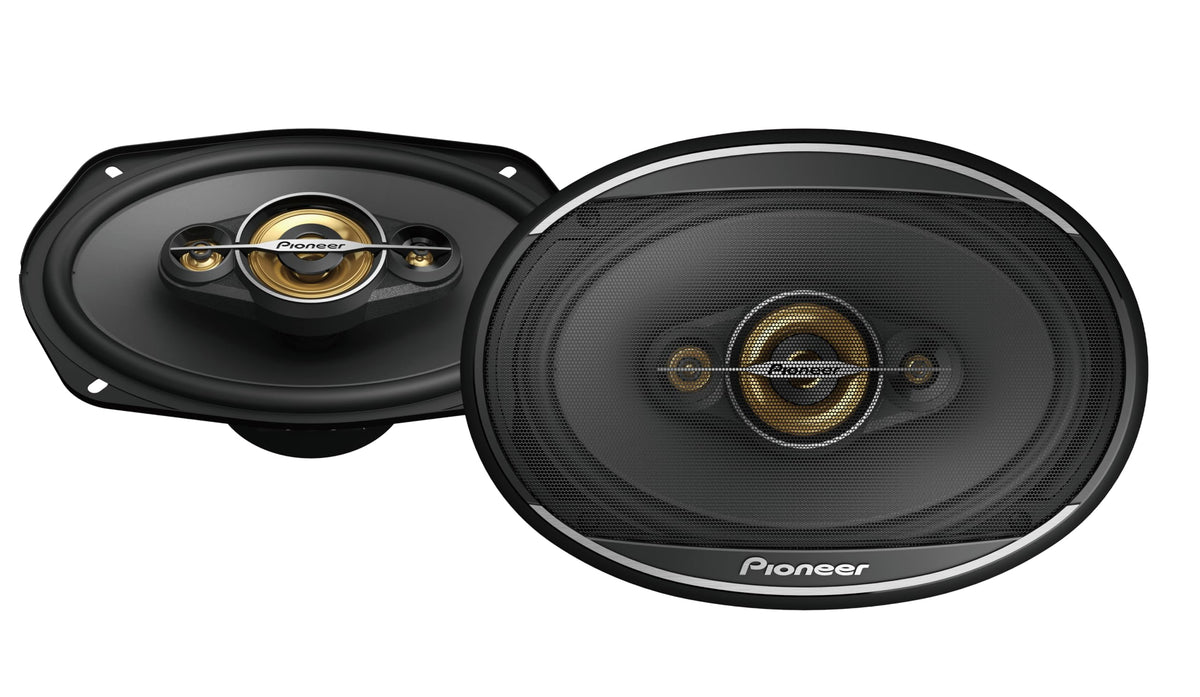

The Pioneer TS-A6971F is a pair of 6 x 9-inch A-Series Plus coaxial car speakers designed to replace compatible factory speakers. Its four-way layout combines a woofer, midrange, tweeter, and super tweeter in each speaker assembly. This makes it a practical option for drivers seeking a more complete frequency range from a direct speaker upgrade.

These speakers are rated for 100 watts RMS and 600 watts maximum power handling per pair. With 92 dB sensitivity, they are designed to produce useful output from many factory radios while also accommodating an appropriately matched external amplifier. The 4-ohm nominal impedance is common for automotive speaker systems.

The TS-A6971F uses a carbon- and mica-reinforced IMPP woofer cone for its 6 x 9-inch low-frequency driver. A 57 mm PEI cone midrange handles a dedicated portion of the vocal and instrument range. An 18 mm PET hard-dome tweeter and 11 mm PET hard-dome super tweeter extend high-frequency reproduction.

Pioneer specifies a 29 Hz to 33 kHz frequency response and its Open & Smooth sound concept for this A-Series model. The speaker design is intended to support a broad, balanced presentation across bass, midrange, and treble regions. It is suited to everyday music listening in compatible door, rear-deck, or other factory 6 x 9-inch locations.

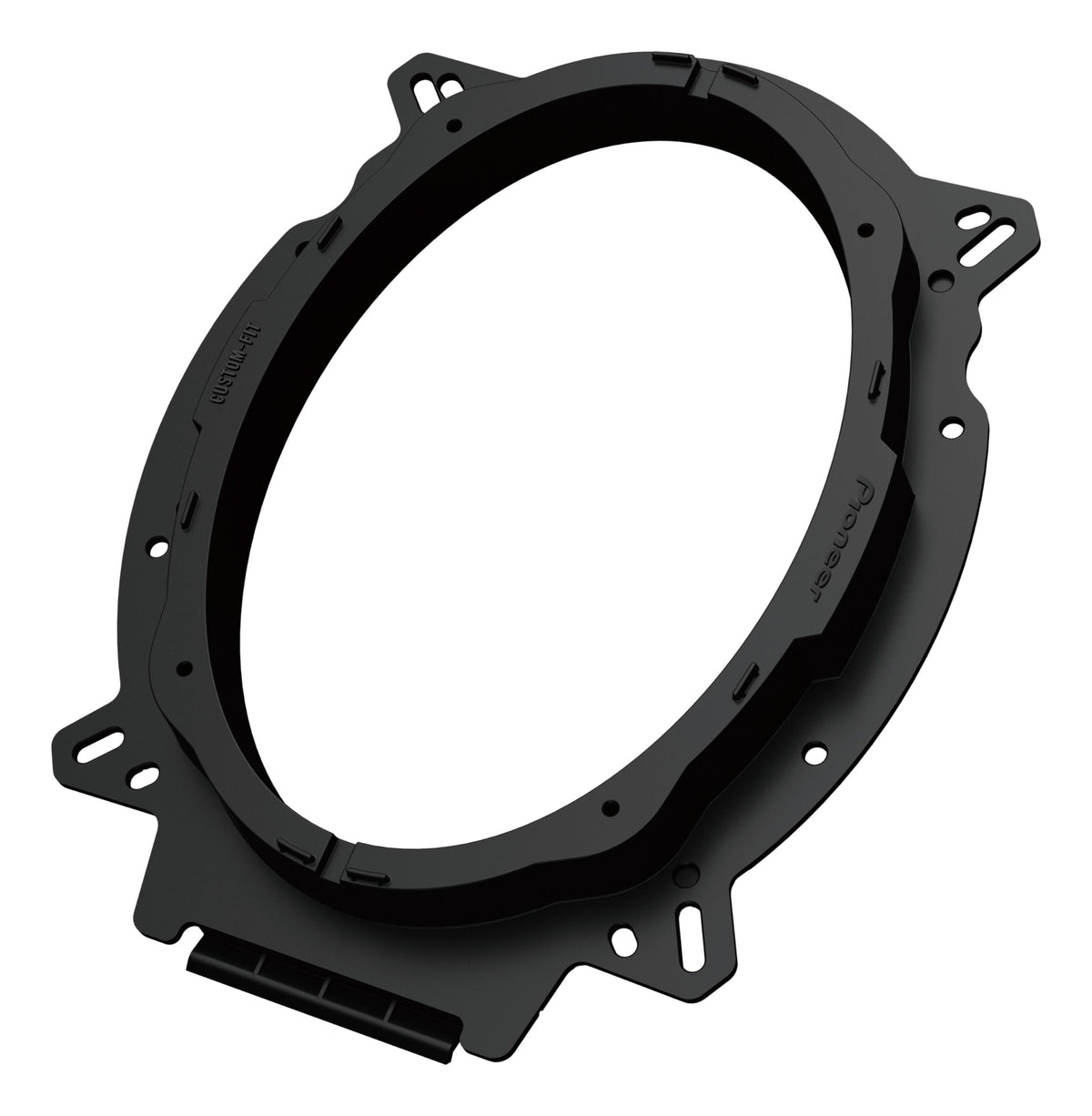

Multi-Fit installation adapters are included to broaden mounting flexibility in applicable vehicles. The speakers also include grilles, although vehicle-specific fitment should be verified before installation. For a complete upgrade, confirm available mounting depth, cutout dimensions, factory wiring connections, and the power capability of the radio or amplifier being used.

Key Features

• Four-Way Coaxial System: Integrates four driver elements to cover bass, midrange, and treble frequencies.
• 100W RMS Handling: Supports amplifier matching based on continuous power capability.
• 600W Maximum Power: Provides a stated maximum music-power handling specification for the pair.
• Carbon/Mica IMPP Woofer: Uses a reinforced polypropylene cone for the 6 x 9-inch woofer.
• Dedicated High-Frequency Drivers: Includes separate PET dome tweeter and super tweeter elements.
• Multi-Fit Adapters Included: Helps adapt mounting for compatible vehicle speaker locations.

Design & Installation

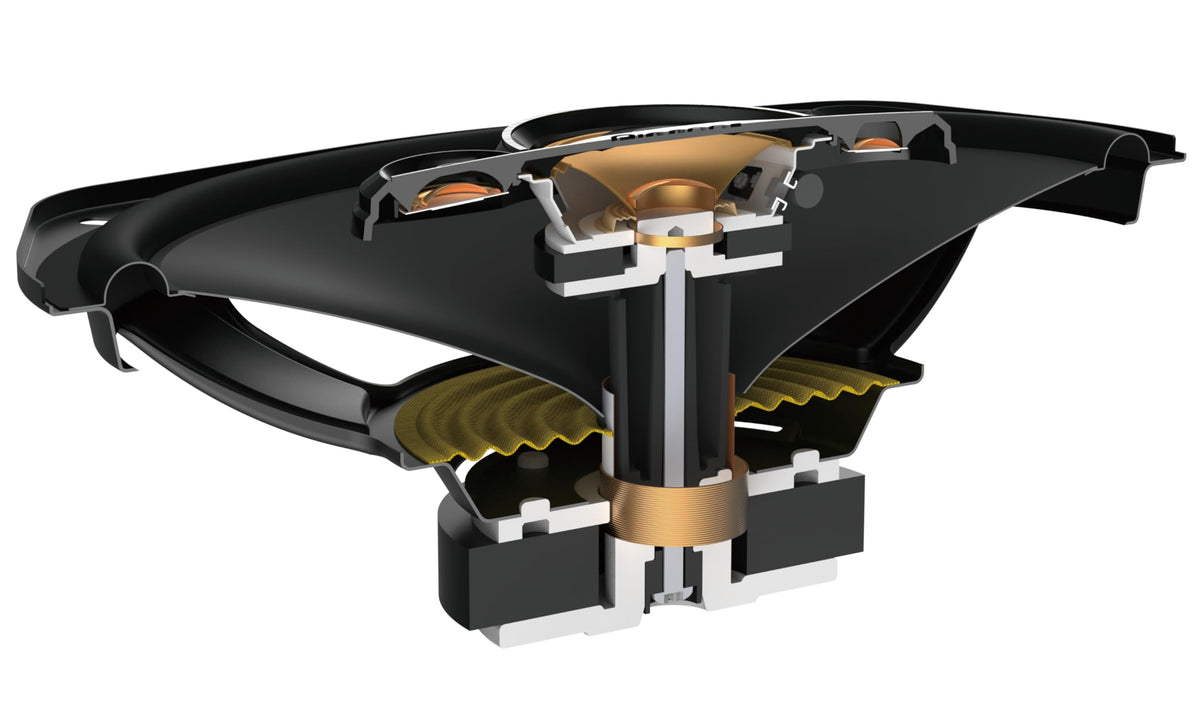

The TS-A6971F is built around a 6 x 9-inch carbon- and mica-reinforced injection-molded polypropylene woofer cone, supported by a ferrite magnet. Its coaxial structure places the 57 mm PEI midrange, 18 mm PET tweeter, and 11 mm PET super tweeter within the same speaker assembly. This arrangement keeps the multi-driver system contained in a conventional 6 x 9-inch speaker format.

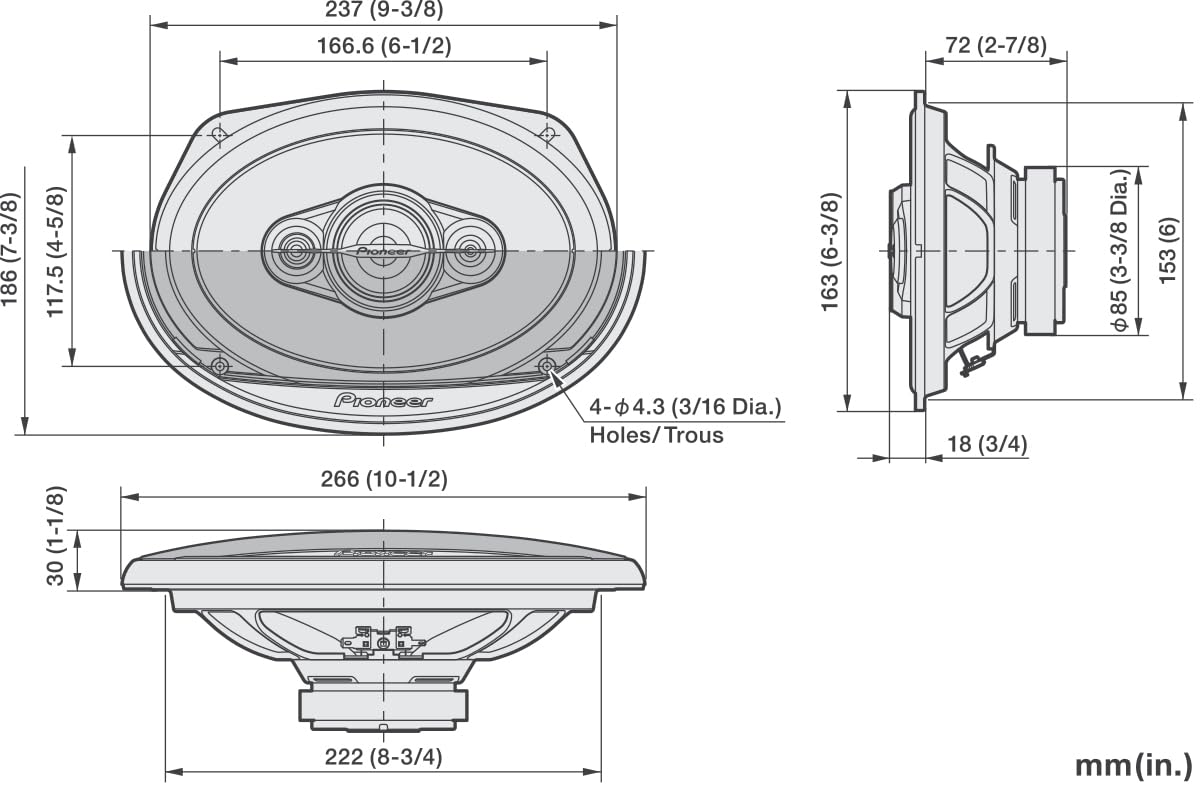

Before purchase, compare the vehicle opening with the 153 x 222 mm cutout requirement and confirm mounting depth clearance. Use the included Multi-Fit adapters only where they suit the vehicle's mounting pattern, and follow the vehicle and source-unit wiring guidance for polarity and secure connections. Grilles are included for installations where the speakers will be exposed rather than retained behind factory panels.
