Memphis PRXL10FT 10" RGB LED Selectable-Impedance Subwoofer

The Memphis PRXL10FT is a 10-inch Power Reference subwoofer designed for vehicle audio systems that need meaningful low-frequency output without requiring an oversized driver. Its 400-watt RMS power rating supports a properly matched mono amplifier, while the 5.1-inch mounting depth helps it work in many custom enclosure projects. It is suited to listeners upgrading a factory system or building a more personalized bass system.

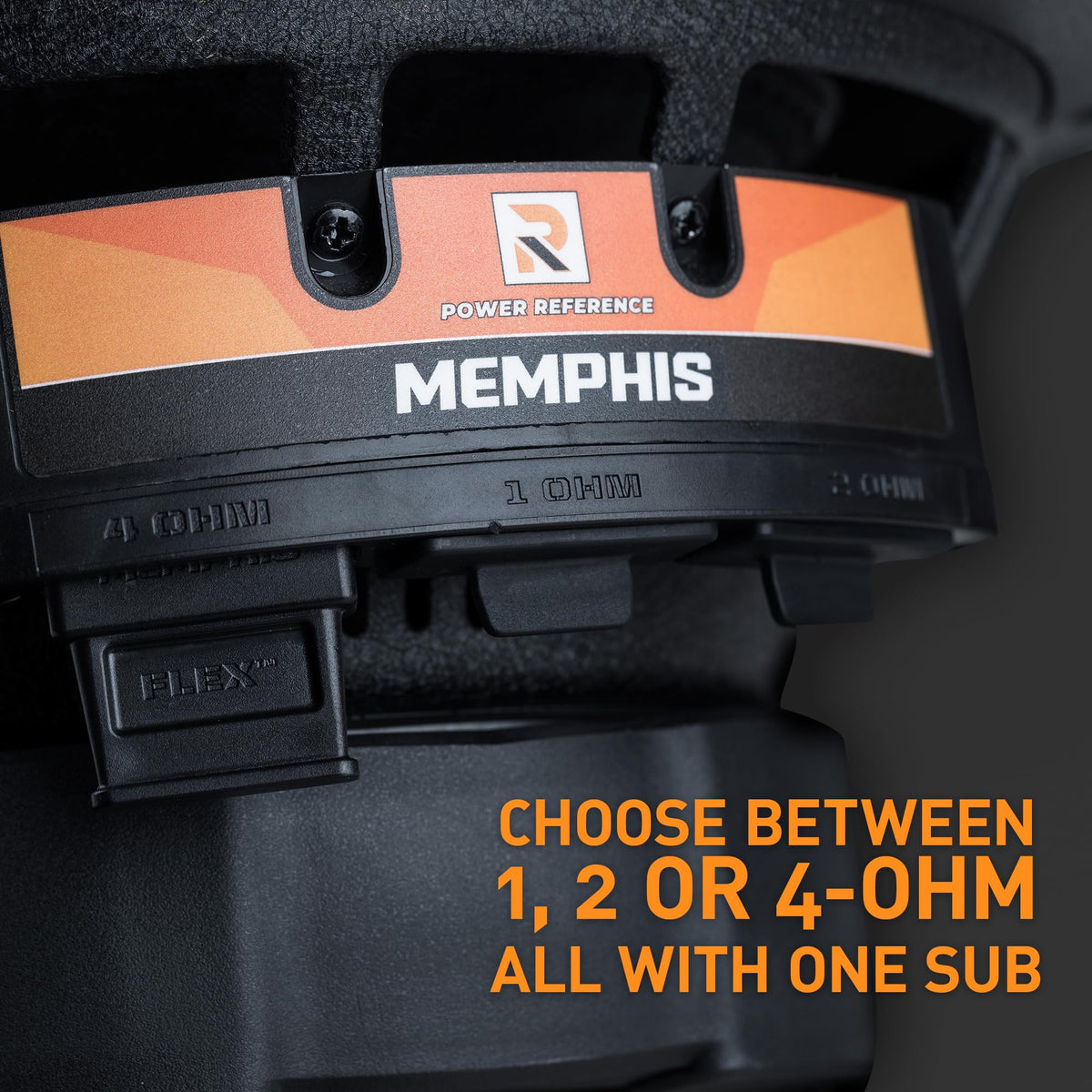

A key benefit of the PRXL10FT is its Tri-FLEX selectable voice-coil configuration. The impedance can be set to 1 ohm, 2 ohms, or 4 ohms, allowing the subwoofer to be matched to an amplifier and system plan without selecting a separate fixed-impedance version. This flexibility can also be useful when planning a future amplifier or subwoofer-system change.

The subwoofer is rated for 400 watts RMS and 800 watts peak power. Its listed sensitivity changes with the selected impedance: 82.8 dB at 1 ohm, 85.2 dB at 2 ohms, and 84.9 dB at 4 ohms. These specifications make correct amplifier matching and gain setup important for dependable performance.

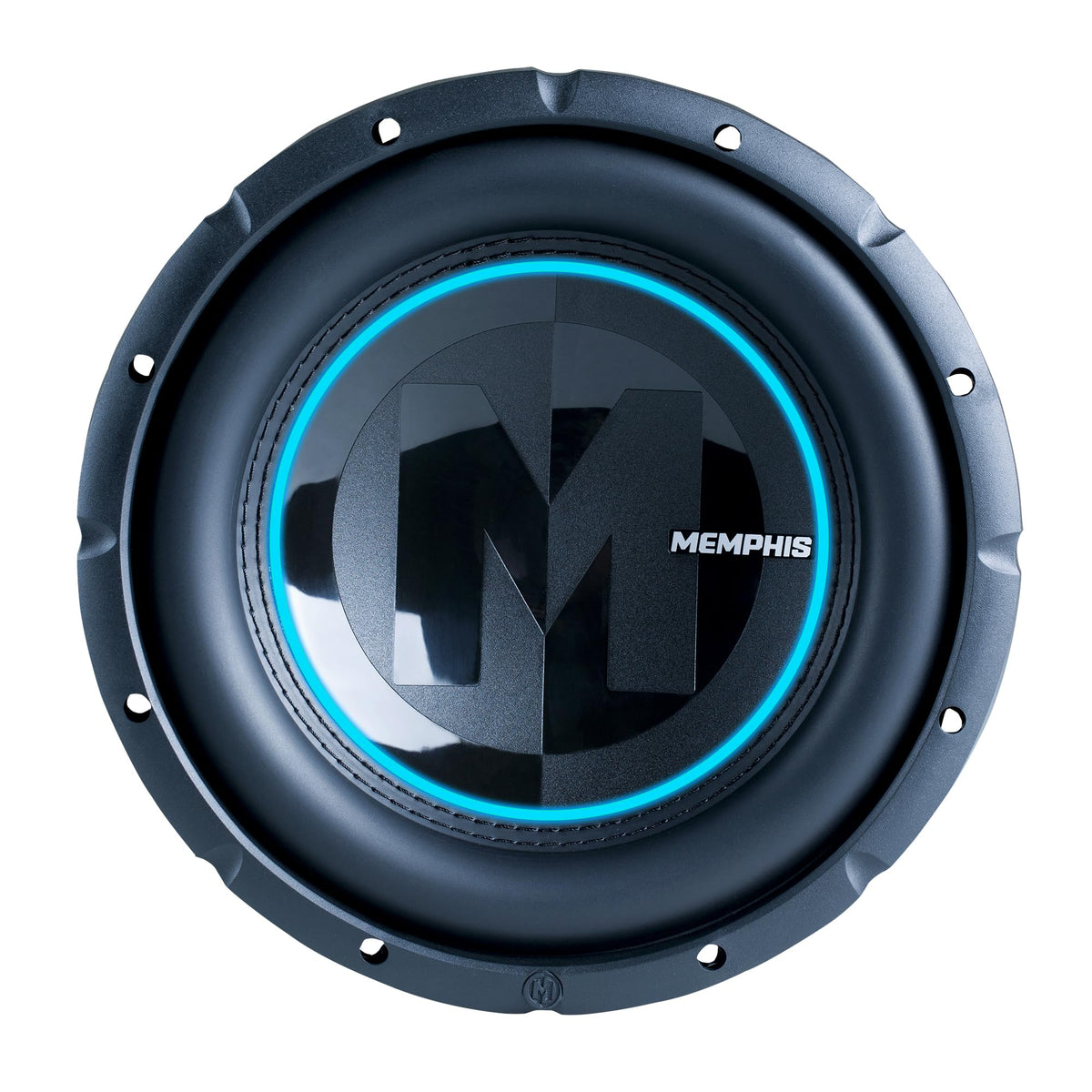

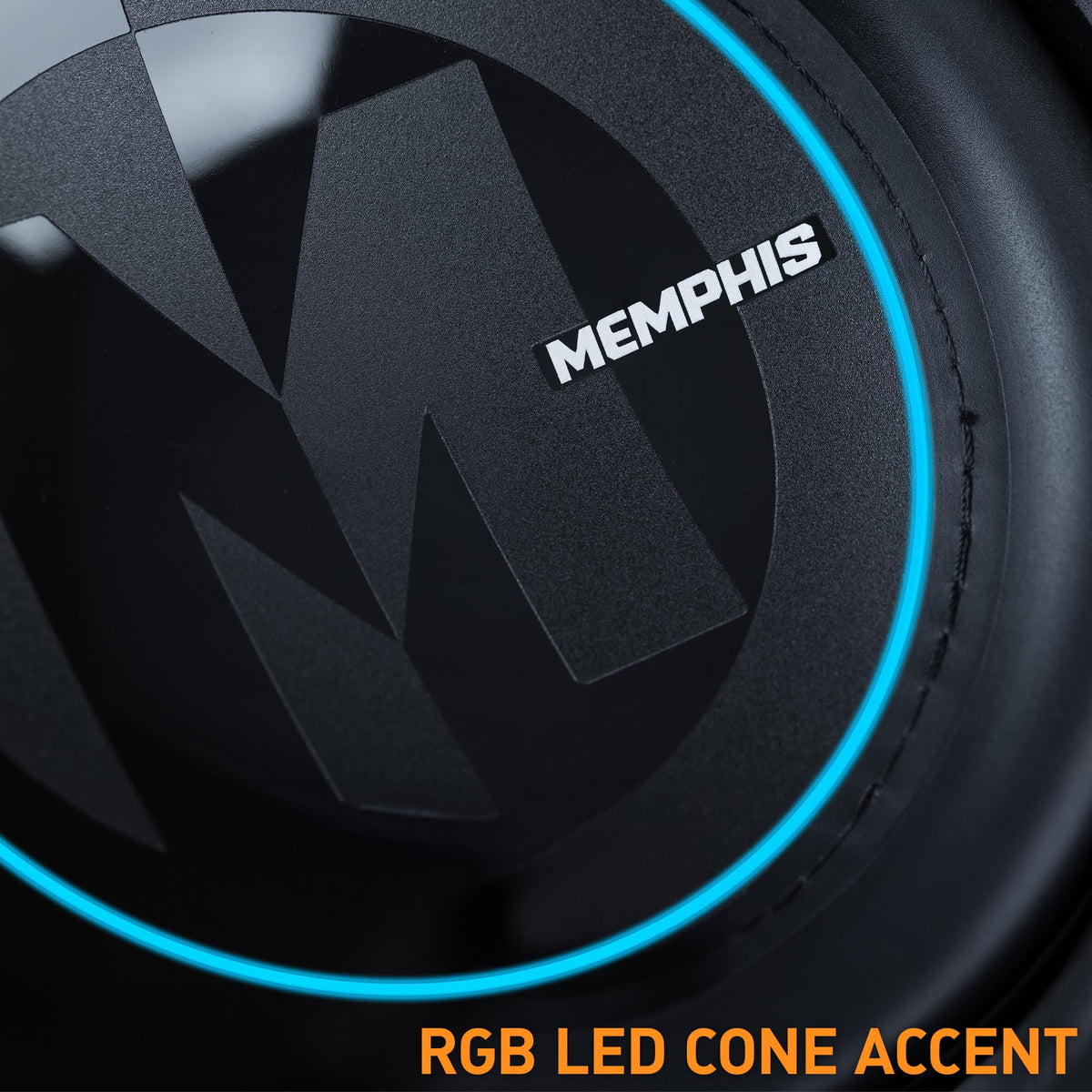

Memphis integrates an RGB LED accent around the cone for installations where appearance matters alongside sound. The lighting must be hardwired to a 12-volt source, or it can be used with the separately sold Memphis MXRGBBTC RGB controller. This makes the PRXL10FT a practical choice for custom trunks, hatch areas, and visible enclosure installations.

Its construction focuses on heat handling and controlled cone movement during bass playback. Direct Voice Coil Cooling technology, a high-temperature TIL voice-coil former, reinforced spider, improved suspension and coil design, and woven tinsel leads support the driver’s intended use. The black-on-black polypropylene cone and stitched butyl rubber surround provide a coordinated, durable exterior for a custom system build.

Key Features

• Tri-FLEX Selectable Impedance: Choose 1-ohm, 2-ohm, or 4-ohm operation to better match a compatible amplifier.
• 400W RMS Power Handling: Supports a properly matched amplifier for sustained bass output.
• RGB LED Cone Accent: Adds configurable illumination for visible custom audio installations.
• Direct Voice Coil Cooling: Helps manage voice-coil heat during extended operation.
• 2-Inch Voice Coil: Uses a high-temperature TIL former for thermal durability.
• Reinforced Moving Assembly: The reinforced spider, improved suspension, and woven tinsel leads support controlled operation.

Design & Installation

The PRXL10FT uses a black-on-black polypropylene cone, stitched butyl rubber surround, reinforced spider, woven tinsel leads, and a 63-ounce magnet. Its RGB LED accent ring surrounds the cone, while the 2-inch voice coil uses a high-temperature TIL former. Direct Voice Coil Cooling is incorporated to support thermal efficiency.

Confirm that the enclosure has at least 5.1 inches of mounting depth and a 9.2-inch cutout before installation. Select the 1-ohm, 2-ohm, or 4-ohm setting to match the amplifier’s supported load, then set amplifier gains appropriately for the 400-watt RMS rating. The LEDs require a hardwired 12-volt connection, and the optional Memphis MXRGBBTC controller is available separately for RGB control.
