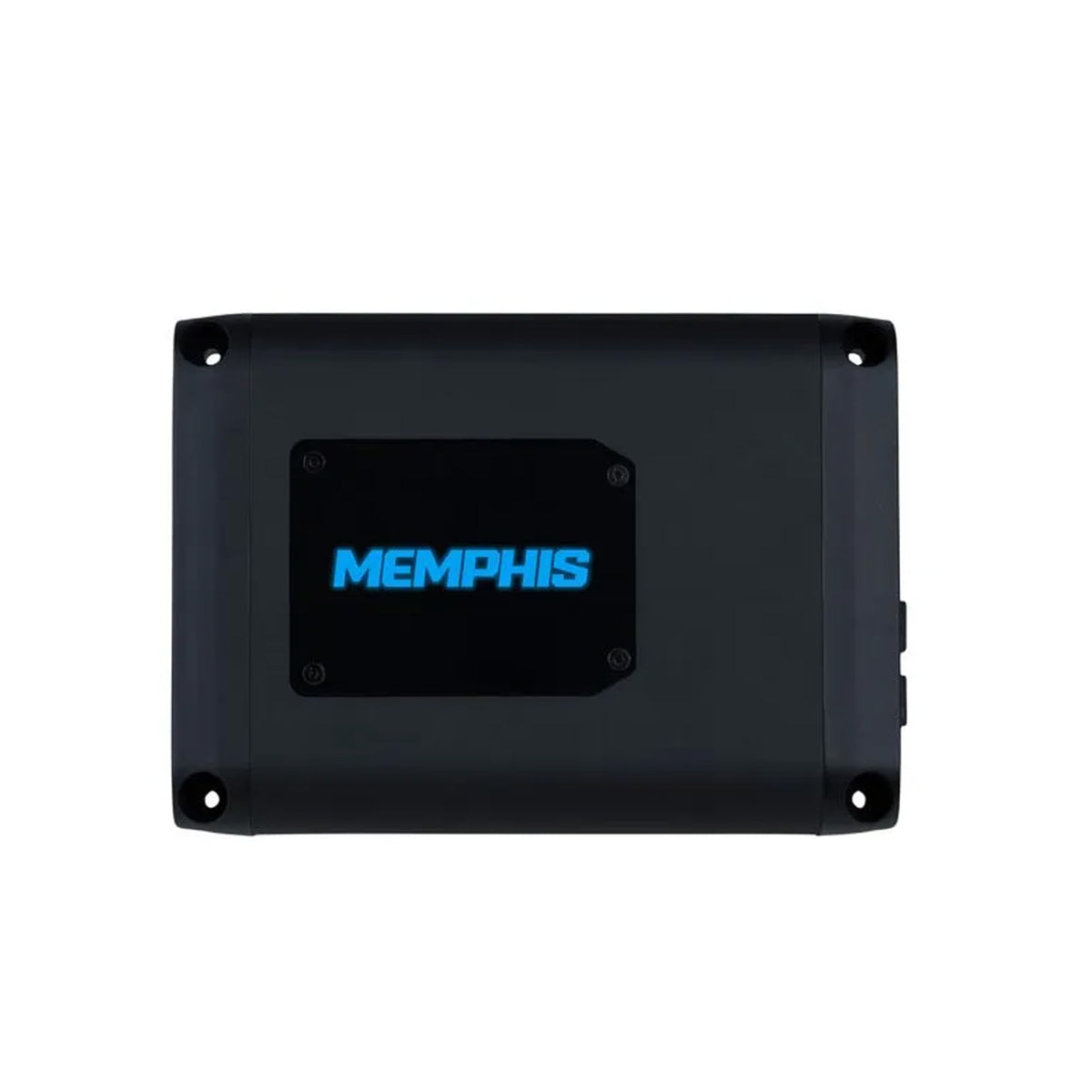

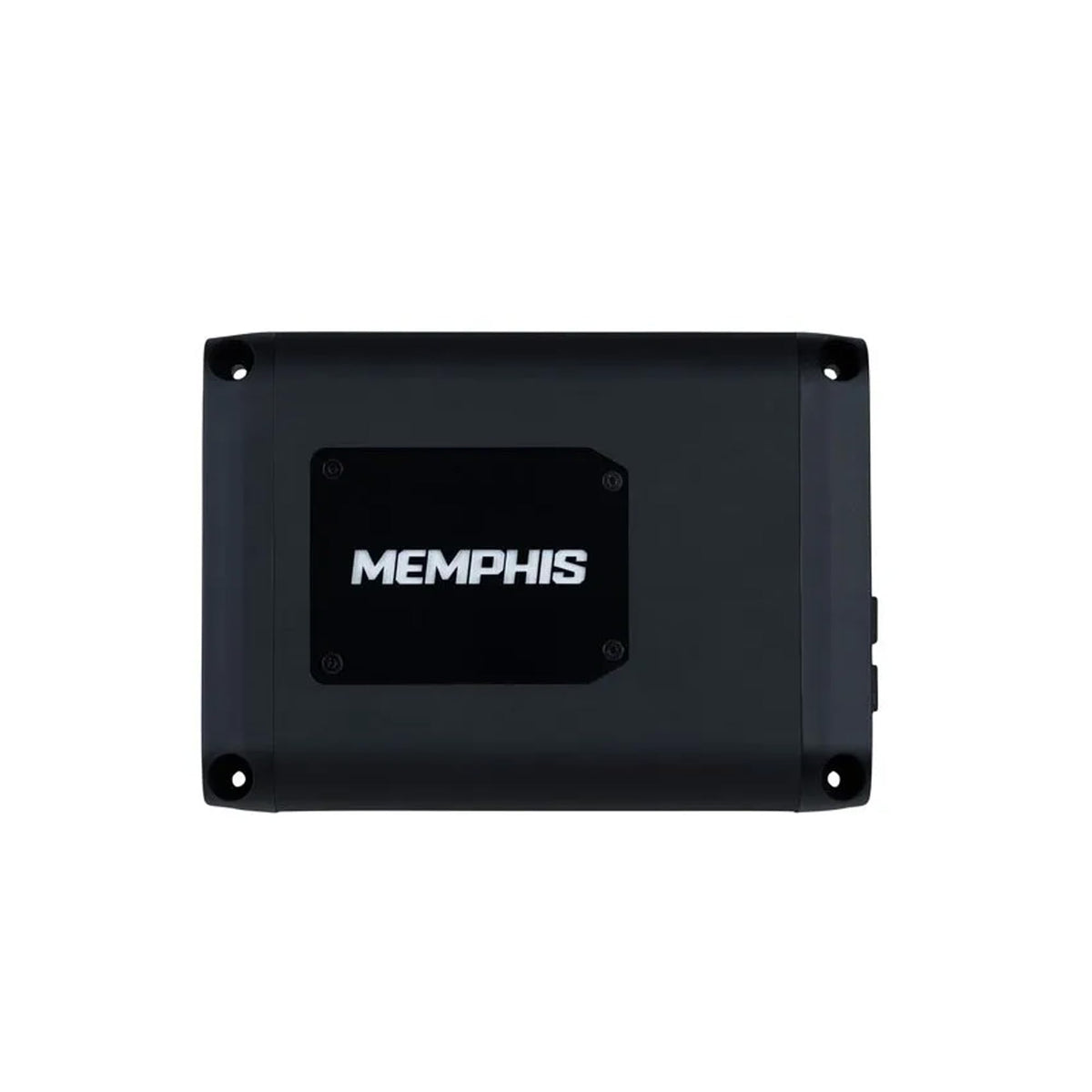

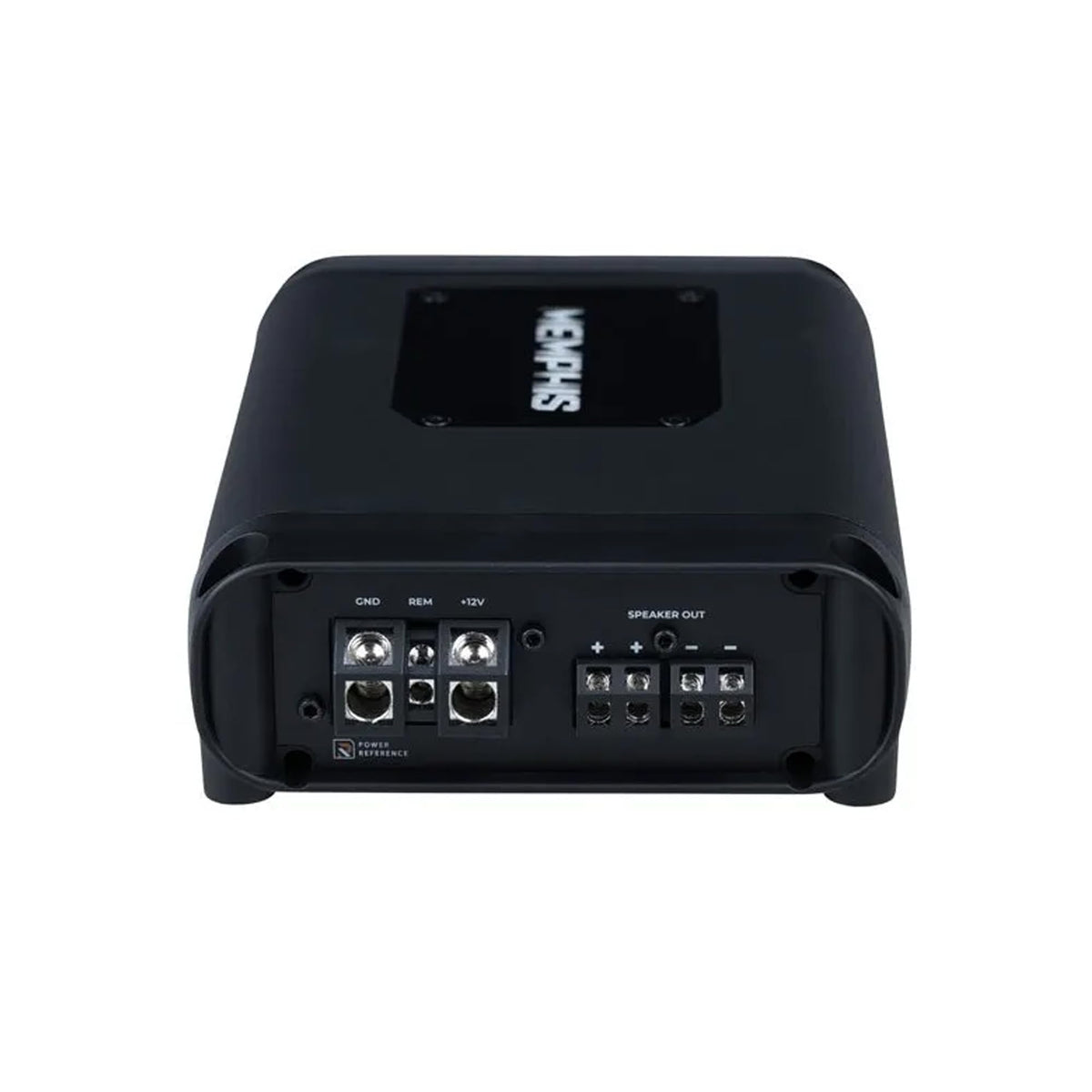

Memphis PRX800.1V2 800W Monoblock Subwoofer Amplifier

The Memphis PRX800.1V2 is a compact monoblock amplifier designed to power a dedicated car-audio subwoofer system. It delivers stable mono output at 4-, 2-, or 1-ohm loads, giving installers flexibility when matching compatible subwoofers and voice-coil configurations. Its focused low-frequency design makes it a practical choice for adding controlled bass without using a full-range amplifier channel.

Rated for 300 watts RMS at 4 ohms, 500 watts RMS at 2 ohms, and 800 watts RMS at 1 ohm, the PRX800.1V2 supports a range of single- and multiple-subwoofer setups. The amplifier is 1-ohm stable, but the connected speaker load must not fall below 1 ohm. A variable low-pass crossover helps limit the amplifier's output to bass frequencies appropriate for subwoofers.

This amplifier is intended for listeners building or upgrading a separate bass section while retaining a factory or aftermarket radio. It accepts low-level RCA signals and high-level speaker inputs, allowing it to integrate with many source-unit configurations. A selectable turn-on arrangement supports conventional remote-wire and signal-sensing installation approaches.

For tuning, the PRX800.1V2 includes a variable low-pass crossover, a variable subsonic filter, and variable bass boost. The low-pass crossover operates from 50 to 250 Hz with an 18 dB-per-octave Butterworth slope, while the bass boost is adjustable from 0 to 12 dB and centered at 45 Hz. A wired remote level control is included for making convenient output-level adjustments from the front of the vehicle.

Memphis uses an extruded aluminum heatsink, concealed top-mounted controls, and blue LED accent lighting in the Power Reference design. The compact chassis is suited to installations where mounting space is limited, while the removable top panel keeps adjustment controls protected and accessible. Pair it with appropriately rated subwoofers, proper power wiring, and a safely configured final impedance for a complete bass upgrade.

Key Features

• 800W RMS at 1 Ohm: Provides substantial mono power for compatible subwoofer systems.
• 1-Ohm Stable Design: Supports properly wired subwoofer loads down to 1 ohm.
• Variable Low-Pass Crossover: Helps keep high frequencies out of the subwoofer channel.
• Variable Subsonic Filter: Helps manage very low-frequency content in the system.
• High- and Low-Level Inputs: Supports factory-radio or aftermarket-source integration.
• Wired Remote Level Control: Allows convenient bass-level adjustment from the driver area.

Design & Installation

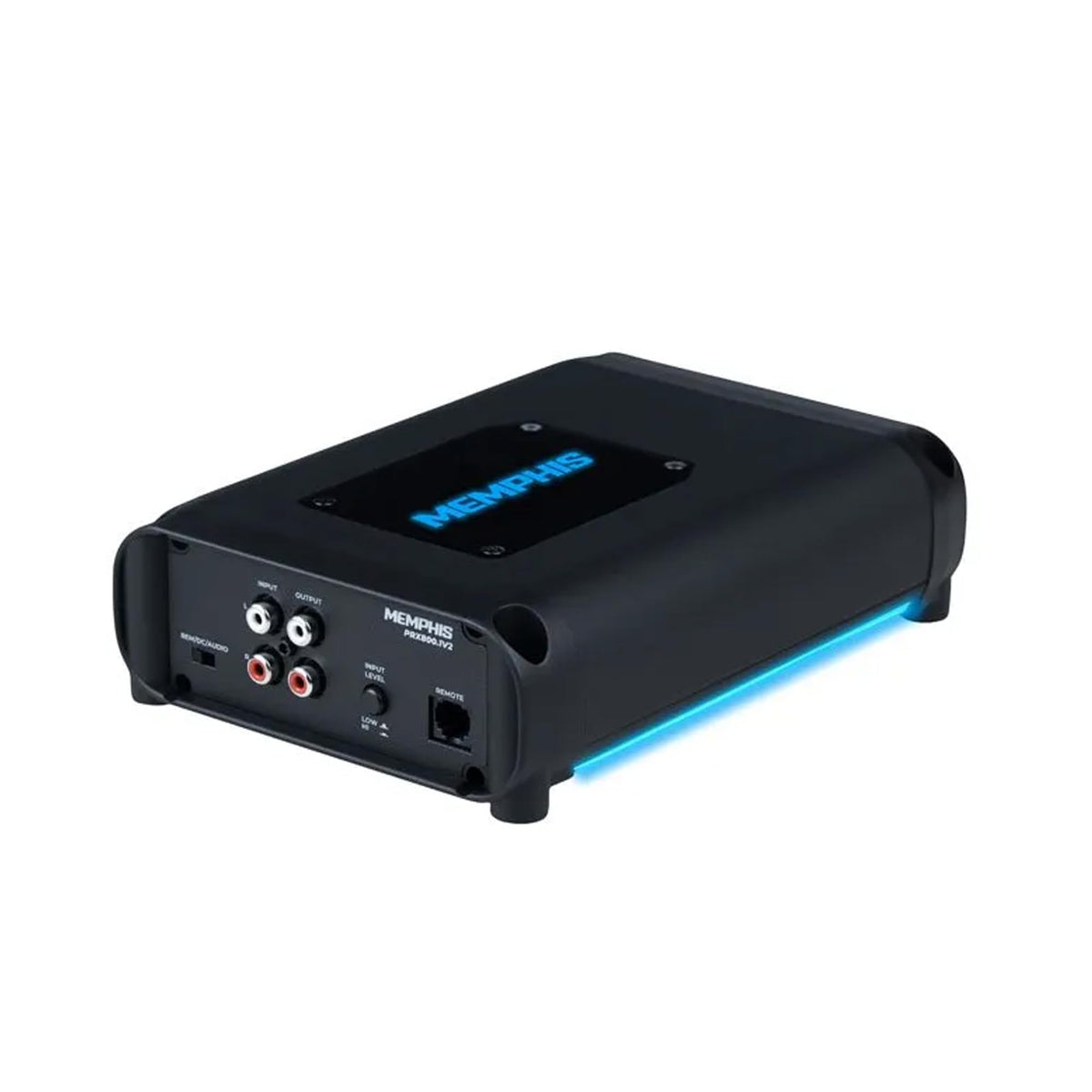

The PRX800.1V2 uses an extruded aluminum heatsink to support thermal management and a compact installation footprint. Its blue LED-accented acrylic top cover conceals the top-mounted tuning controls, while blue undermount lighting adds visible accent illumination. Built-in protection circuitry addresses overload, short circuit, thermal, and reverse-polarity conditions.

Mount the amplifier in a secure, ventilated location and avoid installing it with the heatsink fins facing downward. Memphis recommends the 4GKIT amplifier kit for this model; use proper-size stranded copper power and ground cable, install the main fuse within 18 inches of the battery, and verify the final subwoofer load with a multimeter before connection. Do not wire this mono amplifier below its 1-ohm minimum impedance.
