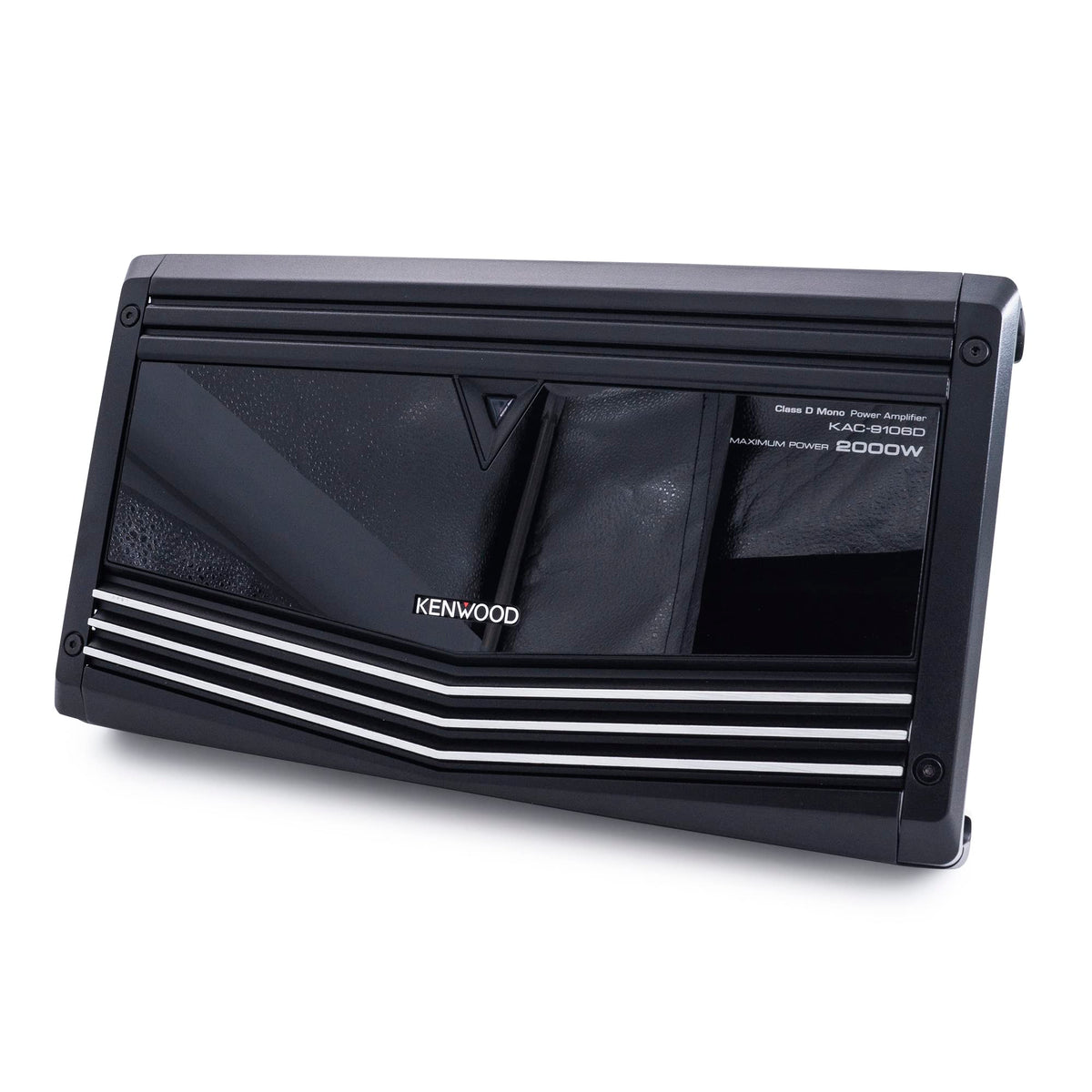

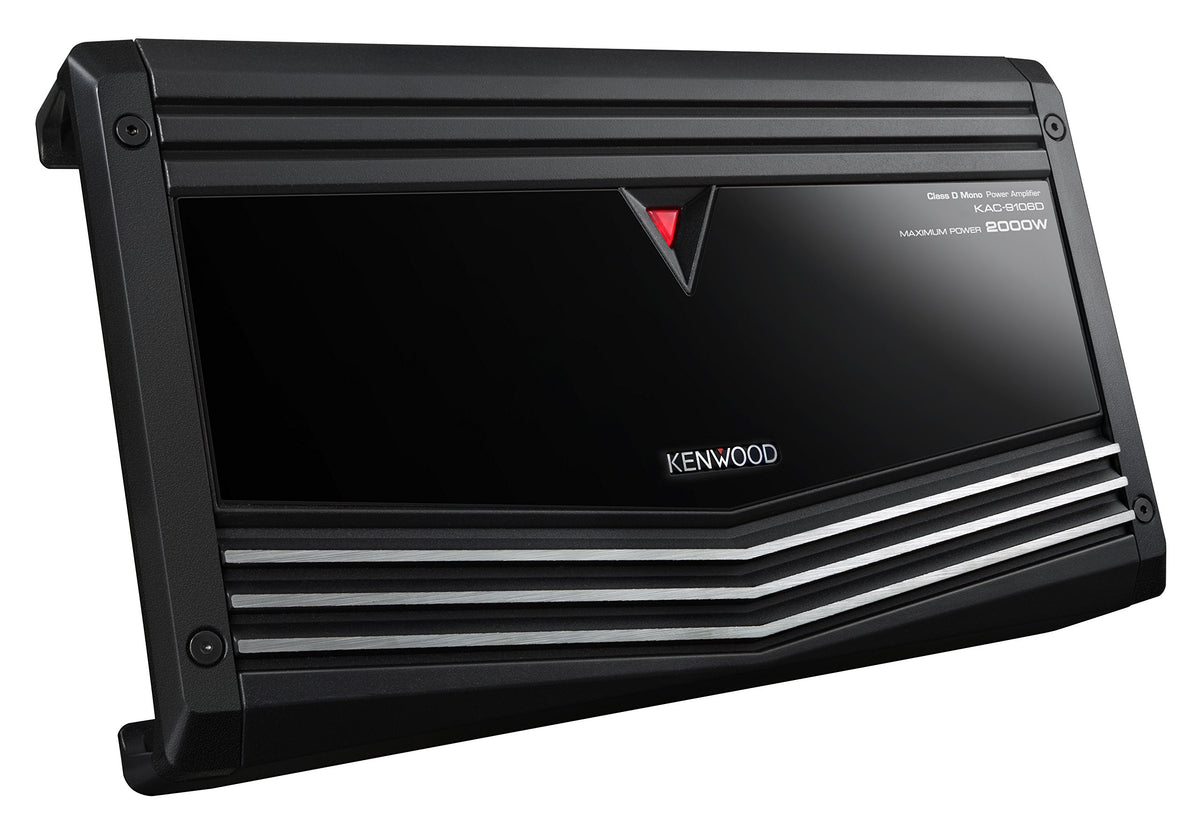

Kenwood KAC-9106D 2000W Class D Mono Car Amplifier

The Kenwood KAC-9106D is a mono Class D power amplifier designed to add dedicated subwoofer amplification to a vehicle audio system. It provides a rated 500 watts RMS at 4 ohms or 1,000 watts RMS at 2 ohms, giving compatible subwoofers the power needed for stronger low-frequency output. Its single-channel layout is intended for a subwoofer system rather than full-range speakers.

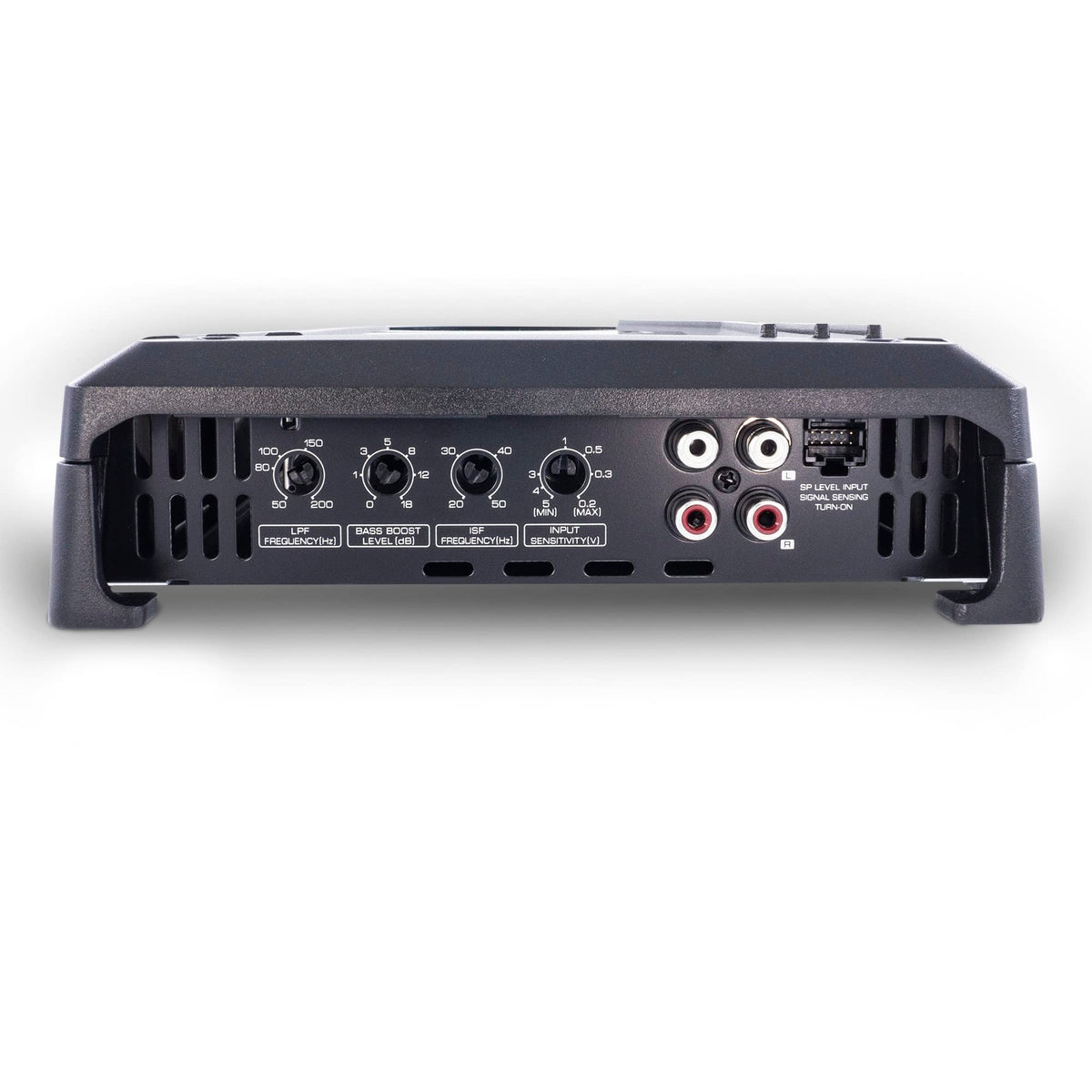

This amplifier is a practical choice for listeners upgrading a factory or aftermarket stereo with a powered bass section. RCA line inputs support aftermarket receivers with preamp outputs, while the speaker-level input supports connection to systems without RCA outputs. Signal-sensing turn-on can simplify integration when using a speaker-level signal.

The KAC-9106D is engineered around a Class D amplifier platform and a MOS-FET switching power supply. Its adjustable low-pass filter helps limit output to bass frequencies, while the variable infrasonic filter can reduce reproduction below a selected frequency. A variable 40 Hz bass boost control allows additional adjustment of low-bass emphasis.

For system matching, the amplifier supports speaker loads from 2 to 8 ohms. A 2-ohm final subwoofer load allows the amplifier to deliver its 1,000-watt RMS rating, while a 4-ohm load is rated for 500 watts RMS. Careful subwoofer wiring and power handling matching are important before installation.

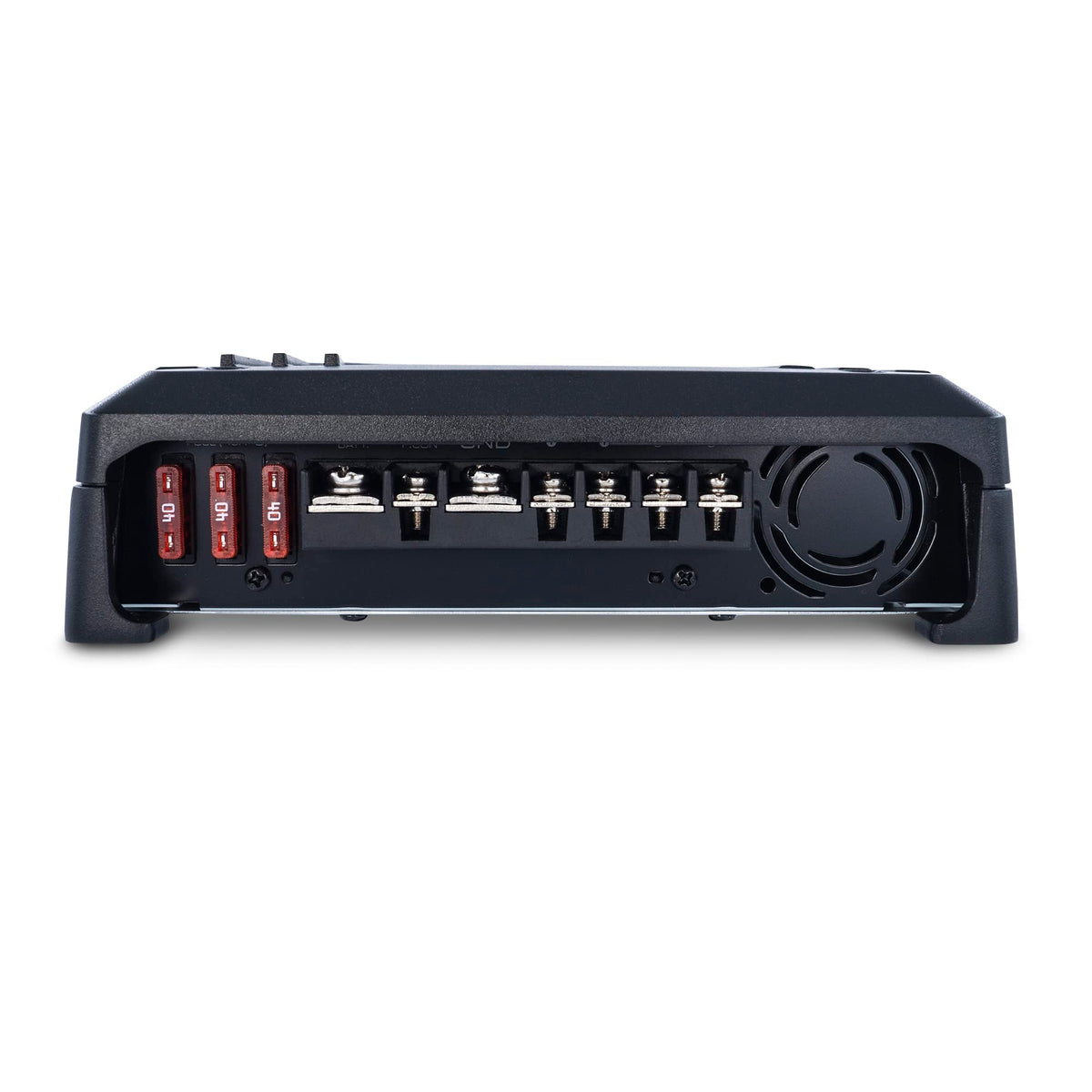

The compact chassis measures just over 13 inches wide and uses a cast aluminum heat-sink design for heat dissipation. Nickel-plated screw terminals provide dedicated battery, ground, and speaker connections, and RCA line output terminals can pass signal to an additional amplifier. It is a focused bass-amplifier upgrade for systems needing controlled subwoofer power and flexible input options.

Key Features

• Mono Class D Design: Delivers dedicated power for a compatible subwoofer system.
• 1,000W RMS at 2 Ohms: Supports higher-output bass systems with a 2-ohm load.
• Variable Low-Pass Filter: Adjusts the upper bass cutoff from 50 to 200 Hz.
• Variable Infrasonic Filter: Filters frequencies from 20 to 50 Hz below the selected point.
• Speaker-Level Input: Allows connection to systems without RCA preamp outputs.
• Signal-Sensing Turn-On: Can activate the amplifier from a speaker-level signal.

Design & Installation

The KAC-9106D uses a cast aluminum heat sink and a compact Class D chassis measuring 13-3/16 inches wide, 2-3/16 inches high, and 7-9/16 inches deep. It includes nickel-plated screw-type terminal blocks for battery, ground, and speaker connections, plus a terminal cover. The amplifier is rated for operation from 11 to 16 volts, with a nominal 14.4-volt vehicle electrical system.

Install the amplifier in a secure location with ventilation and route power, ground, signal, and speaker wiring safely away from moving parts and heat sources. Use either the RCA input or the speaker-level input according to the source unit, then set input sensitivity and filters for the connected subwoofer system. The amplifier accepts a 2- to 8-ohm speaker load; do not wire a final load below 2 ohms.
