KENWOOD CMOS-230LP Universal Backup Camera With License Plate Bracket

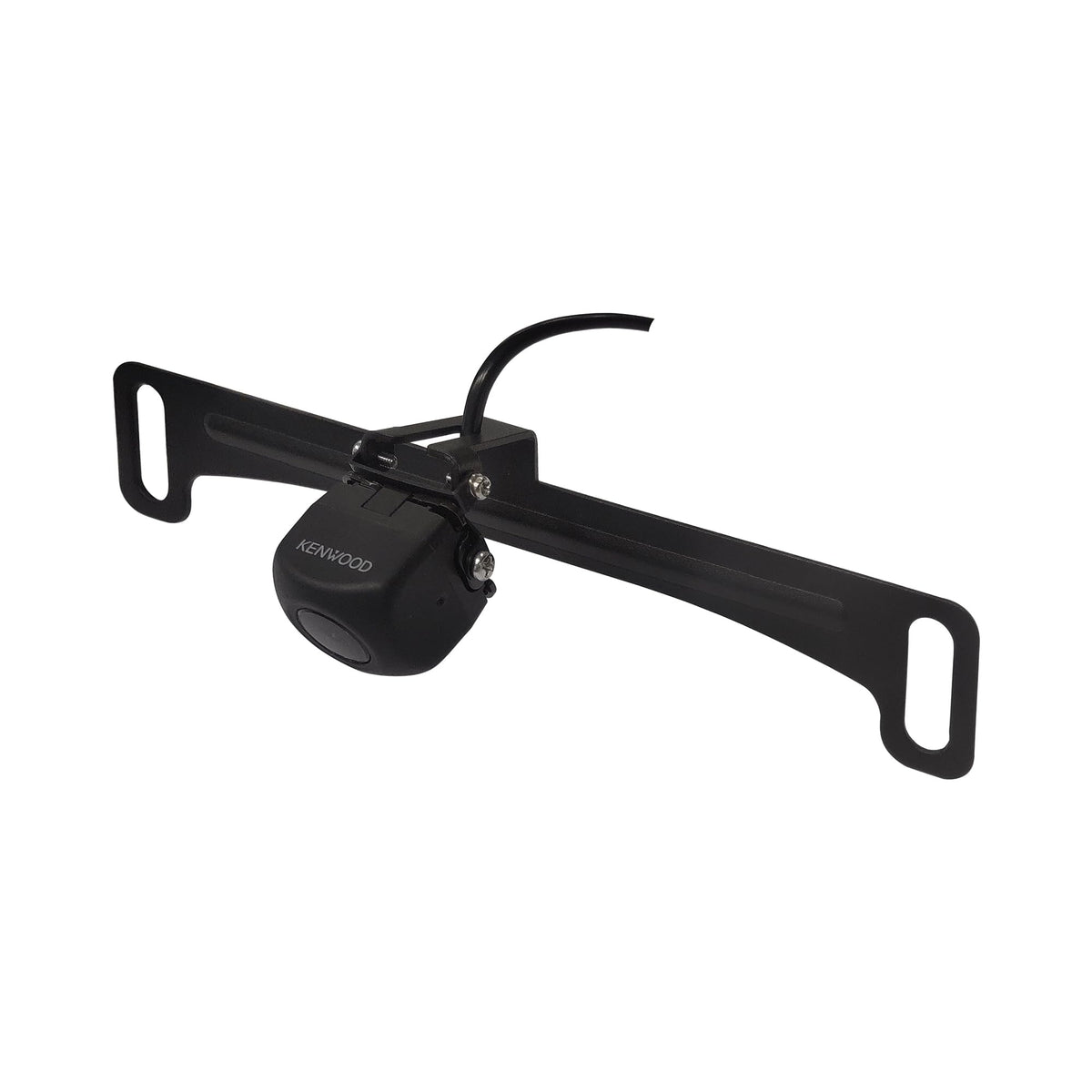

The KENWOOD CMOS-230LP is a universal rear-view backup camera package built to add a clear view behind a vehicle when parking, reversing, or maneuvering in confined spaces. It pairs the compact CMOS-230 camera with a license plate mounting attachment for a clean, low-profile rear installation. The camera is designed for vehicles using a compatible display, receiver, or monitor with a composite RCA camera-video input.

This camera is well suited to drivers upgrading an aftermarket multimedia receiver, as well as owners adding rearward visibility to a car, truck, SUV, van, or similar vehicle. Its approximately 128-degree horizontal and 103-degree vertical field of view is intended to show a broad near-field area behind the vehicle. The mirror-image video output is configured for rear-view use, helping the image correspond with the orientation drivers expect when backing up.

A 1/3.6-inch color CMOS sensor with approximately 330,000 effective pixels provides the imaging foundation for the CMOS-230LP. The wide-angle f/2.2 lens uses a 1.12 mm focal length, balancing a broad view with a compact camera housing. Its illumination range is rated from approximately 0.9 to 100,000 lux for use across varying ambient-light conditions.

The CMOS-230LP uses a wired composite video connection and includes a camera lead plus a long power/video harness to support routing from the rear of the vehicle to the dash area. The camera operates from a switched vehicle power source and includes a 2A fused power connection. It is a practical fit for systems where a compatible receiver or monitor is already in place but a rear camera has not yet been added.

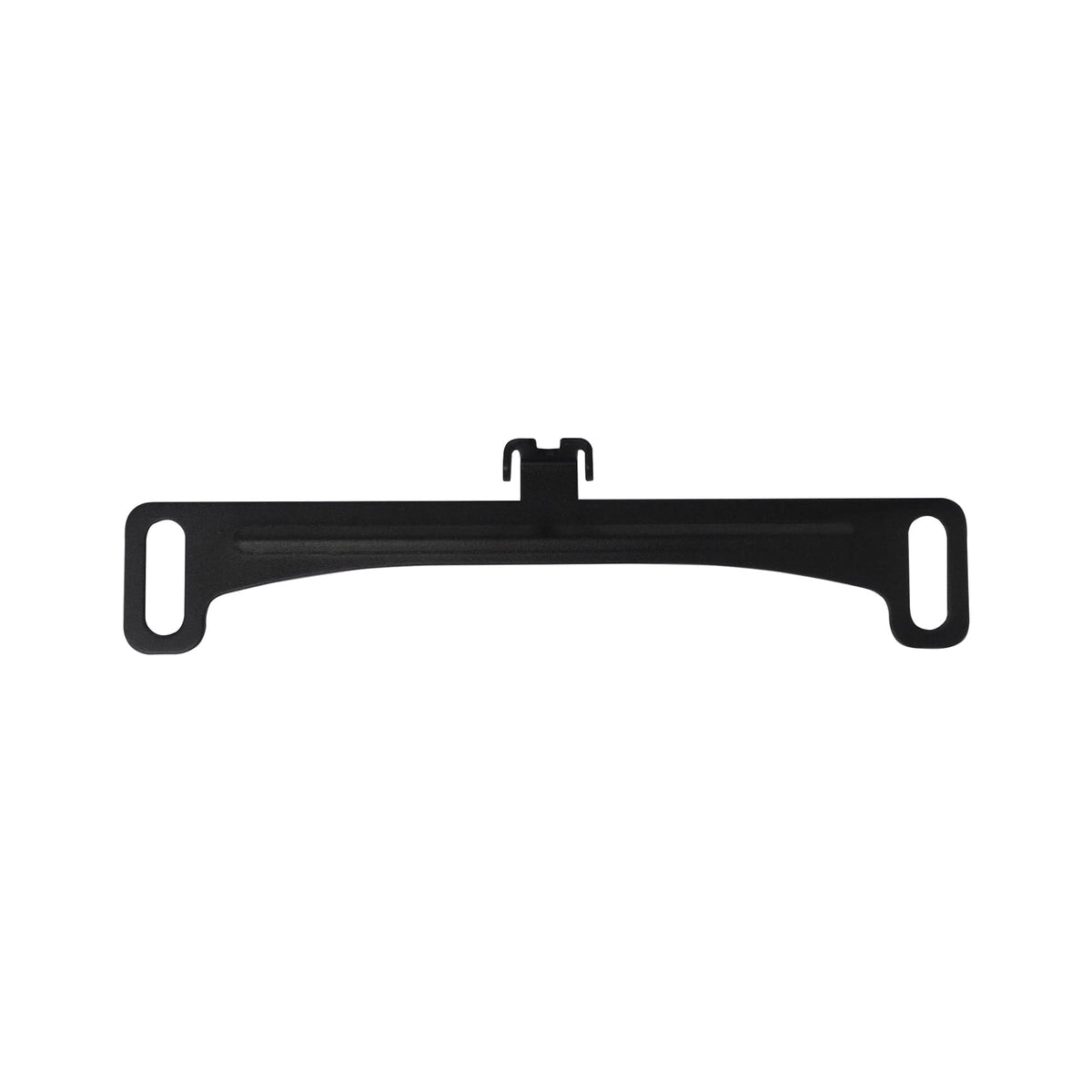

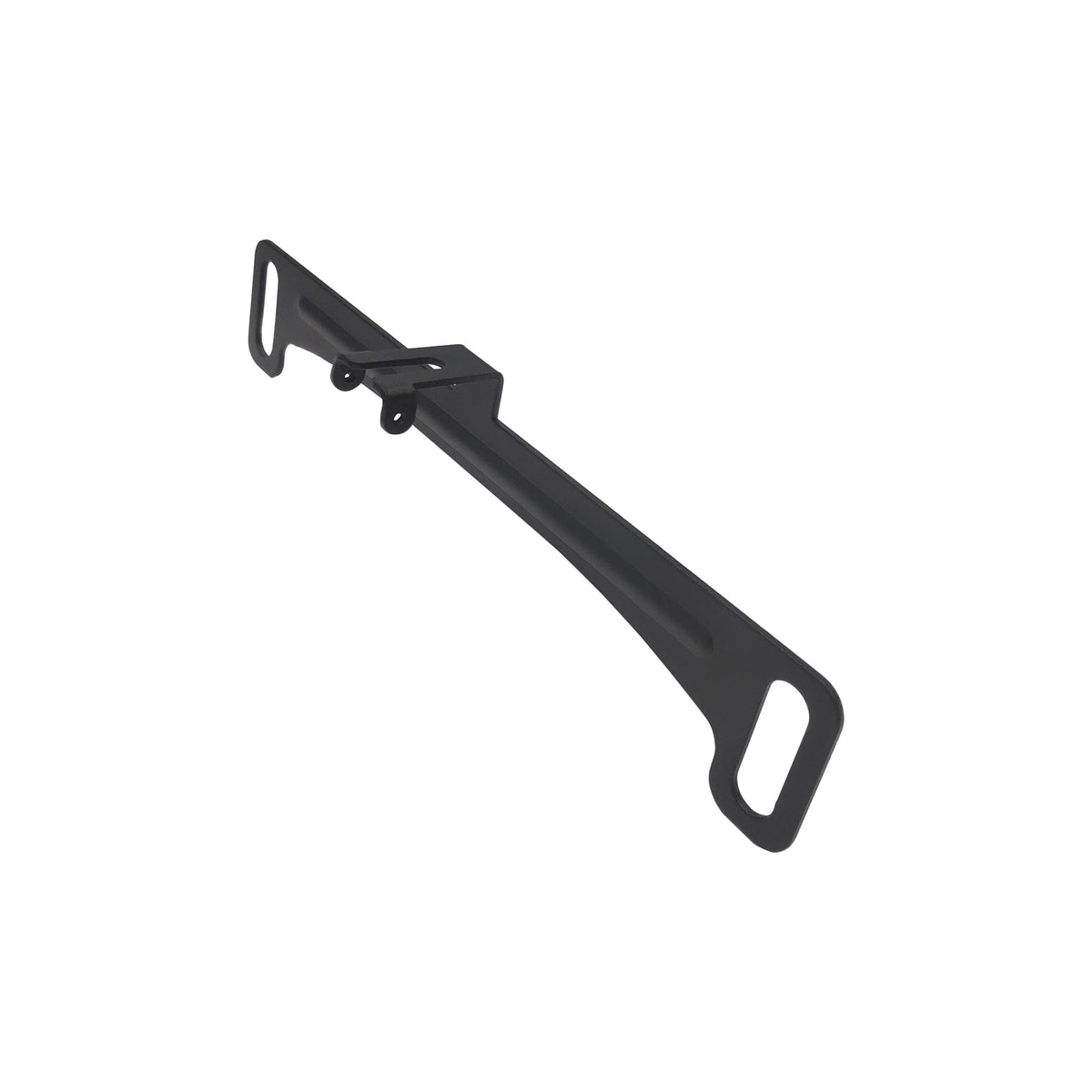

The included license plate mounting attachment places the camera near the plate area without requiring a full license plate frame. Its powder-coated finish complements the weather-resistant camera installation, while the compact camera measures only 23.4 mm on each visible face. The package offers a straightforward rear-camera upgrade path while retaining the option to use the camera's supplied universal mounting hardware where appropriate.

Key Features

• Wide-Angle Rear View: Approximately 128° horizontal and 103° vertical coverage helps show more of the area behind the vehicle.
• Color CMOS Sensor: A 1/3.6-inch sensor provides approximately 330,000 effective pixels for rear-view imaging.
• Mirror-Image Output: Rear-view image orientation is designed to match the perspective used for backing up.
• Composite Video Connection: Connects to compatible receivers or monitors with a composite RCA camera-video input.
• License Plate Mount Included: The supplied attachment supports a tidy installation near the rear license plate.
• Waterproof Camera Design: Built for exterior rear-camera placement in normal vehicle operating conditions.

Design & Installation

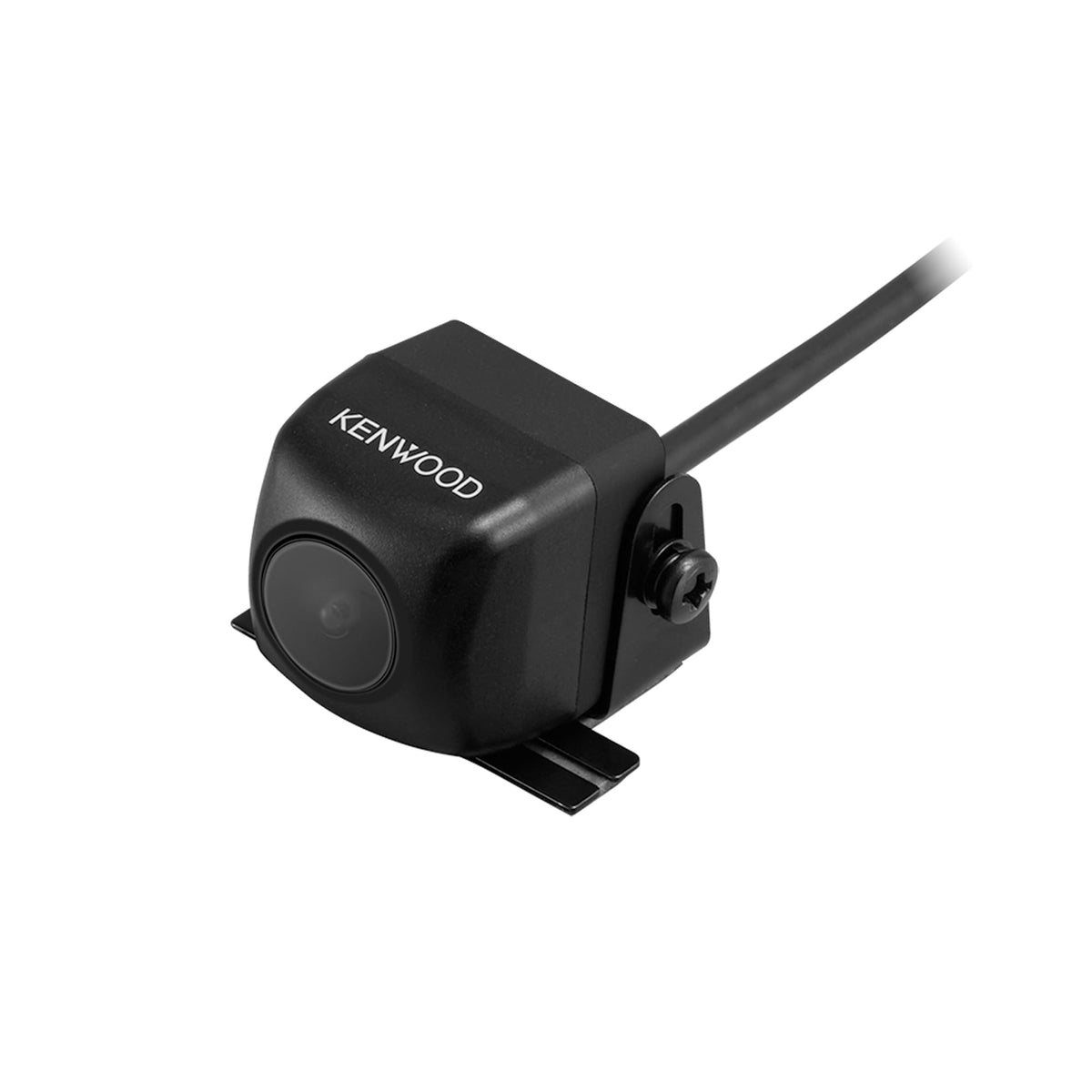

The CMOS-230 camera has a compact 23.4 x 23.4 x 23.9 mm housing and weighs approximately 21 g without its cable. The included license plate mounting attachment has a powder-coated finish and measures 179 x 35 x 29 mm. This package includes the CMOS-230 camera, license plate mounting attachment, mounting hardware, camera cord, power cable, and documentation.

For installation, mount the camera at the rear of the vehicle with the KENWOOD logo at the top, then adjust the angle so the bumper or rear of the vehicle is visible at the bottom of the display. Route the 1.5 m camera cord to the 7.5 m power/video cable, connect composite video to a compatible rear-camera or external-video input, ground the black wire to vehicle chassis metal, and connect the red wire to switched accessory power or an appropriate reverse-triggered source. Avoid automatic car washes and high-pressure water spray, and verify that the camera bracket and retaining hardware remain secure.
