JBL Club A1000 AMPCBA1000AM Mono Subwoofer Amplifier

The JBL Club A1000 is a mono car amplifier built to power a subwoofer system with controlled, high-output bass. It delivers 600 watts RMS to a 4-ohm load or 1000 watts RMS to a 2-ohm load. Its compact footprint helps make a dedicated bass upgrade practical in vehicles with limited mounting space.

This amplifier is intended for listeners who want to add or improve low-frequency performance without replacing every component in the vehicle. High-level and low-level inputs support connection to factory radios as well as aftermarket source units. Included bare-wire-to-RCA adapters help accommodate speaker-level signal integration.

Class D amplification gives the Club A1000 efficient mono subwoofer power with a specified 10-320 Hz frequency response. Its adjustable low-pass filter, bass boost, input level control, and phase switch provide useful tuning tools for matching a subwoofer and enclosure to the rest of the system. The result is a setup that can be tailored for smooth bass blending rather than relying on a fixed amplifier setting.

Balanced differential inputs are engineered to help reduce noise and distortion, including susceptibility to line-induced and radiated engine noise. On-board protection circuitry monitors for short circuits, high temperature, overvoltage, and undervoltage conditions. A status LED indicates when a protection condition is present.

The Club A1000 fits naturally into a single-subwoofer or multi-subwoofer upgrade using a properly matched 2- or 4-ohm load. A wired remote bass level controller is included for convenient adjustment from the driver's seat. For larger systems, two Club A1000 amplifiers can be strapped together for specified 4-ohm operation, with the primary amplifier controlling key adjustments.

Key Features

• 1000-Watt RMS Mono Output: Delivers 1000 watts RMS x 1 into a 2-ohm subwoofer load.
• Class D Amplification: Provides efficient subwoofer power in a compact amplifier format.
• High- And Low-Level Inputs: Supports factory-radio and aftermarket-radio integration.
• Variable Low-Pass Filter: Adjusts the subwoofer crossover point from 32 to 320 Hz.
• Wired Bass Level Remote: Lets the driver make convenient bass-level adjustments from the seat.
• Protection Circuitry: Helps protect the amplifier from thermal, voltage, and short-circuit conditions.

Design & Installation

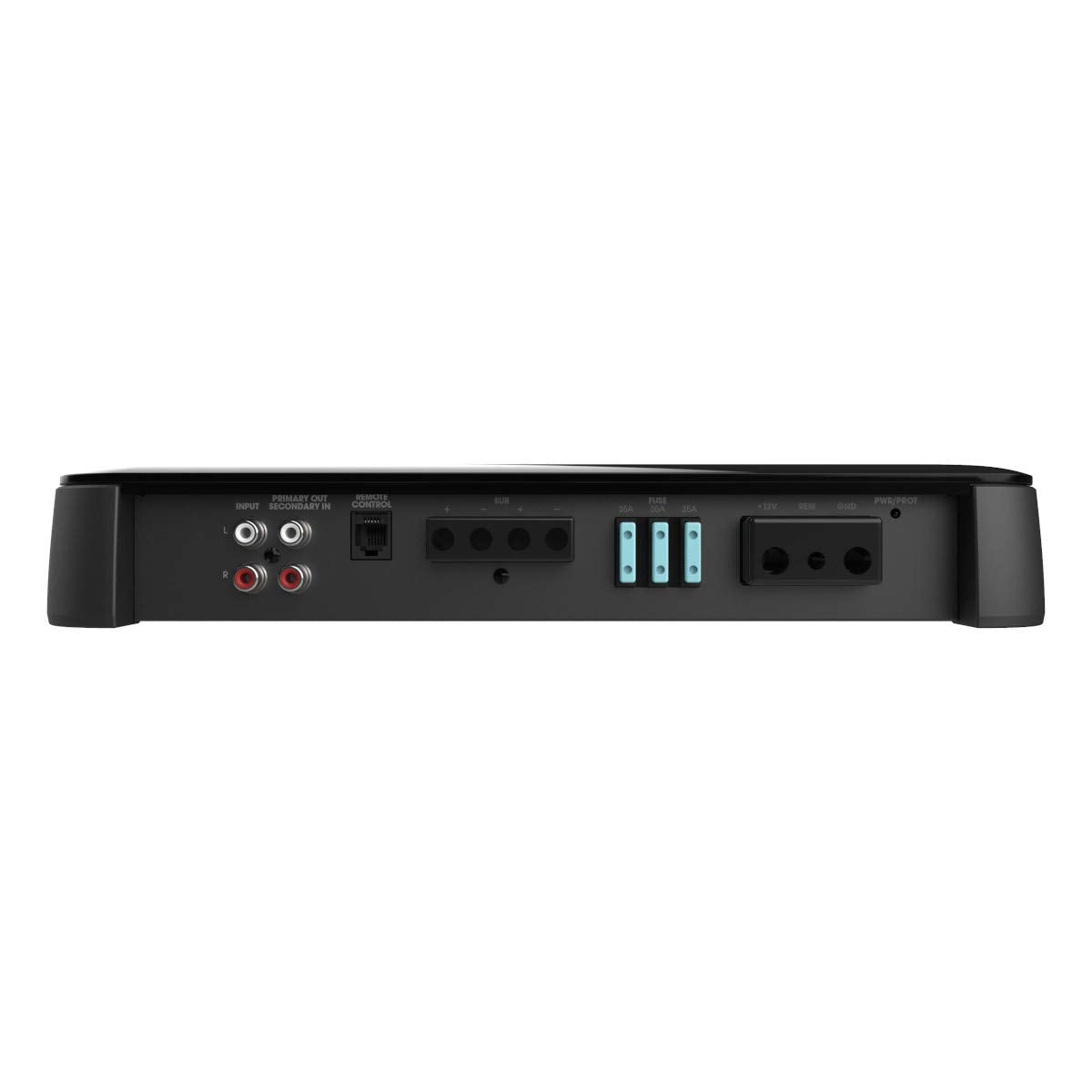

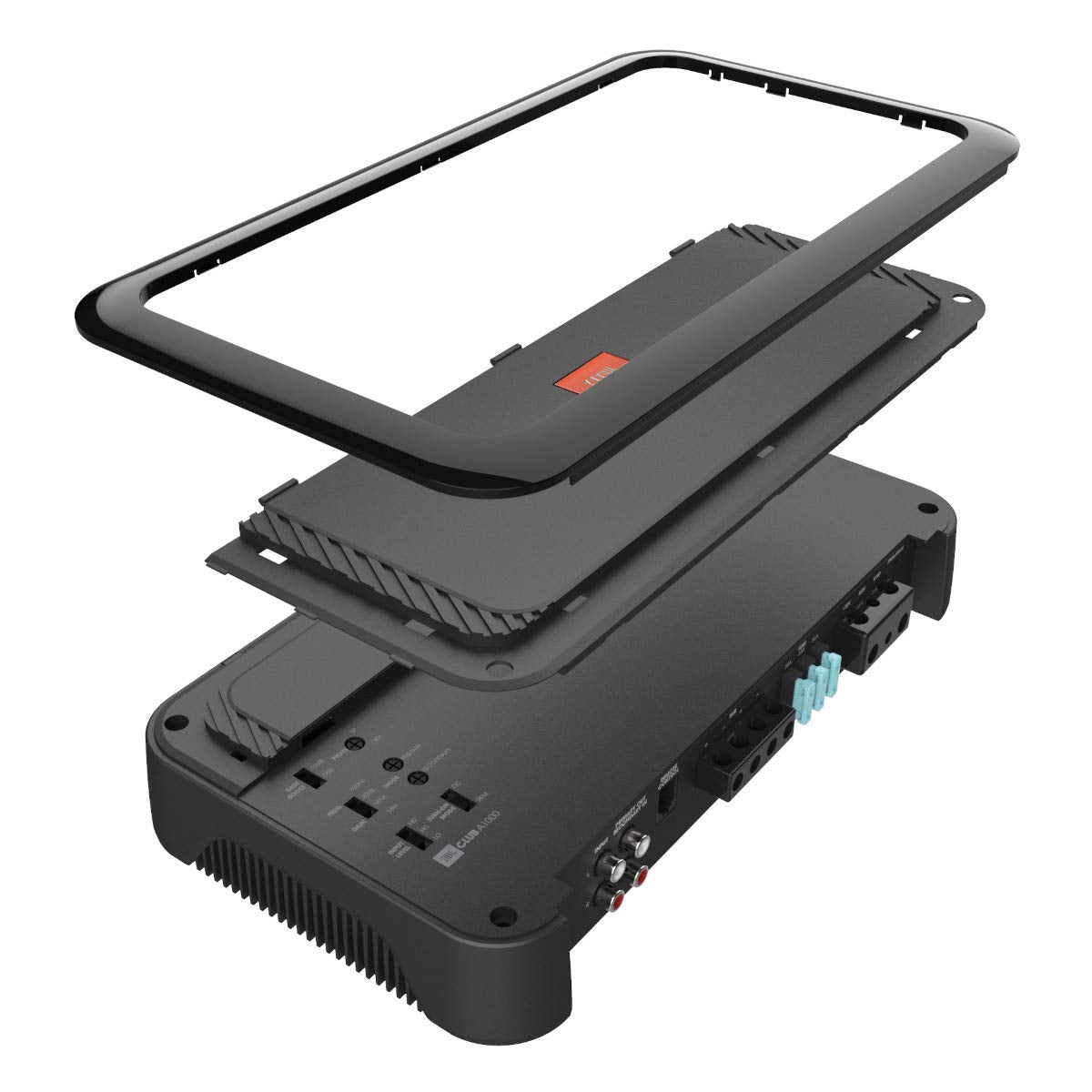

The Club A1000 uses a low-profile, compact chassis intended for installations where available space is limited. JBL does not specify the chassis material, but the design includes protected control connections, a status LED, integrated fuse protection, and a removable control-panel cover arrangement. Its layout combines power, speaker, signal, and tuning connections in a dedicated mono-amplifier format.

Use 4-gauge power and ground leads as recommended by JBL, and match the connected subwoofer load to the amplifier's published 2-ohm or 4-ohm power ratings. Set gain, low-pass frequency, bass boost, and phase as part of system tuning after wiring the amplifier and subwoofer enclosure. Power and ground wiring are not included, while the box includes high-level input adapters, a wired remote controller, fuses, and mounting hardware.
