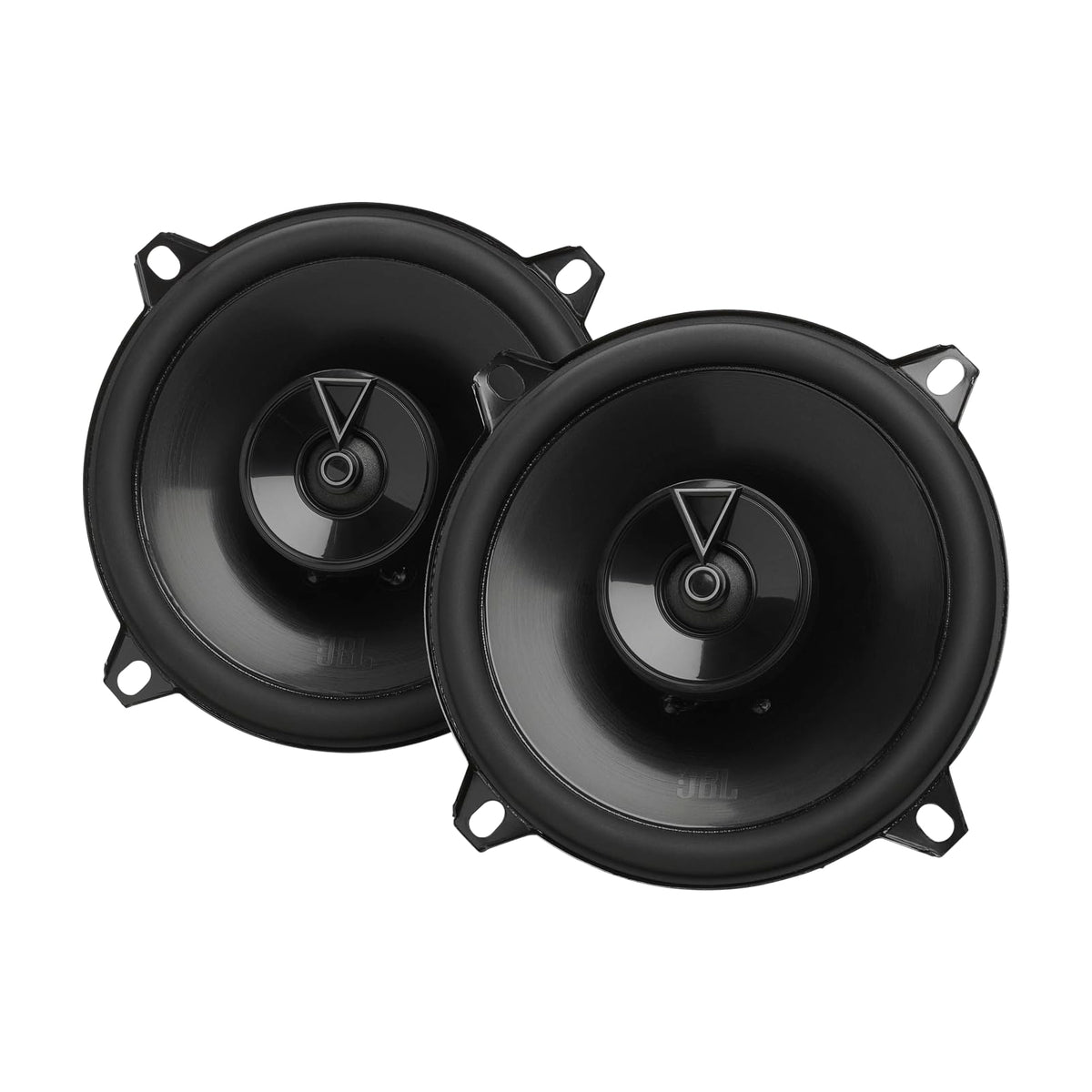

JBL Club 54F 5.25" Two-Way Car Speakers

The JBL Club 54F is a pair of 5-1/4-inch two-way car speakers designed for replacing worn factory speakers or upgrading a compact factory speaker location. It combines a coaxial woofer-and-tweeter layout in a size commonly used in vehicle doors, dashboards, and rear panels. Its 3-ohm nominal impedance and 91dB sensitivity are intended to work efficiently with factory radios as well as compatible aftermarket amplification.

With 45 watts RMS and 135 watts peak power handling per speaker, the Club 54F is suited to everyday listening systems that need clean output without requiring a high-power system build. The 75Hz–20kHz frequency response covers midrange, upper bass, and treble duties, while a subwoofer can be added later for lower bass reinforcement. It is a practical choice for listeners seeking a more detailed and durable replacement for basic factory full-range speakers.

The speaker uses JBL Plus One™ woofer cone architecture, which increases cone area within the available frame size. More radiating area can support efficient output and stronger low-frequency presence within the speaker's operating range. An acoustically damped polypropylene cone is used to help control resonance while handling the heat and humidity found in vehicle interiors.

A full edge-driven silk dome tweeter handles high frequencies and crosses over at 3kHz. This design is engineered for broad, smooth treble reproduction from a coaxial speaker assembly. The integrated two-way layout keeps both drivers together, making it well suited to factory locations where separate tweeter mounting is not practical.

The Club 54F has a 4.47-inch mounting cutout diameter and a 1.89-inch mounting depth, so confirming vehicle-specific clearance is important before installation. Its compact 5.08-inch outer diameter can suit many 5-1/4-inch openings, but factory brackets, door-panel clearance, and connector compatibility vary by vehicle. A compatible amplifier or radio channel that is stable with a 3-ohm speaker load can be used to power the pair.

Key Features

• 5-1/4-Inch Two-Way Design: Combines a woofer and tweeter in each speaker for a straightforward full-range replacement.
• 45W RMS Power Handling: Supports moderate factory-radio or aftermarket-amplifier power with appropriate gain setting.
• Plus One™ Cone Architecture: Provides greater cone area within the speaker frame for efficient output.
• Edge-Driven Silk Dome Tweeter: Delivers smooth high-frequency response from the integrated coaxial assembly.
• UV-Resistant Polypropylene Cone: Uses a damped cone material designed for automotive heat and humidity exposure.
• 3-Ohm Nominal Impedance: Is engineered to draw useful output from compatible factory and aftermarket systems.

Design & Installation

The Club 54F uses a polypropylene woofer cone with acoustic damping and UV resistance, paired with an edge-driven silk dome tweeter. JBL's Plus One™ cone design maximizes usable cone area for the speaker's frame size. The speakers use a black coaxial format and are supplied as a pair with one foam gasket.

Before purchase, compare the vehicle opening with the 4.47-inch mounting cutout requirement, 5.08-inch outer diameter, 1.89-inch mounting depth, and 2.53-inch total depth. Confirm that the door panel or factory grille clears the tweeter area and that the vehicle wiring can be connected correctly; vehicle-specific adapter brackets or harnesses may be needed and are not listed in the package contents. For amplified systems, select channels compatible with 3-ohm loads and set gains conservatively for the 45W RMS rating.
