Infinity Kappa 103WDSSI 10" Car Audio Subwoofer

The Infinity Kappa 103WDSSI is a 10-inch component car audio subwoofer designed for adding dedicated low-frequency output to a custom vehicle audio system. It is intended for use with an external amplifier and an appropriate enclosure rather than as a powered, all-in-one bass solution. Its selectable impedance design helps simplify matching the subwoofer to different amplifier configurations.

This model is a practical choice for listeners building or updating a system that needs a compact 10-inch woofer with substantial continuous power capacity. It handles 450 watts RMS and 1,350 watts peak, with a 30 Hz to 175 Hz frequency-response rating. A 91 dB sensitivity rating supports efficient output when it is paired with suitable amplification.

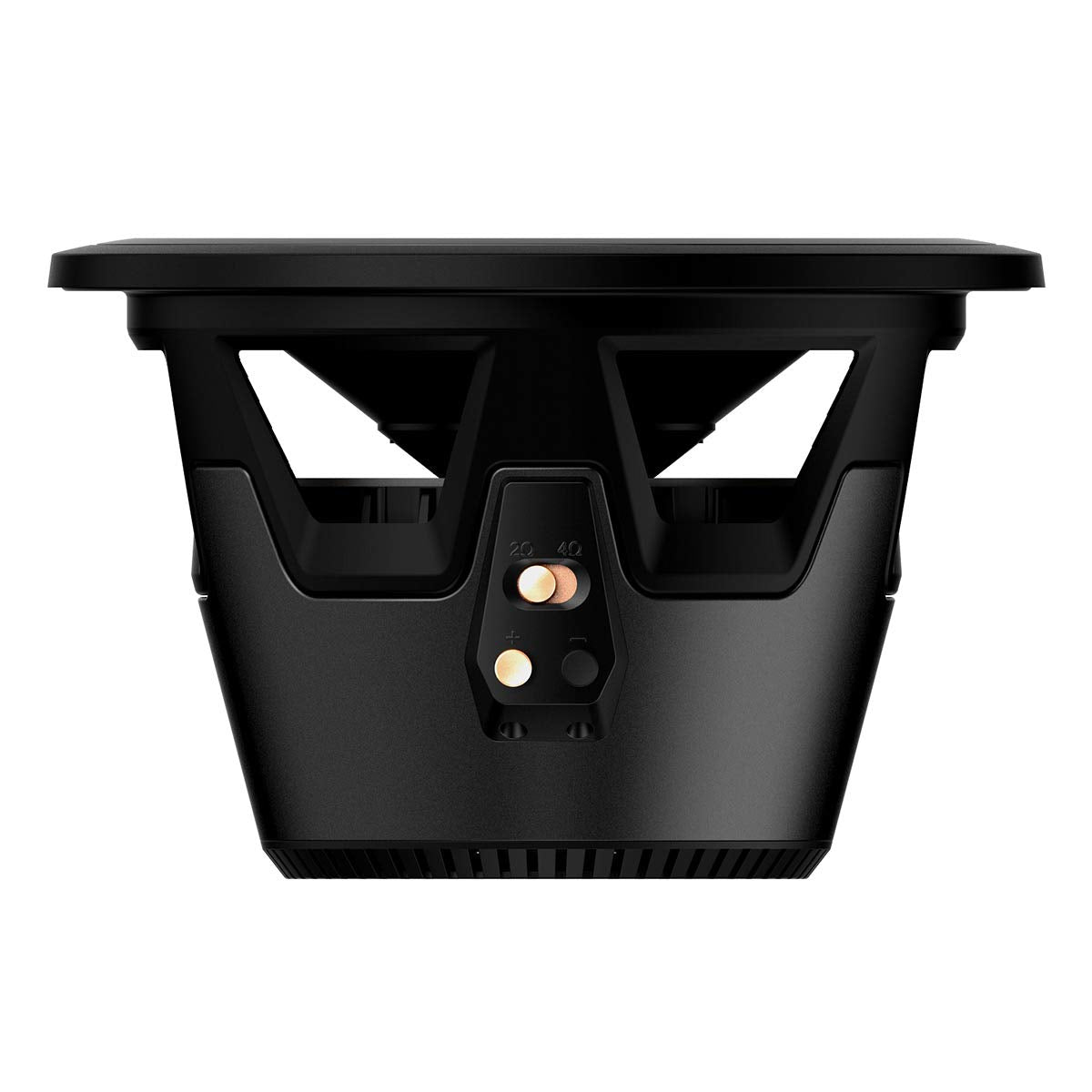

The Kappa 103WDSSI uses Infinity's SSI, or Selectable Smart Impedance, system. A switch on the terminal assembly selects either a 2-ohm or 4-ohm impedance setting, allowing the same subwoofer to work with amplifiers optimized for either load. The amplifier should be turned off before changing the impedance selection.

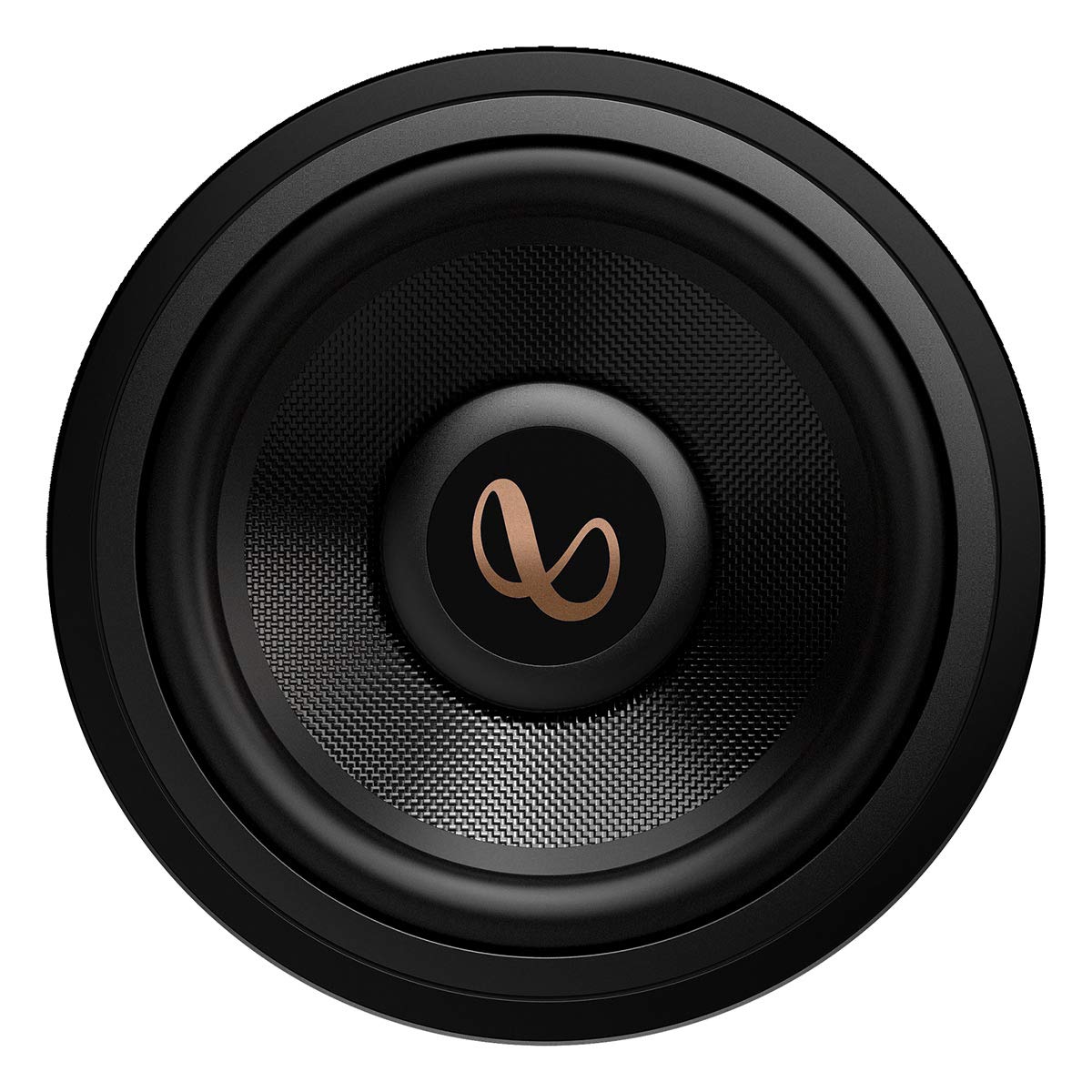

Its glass-fiber cone is designed to provide rigidity and damping for detailed bass reproduction, while the rubber surround supports cone movement. An aero-cooled 2-inch voice coil uses a two-sided ducted-airflow design to help manage heat during operation. This construction is intended to support reliable performance at its rated power level.

The Kappa 103WDSSI can be used in sealed, ported, or free-air installations. Infinity's published dimensions call for an 8-15/16-inch cutout and 6-1/4 inches of mounting depth, so enclosure and vehicle clearance should be confirmed before installation. It is supplied as a raw subwoofer for a custom system, allowing the enclosure and amplifier to be selected around the desired installation approach.

Key Features

• SSI Selectable Impedance: Switch between 2-ohm and 4-ohm operation to suit the amplifier.
• 450W RMS Handling: Supports an amplifier delivering up to 450 watts RMS.
• Aero-Cooled Voice Coil: Ducted airflow helps cool the voice coil during use.
• Glass-Fiber Cone: Rigid cone construction supports accurate, detailed bass reproduction.
• 2-Inch Voice Coil: Oversized coil design supports thermal management and control.
• 8-Gauge Push Terminals: Integrated terminals accept speaker wire up to 8 gauge.

Design & Installation

The Kappa 103WDSSI combines a glass-fiber-over-paper cone, rubber surround, steel basket, and 2-inch voice coil. Its terminal assembly includes the SSI impedance selector and integrated push terminals for up to 8-gauge speaker wire. The round 10-inch driver has a black finish and does not include a grille.

For installation, confirm the 8-15/16-inch cutout requirement and allow at least 6-1/4 inches of mounting depth. A 0.8-cubic-foot sealed enclosure is recommended for a compact, controlled setup, while a 1.5-cubic-foot ported enclosure is recommended for a vented design. Match the amplifier to the selected 2-ohm or 4-ohm setting and the subwoofer's 450-watt RMS rating; an enclosure, amplifier, and wiring are not included.
