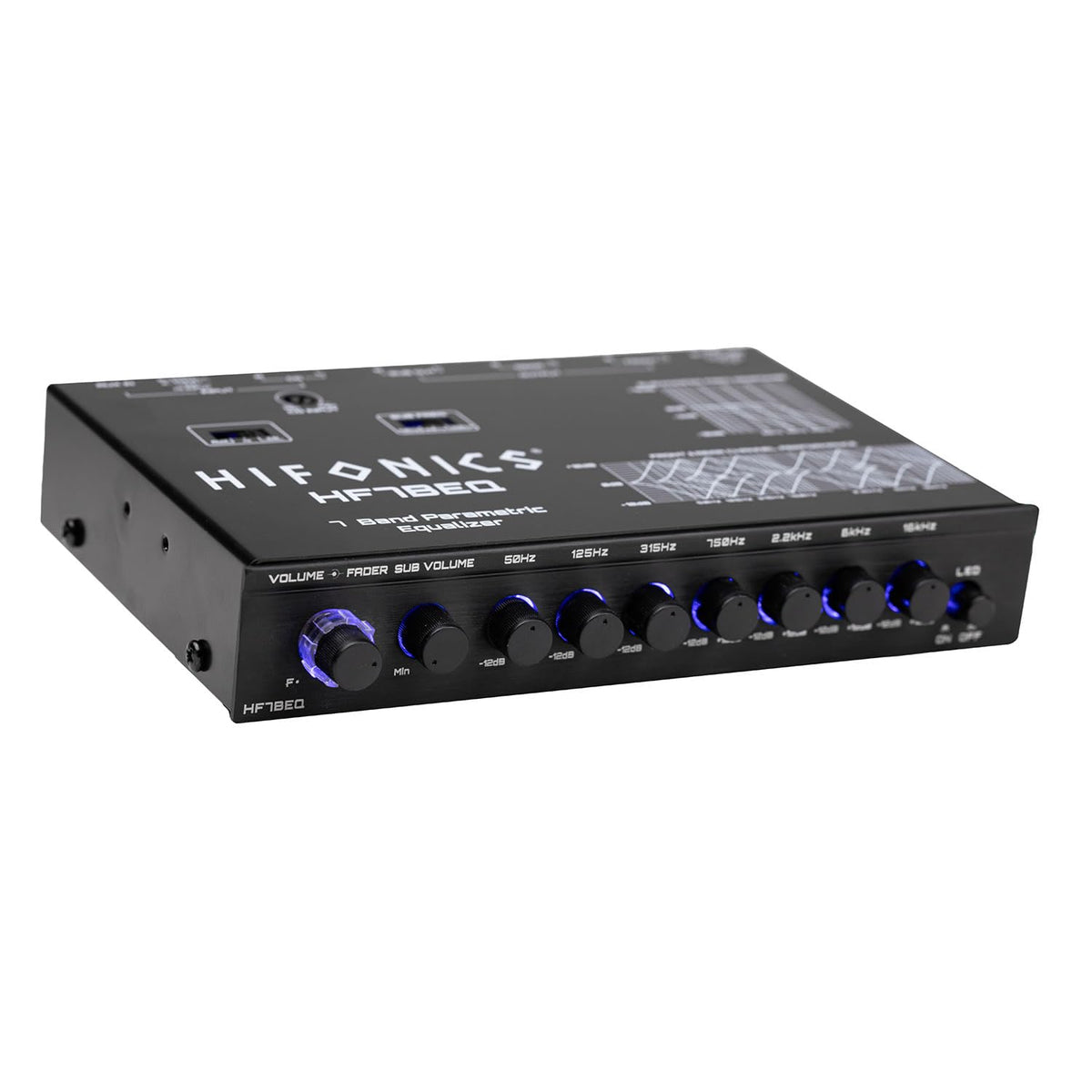

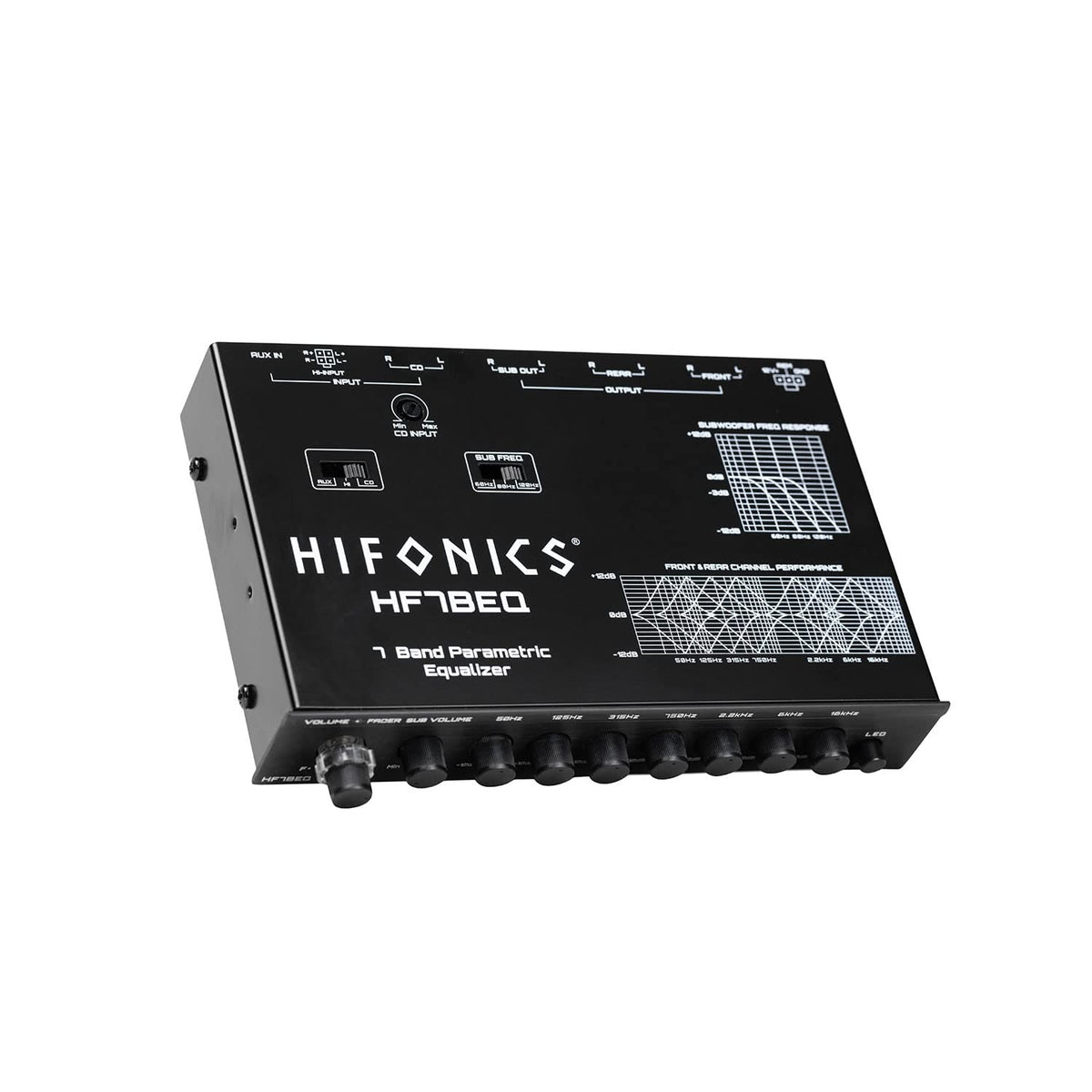

Hifonics HF7BEQ 7-Band Equalizer with Crossover

The Hifonics HF7BEQ is a 7-band car-audio equalizer and two-way crossover designed to place system tuning controls within easy reach. It helps tailor tonal balance while providing separate output paths for front, rear, and subwoofer amplification. This makes it a practical addition to multi-amplifier systems that need more source-level adjustment than a basic head unit provides.

Its seven fixed equalization bands cover low bass through upper treble, allowing users to reduce or raise specific areas of the audio spectrum. Each band offers up to 12 dB of cut or boost, so adjustments can be made for vehicle acoustics, speaker character, or listening preference. Dedicated master-volume, subwoofer-level, and front/rear-fader controls provide additional day-to-day system management.

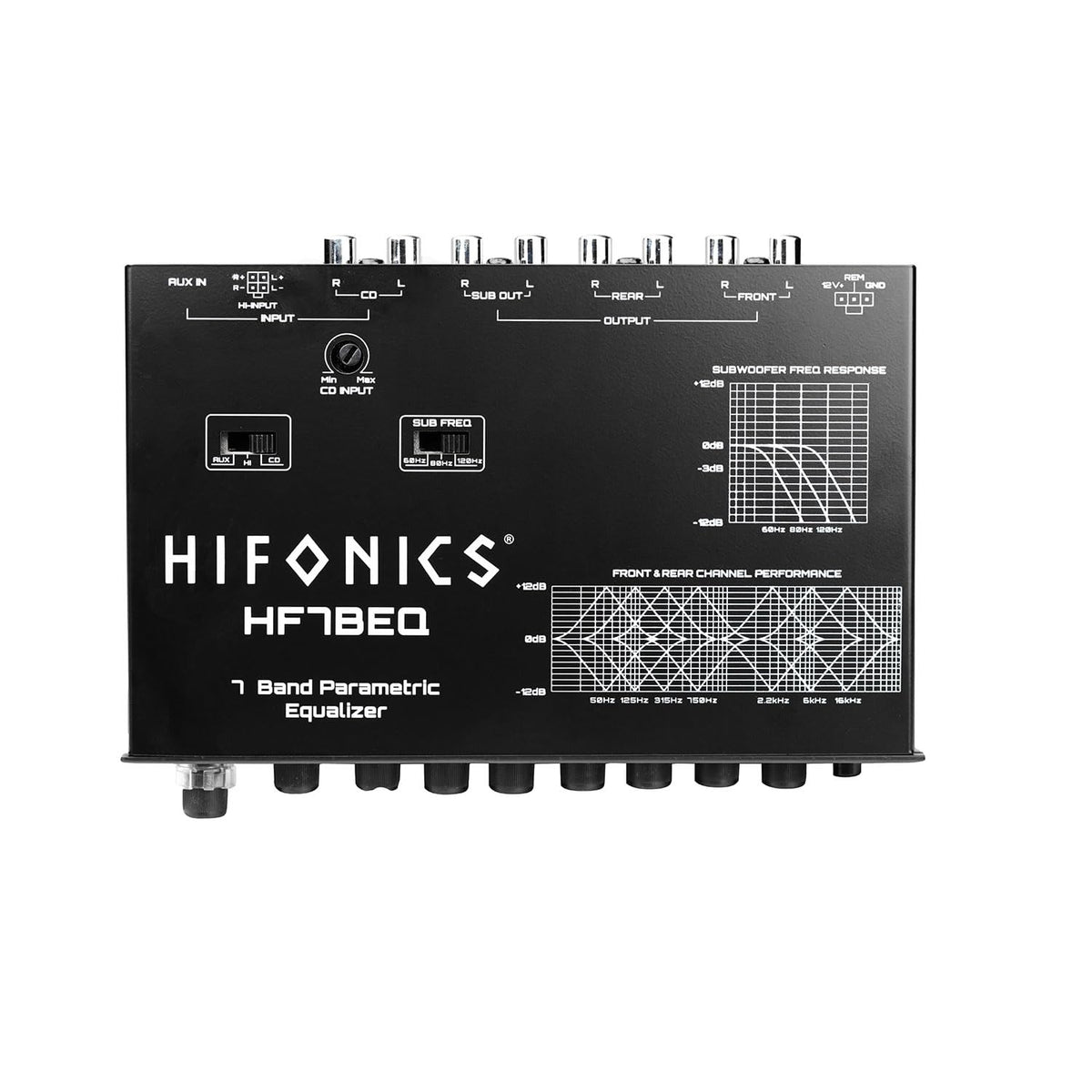

The HF7BEQ is suited to aftermarket systems using external amplifiers, as well as upgrades retaining a factory radio. It accepts RCA, speaker-level, and 3.5 mm auxiliary inputs, with source selection available from the unit. A CD/RCA input-level control helps match the processor to the line-level output of a compatible source unit.

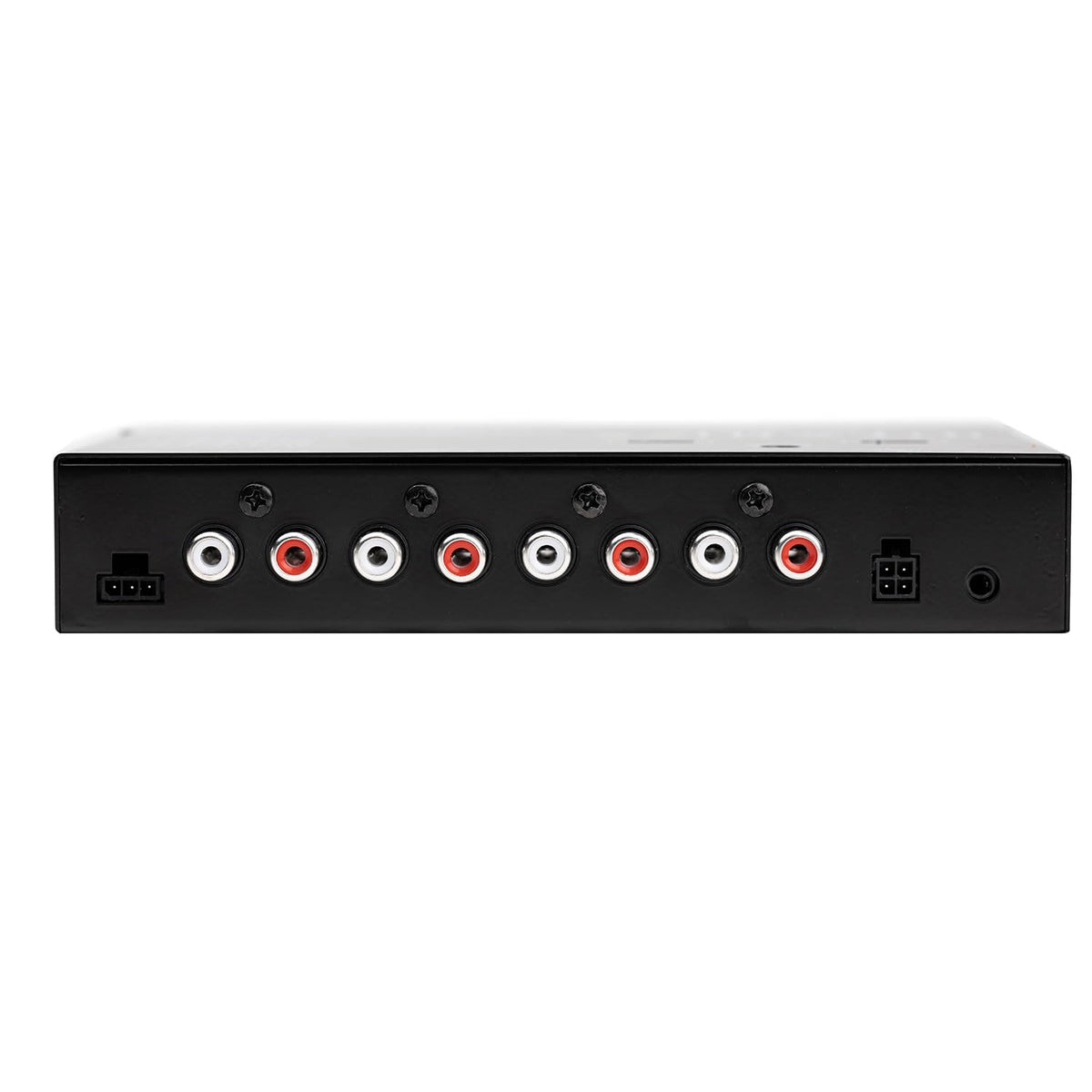

A built-in 9-volt line driver supports a stronger preamp signal for connected amplifiers, while the three stereo RCA output groups organize front, rear, and subwoofer channels. The subwoofer outputs use a selectable low-pass crossover frequency of 60 Hz, 80 Hz, or 120 Hz. This arrangement helps separate bass amplification from the front and rear speaker amplifier paths.

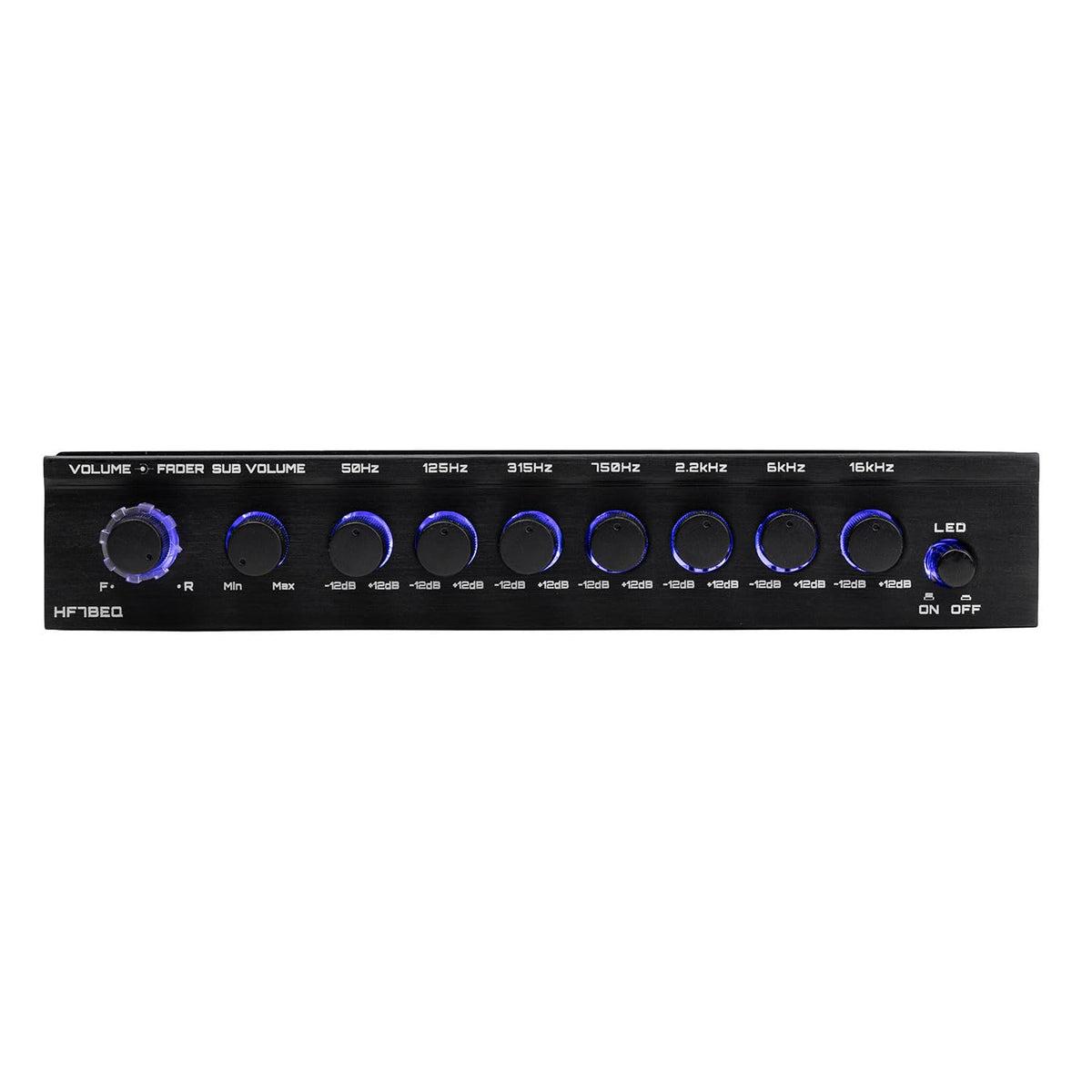

The half-DIN form factor supports in-dash or under-dash installation, making the HF7BEQ useful where a full-size processor is unnecessary. It can serve as a central control point when adding amplifiers and a subwoofer to an existing system. Blue-illuminated control knobs and a selectable front-illumination function make the controls easier to locate in low-light conditions.

Key Features

• Seven-Band Equalizer: Adjusts key frequencies from bass through treble.
• 9-Volt Line Driver: Provides higher-voltage preamp output for amplifiers.
• Three Stereo RCA Outputs: Supplies dedicated front, rear, and subwoofer signals.
• Selectable Subwoofer Crossover: Chooses 60, 80, or 120 Hz low-pass filtering.
• Multiple Input Types: Supports RCA, speaker-level, and 3.5 mm auxiliary sources.
• Independent Level Controls: Manages master volume, subwoofer level, and fader.

Design & Installation

The HF7BEQ uses a compact half-DIN chassis with blue-illuminated control knobs and a selectable front LED illumination function. Hifonics includes mounting brackets and hardware for installation. The manufacturer does not specify the chassis material, but the layout is designed for accessible front-panel adjustment.

Mount the unit in or under the dash only after confirming adequate depth and clearance behind the chosen location. Connect it to fused constant or switched +12-volt power, chassis ground, and the source unit's remote-output lead; a 2-amp in-line fuse is specified. Use RCA inputs with an aftermarket radio, high-level inputs with speaker-output sources, or the 3.5 mm auxiliary input for a compatible portable audio source.
