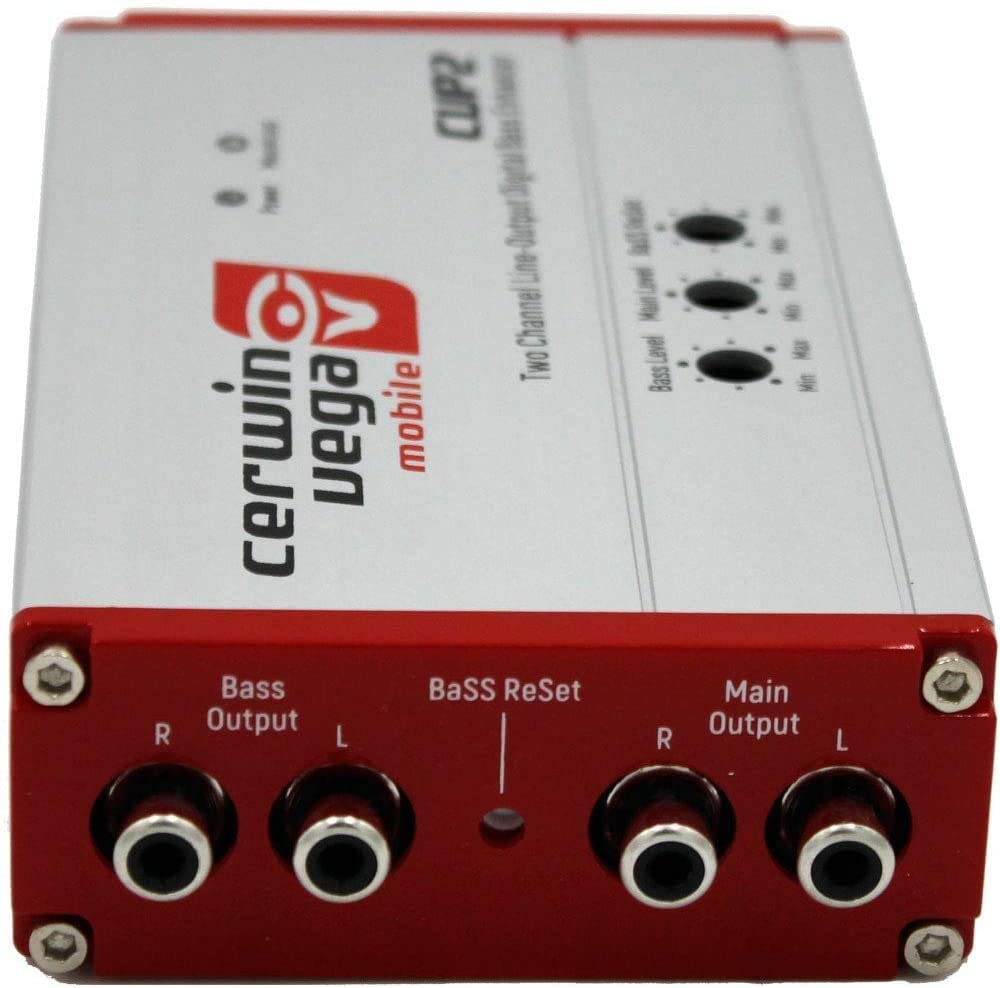

Cerwin Vega CER-CVP2 2-Channel Digital Bass Enhancer

The Cerwin Vega CER-CVP2 is a 2-channel line-output converter and digital bass enhancer for adding aftermarket amplification to a factory car-audio system. It accepts speaker-level signals from an OEM radio and provides RCA-level outputs for compatible amplifiers. This makes it useful when a factory head unit does not provide conventional preamp outputs.

The CVP2 is intended for listeners who want to retain their factory radio while adding an amplifier, subwoofer system, or expanded multi-amplifier setup. Its BaSS ReSet bass-compensation circuit is designed to address factory systems that reduce bass output as volume rises. The adjustable bass level and compensation controls allow the response to be tailored during setup.

With a maximum speaker-level input rating of 400 watts per channel at 4 ohms, the processor is built for integration with higher-powered factory speaker outputs. It supplies up to 9.5V RMS of preamp output, helping provide a strong signal to connected amplifiers. Separate bass and main RCA outputs support systems using a dedicated bass amplifier alongside a full-range amplifier.

The CER-CVP2 includes a dash-mounted level remote for convenient bass-level adjustment from the driver’s seat. The remote control range is specified from 0 dB to -19 dB. A selectable auto-on function and 12V trigger output simplify integration with many factory-radio installations.

This processor fits between the source unit and amplifier stage of a vehicle audio upgrade. It can be used with speaker-level input from the radio or with a pre-out signal connection, depending on the system layout. Proper gain setting and bass-compensation adjustment are important for balanced output and clean operation.

Key Features

• 2-Channel Line Output Converter: Converts compatible speaker-level signals to RCA-level outputs for amplifier integration.
• BaSS ReSet Compensation: Helps restore bass response reduced by some factory audio systems.
• 400W Speaker-Level Input: Accepts up to 400 watts per channel at 4 ohms.
• Dual RCA Output Sections: Provides separate fixed main and variable bass output pairs.
• Dash Level Remote: Lets the driver adjust bass level from 0 dB to -19 dB.
• Selectable Auto-On: Supports automatic turn-on integration with compatible OEM systems.

Design & Installation

The CVP2 uses a compact external-processor layout with clearly separated speaker-input, power, remote, signal-controller, and RCA connection sections. Its control arrangement includes Bass Level, Main Level, and BaSS ReSet adjustments, plus dedicated bass and main output pairs. Cerwin Vega does not publish a chassis-material specification for this model.

Install the CVP2 between the radio signal source and aftermarket amplifier or amplifiers, using either speaker-level input or the applicable pre-out connection method. Connect fused 12V power, ground, remote wiring, and RCA outputs according to the system design; the manufacturer recommends a 1-amp fuse. Set amplifier gains and BaSS ReSet compensation after installation, and use the included dash remote for routine bass-level changes.
