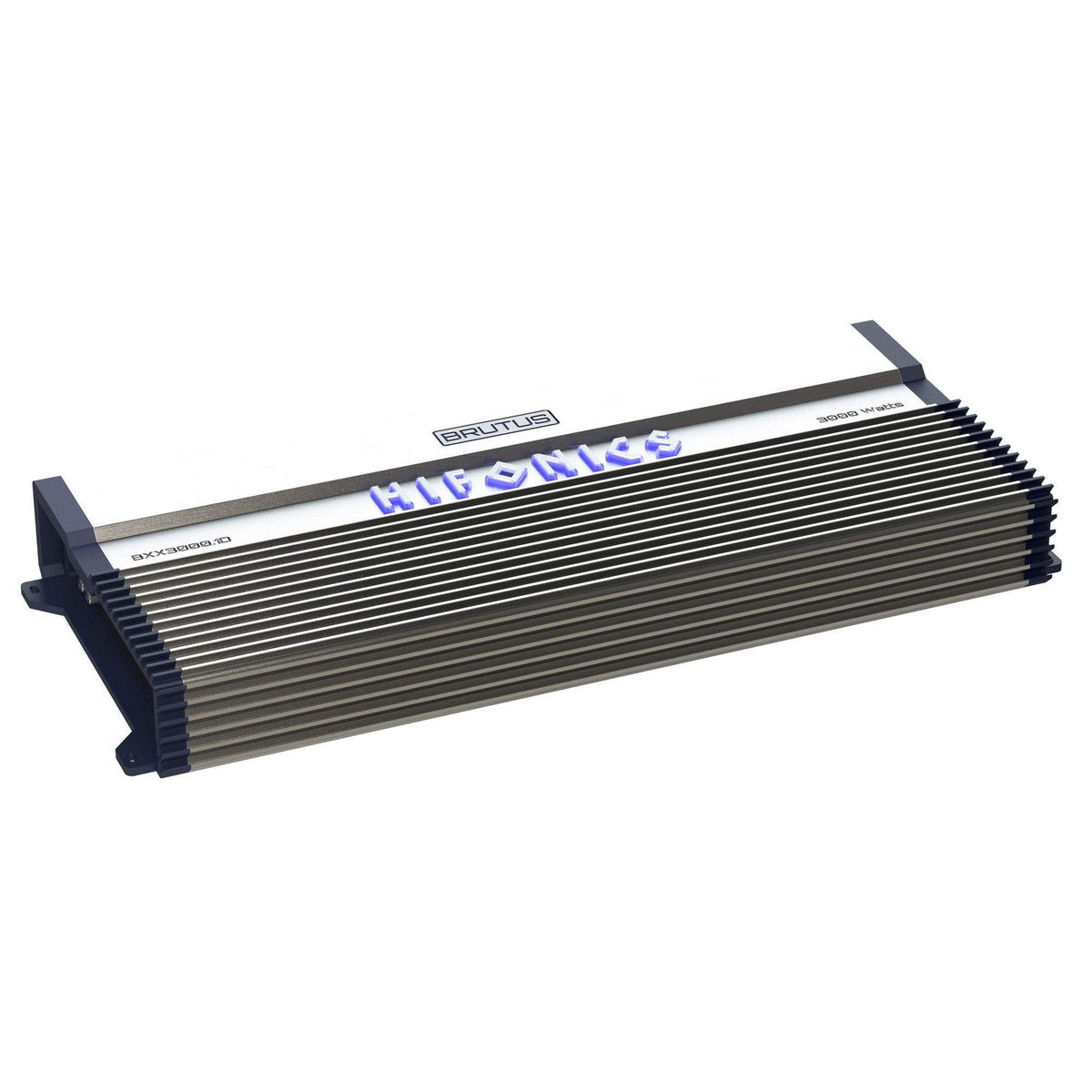

Hifonics BXX3000.1D 3000W Mono Class D Subwoofer Amplifier

The Hifonics BXX3000.1D is a single-channel car audio amplifier built to power subwoofer systems. It is rated for 3,000 watts RMS at a 1-ohm load, with additional rated output at 2 and 4 ohms. Its mono configuration keeps the system focused on low-frequency reproduction rather than full-range speaker amplification.

This amplifier is intended for installers building a high-output bass system with compatible subwoofers and electrical support. A variable low-pass crossover, subsonic filter, bass boost, and phase adjustment provide the controls needed to integrate a subwoofer with the vehicle's main speakers. RCA signal connections make it suitable for aftermarket source units or processors with low-level outputs.

Super D Class circuitry and an NGSD digital chip are used in the BXX3000.1D design. The amplifier also uses Ultra-Fi MOSFET output devices and a PWM power supply architecture. These elements support efficient low-frequency amplification in a large mono-block format.

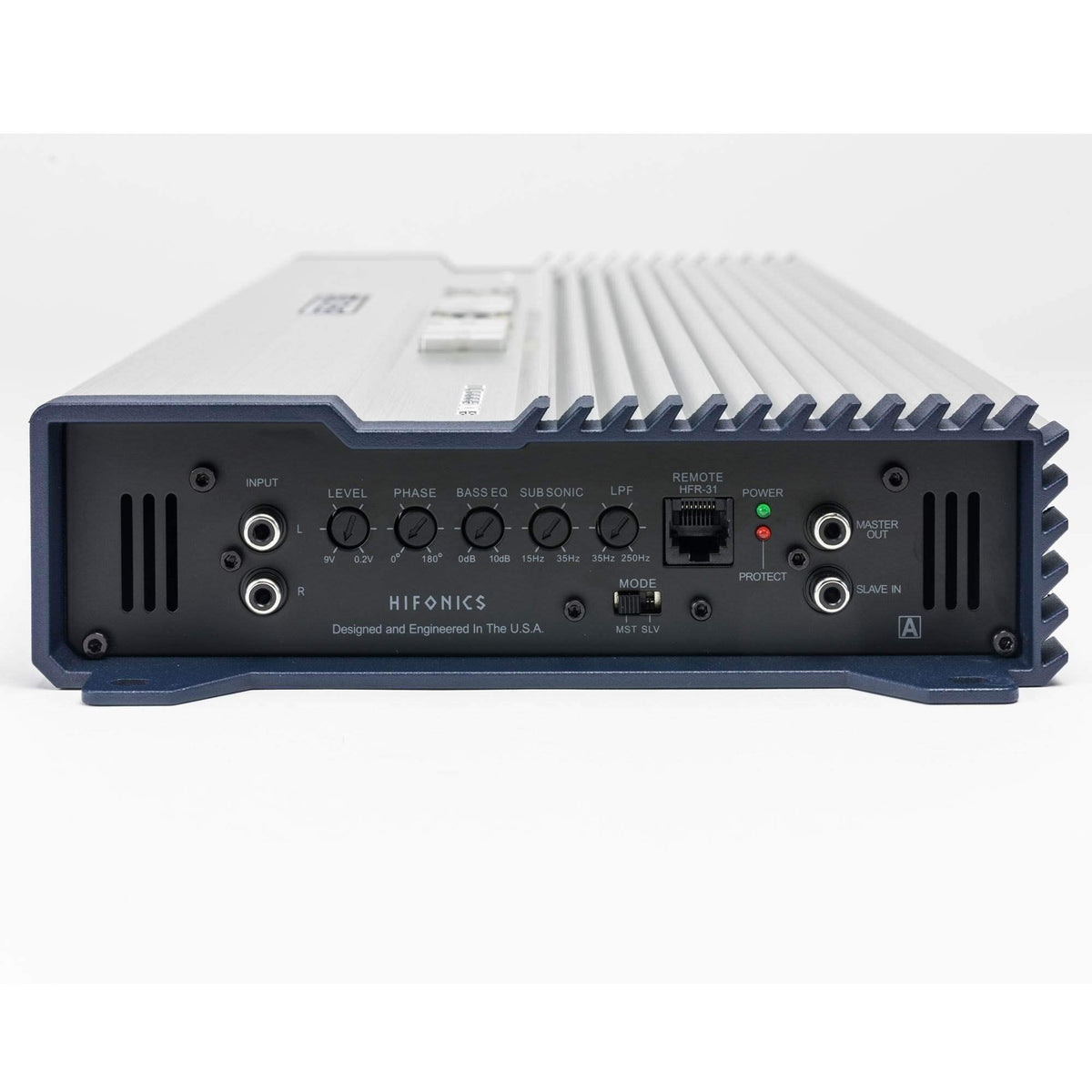

The onboard low-pass filter adjusts from 35Hz to 250Hz, allowing the amplifier to concentrate output on the subwoofer range. Its variable subsonic filter operates from 15Hz to 35Hz to reduce extremely low-frequency content below the intended operating range. A 0 to 10dB bass boost and 0 to 180-degree phase control allow careful system tuning.

For expandable systems, the BXX3000.1D provides master and slave RCA connections plus an MST/SLV mode switch for strapping compatible amplifiers. It also includes a wired bass remote for accessible level adjustment. Proper subwoofer wiring is essential, as the amplifier is designed for loads down to 1 ohm.

Key Features

• 3,000W RMS At 1 Ohm: Provides high-output mono power for a correctly matched subwoofer system.
• 1-Ohm Stable Mono Design: Supports low-impedance subwoofer wiring down to a 1-ohm load.
• Variable Low-Pass Filter: Adjusts from 35Hz to 250Hz for smoother subwoofer integration.
• Variable Subsonic Filter: Adjusts from 15Hz to 35Hz to limit ultra-low-frequency content.
• Strapping Capability: Master/slave RCA connections support compatible multi-amplifier configurations.
• Wired Bass Remote: Places bass-level adjustment within reach from the driver's seat.

Design & Installation

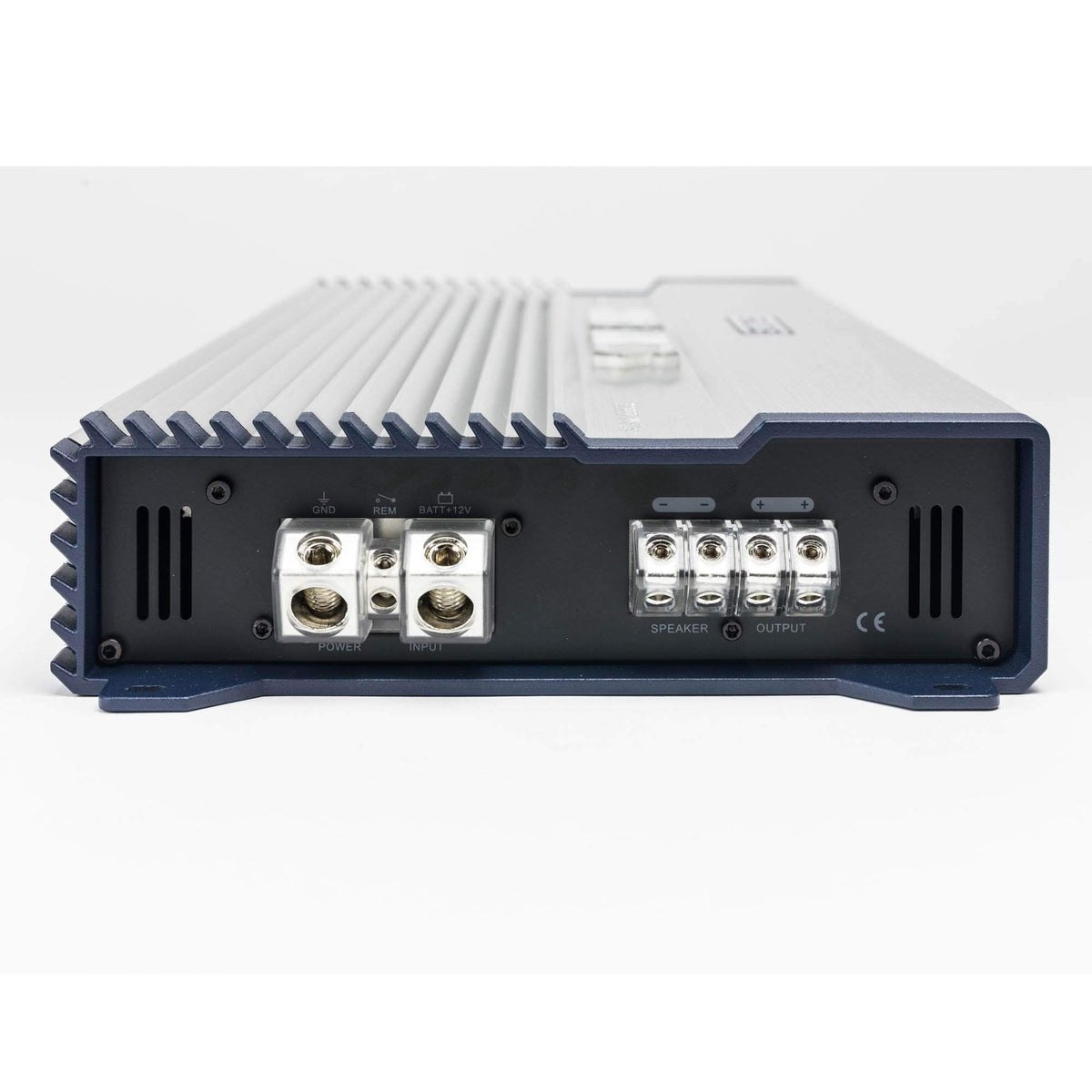

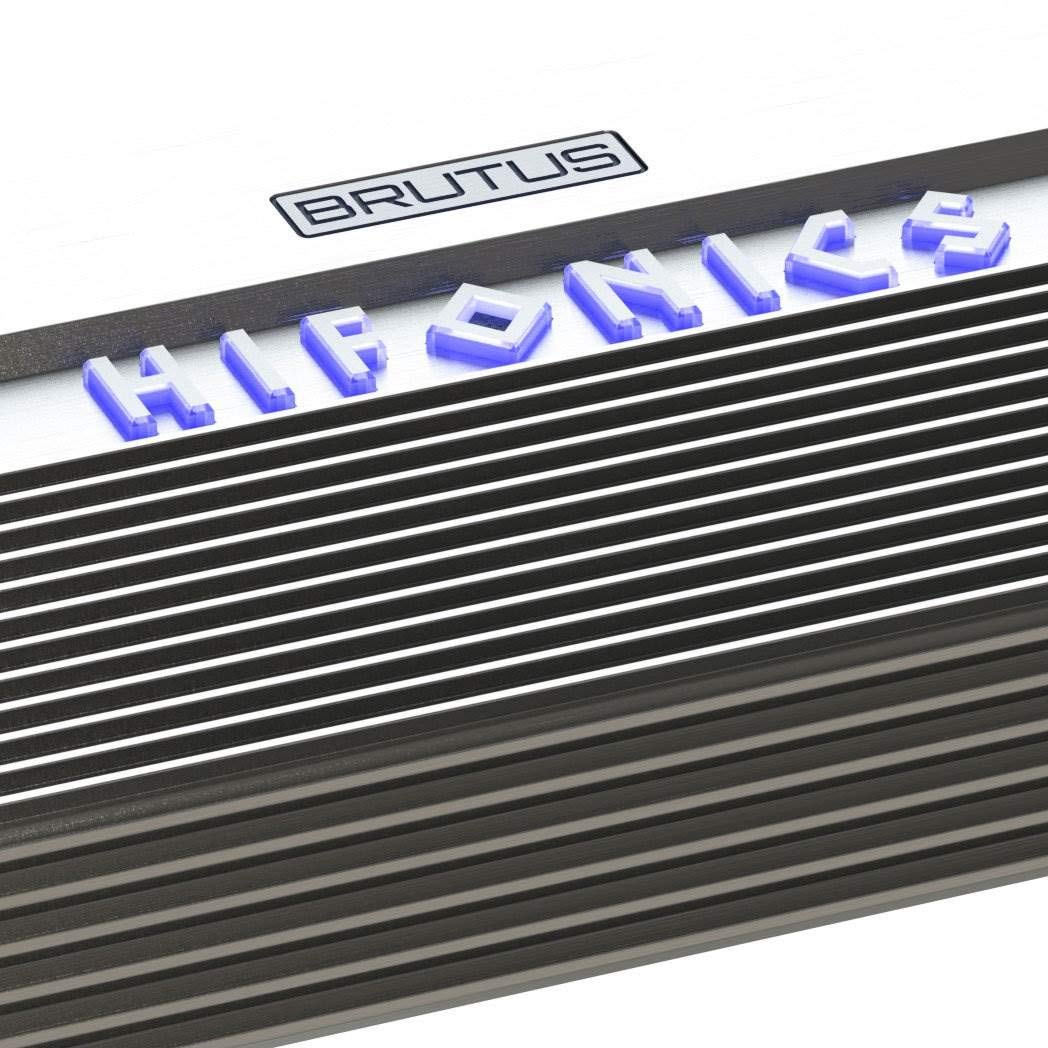

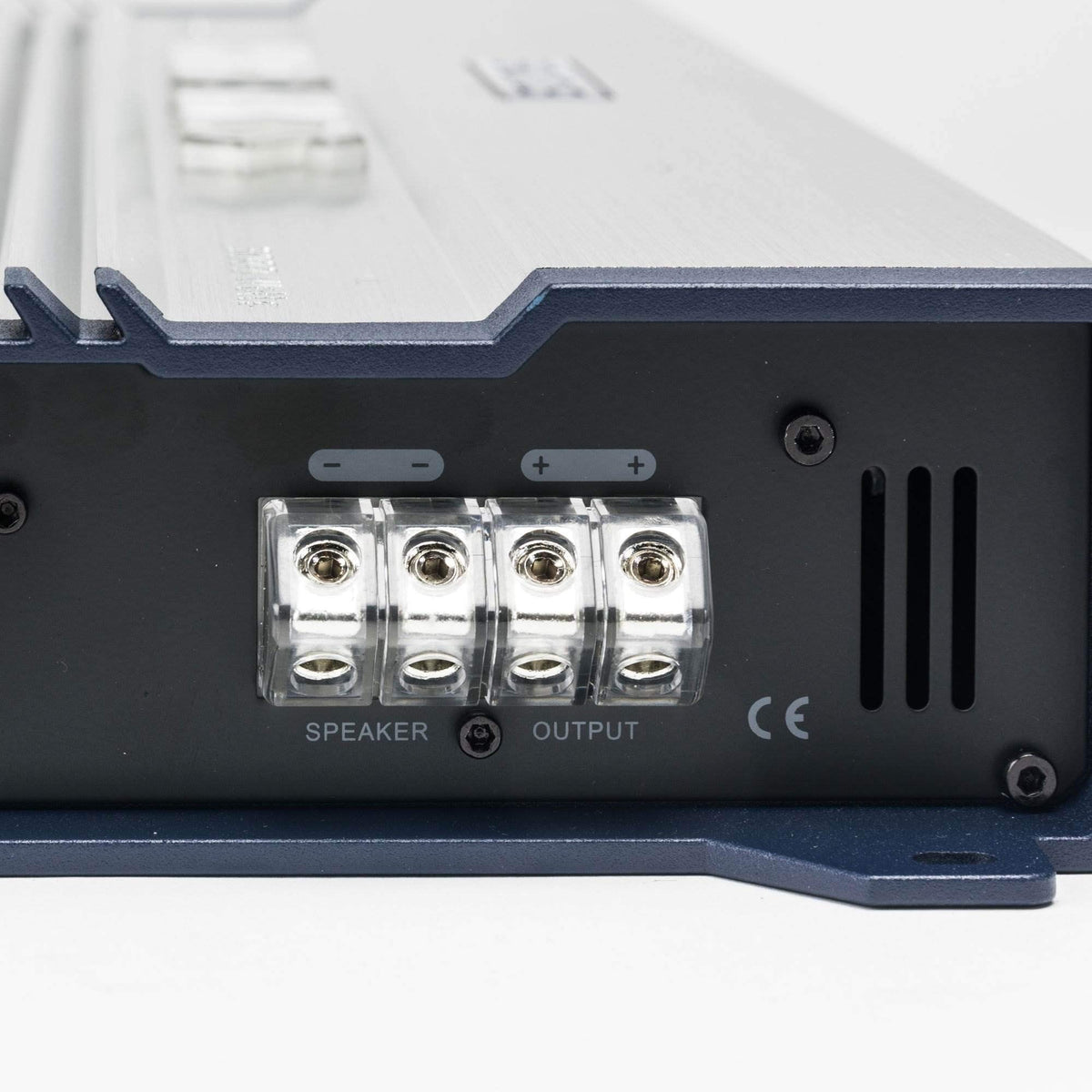

The BXX3000.1D uses a metal and plastic housing with an aluminum heat-sink design. Its connection hardware includes nickel-plated RCA jacks and high-temperature, impact-resistant nickel-plated output connectors with Allen-head set screws. The amplifier measures 25.1 inches long, so installation space should be planned before purchase.

Use 0 AWG power and ground cable at the amplifier terminals, 10 AWG speaker wire at the output terminals, and an external 250A fuse on the main power cable. Mount the amplifier securely in a dry, ventilated location and keep it upright rather than upside down. Connect RCA inputs from the source unit, set gain as a signal-match control rather than a volume control, and confirm that final subwoofer wiring does not fall below 1 ohm.
