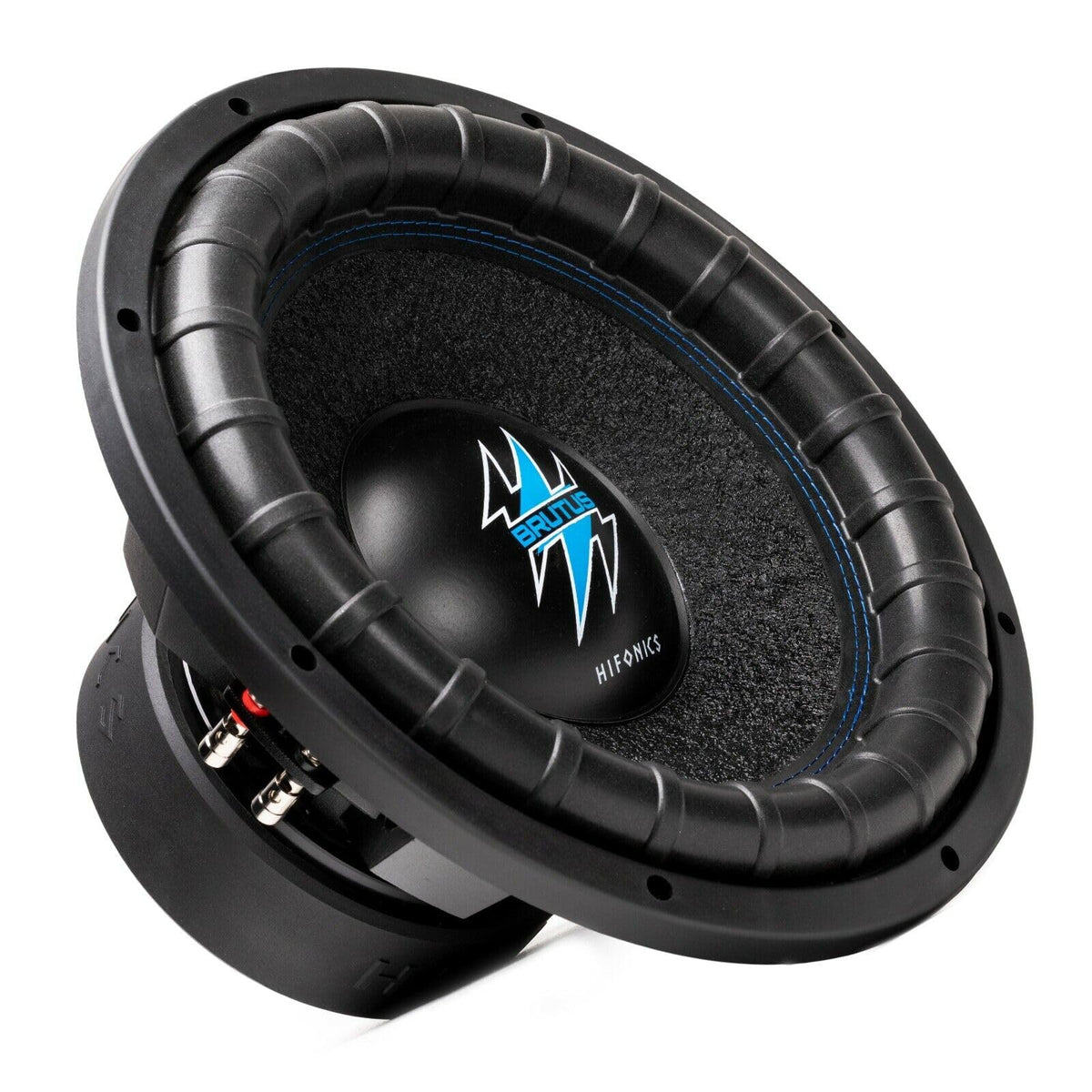

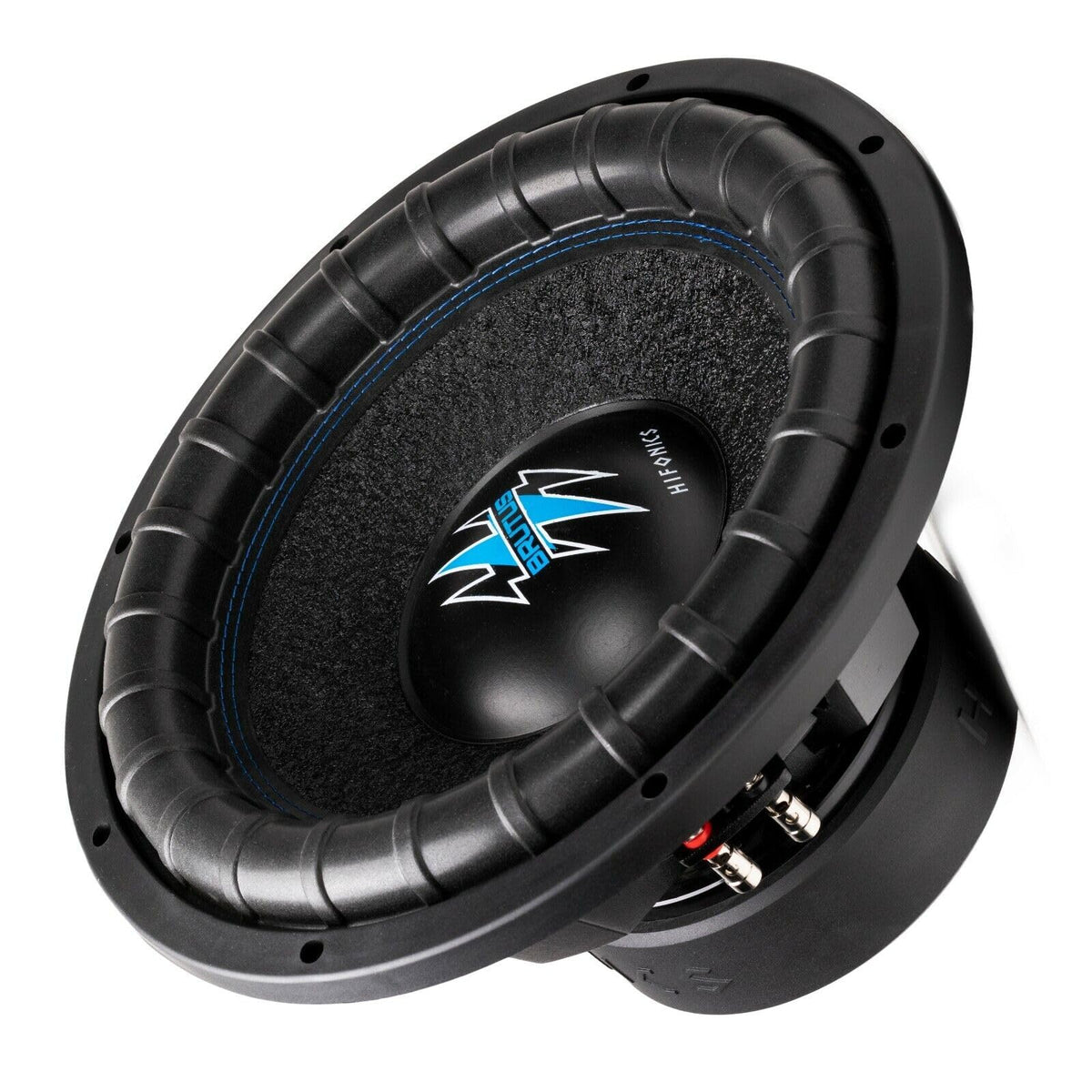

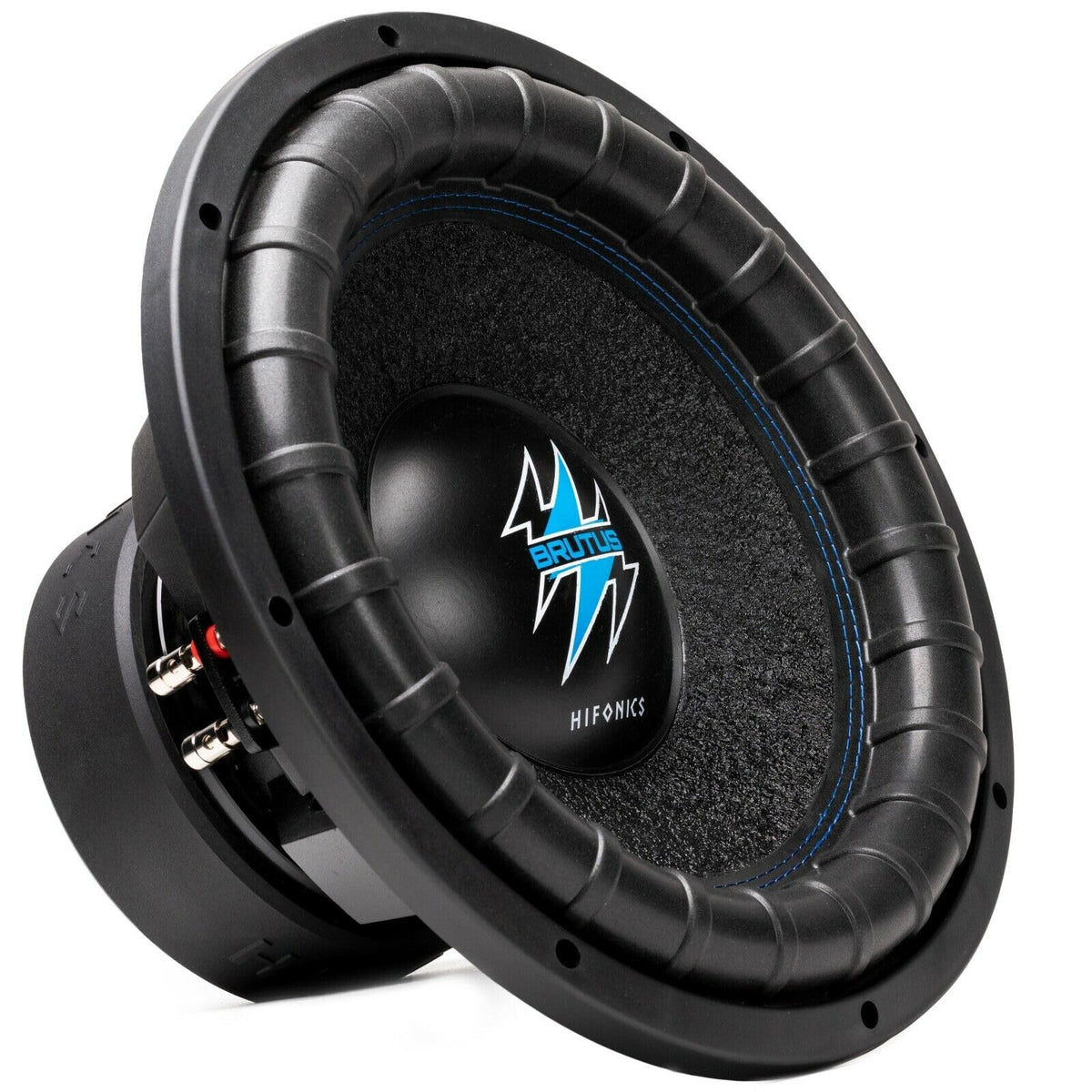

Hifonics BRW15D4 15" Dual 4-Ohm Car Subwoofer

The Hifonics BRW15D4 is a 15-inch component car subwoofer designed to add dedicated low-frequency output to an amplified vehicle audio system. It is intended for installations where factory or full-range speakers alone cannot reproduce the depth and impact of bass-heavy music. Because it is a component subwoofer, it requires a separate enclosure and external amplifier.

This model uses dual 4-ohm voice coils, giving installers wiring flexibility when matching the subwoofer to a compatible amplifier. Its published power handling is 1,500 watts RMS and 3,000 watts maximum. The large 15-inch format is suited to systems built around substantial bass output rather than compact-space installation.

The BRW15D4 is built around a 3-inch voice coil on a vented aluminum former. The vented former is designed to help exchange heat during operation, supporting more consistent performance when the subwoofer is driven for extended listening sessions. A vented high-energy motor assembly uses dual 70-ounce magnets.

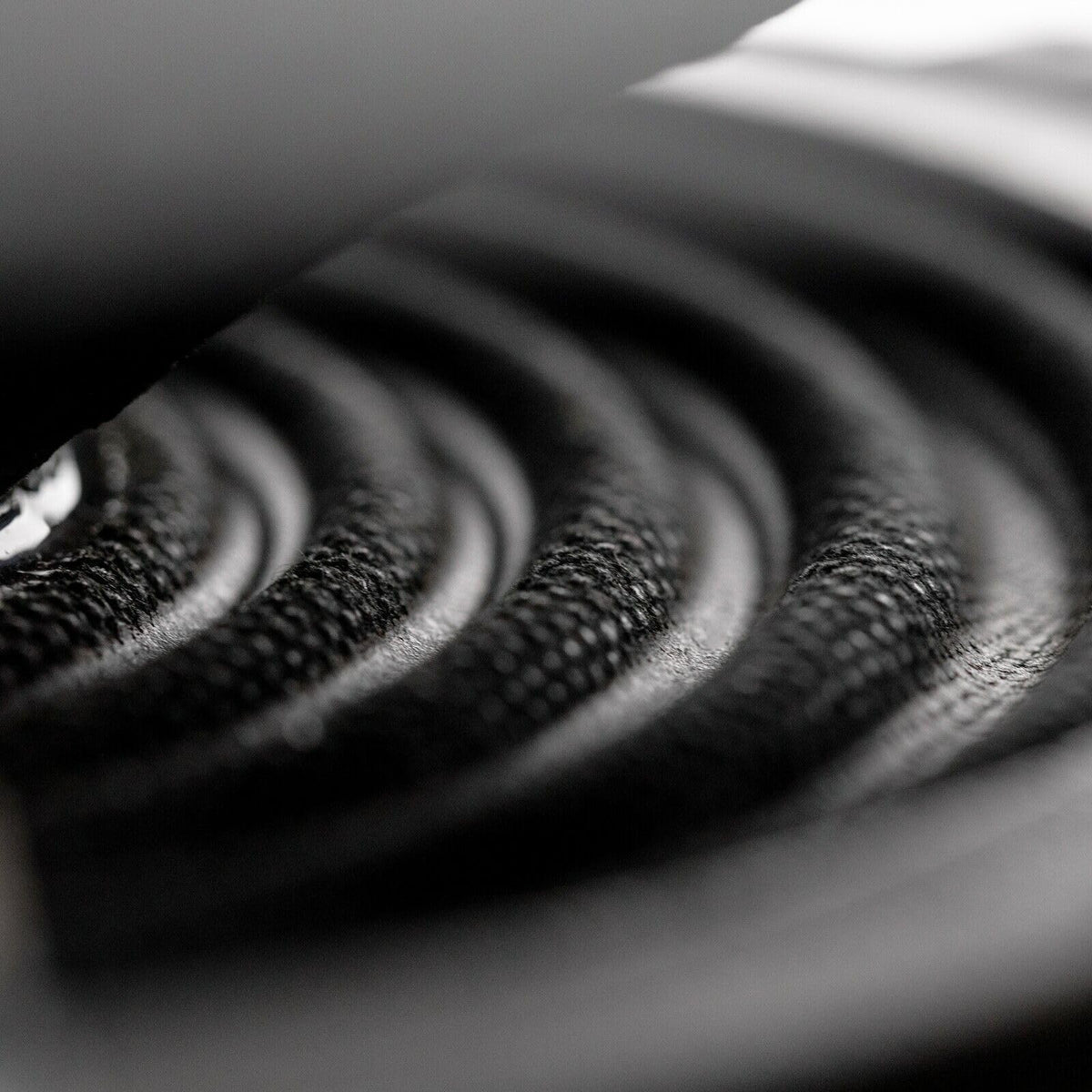

Its suspension system combines a pressure-treated, double-stitched ribbed foam surround with a dual poly-cotton spider. This arrangement is intended to help keep cone travel controlled and linear. Double centering in the spider assembly supports stable piston motion under power.

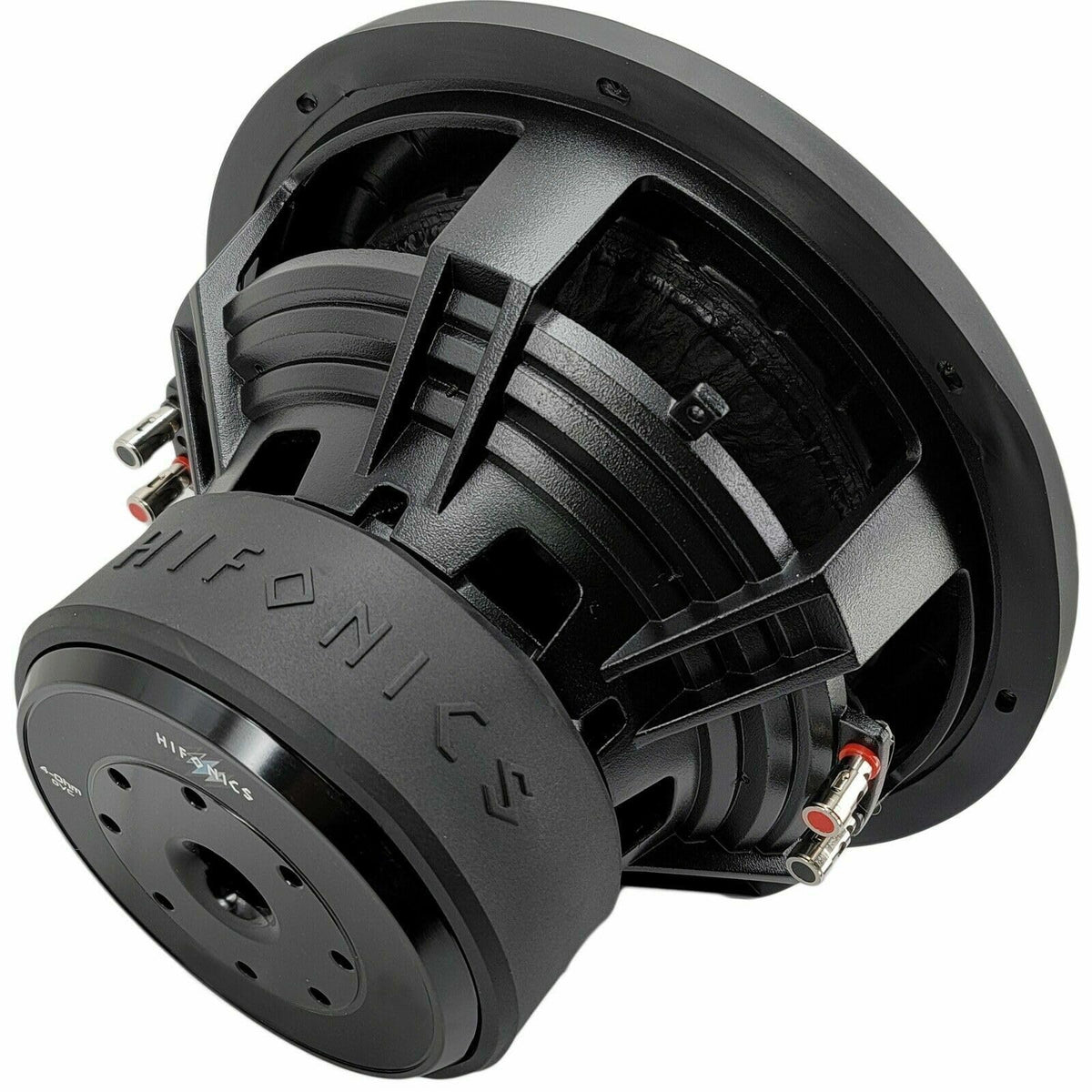

A heavy-gauge aluminum die-cast basket provides the structural foundation for the woofer and includes rear venting. The powder-coated frame is designed for the demands of mobile-audio installation while helping airflow reach the motor area. Pair the BRW15D4 with a properly sized enclosure and an amplifier that is stable at the final impedance created by its dual voice coils.

Key Features

• 15-Inch Component Subwoofer: Provides dedicated low-frequency reproduction for a custom car-audio system.
• Dual 4-Ohm Voice Coils: Offers wiring options for matching a compatible amplifier.
• 1,500-Watt RMS Handling: Supports sustained amplified bass output within its rated capability.
• 3-Inch Vented Aluminum Former: Helps manage heat around the voice-coil assembly.
• Dual 70-Ounce Magnets: Forms part of the vented high-energy motor assembly.
• Die-Cast Aluminum Basket: Provides a rigid, powder-coated mounting structure with rear venting.

Design & Installation

The BRW15D4 uses a heavy-gauge, powder-coated aluminum die-cast basket, a vented motor structure, and a pressure-treated double-stitched ribbed foam surround. Its dual poly-cotton spider uses double centering to support controlled cone movement. The 3-inch voice coil is mounted on a vented aluminum former for heat exchange.

Install this subwoofer in a purpose-built subwoofer enclosure; it is not a self-powered or enclosed subwoofer. Use an external amplifier and wire both dual 4-ohm voice coils according to the amplifier's supported load and the desired final impedance. Confirm enclosure dimensions, available mounting clearance, amplifier capability, and vehicle electrical capacity before installation.
